additional coolant temperature guage

Matt2e0fgx · Jul 17, 2021

Hello , I like to add a additional coolant temperature guage and sensor with the warm weather and doing quite a bit of Laning up hills and the like .

My question is where is a good place to put the fitting tube for the sensor ? In the top hose before the head connection ?

Thanks in advance

flat · Jul 17, 2021

Just bin the srandard inaccurate gauge and put the new gauge in its place. Then the sender for the new gauge in whatever the location is for the factory sender on whatever engine you have

Matt2e0fgx · Jul 17, 2021

flat said:
Just bin the srandard inaccurate gauge and put the new gauge in its place. Then the sender for the new gauge in whatever the location is for the factory sender on whatever engine you have

it's a td5 and problem is most things go though a bcu or the ECU so not that simple and the dash guage is built in the dash board not individual clocks like a defender or a series . it's on a disco 2

discool · Jul 18, 2021

Matt2e0fgx said:
Hello , I like to add a additional coolant temperature guage and sensor with the warm weather and doing quite a bit of Laning up hills and the like .

My question is where is a good place to put the fitting tube for the sensor ? In the top hose before the head connection ?

Thanks in advance

I have a Kenlow fan fitted to one of my cars, the sensor is inside the top hose where it connects to the radiator, and still works perfectly at the temperature I set years ago. So I don't see why not a similar fitment for a dash mounted temp gauge.

sierrafery · Jul 19, 2021

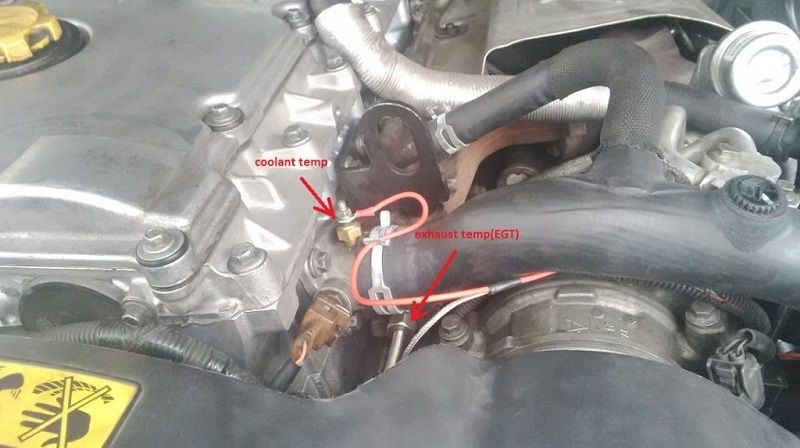

Drill into the elbow and cut thread in it like i did

lynall · Jul 19, 2021

sierrafery said:
Drill into the elbow and cut thread in it like i did

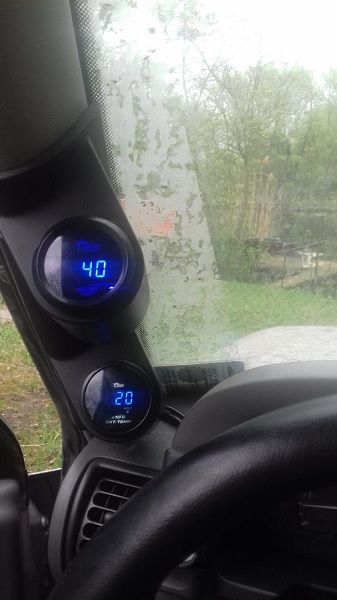

View attachment 243150
View attachment 243151

Nice and neat, I like that.

tom1979 · Jul 19, 2021

sierrafery said:
Drill into the elbow and cut thread in it like i did
View attachment 243150
View attachment 243151

There's not a lot of meat on those housings, I seem to remember you did that several years ago so it's good it's held up and I may well end up doing the same. I bought the Gore housing and added the sender for the Durite guage, however the sender does not sit fully in the coolant flow and I found the reading was not accurate.

sierrafery · Jul 19, 2021

Mine is working that way without any leak from the beginning, no nead for much "meat" at that pressure just a bit of loctite, i also changed the sensor once cos as it was chinese the first one failed after about 2 years and no problems with the fitting though if you are scrupulous you can just drill and insert a rivnut there then it will be more meat

Matt2e0fgx · Aug 2, 2021

I could weld a peice of Ali bar onto the housing and drill and tap that so a bit more meat potentially
