83 landrover 90 dash wiring identification

This site contains affiliate links for which LandyZone may be compensated if you make a purchase.
haza88

haza88

Well-Known Member
Posts
1,138

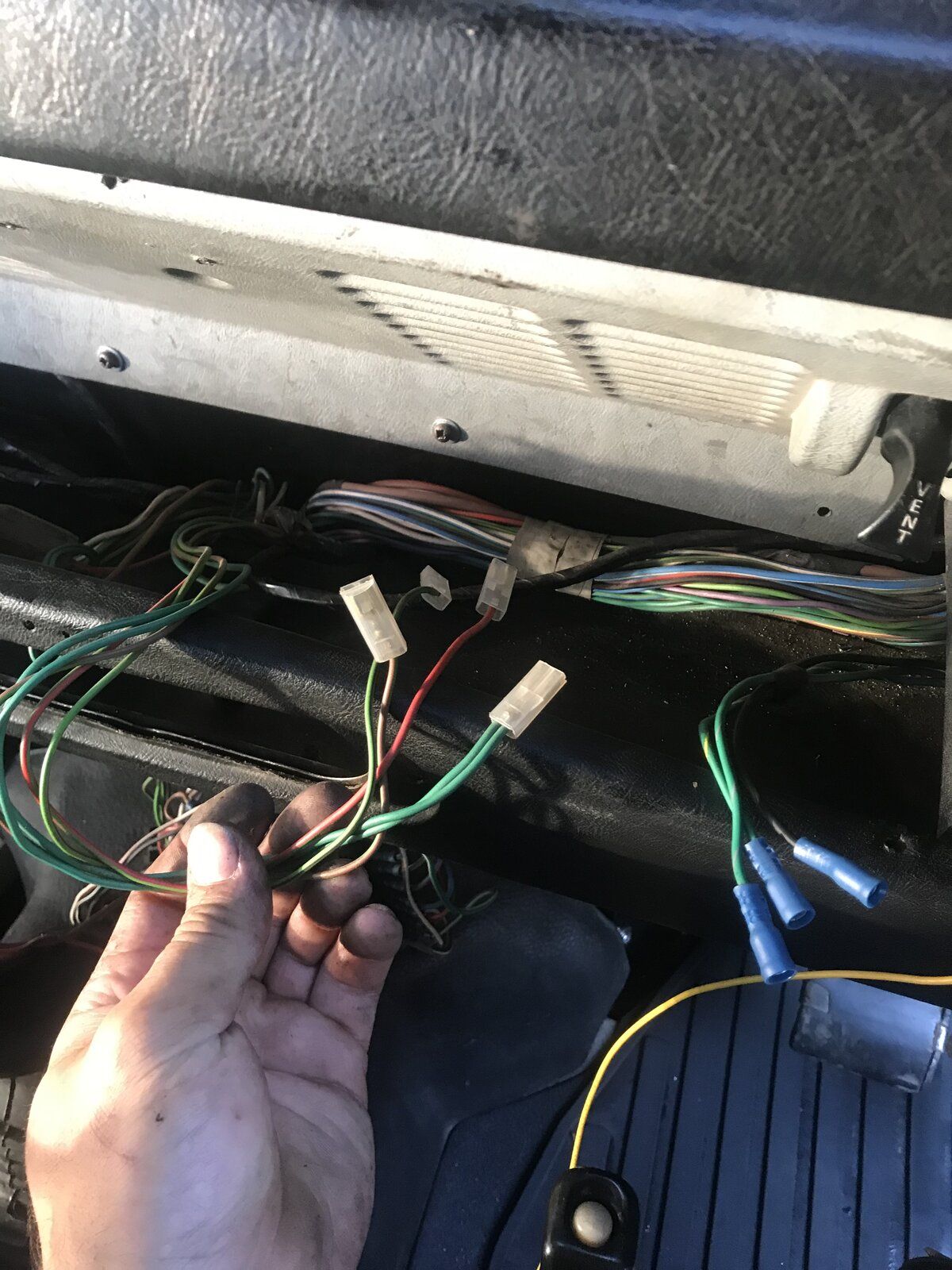

Could any one shed some light on what the below connectors are for?

Any help much appreciated



Unsure what the 3 blue are for poss the heater control as it’s missing?

And the four white connectors?

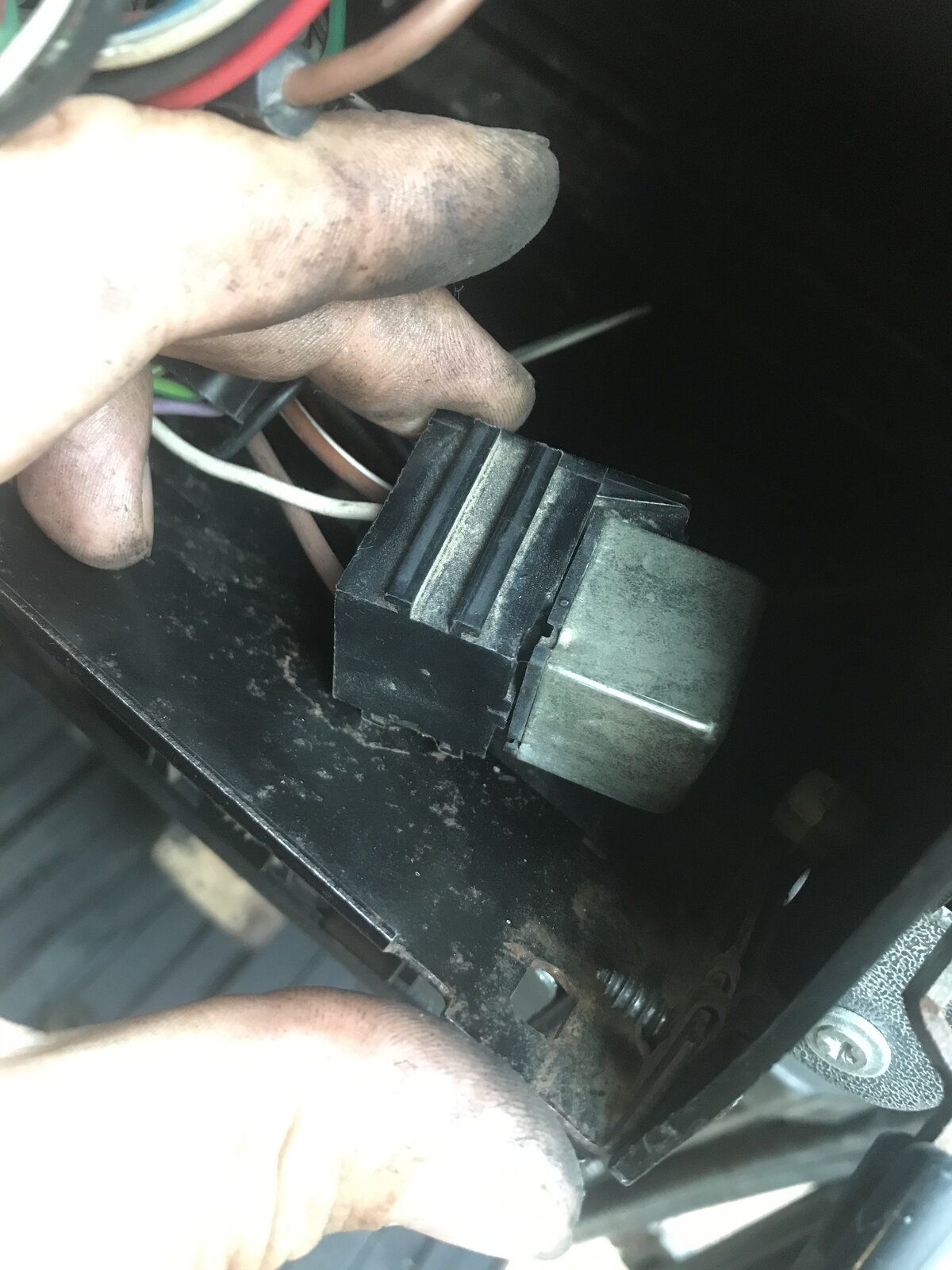

This scotch locked switch supplies the below relay behind dash

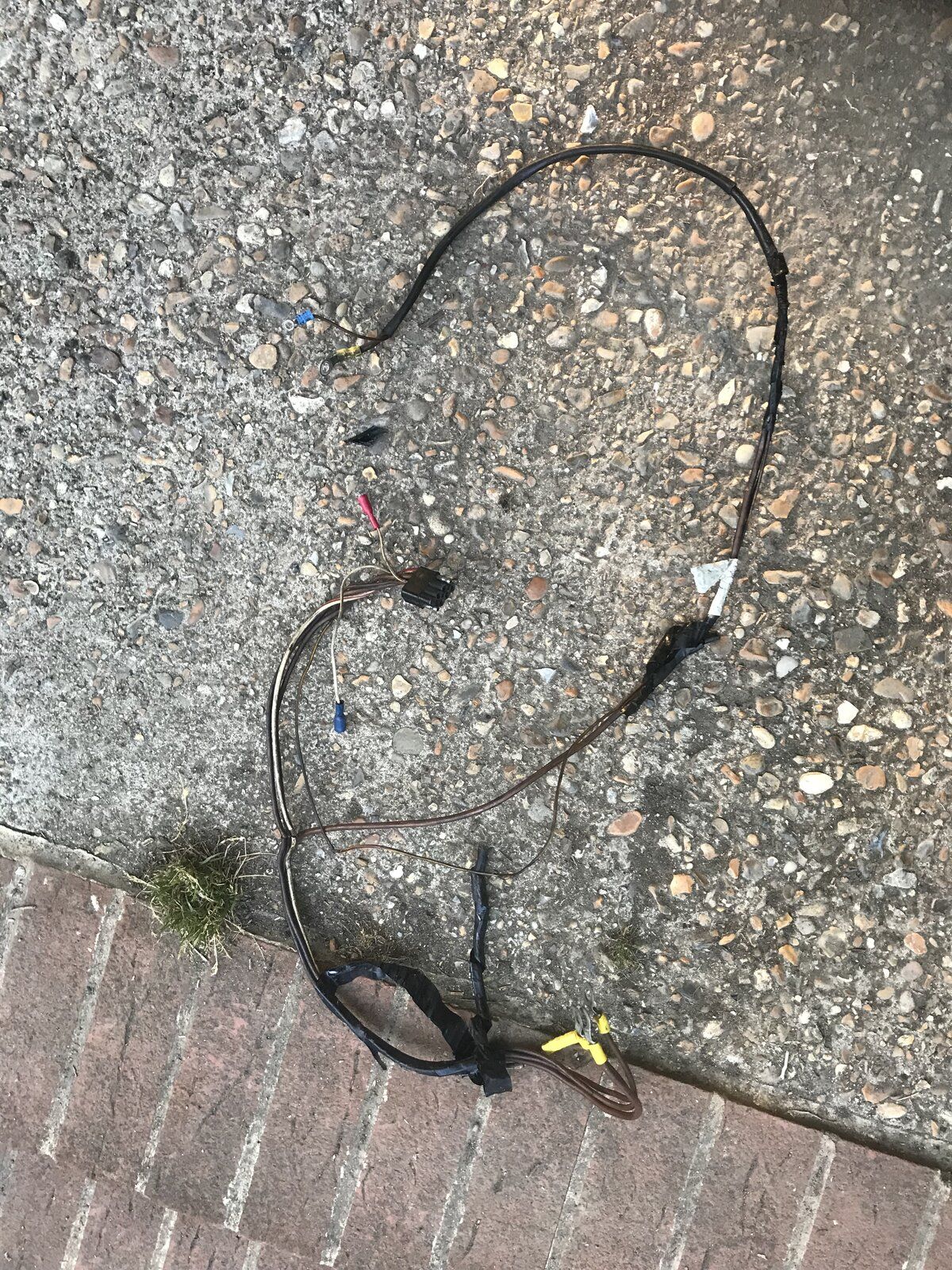

And to add is the starter alternator loom still available to buy as after I put my hand behind the engine it starter turning over the engine buy itself to my surprise , pulled loom apart dried and cracked copper touching each other

haza88 said:
Could any one shed some light on what the below connectors are for?

Any help much appreciated

View attachment 271100

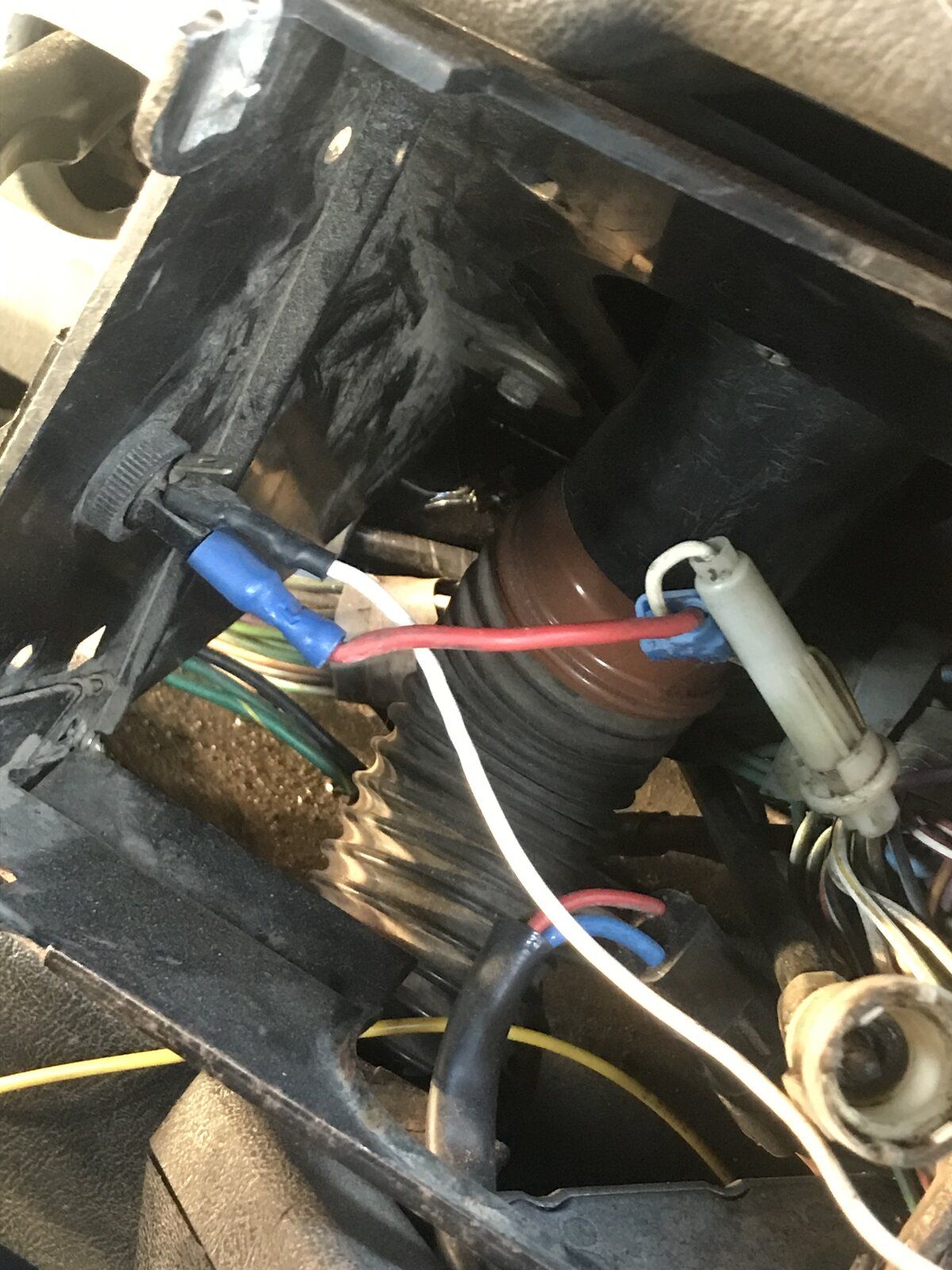

Unsure what the 3 blue are for poss the heater control as it’s missing?

And the four white connectors?

View attachment 271101

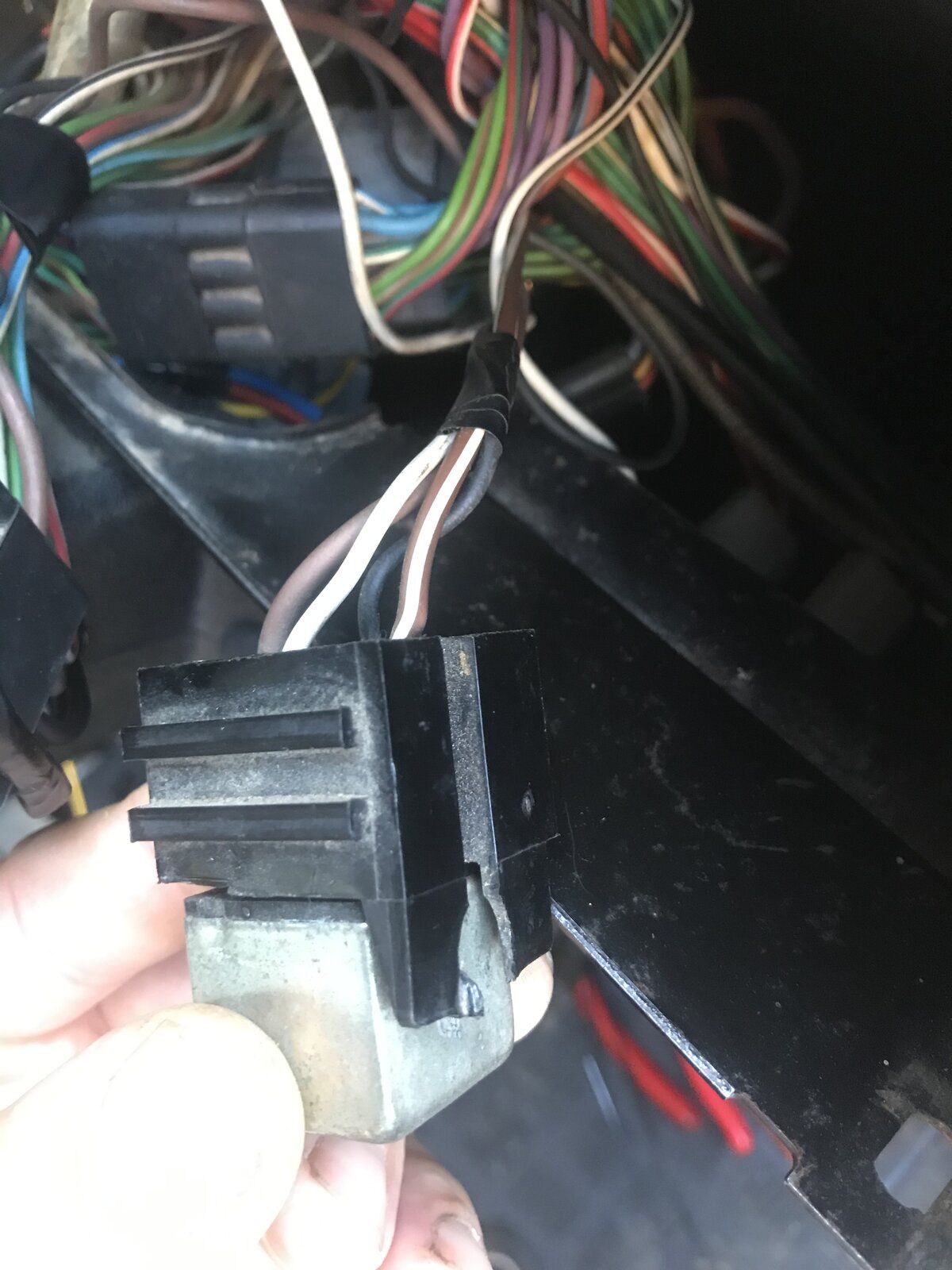

This scotch locked switch supplies the below relay behind dash

View attachment 271102
Click to expand...

Not sure on the white and blue connectors, but the switch looks like an add on. Can you see what the relay is powering?

Yea the switch is aftermarket want to put it back to standard , will chase the wires further when time allows

It's like that is it? My 90 was the same when I got it, started off as a petrol V8 then someone put a diesel V8 in (that's when I got it). Had loads of unnecessary wires all over the place and holes in the dash where switches/guages were. Ripped it all out and rewired it all moving the fuse box under the bonnet

Still struggling with this mystery relay and aftermarket switch traced the brown and white wire to the fuse box look like it does nothing






Cheers I did have a look at the Haynes manual wiring diagrams but couldn’t see any thing with them colours

Have look at the window heater relay diagram, it's probably on a separate page.

Don't understand why that brown/white wire is linked to both sides of the fuse holder, would have thought the left hand side wire in your picture should go off to the unit its powering

haza88 said:
Cheers I did have a look at the Haynes manual wiring diagrams but couldn’t see any thing with them colours
Click to expand...

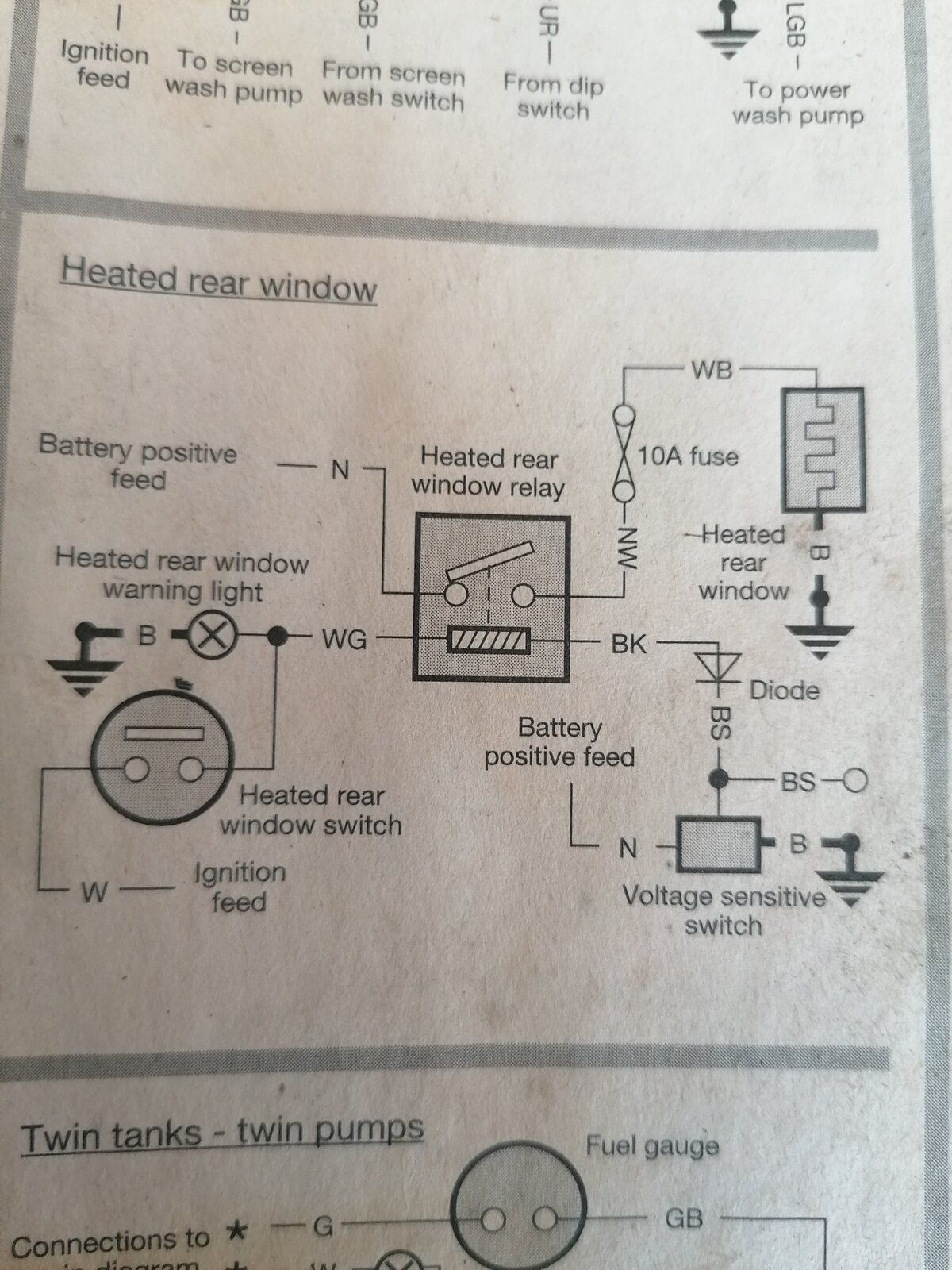

Just had a look at the manual,


(NW is brown white)
Have you got a white/black disconnected wire floating around the fuse box area somewhere? This would be from the heater element.

I’ll have a look tommorrow thank u for the pic much appreciated but wg is white green which I also don’t have

Not knowing history of vehicle but judging by crimp connectors it's had major interference and could have had a partial portion of the loom replaced from another Defender

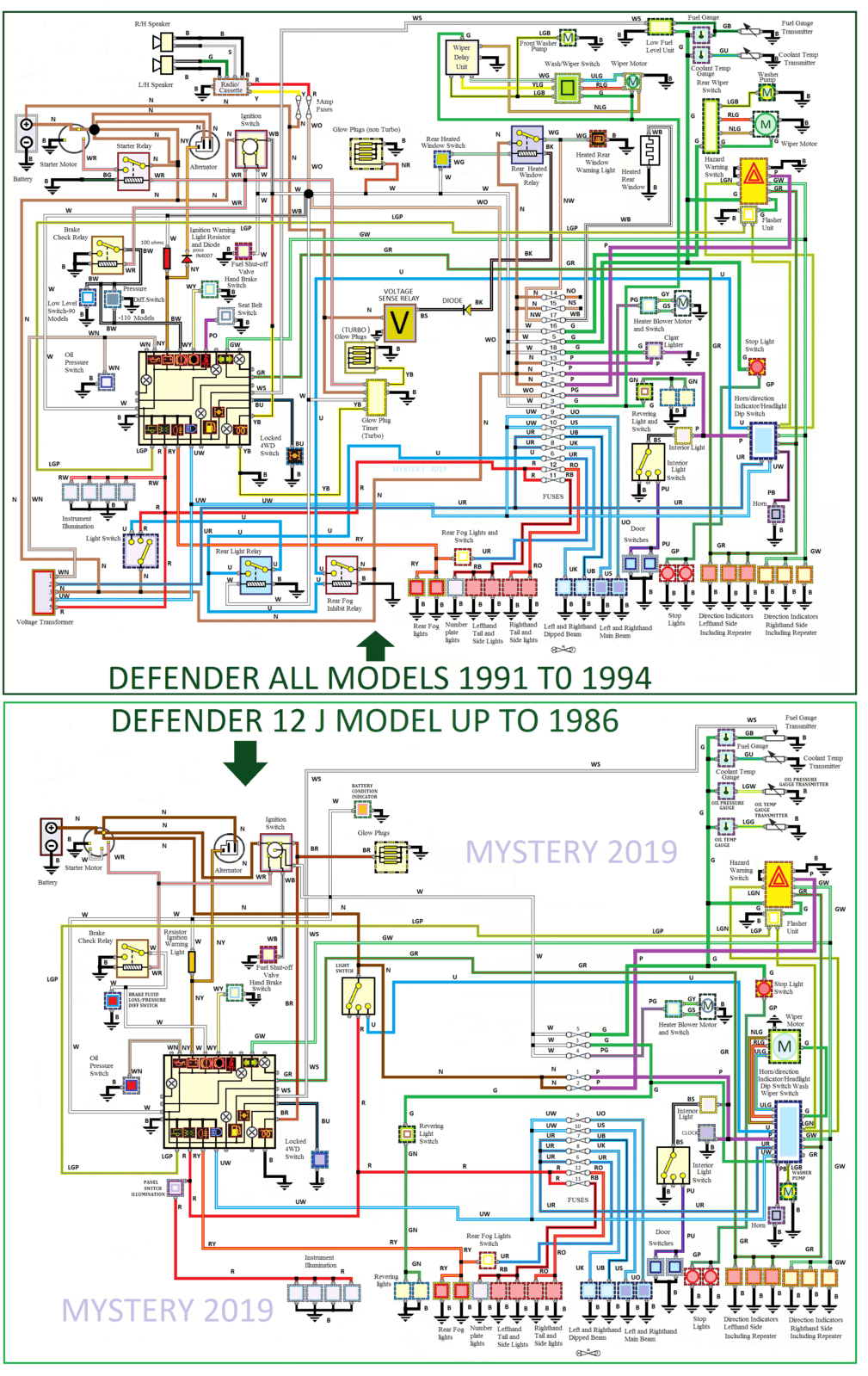

Defender 1991 to 1994 and 1986 12j engine.png

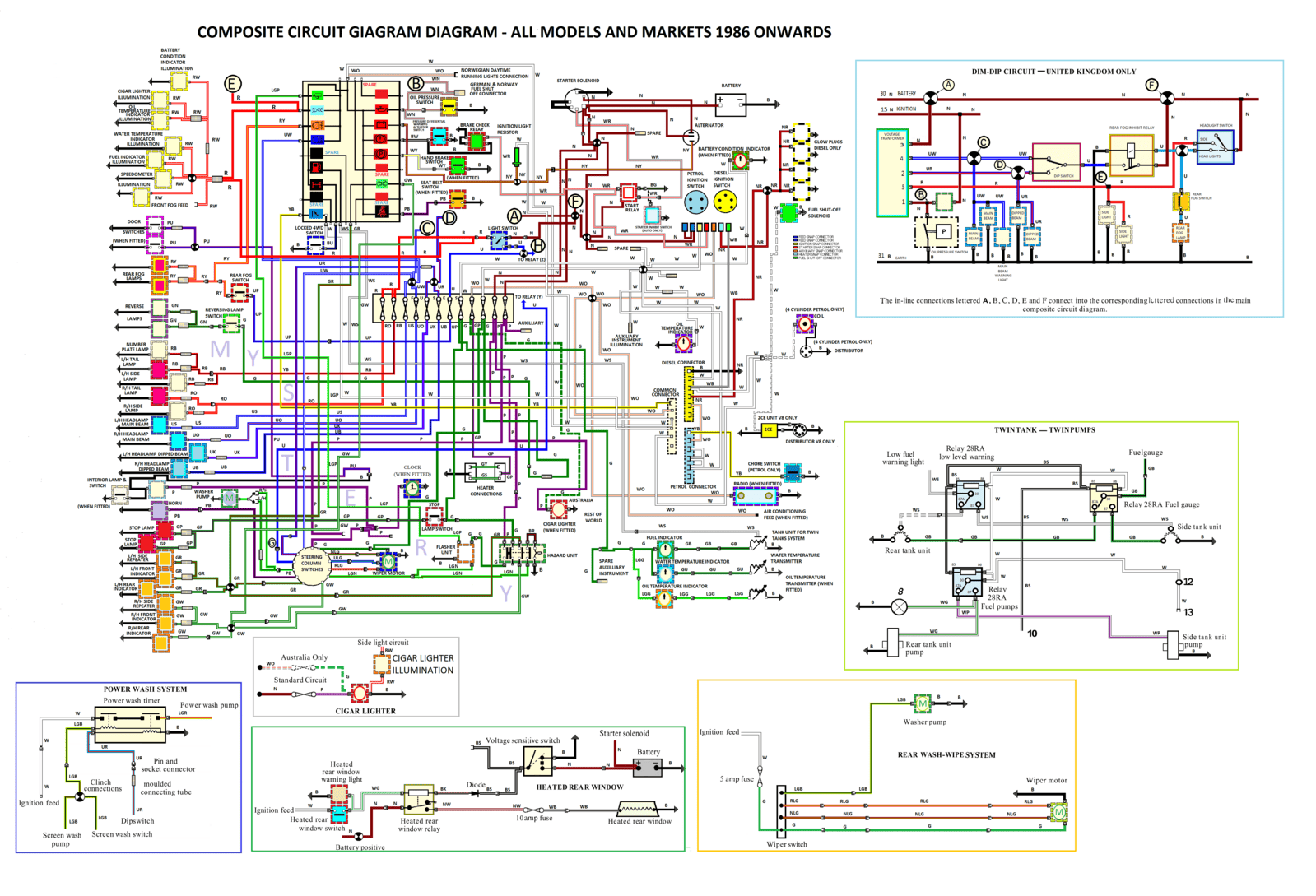

THE MASTER SQUARE.PNG

Thank you very much will print them off and have a look through and yea I think it’s had some bodges over the years
