Disco 1 300tdi

Mellbell · Nov 8, 2022

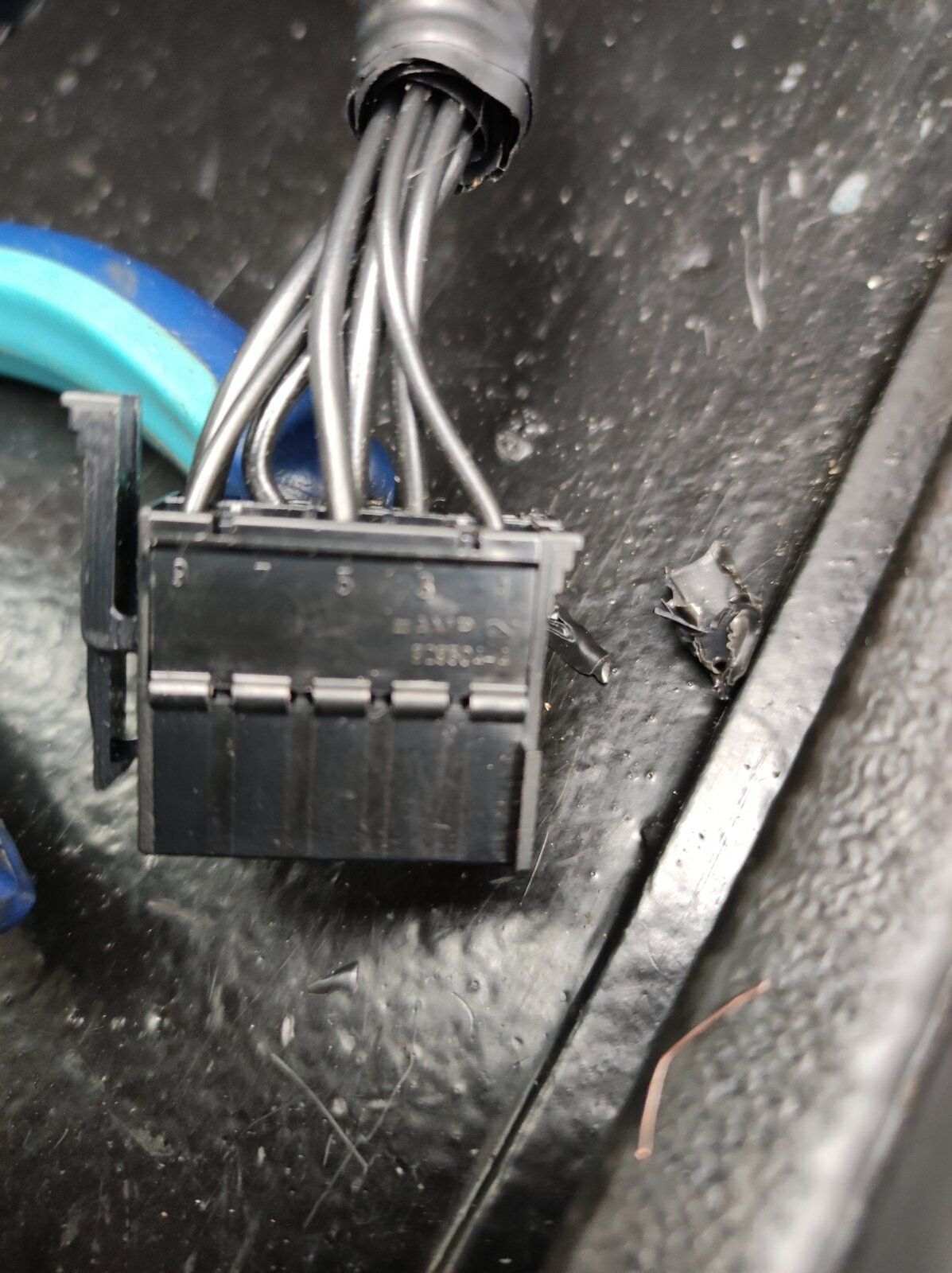

Reply to last nights thread.the black wires I were asking about been told they are earth connection connectors.
So I had another look at them and in very small writing it says amp.so I got my test light out and two out of about six or seven are live.
Been thinking is this not the cable for the spider connection.
It's a brand new engine harness

Stanleysteamer · Nov 8, 2022

1/ try to keep to the same thread it saves confusion!

2/ it must be something you do not have and is thus not connected,OR something you do have which is missing its connection!
Does it have a part number on you could Google or tell us about?

discool · Nov 8, 2022

Ok more information, which could have been included in your previous thread for an easy identification.

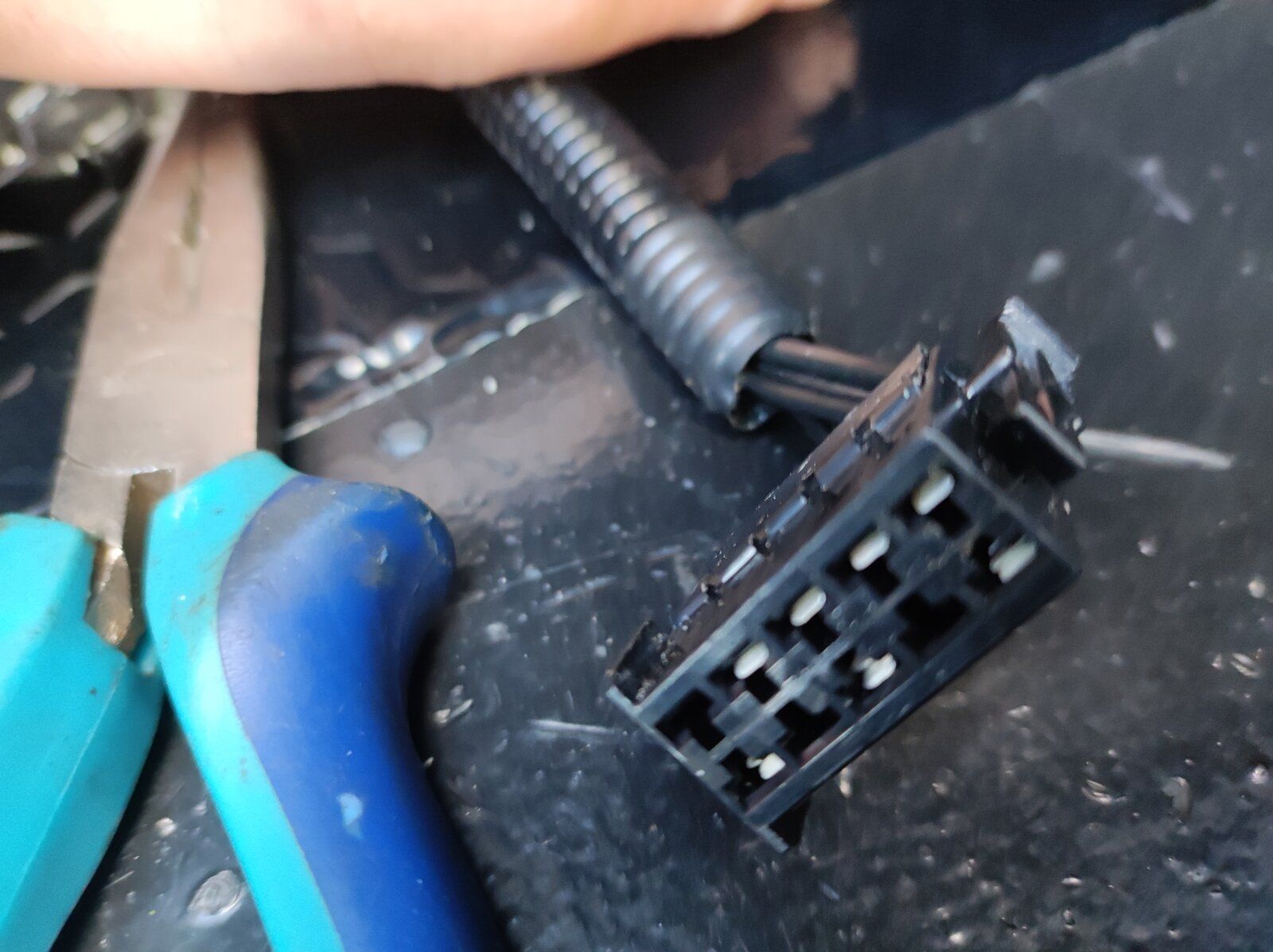

Anyway that 10 way connector was used with the ‘spider’ engine immobiliser ecu,
The spider was installed in the dash below the radio head unit, thats where the connection would be laying normally.
So no “must be” searching required

Sent from my iPad or a train.

Stanleysteamer · Nov 8, 2022

discool said:
Ok more information, which could have been included in your previous thread for an easy identification.

Anyway that 10 way connector was used with the ‘spider’ engine immobiliser ecu,
The spider was installed in the dash below the radio head unit, thats where the connection would be laying normally.
So no “must be” searching required

Sent from my iPad or a train.

No, now you have deigned to tell him!
