300TDi headlight upgrade . . . . Help!
- Thread starter oggie
- Start date
This site contains affiliate links for which LandyZone may be compensated if you make a purchase.
yella
New Member
- Posts
- 15,991
yes
yella
New Member
- Posts
- 15,991
its not as easy as you would think, pm me yer email and i will send you the template along with instructions
yella
New Member
- Posts
- 15,991
you got mail
I've also bought these lights. Any chance of a copy off those insructions???/ Cheers Mac
My email is [email protected]
My email is [email protected]
shinydiscoball
New Member
- Posts
- 1,242
- Location
- Weardale in sunny County Durham
Ya'll be lucky if yer get them I've been after them for a while, but if anyone has got em PM me pretty plz
mark-d
Well-Known Member
- Posts
- 1,107
- Location
- Netherlands

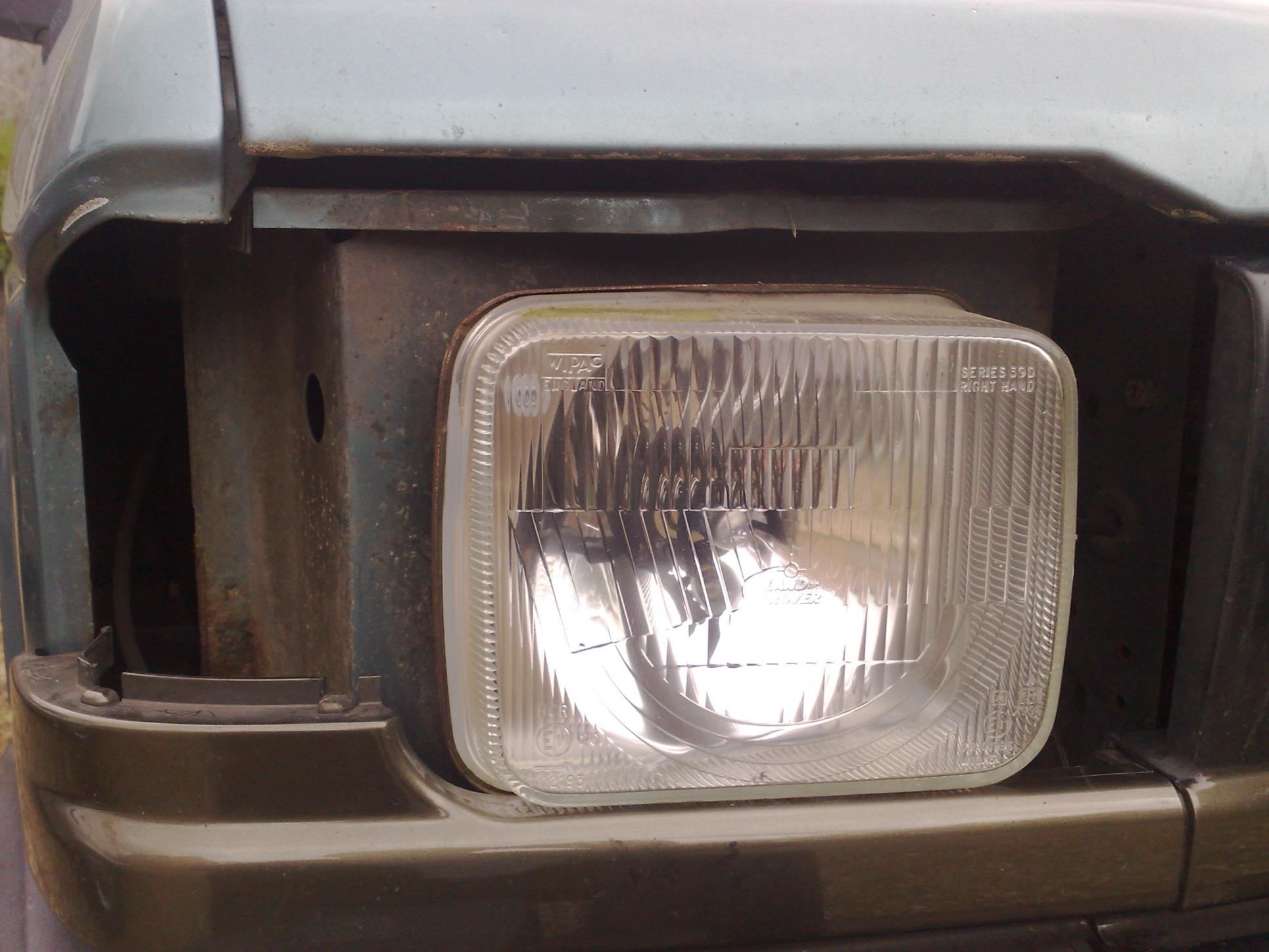

i recently fitted 300 lights in my 200
i did not cut anything as others have i bent the part that was catching out of the way its only a little bit and wouldnt be noticed.

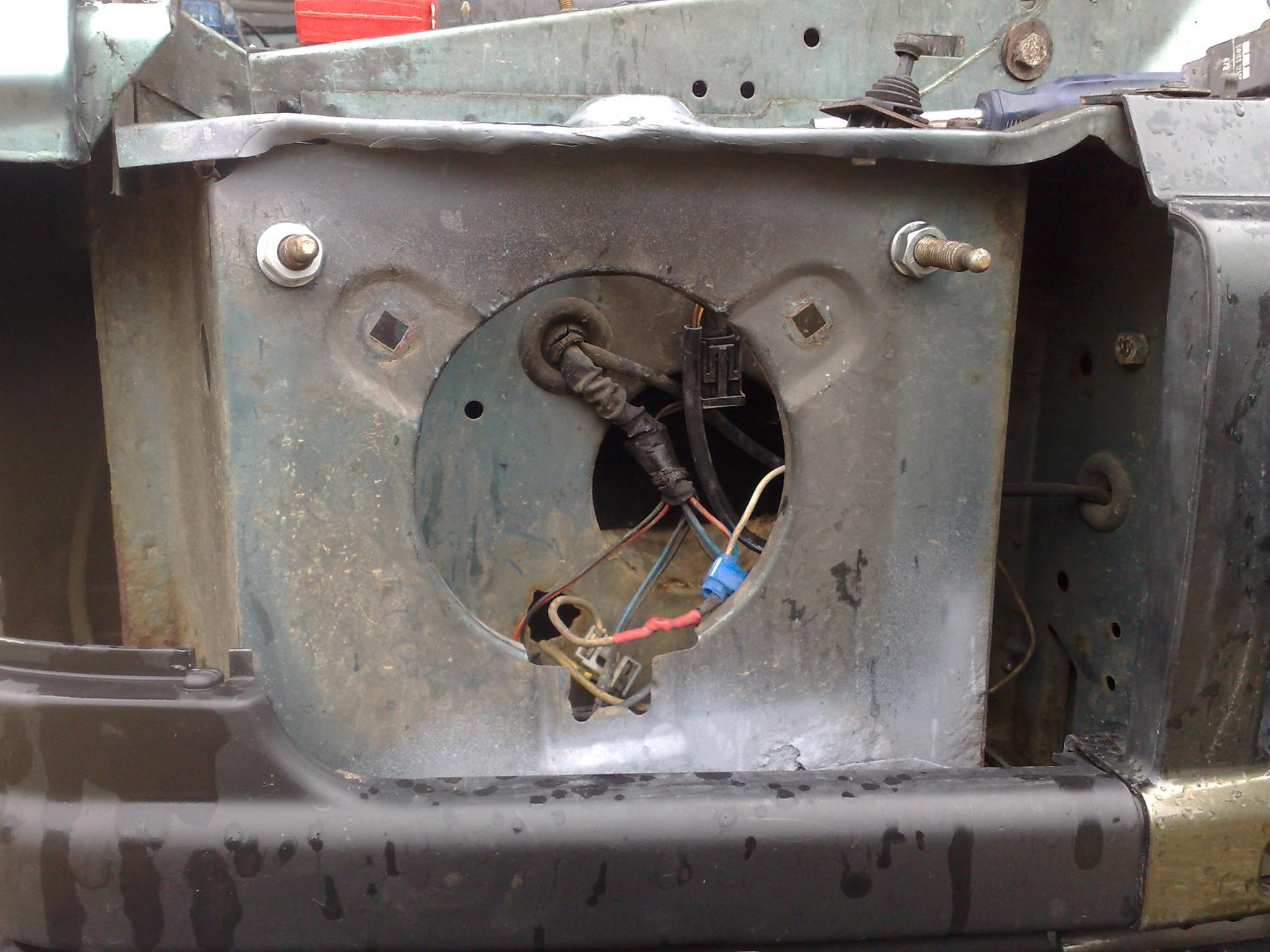

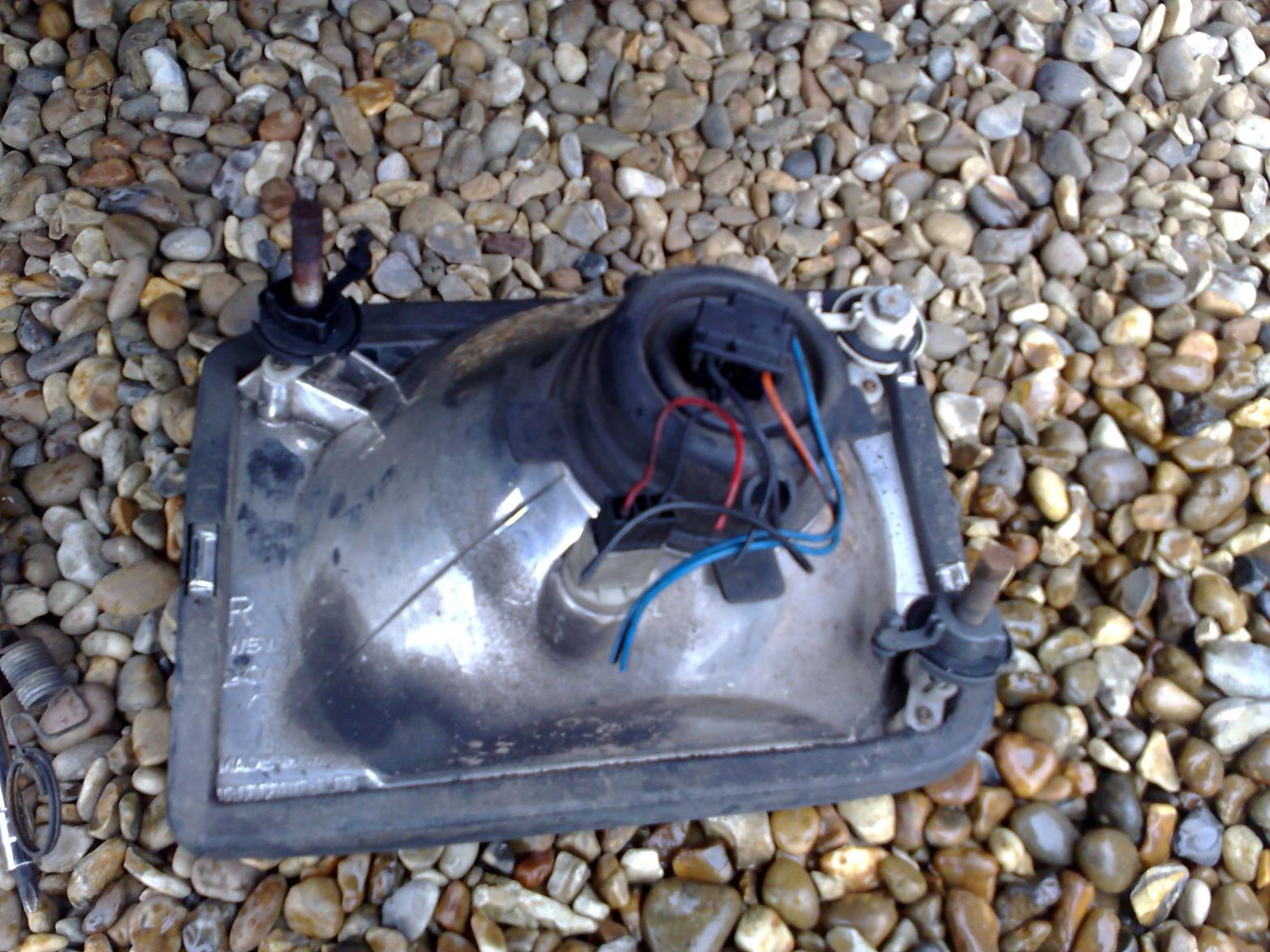

what i done was drill 3 holes for the ajusters to go through. its a bit tricky to get them spot on but can be done with some carefull mesuring.
what i done first was use nuts on the ajusters one each side of the front panel to hold the ajusters tight i fine a good till you need to ajust them so i welded a nut to the front panel for the ajuster to screw into and put one on the back to lock it off when ajusted. after doing this the lights are very secure.
the grill and trims under the lights do straight in and if you put them in first it helps align the lights. just need to secure the outer corners with a braket or maybe tie wrap.
the indicators clip on the trims at the bottom and held in by springs i just tie wraped these to the front panel that holds them ok but might be a better way to do it.
the headlight bulbs are the same but the side lights differ can cut a join the wires same with the indicators but i did trim my 200 indicator bulb holders down and they fitted ok.
hope this helps
i did not cut anything as others have i bent the part that was catching out of the way its only a little bit and wouldnt be noticed.
what i done was drill 3 holes for the ajusters to go through. its a bit tricky to get them spot on but can be done with some carefull mesuring.
what i done first was use nuts on the ajusters one each side of the front panel to hold the ajusters tight i fine a good till you need to ajust them so i welded a nut to the front panel for the ajuster to screw into and put one on the back to lock it off when ajusted. after doing this the lights are very secure.
the grill and trims under the lights do straight in and if you put them in first it helps align the lights. just need to secure the outer corners with a braket or maybe tie wrap.
the indicators clip on the trims at the bottom and held in by springs i just tie wraped these to the front panel that holds them ok but might be a better way to do it.
the headlight bulbs are the same but the side lights differ can cut a join the wires same with the indicators but i did trim my 200 indicator bulb holders down and they fitted ok.
hope this helps
- Posts
- 83,232
- Location
- Embasinga stocæ
anyone gorra set of 300tdi lights & surrounds they wanna get rid of?
Pikey
Dummy Ejection Facilitator..
- Posts
- 47,185
- Location
- in Baron Wet Bum's Slave pit..
mark-d
Well-Known Member
- Posts
- 1,107
- Location
- Netherlands
- Posts
- 83,232
- Location
- Embasinga stocæ
how much? doneRobinT's got a set I can sell yu.
Pikey
Dummy Ejection Facilitator..
- Posts
- 47,185
- Location
- in Baron Wet Bum's Slave pit..
how much? done
Yu start chatting to him on MSN & I'll go and pikey em off his disco..
- Posts
- 83,232
- Location
- Embasinga stocæ
Yu start chatting to him on MSN & I'll go and pikey em off his disco..
erm.....
couldnt yu Pikey em off someone i dont know?
Pikey
Dummy Ejection Facilitator..
- Posts
- 47,185
- Location
- in Baron Wet Bum's Slave pit..
tis ok one set of lights is the same as anuffer he'll never know yu bought em!!
Yu cud ask DV! a little birdy has just telt me he might have a set for sale?
Yu cud ask DV! a little birdy has just telt me he might have a set for sale?
