300TDI Doughnut

9

9255 steve

Member

Posts

19

• May 26, 2024

• #1

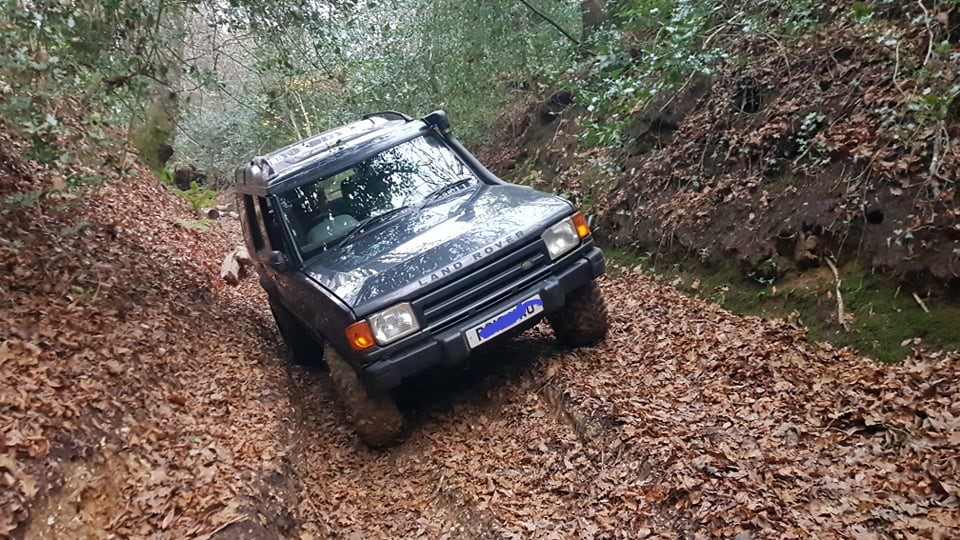

We were using our 300tdi for some extreme hill climbing on slippery rocky wet ground today and had issues. I have raised suspension (2 inches) and have issues with the prop shaft doughnut collapsing I think 3 have been replaced in one year. This time it was necessary to remove the prop in a layby miles from home so I seek a solution. What can resolve the issues of the excessive diff to prop shaft angle. Any help would be appreciated, I'm sure several solutions exist but which.? Thankyou.



Attachments

•

  227.6 KB · Views: 77

miktdish

Guns n Chainsaws

Full Member

Posts

4,603

Location

Near Lanark, South of Glasgow. Scotland

• May 26, 2024

• #2

One of these perhaps ?

Disco 1 300Tdi Rear Propshaft Doughnut Removal Kit

FRC8387 STC4858 DA1423 539745 This kit will enable you to remove that pesky unreliable doughnut coupling TVF100010 that is fitted from factory The

www.mm-4x4.com



Knappster

Well-Known Member

Full Member

Posts

3,654

Location

Stroud

• May 26, 2024

• #3

I replaced the old doughnut with a disco 200Tdi rear prop and rear diff flange. The flange is different on the 300Tdi and is not compatible with a 200Tdi prop.



9

9255 steve

Member

Posts

19

• May 26, 2024

• #4

Knappster said:

I replaced the old doughnut with a disco 200Tdi rear prop and rear diff flange. The flange is different on the 300Tdi and is not compatible with a 200Tdi prop.

Click to expand...

Why did you replace it , did you have issues , did it resolve any ? Thanks

miktdish said:

One of these perhaps ?

Disco 1 300Tdi Rear Propshaft Doughnut Removal Kit

FRC8387 STC4858 DA1423 539745 This kit will enable you to remove that pesky unreliable doughnut coupling TVF100010 that is fitted from factory The

www.mm-4x4.com

Click to expand...

Thanks for the link, did the parts you fitted have a sliding joint fitted to the prop shaft, not clear in the pictures. Thanks.



A

Anaconda

Well-Known Member

Posts

3,694

Location

Thames Valley

• May 26, 2024

• #5

9255 steve said:

Why did you replace it , did you have issues , did it resolve any ? Thanks

Thanks for the link, did the parts you fitted have a sliding joint fitted to the prop shaft, not clear in the pictures. Thanks.

Click to expand...

Propshaft will have a sliding joint.



Knappster

Well-Known Member

Full Member

Posts

3,654

Location

Stroud

• May 26, 2024

• #6

My disco also had a 2 inch lift. The doughnut never lasted more than 2-3 years which may have been in part due to the lift. Never had an issue with the 200Tdi prop.



Stanleysteamer

Well-Known Member

Full Member

Posts

45,046

Location

East Dorset

• May 26, 2024

• #7

Replace with a steel, jointed U/Jone off a V8.



marjon

Well-Known Member

Full Member

Posts

16,838

Location

Bulgaria

• May 26, 2024

• #8

9255 steve said:

Thanks for the link, did the parts you fitted have a sliding joint fitted to the prop shaft, not clear in the pictures.

Click to expand...

Look at the left of the prop, a grease nipple. So yes.

J



miktdish

Guns n Chainsaws

Full Member

Posts

4,603

Location

Near Lanark, South of Glasgow. Scotland

• May 26, 2024

• #9

Wot @Jon said ... he beat me to it ....



9

9255 steve

Member

Posts

19

• May 27, 2024

• #10

Do have an idea where i can purchase these spacers for the rear trailing arms. These will change the angle of the rear differential and the original doughnut could be used which is preferential I think.



Attachments

•

  891 KB · Views: 75
