200TDI to 300TDI Radiator and Oil Cooler

Gun7354 · Jan 10, 2022

Morning All,

Quick question if i may - Would a 300TDI radiator fit into a 200TDI incl oil cooler hoses? Would i also need to get the 300TDI Oil filter housing and would this bolt straight onto my 200TDI block?

Thank you all knowledgeable people

Rich

miktdish · Jan 10, 2022

200TDi oil filter housing ERR2711 https://www.ebay.co.uk/itm/265455439008?epid=646146781&hash=item3dce608ca0:g:MpMAAOSwLQBhsJ3g
300TDi HRC2504 https://www.ebay.co.uk/p/644950684

Dunno about the radiator but it is highly likely that it would be fine as it is a common updrade and the fronts of Defenders are the same - Google is your friend

lynall · Jan 10, 2022

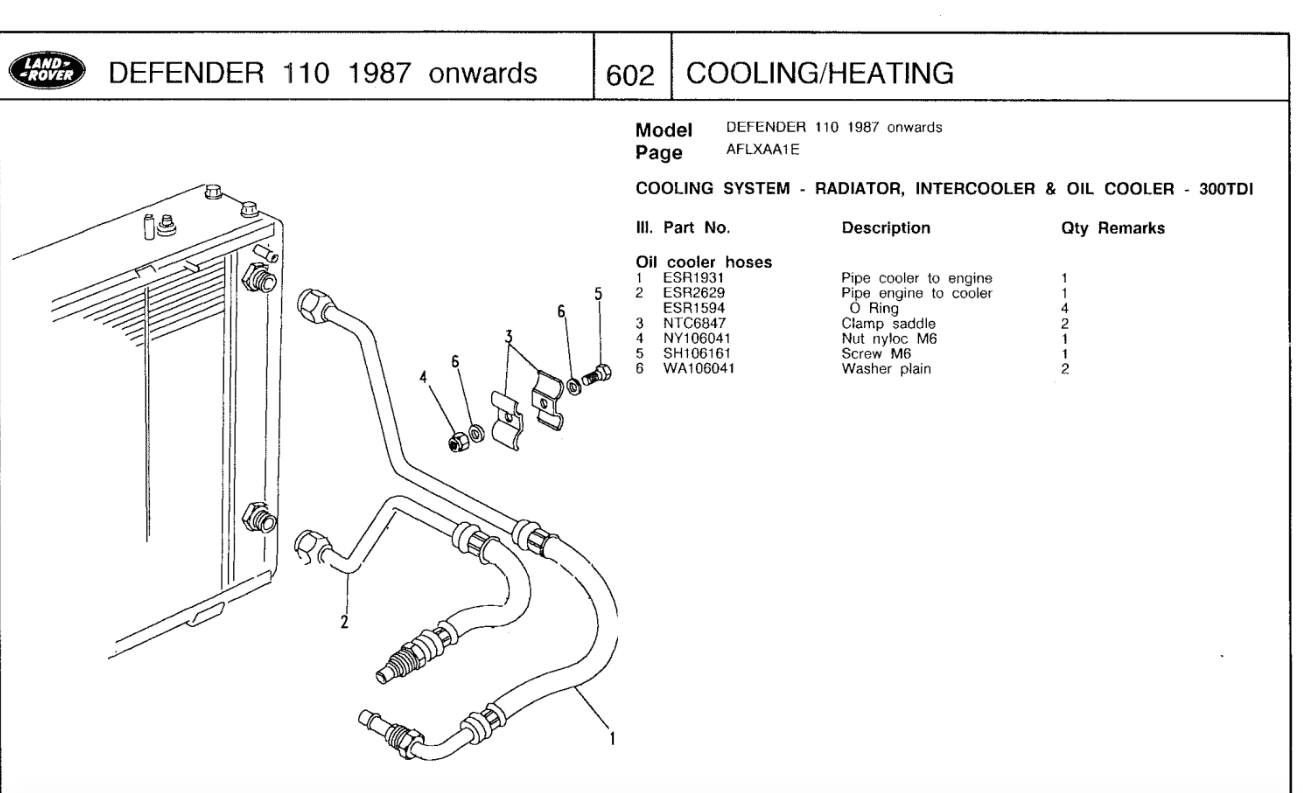

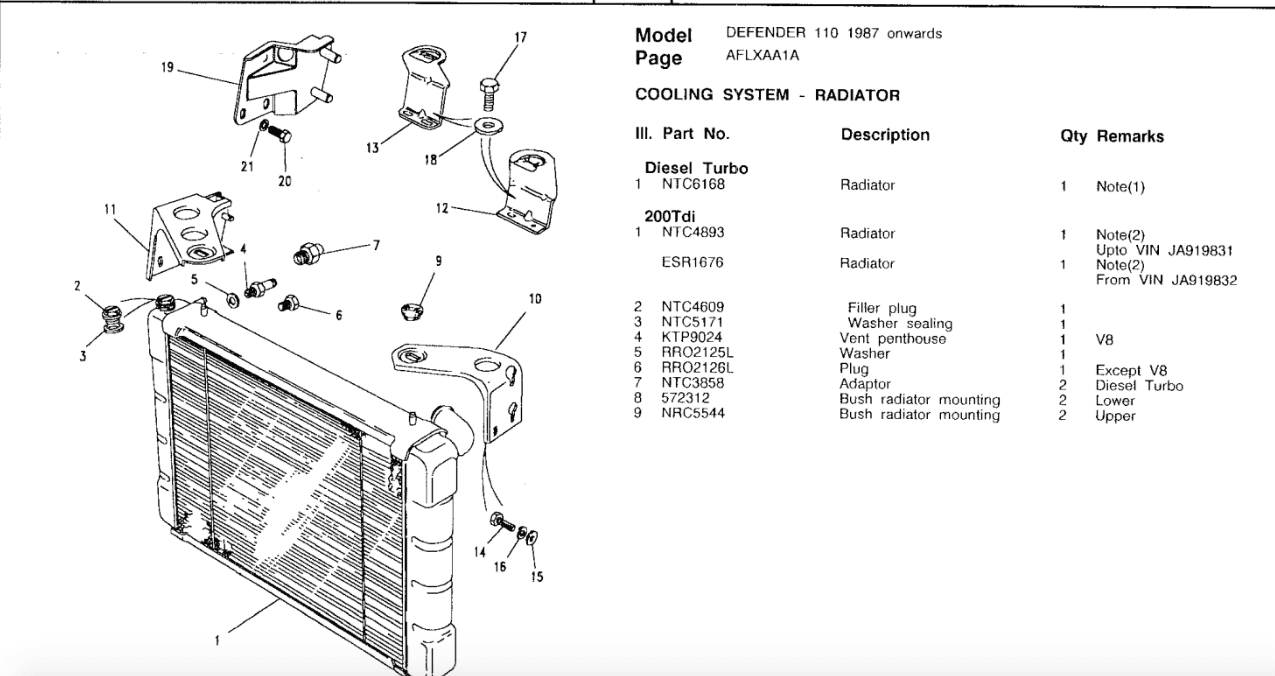

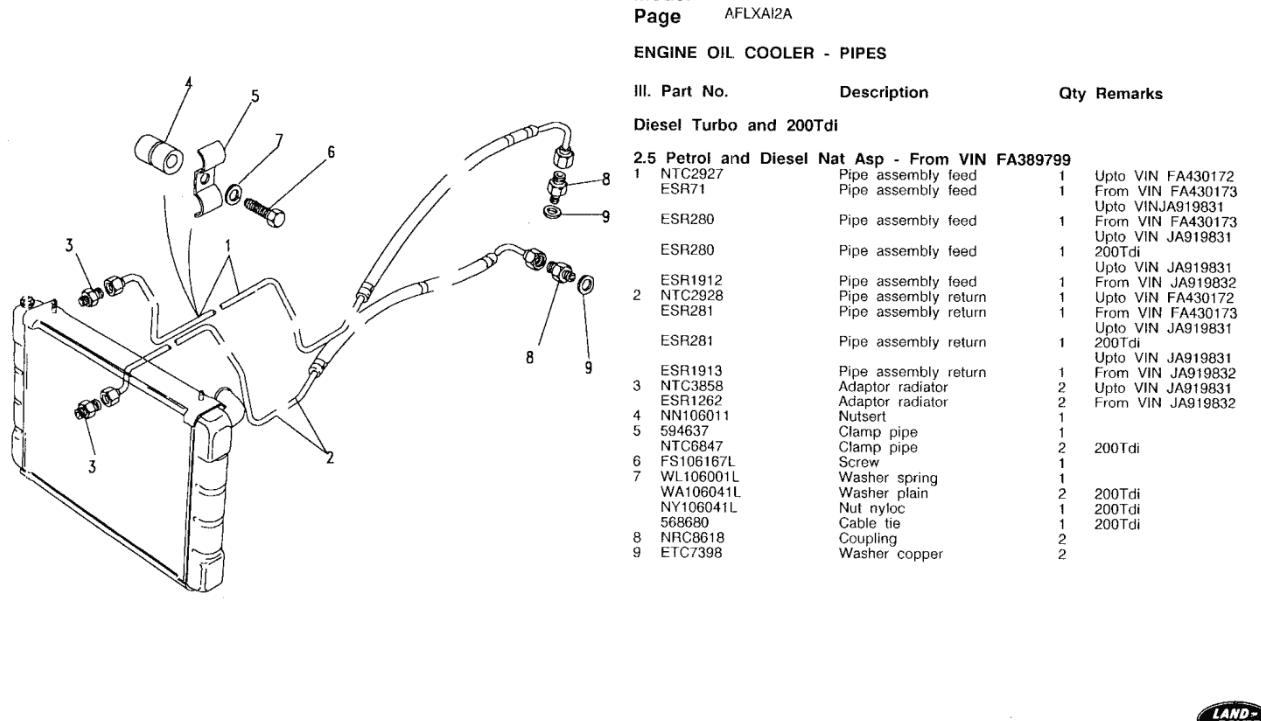

Iirc the rads are the same, the difference is the adaptors between the cooler hoses and the rad oil cooler itself.
Best I can find, if no good your local hydraulic place might be able to sort adaptors fo you.

Gun7354 · Jan 10, 2022

Thank you both for all the help and advice. Reason being I've come across a 300TDI Rad and it does look the same, just need to check the oil pipes etc.

Kind regards

Rich

tottot · Jan 10, 2022

Lower water hose position of 300 rad is on opposite side of the rad compared to a 200. A disco 200 rad is what I have in my truck.

zeaphod · Jan 10, 2022

Pirtek or similar can help with the adapters - I took my rad and hose into them - there are at least two variations of 200tdi pipe adapters.

Gun7354 · Jan 10, 2022

Thanking you all, great replies

Rich
