Hi,

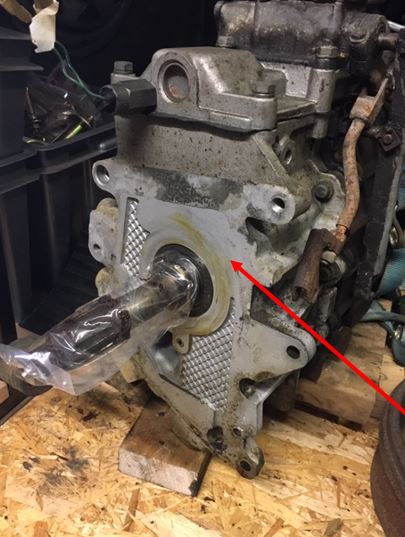

Can you anyone tell me if there is a gasket for the LT77s gear box to the transfer case (photo attached). If there is would you know the part number?


Attachments

  • 2020-09-19 10_42_16-Document1.jpg
    2020-09-19 10_42_16-Document1.jpg
    46.5 KB · Views: 51
AH-4x4 said:
Hi,

Can you anyone tell me if there is a gasket for the LT77s gear box to the transfer case (photo attached). If there is would you know the part number?
Click to expand...
no and dont use any sealant if you look at the bottom of g/box rear face youll see theres a groove to let any leaked oil out
