Freelander 1 2006 TD4 rear brakes

P

pdpjpr

Member

Posts

70

Location

Wolverhampton

• Feb 10, 2020

• #1

Hi all

Anyone know of a good place near Wolverhampton where I can get rear brakes and drums etc replaced?

Cheers



GrumpyGel

Well-Known Member

Posts

26,490

Location

Christchurch, New Zealand

• Feb 10, 2020

• #2

Very easy to do yourself, especially if the cylinders do not need replacing.



Arctic2

Well-Known Member

Posts

2,753

Location

Westmidlands

• Feb 11, 2020

• #3

pdpjpr said:

Hi all

Anyone know of a good place near Wolverhampton where I can get rear brakes and drums etc replaced?

Cheers

Click to expand...

Liontech WV10 8AW
01902 398818
01902 398766
Ask for Mick or Tony, they will sort you out i'm sure I am not attached to this garage but will recommend them



P

pdpjpr

Member

Posts

70

Location

Wolverhampton

• Feb 12, 2020

• #4

Just had a look at taking the offside drum off. It appears that the shoes my be catching the drum stopping me taking it off. Is there a manual adjuster to pull the shoes back in? If so where is it and how do I do it?

Much appreciated as always...



teddywood1

Well-Known Member

Posts

5,558

Location

stoke-on-trent

• Feb 12, 2020

• #5

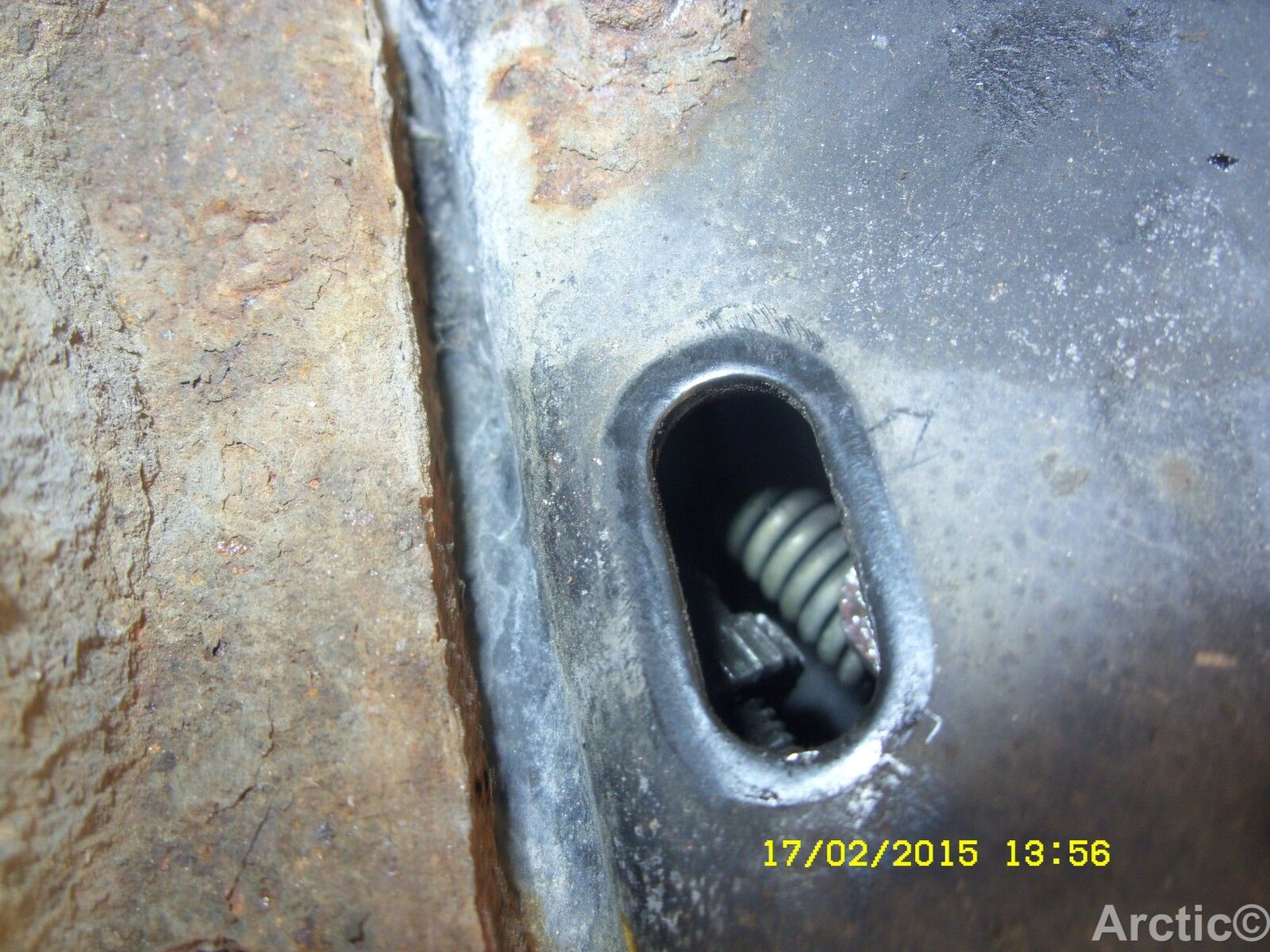

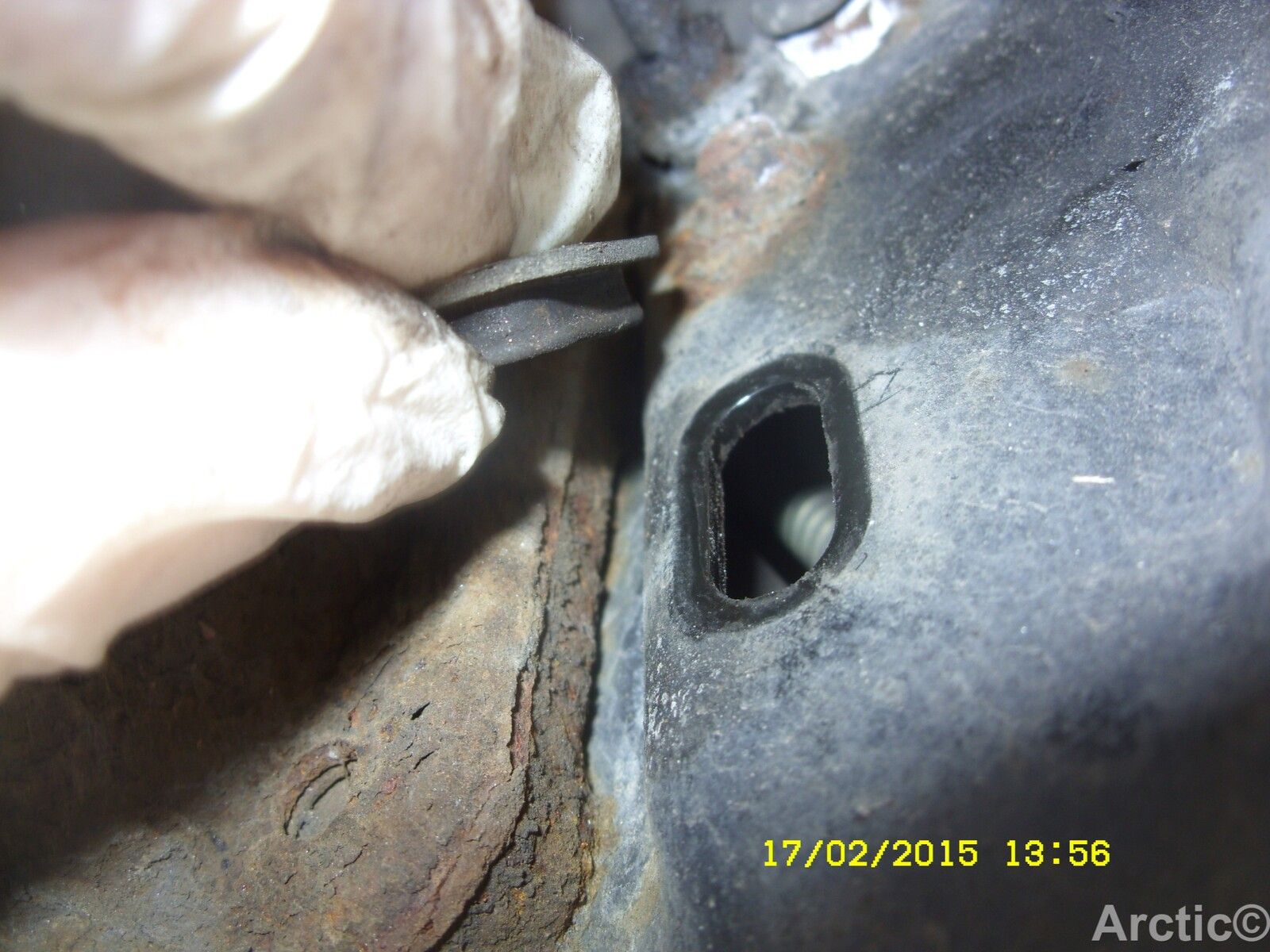

look on the back plate and there is a rubber Gromit pull it out and with a torch you will see the adjuster -a wheel with saw teeth on you can adjust it backwards also I bet on one of the clips has either come off or the piece that goes through the back plate and brake shoes has snapped



P

pdpjpr

Member

Posts

70

Location

Wolverhampton

• Feb 12, 2020

• #6

Do I need any special tools to lose the adjuster?



Arctic2

Well-Known Member

Posts

2,753

Location

Westmidlands

• Feb 12, 2020

• #7

pdpjpr said:

Do I need any special tools to lose the adjuster?

Click to expand...

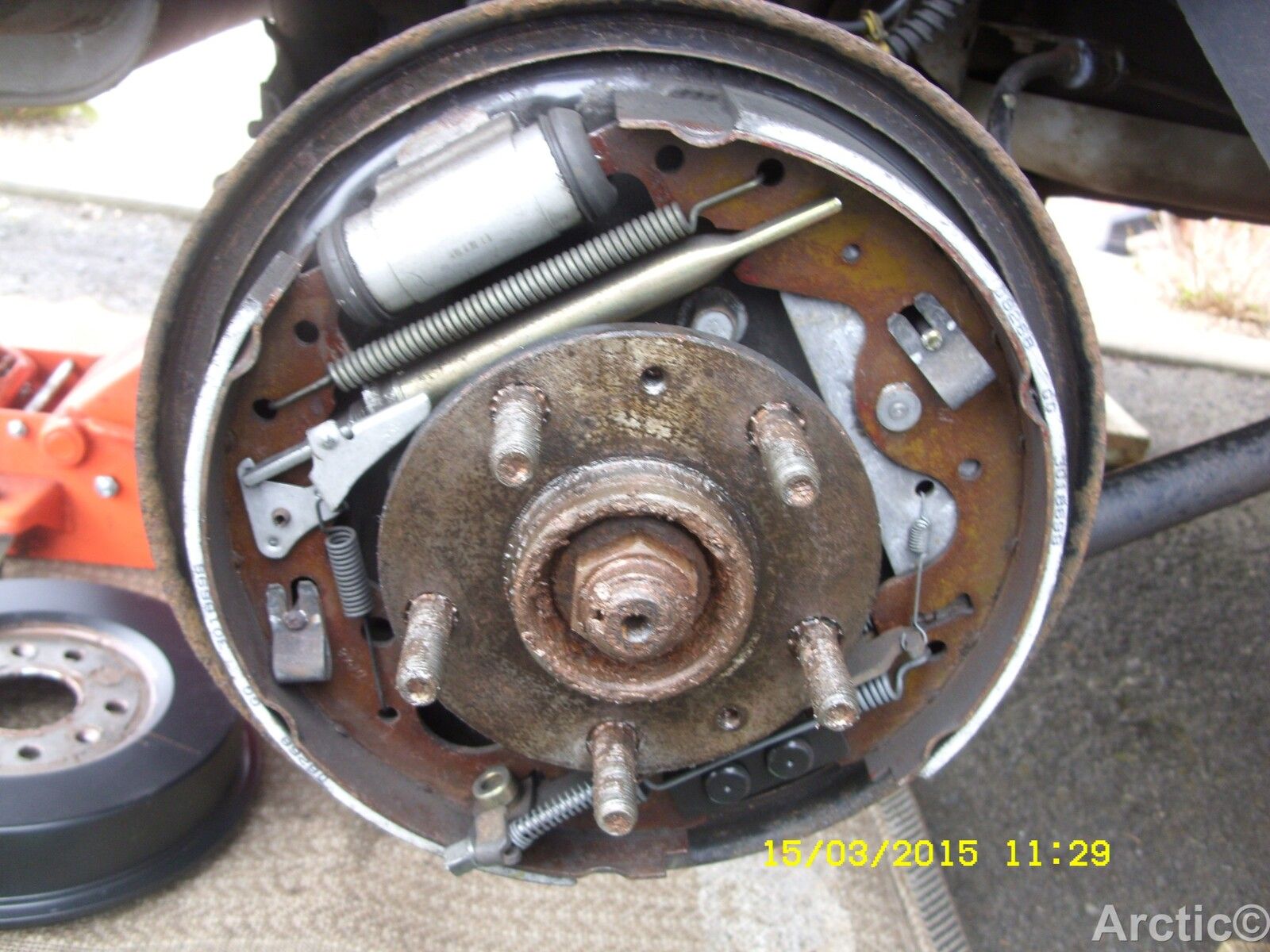

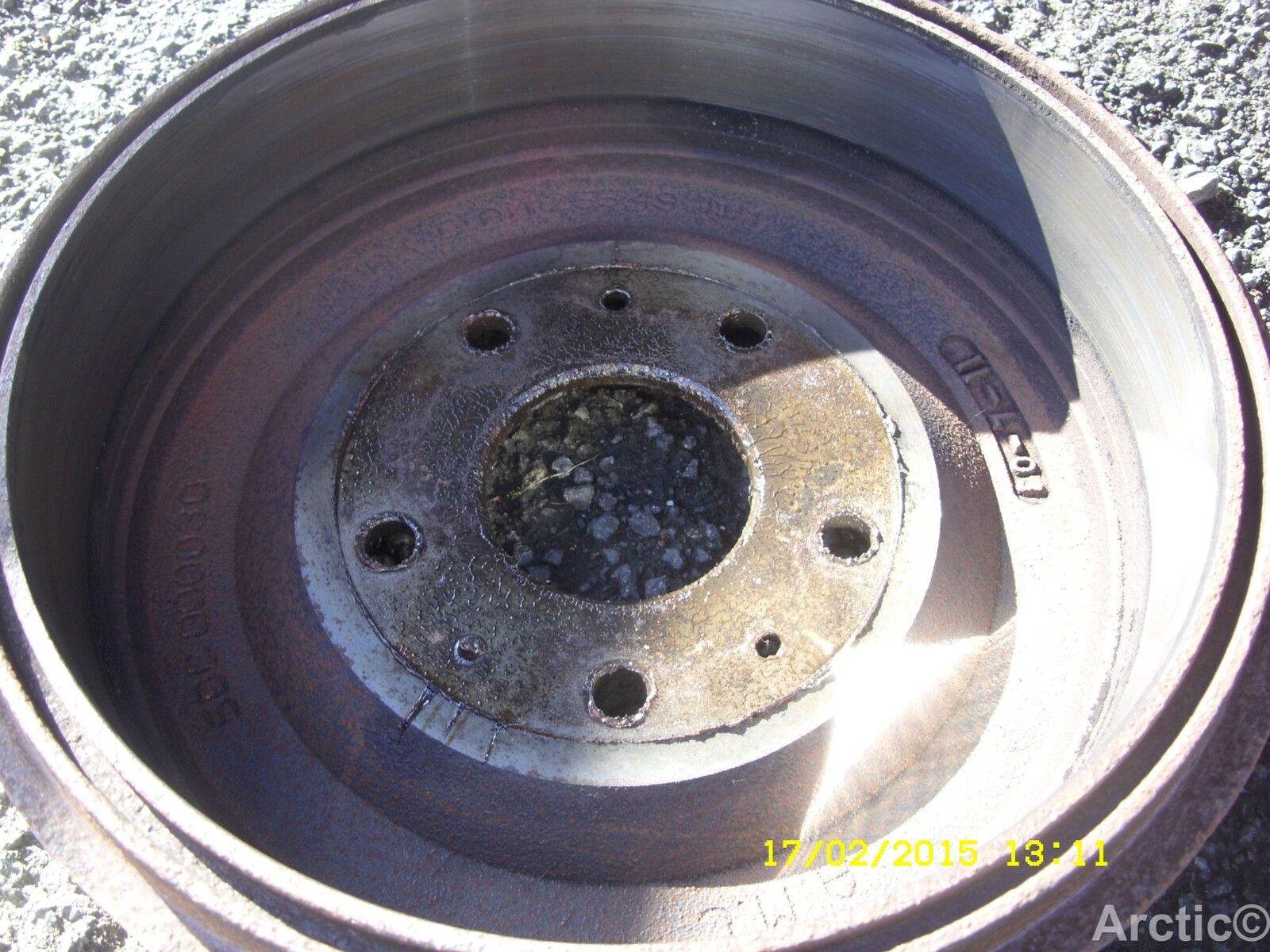

No you will only need a flat blade screw driver, once you have the drum off clean with wire brush all the back plate and shoes, also inside the drum, wear a mask.



Attachments

•

  237.9 KB · Views: 163
•

  340.9 KB · Views: 168
•

  139.1 KB · Views: 160
•

  265.5 KB · Views: 184
•

  320.9 KB · Views: 183

Nodge68

Well-Known Member

Posts

32,954

Location

Cornwall

• Feb 12, 2020

• #8

pdpjpr said:

Do I need any special tools to lose the adjuster?

Click to expand...

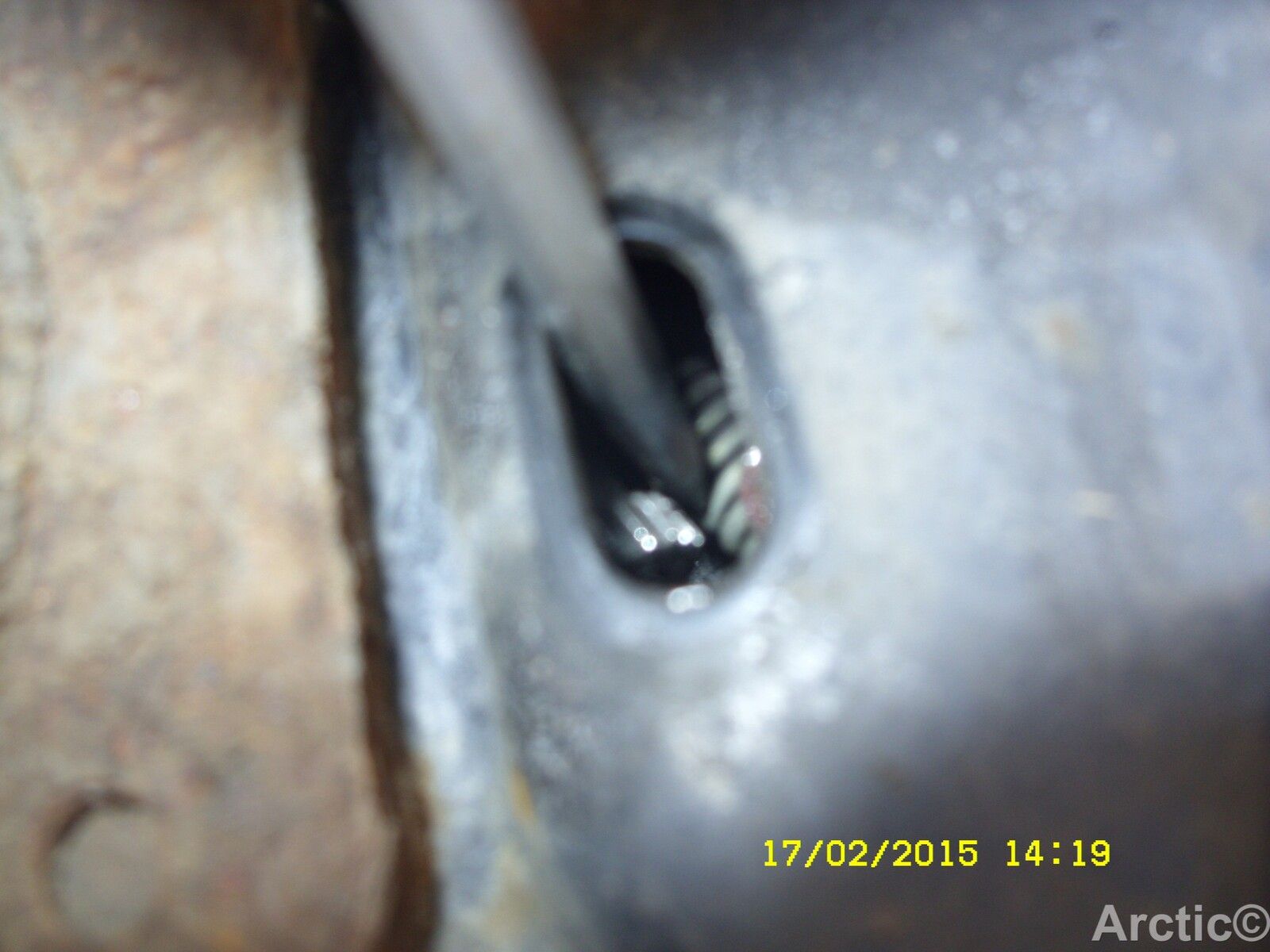

No. You just flick the adjuster round with the end of the flat blade screwdriver.



P

pdpjpr

Member

Posts

70

Location

Wolverhampton

• Feb 25, 2020

• #9

Thanks again for the help chaps. Have changed the shoes, springs and drums today. Now I have a handbrake which is no longer an ornament...



Arctic2

Well-Known Member

Posts

2,753

Location

Westmidlands

• Feb 25, 2020

• #10

pdpjpr said:

Thanks again for the help chaps. Have changed the shoes, springs and drums today. Now I have a handbrake which is no longer an ornament...

Click to expand...

Will it hold on Tettenhall rock to Bridgnorth hill though or even the Bridgnorth Hermitage it should do give the drums a clean out at least twice a year is best.
