1989 90 Rebuild

Discussion in 'Defender 90 / 110 / 130' started by Southernlandy, Jan 3, 2014.

< Previous Thread | Next Thread >
  1. Retroanaconda

    Retroanaconda Well-Known Member

    Joined:
    Jul 22, 2008
    Posts:
    670
    Likes Received:
    199
    Location:
    SW Scotland
    Cheers. Nice work by the way, car looks great.

  2. Southernlandy

    Southernlandy Active Member

    Joined:
    Sep 30, 2013
    Posts:
    517
    Likes Received:
    38
    Location:
    Hampshire
    So after the trip to the Plain a few problems arose. On the way back, I had to drive 60 miles with the turbo disconnected due to a de laminated intake pipe. At the time I thought I had got water in the turbo so a nice easy fix. Another problem is the steering box is now leaking as well as the clutch master cylinder. Fixed the intake pipes with some silicone hose and metal pipes. Just the master cylinder and steering box to sort now.

    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG] [​IMG]

  3. Southernlandy

    Southernlandy Active Member

    Joined:
    Sep 30, 2013
    Posts:
    517
    Likes Received:
    38
    Location:
    Hampshire
    Finally found a discovery transfer box for my 90. Haven't got around to fitting it yet as it needs a couple of new seals.
    Been for my first pay and play at Muddy Bottom which caused a bit of damage. The whole handbrake mechanism seized and the front diff pan has a small hole in it. Anyway, at least I found out my new snorkel is sealed and the car got muddy which was the main thing.

    Youtube video:

    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]

  4. Southernlandy

    Southernlandy Active Member

    Joined:
    Sep 30, 2013
    Posts:
    517
    Likes Received:
    38
    Location:
    Hampshire
    Haven't written an update in a while. Been busy at uni so haven't had any time to drive the car at all. You may remember that my power steering box was leaking. I had my dad remove it and rebuild it with new seals but unfortunately the box was too worn so I had to order a recon box from paddocks which has been fitted. I'm told that the steering is much tighter as I've been fighting to keep it in a straight line for the past year.
    [​IMG]

    Anyway, being at uni makes it very difficult to keep on top of all the maintenance but the box has now been replaced and the MOT is due on the 11th so without telling me my dad has booked it for tomorrow at 13:30.

    FINGERS CROSSED.

    I'll update tomorrow on how it goes.

  5. Fattylewis

    Fattylewis Active Member

    Joined:
    Jan 12, 2014
    Posts:
    114
    Likes Received:
    2
    Location:
    Herefordshire
    Sweet so far

  6. Southernlandy

    Southernlandy Active Member

    Joined:
    Sep 30, 2013
    Posts:
    517
    Likes Received:
    38
    Location:
    Hampshire

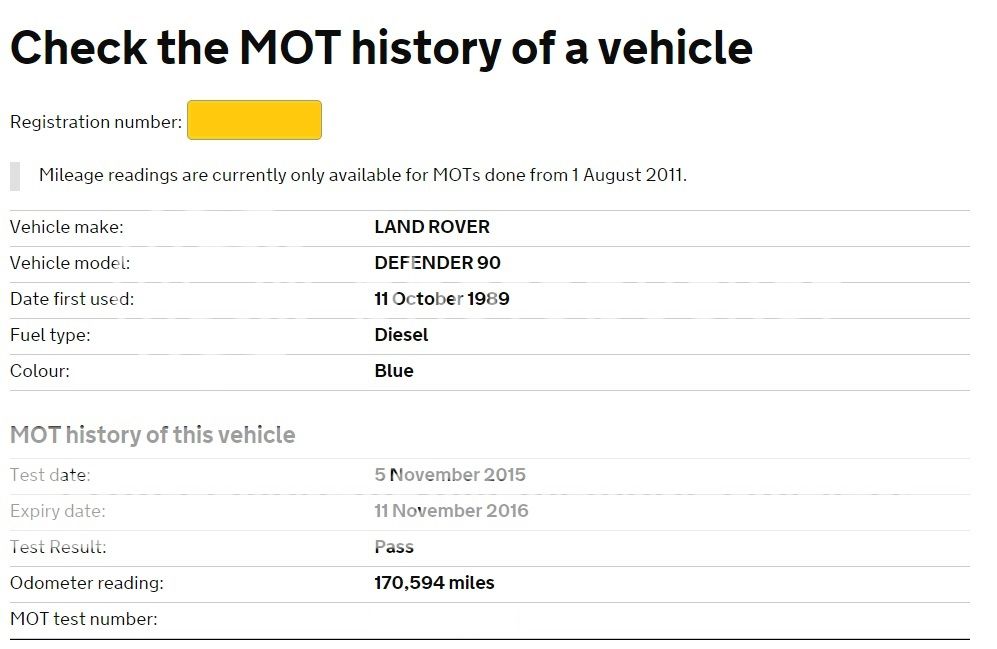

    Good news. PASSED for the second year in a row. NO ADVISORIES

    [​IMG]

    Alibro likes this.
  7. Southernlandy

    Southernlandy Active Member

    Joined:
    Sep 30, 2013
    Posts:
    517
    Likes Received:
    38
    Location:
    Hampshire
    Now back from university for Christmas, I decided to change my 1.4 defender transfer box for the 1.2 disco box I bought in the summer. After resealing the cover plate and changing the output seal, managed to use a trolley jack to lift it up and fit it.
    Took about a day and would rather have had a hoist but didn't have one available. It feels much nicer to drive at high speeds but yet to see what it's like towing and heavily loaded.

    I have used the handbrake off the 200tdi that has the expander. Every time I go off-road this fills up with mud and seizes so eventually I need to buy a 300tdi handbrake lever so that I can use the backplate and shoes that came with the box.

    [​IMG]
    [​IMG]

  8. Huddy84

    Huddy84 Well-Known Member

    Joined:
    Jul 10, 2013
    Posts:
    746
    Likes Received:
    216
    Location:
    East Anglia
    Been doing the same to mine today except 1.66 down to 1.4 box. Used an engine crane but still took some elbow grease to get it lined up and in. Looking forward to the first drive!!

  9. Brown

    Brown Well-Known Member Full Member

    Joined:
    Jul 11, 2012
    Posts:
    6,814
    Likes Received:
    4,466
    Location:
    East Midlands
    Good use of the Christmas vacation, changing a transfer box. I've just been working on mine too.

  10. Southernlandy

    Southernlandy Active Member

    Joined:
    Sep 30, 2013
    Posts:
    517
    Likes Received:
    38
    Location:
    Hampshire
    Been out playing over near Petersfield on Wednesday. Discovery transfer box worked fine. The lanes we did were a bit more technical than what I'm used to but got down all of them even though the bumper sustained a bit of damage.
    Video from the day:

    [​IMG]
    [​IMG]
    [​IMG]

    Flufy likes this.
  11. danny6801

    danny6801 Well-Known Member

    Joined:
    Sep 19, 2012
    Posts:
    1,665
    Likes Received:
    66
    Location:
    North Wales
    I like the fact you have a personal photographer who follows the landys on foot hehe nice video looks like a good day out.

  12. cornish rattler

    cornish rattler Well-Known Member

    Joined:
    Aug 15, 2010
    Posts:
    6,184
    Likes Received:
    1,093
    Location:
    Manc chester
    Is there a big difference driving it with the new trannybox in place as mine is a 1.4 and i like the gearing but it drinks juice def 200tdi with 265 special tracks doing 20 mpg on the Mway doing 65 mph :(

  13. Southernlandy

    Southernlandy Active Member

    Joined:
    Sep 30, 2013
    Posts:
    517
    Likes Received:
    38
    Location:
    Hampshire
    It certainly makes it harder starting off, something I'll probably get used to. I haven't towed anything yet but as I can only tow up to 750kg I don't really see it being a problem.
    Using the defender box I used to get 30mpg cruising at 70 with my 265 mud terrains. Only done about 100 miles with the new one so haven't had a chance to see about fuel economy but I'll let you know.

  14. Southernlandy

    Southernlandy Active Member

    Joined:
    Sep 30, 2013
    Posts:
    517
    Likes Received:
    38
    Location:
    Hampshire
    Got round to changing the handbrake to the disco 300tdi plate after my current one seized solid on the driveway. Turns out I also needed to buy a defender cable as the disco one is too short. Unfortunately no pictures

    While I was doing the handbrake I changed one of the propshaft Uj's which was well past it's sell by :D

    [​IMG]

  15. alexcarter

    alexcarter Member

    Joined:
    Jun 24, 2013
    Posts:
    76
    Likes Received:
    5
    Location:
    Portsmouth, Hampshire
    Thought that garage name seemed familiar, I work just around the corner from here!

  16. Southernlandy

    Southernlandy Active Member

    Joined:
    Sep 30, 2013
    Posts:
    517
    Likes Received:
    38
    Location:
    Hampshire
    What I thought would be an hours job this afternoon turned into a whole afternoon and now the car isn't drivable. Decided I would change the leaking pinion seal on the diff only to find that I bought the wrong seal :mad:. Anyway, got that on order and should be here Wednesday. As I couldn't move the car anywhere I thought I'd tighten up the loose wheel bearing. Turns out water has got in the bearing and now that needs changing too (job for tomorrow). Lastly, while stripping the hub down, I notice the drag link is bent like a banana so I have ordered a new HD one.

    [​IMG]
    [​IMG]
    [​IMG]

  17. Southernlandy

    Southernlandy Active Member

    Joined:
    Sep 30, 2013
    Posts:
    517
    Likes Received:
    38
    Location:
    Hampshire
    So the steering bar was bent beyond repair and I had decided that with the amount of offroading I do that I should buy an HD one. Unfortunately, bending the old one corrected the tracking so when I put the new HD one on, the tracking was way out and has taken a lot of adjustment to get the steering feeling as it did. Also got a pair of diff guards which I fitted before tackling a lane on the way home from uni. Being on my own though with very worn tyres, I didn't get very far before giving up. Next on the list- 4 Cooper STT's

    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]

  18. FMog

    FMog Active Member

    Joined:
    Jun 9, 2015
    Posts:
    195
    Likes Received:
    35
    Location:
    West Lake District, UK
    Just read this thread from start to finish (all 16 pages), what an awesome rebuild!! Wish I had half the knowledge you had when it comes to restoring Landy's :)

    Now get yourself a steering guard and some rock/tree sliders, will save yourself a fortune in unnecessary repairs I reckon, plus they look awesome too :D

  19. Southernlandy

    Southernlandy Active Member

    Joined:
    Sep 30, 2013
    Posts:
    517
    Likes Received:
    38
    Location:
    Hampshire
    Finally on summer holiday after first year at university. Now for the jobs I have been meaning to do all year. First was to cut some carpets out of some artificial grass I ordered, maybe not to everyone's taste. I also still have two leaking pinion seals so I ordered a new flange with seal but after getting the old one off easily, the new one refuses to slide on the splines. Need to have another look at it tomorrow when I get the chance so it's going nowhere at the moment :( Also on the look out for a new set of tyres for a couple of laning trips planned for the next couple of months.

    [​IMG]
    [​IMG]
    [​IMG]

    Hippo likes this.
  20. Al2O3

    Al2O3 Well-Known Member Full Member

    Joined:
    Apr 21, 2014
    Posts:
    10,535
    Likes Received:
    4,630
    Location:
    North of the Wall
    That's mint!
    Typical bloke, I was looking at the pictures first and thought bloody hell he's got his bulkhead on the front lawn! Then I read the post! :oops:
    I probably wouldn't do it in mine, but it does look good! :)
