Series 3 1972 88 rear windows

Discussion in 'Series Land Rovers' started by Highlander in Yorkshire, Sep 11, 2019.

< Previous Thread | Next Thread >
  1. Highlander in Yorkshire

    Highlander in Yorkshire Member

    Joined:
    May 3, 2019
    Posts:
    38
    Likes Received:
    12
    Location:
    Yorkshire
    Hi there.

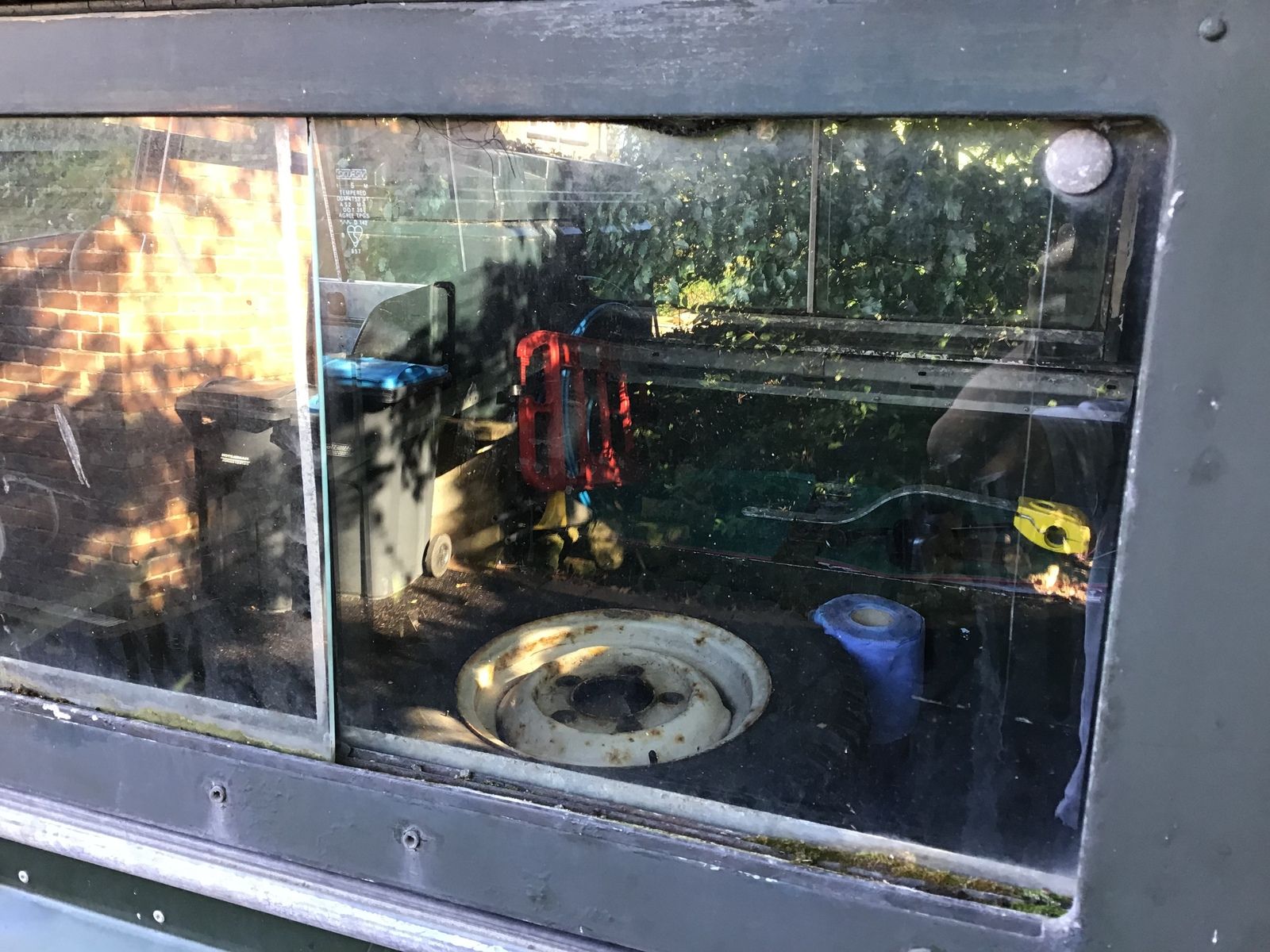

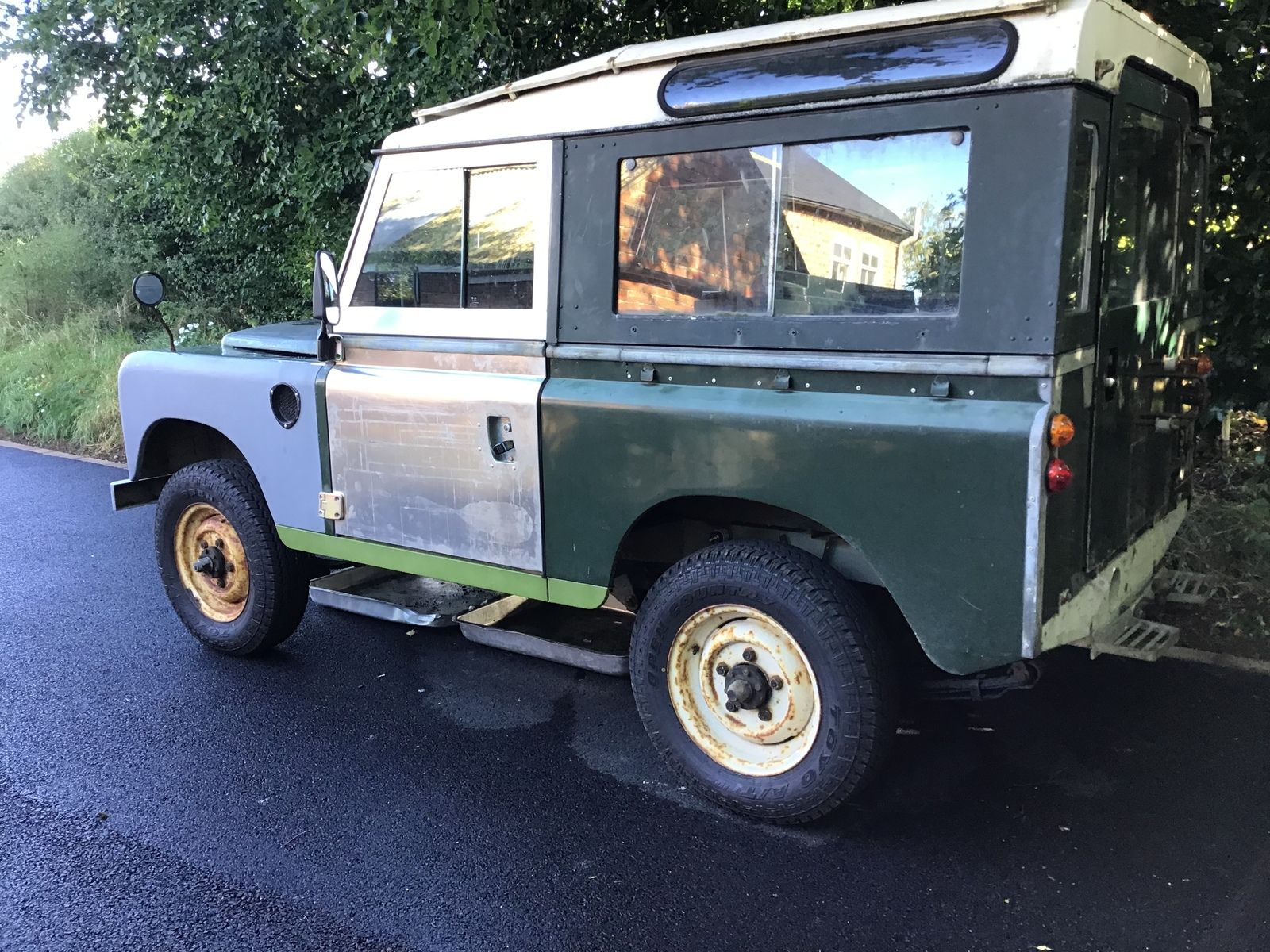

    Well, I think she is just about ready to get on the road for the first time in years. Just about to start some basic tarting up and I would very much like to replace the rear windows. I know there are various option to do so however, I would very much like some advice on what would be the best cost effective solution. I’m not bothered about windows sliding or it being original parts, just something watertight that doesn’t need much maintenance. Thanks in advance.


    Last edited: Sep 11, 2019
  2. Colthebrummie

    Colthebrummie Well-Known Member

    Joined:
    Jan 24, 2017
    Posts:
    5,164
    Likes Received:
    4,154
    Location:
    Thatcham
    My rear window channels look just like that. You can buy replacement channel strips, which I have done but I'm too scared to remove the old channels for fear of what I might find.

    Col

  3. dag019

    dag019 Well-Known Member

    Joined:
    May 18, 2014
    Posts:
    2,444
    Likes Received:
    877
    Location:
    Warwick
    I would start by replacing the channels if you want to keep original. If you want it more waterproof get plain sides and leave them plain, or get plain sides and fit horsebox windows if you still want glass. With your current ones there is not much option but to rebuild what is already there.

  4. Highlander in Yorkshire

    Highlander in Yorkshire Member

    Joined:
    May 3, 2019
    Posts:
    38
    Likes Received:
    12
    Location:
    Yorkshire
    Thanks guys, I have downloaded the anaconda docs so can see the various parts that are involved. I was kinda hoping that some innovative fella out there has found a brilliant yet simple and cheap alternative.... that looks OK as well. Having ready some other forums on this many mention that the replacement channels rot in front of your eyes and avoid if possible. Hmmm, will think on this some more.

  5. Rodeo Joe

    Rodeo Joe Well-Known Member

    Joined:
    Dec 30, 2017
    Posts:
    822
    Likes Received:
    315
    Location:
    norfolk
    The entire rear panels from a def 110 4 door station wagon will fit an 88 that way you get the better (slightly) defender sliding windows.

  6. imortim1

    imortim1 Member

    Joined:
    Aug 28, 2018
    Posts:
    35
    Likes Received:
    10
    Location:
    Baltimore, MD
    I replaced the rear and middle door channels on my 109SW with Rocky Mountain ones. (As well as the front door tops). Expensive yes, but will probably outlast me.

    Details here, here and here.

    Cheers,

    PM

    Last edited: Sep 11, 2019
  7. Highlander in Yorkshire

    Highlander in Yorkshire Member

    Joined:
    May 3, 2019
    Posts:
    38
    Likes Received:
    12
    Location:
    Yorkshire
    Just had a quick look at the Rocky Mountain tracks you mentioned (£90). Are they easy to fit?

  8. imortim1

    imortim1 Member

    Joined:
    Aug 28, 2018
    Posts:
    35
    Likes Received:
    10
    Location:
    Baltimore, MD
    Not too bad. You have to do some cutting to length and fettling to fit. I used a mini chop saw with a cutting disc, as well as a hack saw and piercing saw. But you probably would have to cut any replacement tracks to length. The cuts are given in the printed instructions. Most important thing was getting a good fit and then sealing well when fitting with a mastic or something similar. It took me a bit longer than normal, as I had to clean up and derust / coat the channels in which they fitted (particularly the ones in the doors) first.

    You WILL find them stiffer than the existing design, but a heck of a lot more leak-proof!

  9. imortim1

    imortim1 Member

    Joined:
    Aug 28, 2018
    Posts:
    35
    Likes Received:
    10
    Location:
    Baltimore, MD
    Also, see TerriAnn's write up of fitting these tracks here. I essentially followed her description to the letter. Worked just fine!

    PM

  10. Highlander in Yorkshire

    Highlander in Yorkshire Member

    Joined:
    May 3, 2019
    Posts:
    38
    Likes Received:
    12
    Location:
    Yorkshire
    Thanks Imortim, will have a look in the next couple of days..... will let you know how it goes. Thanks everyone for your time..... as always.

    Ps. Fettling? You a Yorkshire lad?

  11. imortim1

    imortim1 Member

    Joined:
    Aug 28, 2018
    Posts:
    35
    Likes Received:
    10
    Location:
    Baltimore, MD
    No, but my Dad is. Spent many summer holidays with grand parents in Sheffield and York. Now that I live on this side of the Atlantic, no-one knows what the heck I mean when I use such words. I was once taken to task for using obscene language.........

  12. Highlander in Yorkshire

    Highlander in Yorkshire Member

    Joined:
    May 3, 2019
    Posts:
    38
    Likes Received:
    12
    Location:
    Yorkshire
    Well I live not far North of York so, from our side of the pond to yours, cheers.

  13. imortim1

    imortim1 Member

    Joined:
    Aug 28, 2018
    Posts:
    35
    Likes Received:
    10
    Location:
    Baltimore, MD
    Thanks,

    If you want anymore pictures of the installation, let me know and i'll try and get some this weekend.

    PM

  14. rob1miles

    rob1miles Well-Known Member

    Joined:
    Sep 22, 2017
    Posts:
    1,838
    Likes Received:
    575
    Location:
    Slough and Bath
  15. Highlander in Yorkshire

    Highlander in Yorkshire Member

    Joined:
    May 3, 2019
    Posts:
    38
    Likes Received:
    12
    Location:
    Yorkshire
  16. imortim1

    imortim1 Member

    Joined:
    Aug 28, 2018
    Posts:
    35
    Likes Received:
    10
    Location:
    Baltimore, MD
    TeriAnn is a well known Land Rover Expedition afficiando on this side of the atlantic. Keep meaning to get her books. She's done great things with her 1960 SII 109.

  17. Highlander in Yorkshire

    Highlander in Yorkshire Member

    Joined:
    May 3, 2019
    Posts:
    38
    Likes Received:
    12
    Location:
    Yorkshire
    I’m new to this whole Landrover thing...... just trying to ‘save’ an old series 3 that I felt needed another chance. Saying that, this TeriAnn seems to know her beans.

  18. rob1miles

    rob1miles Well-Known Member

    Joined:
    Sep 22, 2017
    Posts:
    1,838
    Likes Received:
    575
    Location:
    Slough and Bath
    Her site has some of the best info on brakes and brake upgrades and its all in one place, saves a lot of searching.
