1965 Series 2a Station Wagon in Holland

Discussion in 'Members Vehicles/Projects' started by Stretch, Mar 18, 2016.

< Previous Thread | Next Thread >
  1. Stretch

    Stretch Well-Known Member

    Joined:
    Mar 18, 2016
    Posts:
    1,556
    Likes Received:
    620
    Location:
    Holland
    I like Fertan - I've used it before - but it doesn't do the same thing this Rustyco stuff does. (I think Evaporust does the same thing as Rustyco and that seems to be easier to get in the UK). The Fertan does a great job eating the surface rust but doesn't seem to do as well removing it completely like this Rustyco can. With the Fertan you get a dark blue layer of staining. Rustyco you can eventually get clean steel.

    The next stage in the "Fertan system" is "Ferpox" which is a really nice epoxy undercoat. I de-rusted the entire suspension of my Mercedes 190 and sprayed it with that stuff. I'm very happy with this Ferpox product and have bought some to use on this Land Rover of mine.

    For the Zinga (as for the Ferpox) I've bought the spray can versions. I know I'm getting a poorer deal for the unit weight or volume of the product but I'm hoping it will save me some trouble with thinners and having to go and dig my compressor out of storage...

    ...when I get some (rattle can) spraying done I'll post up the results.

    I too will be dancing with the clouds this week - good luck!

  2. Dan_Trials

    Dan_Trials Well-Known Member

    Joined:
    Jan 30, 2007
    Posts:
    2,546
    Likes Received:
    142
    Location:
    Isle of Lewis now - Originally Stourbridge!
    I have the same engine crane but mine is all the same colour (red)! :p

    The question is: Is that a three wheel bicycle that carries a wheely bin? o_O

    Do both at the same time... Impact gun going flat out in one hand and swinging a hammer (hopefully at the bolt!) in the other hand. :cool:

    Tie something from the lower part of the chassis to something solid behind you, then it won't slip :D

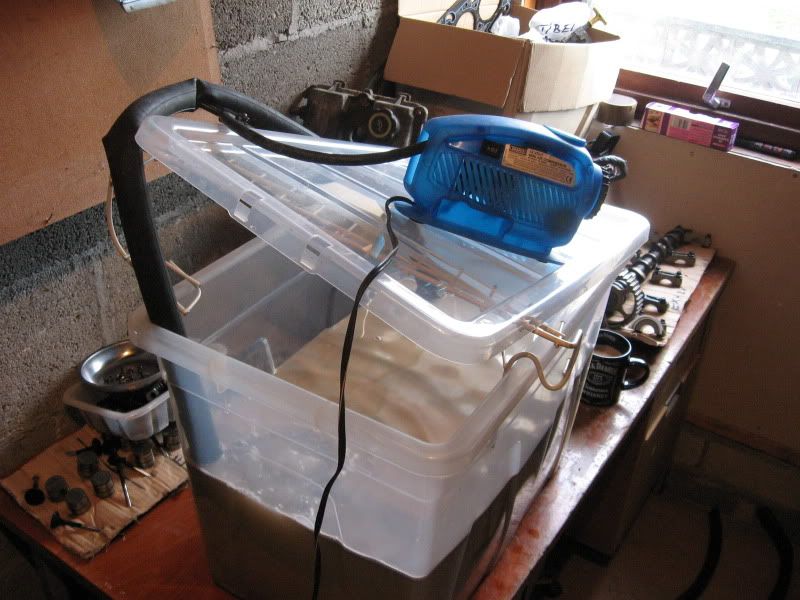

    I got a bicycle inner tube and put a few small holes in it around the inside and then placed this around the bottom of the tub. I then attached a 12 volt tyre compressor which was hooked up to a car battery on trickle charge. I then got one of them plastic coated mesh drawers you find in a dish washer and manipulated in it in such a way that it kept the parts off the bottom of the tank and stopped the inner tube from floating to the surface. What happens when you fire it up is you get a nice constant stream of bubbles all around which moves the water about and agitates the gunk and rust etc. I have used this method to degrease and rust remove with the electrolysis method. Basically if you get it moving about a bit it works much better and speeds things up.

    [​IMG]

    There is someone at my work who has this same affliction, he is often in over a friday night or weekend, I go to open up on Mondat morning and the door is left unlocked, sometimes open a jar (not used the saying in years!).

  3. Dan_Trials

    Dan_Trials Well-Known Member

    Joined:
    Jan 30, 2007
    Posts:
    2,546
    Likes Received:
    142
    Location:
    Isle of Lewis now - Originally Stourbridge!
  4. Stretch

    Stretch Well-Known Member

    Joined:
    Mar 18, 2016
    Posts:
    1,556
    Likes Received:
    620
    Location:
    Holland
    Yeah it was a bit cheap and after a time outside I ended up starting a restoration on it - but as you can see I kind of got bothered with other stuff...

    Yes it is!

    I have been reliably informed it is for fat blokes with beards who wear leather waistcoats and want to drive around on VW Beetle based trikes. In order for them to deal with the ridicule there is government trail where they get to ride about on the "Bin Trike" first. It is reckoned that if they can take the constant pestering from 6 year olds screaming "Hey mister I've got an ice cream wrapper too" then the government reckons they can deal with the sniggers - the pointing - and the lewd hand gestures from other motorists as they ride about on their VW disasters...

    OK will do - next week or so I might even have my compressor on site so I will not only have electrickery but air too.

    Worth considering thanks.

    Well as Kenny Everett said

    "Round em up - put em in a field and bomb the bastards"

    [​IMG]

    Dan_Trials likes this.
  5. Stretch

    Stretch Well-Known Member

    Joined:
    Mar 18, 2016
    Posts:
    1,556
    Likes Received:
    620
    Location:
    Holland
    Christmas in June =>

    1965 series 2a station wagon order from paddocks arrived1.jpg 1965 series 2a station wagon order from paddocks arrived2.jpg

    Took a bit of time going through the order to work out if I had got everything.

    It all seems present and correct except for the U bolts. I really can't be bothered chasing them up though. I'll see if what I have got is even close to what they should be - they strike me as being way thinner than the ones that were originally fitted. <= to be continued...

  6. Stretch

    Stretch Well-Known Member

    Joined:
    Mar 18, 2016
    Posts:
    1,556
    Likes Received:
    620
    Location:
    Holland
    So how would you get your Land Rover spares to your workshop on the other side of town?

    The three wheeled theme continues!

    (It is Holland after all)

    1965 series 2a land rover transporting land rover spares1.jpg

    Must have been at least 200kg of stuff on it. And whilst Holland is known for being flat where I am it isn't as flat as you might think.

    Nearly did me in!

    1965 series 2a station wagon transporting land rover spares2.jpg

    Still the YRM order and the Paddocks one and a new trolley jack are now filling up the place.

    1965 series 2a station wagon workshop area needs a sort out now.jpg

    My little corner of the world needs a bloody good sort out.

  7. Dan_Trials

    Dan_Trials Well-Known Member

    Joined:
    Jan 30, 2007
    Posts:
    2,546
    Likes Received:
    142
    Location:
    Isle of Lewis now - Originally Stourbridge!
    Is that a lever under the seat or some sort of impaling device in the event of a crash? Also, is that thing on the tailboard for women?

  8. Stretch

    Stretch Well-Known Member

    Joined:
    Mar 18, 2016
    Posts:
    1,556
    Likes Received:
    620
    Location:
    Holland
    Hey when I'm riding most of the chicks sit up front. Some of the scary ones like the impaling device...

    ...when I'm riding I use the impaling device for its intended purpose => Brake.

    There's no freewheel - pedals are fixed so when you're going down hill (with the front full of women of course) then there's a chance the damn thing will run away and your feet won't be able to stay on the pedals. Luckily with the road presence most people get out of the way and don't end up sitting up front too.

    Dan_Trials likes this.
  9. Stretch

    Stretch Well-Known Member

    Joined:
    Mar 18, 2016
    Posts:
    1,556
    Likes Received:
    620
    Location:
    Holland
  10. Stretch

    Stretch Well-Known Member

    Joined:
    Mar 18, 2016
    Posts:
    1,556
    Likes Received:
    620
    Location:
    Holland
    Got to have a quick butchers at the engine today.

    I was told it would crank over - hmmm - not so sure if that's the case!

    I've been politely sceptical about the previous owner's idea that you just had to fix the brakes and take it off for an MOT - here's more evidence that that vision is one with rose tinted spectacles...

    ...not that I'm upset at all - I bought what I thought was a pile of junk and so far considering my expectations I've been pleasantly surprised by just how original the vehicle is...

    ...but anyway this needs fixing =>

    Filthy dirty "probably original" engine oil

    Minging

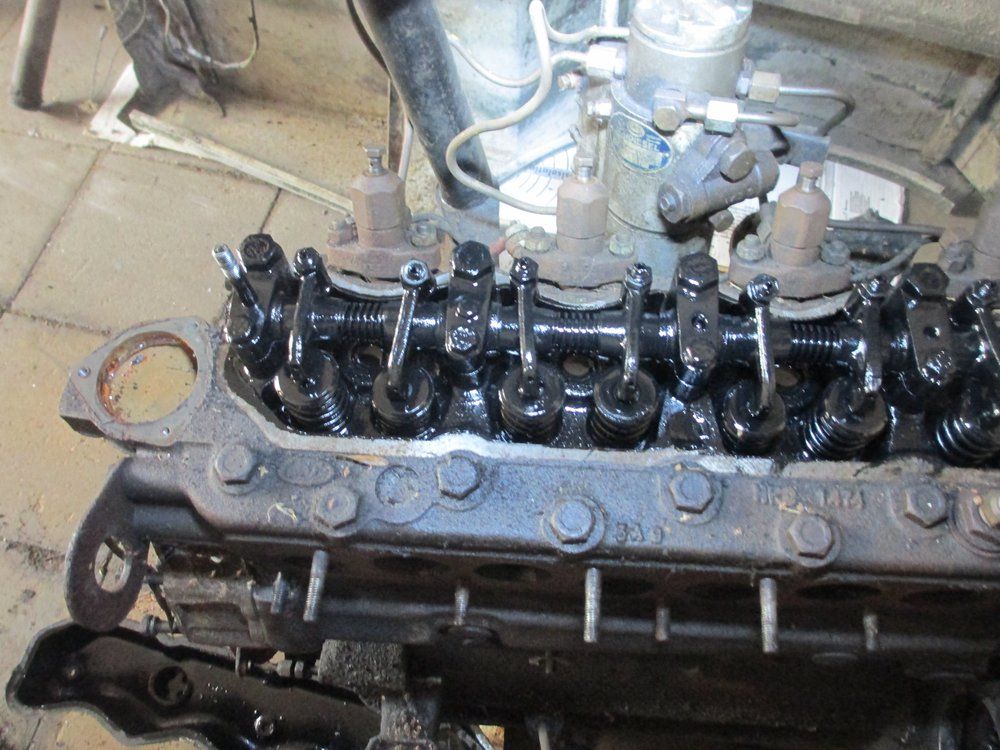

    1965 series 2a station ming under the valve cover.JPG

    Rocker arms and push rods came out easily

    As did the head - I think it has been off recently

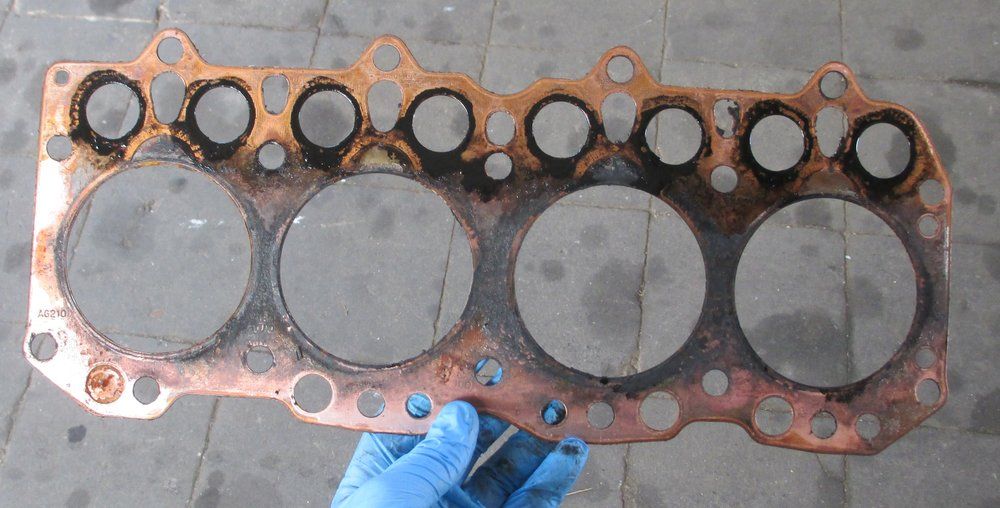

    1965 series 2a station wagon head gasket looks pretty new1.JPG

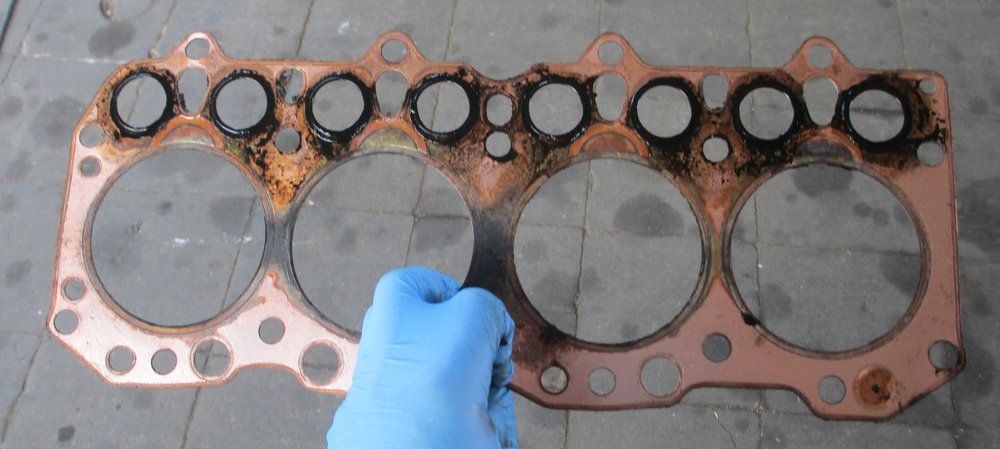

    1965 series 2a station wagon head gasket looks pretty new2.JPG

    That head gasket looks way too clean to me.

    Loads of carbon build up on the pistons

    1965 series 2a station wagon head removed.JPG

    It hasn't been a happy machine

    Worst bit of evidence is a stuck valve on cylinder #3

    1965 series 2a station wagon head removed at least one valve bent stuck1.JPG

    1965 series 2a station wagon head removed at least one valve bent stuck2.JPG

    So head will be stripped for a rebuild.

    Surface looks quite OK though- still I haven't checked it for flatness or cracks yet

    I can't see any marks on cylinder crowns for valve : piston contact yet but the crank is seized solid so I'm soaking the bores with ATF =>

    1965 series 2a station wagon soaking bores with ATF as the crank is a wee bit stuck.jpg

    I've been a good lad - just look at this!

    1965 series 2a station wagon head bolts nicely organised in a cardboard box.jpg

    Dan_Trials likes this.
  11. Dan_Trials

    Dan_Trials Well-Known Member

    Joined:
    Jan 30, 2007
    Posts:
    2,546
    Likes Received:
    142
    Location:
    Isle of Lewis now - Originally Stourbridge!
    Ah yes I can see the rodney on the other end of the device of impalement.

    Do they not hear the big bell that's on it? :D

  12. Stretch

    Stretch Well-Known Member

    Joined:
    Mar 18, 2016
    Posts:
    1,556
    Likes Received:
    620
    Location:
    Holland
    Not sure it works

  13. Stretch

    Stretch Well-Known Member

    Joined:
    Mar 18, 2016
    Posts:
    1,556
    Likes Received:
    620
    Location:
    Holland
    G'day Folks,

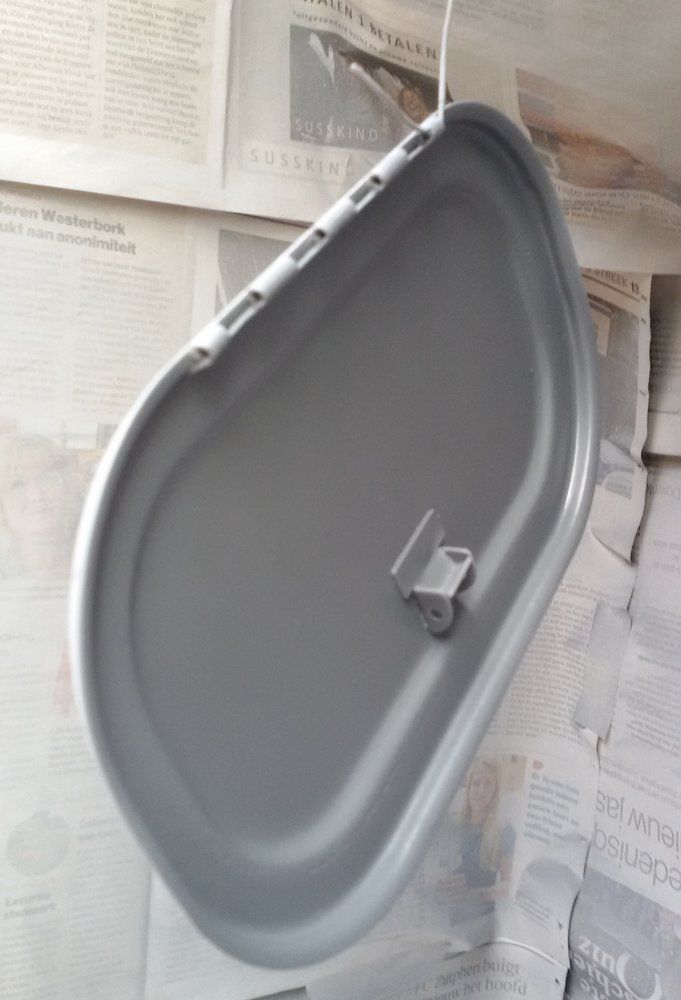

    I'm looking for advice and opinions of the Zinga results please. What do you think?

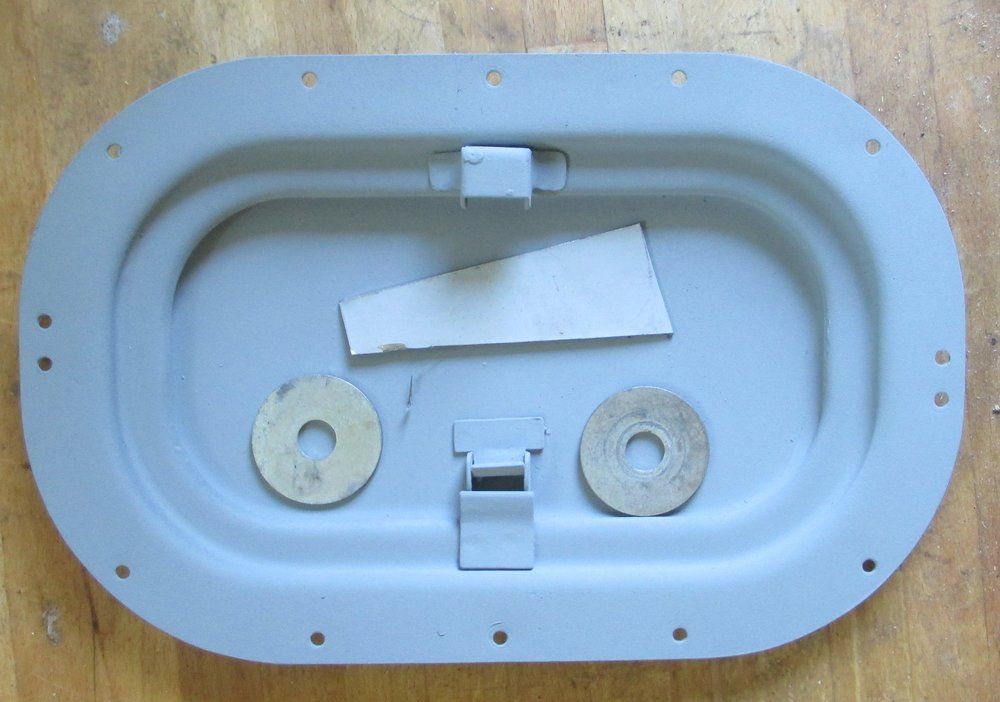

    Here's a comparison of the colour of the Zinga with bright zinc plated washers that have gone a little bit manky.

    1965 series 2a station wagon zinga on roof vents comparison1.JPG 1965 series 2a station wagon zinga on roof vents comparison2.JPG 1965 series 2a station wagon zinga on roof vents comparison3.JPG

    It looks much more like spray paint than bright zinc plating. That's not such a surprise. I reckon the best comparison is going to be with the surface of something like zincor (zinc plated sheet steel). I'm just off to the Land Rover to see if I can find a bit - and perhaps get a bit of old galvanised something or other to do another colour comparison.

  14. Stretch

    Stretch Well-Known Member

    Joined:
    Mar 18, 2016
    Posts:
    1,556
    Likes Received:
    620
    Location:
    Holland
    Comparison with Zincor plate as well as the bright zinc washers

    [​IMG]

    [​IMG]

  15. Stretch

    Stretch Well-Known Member

    Joined:
    Mar 18, 2016
    Posts:
    1,556
    Likes Received:
    620
    Location:
    Holland
    Just had another bash at the engine.

    The front starting dog nut thing needs a special tool => 530102

    Looked everywhere for the size of the nut and it seems to be a bit of a well kept secret from google at the moment!

    Turns out to be 1 11/16" => closest metric size that just about goes on is 42mm

    I've got a 41mm spanner and a 46 mm spanner (for Mercedes prop shafts) but no 42mm

    Turned out for removal a bit of padding with masking tape and the use of a 46mm socket (probably used for a Mercedes steering box) I got the thing off with out causing any damage.

    All good stuff but I reckon I'd better source a 42mm socket for reassembly.

    ######

    ATF hasn't soaked through past the piston rings yet - hmmm - stuck as a stuck thing then...

  16. Dan_Trials

    Dan_Trials Well-Known Member

    Joined:
    Jan 30, 2007
    Posts:
    2,546
    Likes Received:
    142
    Location:
    Isle of Lewis now - Originally Stourbridge!
    You won't replicate zinc coating with a cold spray as zinc is applied by hot dipping. Much like cold galv spray doesn't look like galv. I think as long as it does it's job of protecting the metal then it's fine.

  17. Dan_Trials

    Dan_Trials Well-Known Member

    Joined:
    Jan 30, 2007
    Posts:
    2,546
    Likes Received:
    142
    Location:
    Isle of Lewis now - Originally Stourbridge!
    I had a pinto bottom end that was sat outside for a number of years, I got it moving by heating some diesel in a small sauce pan and pouring it on the pistons. Might be worth a try.

  18. Stretch

    Stretch Well-Known Member

    Joined:
    Mar 18, 2016
    Posts:
    1,556
    Likes Received:
    620
    Location:
    Holland
    Thanks - I'm getting there slowly

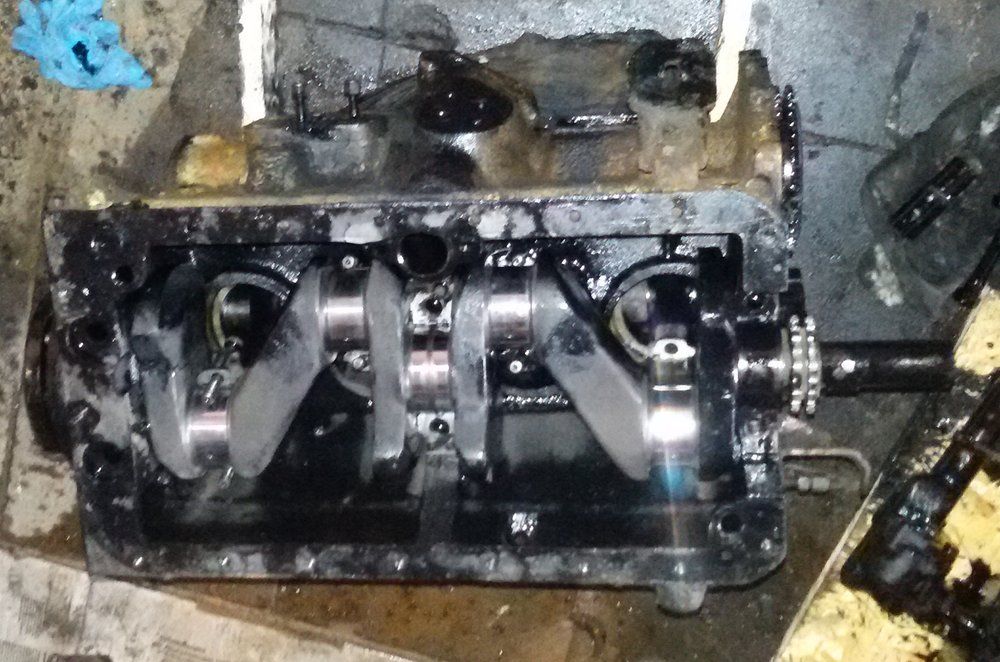

    1965 series 2a station wagon sump off engine.jpg 1965 series 2a station wagon timing chain removed.jpg 1965 series 2a station wagon almost got the crankshaft out.jpg

    Boy have I got to get a better camera - one that does better poor light pictures

    Dan_Trials likes this.
  19. Dan_Trials

    Dan_Trials Well-Known Member

    Joined:
    Jan 30, 2007
    Posts:
    2,546
    Likes Received:
    142
    Location:
    Isle of Lewis now - Originally Stourbridge!
    Think you'll need to shot blast that oil off!

    Stretch likes this.
  20. Stretch

    Stretch Well-Known Member

    Joined:
    Mar 18, 2016
    Posts:
    1,556
    Likes Received:
    620
    Location:
    Holland
    Tell me about it.

    The sludge in the bottom of the sump is like waste from the Tory Canyon only with out the seals and and the feathered wildlife.

    It is grim.

    Luckily they still sell chemical cold degreaser here in Holland to the public, so I don't have to resort to soaking in petrol (or other crazy things like that). They have, however, stopped "us" from buying decent paint stripper. It still exists for companies but individuals are left with products which honestly really ought to be dragged in front of trading standards...

    ...but that's another story - another whinge.
