110 USW campervan

Discussion in 'Members Vehicles/Projects' started by Barney’s Landy, Nov 26, 2019.

< Previous Thread | Next Thread >
  1. Barney’s Landy

    Barney’s Landy Active Member

    Joined:
    Nov 25, 2019
    Posts:
    52
    Likes Received:
    47
    Location:
    East Anglia
    I collect my my new defender called Lil in just under two weeks from a garage, a dented Keswick green 110 USW base model.
    My plan is to give it a smart modern retro feel on the outside and a modern clean look on the inside.
    I will try and keep the 5 seats, but it will have a pop up roof and removable units.

    A new Zunsport grille, surround, bumper and LED lights have been ordered, and the wheel arches have been sprayed green, the roof will remain white to help with the retro look.
    I have not decided on the pop up roof but my budget will prevent me from spending too much. All the work when l get it back l will try and do myself including all of the electrics.

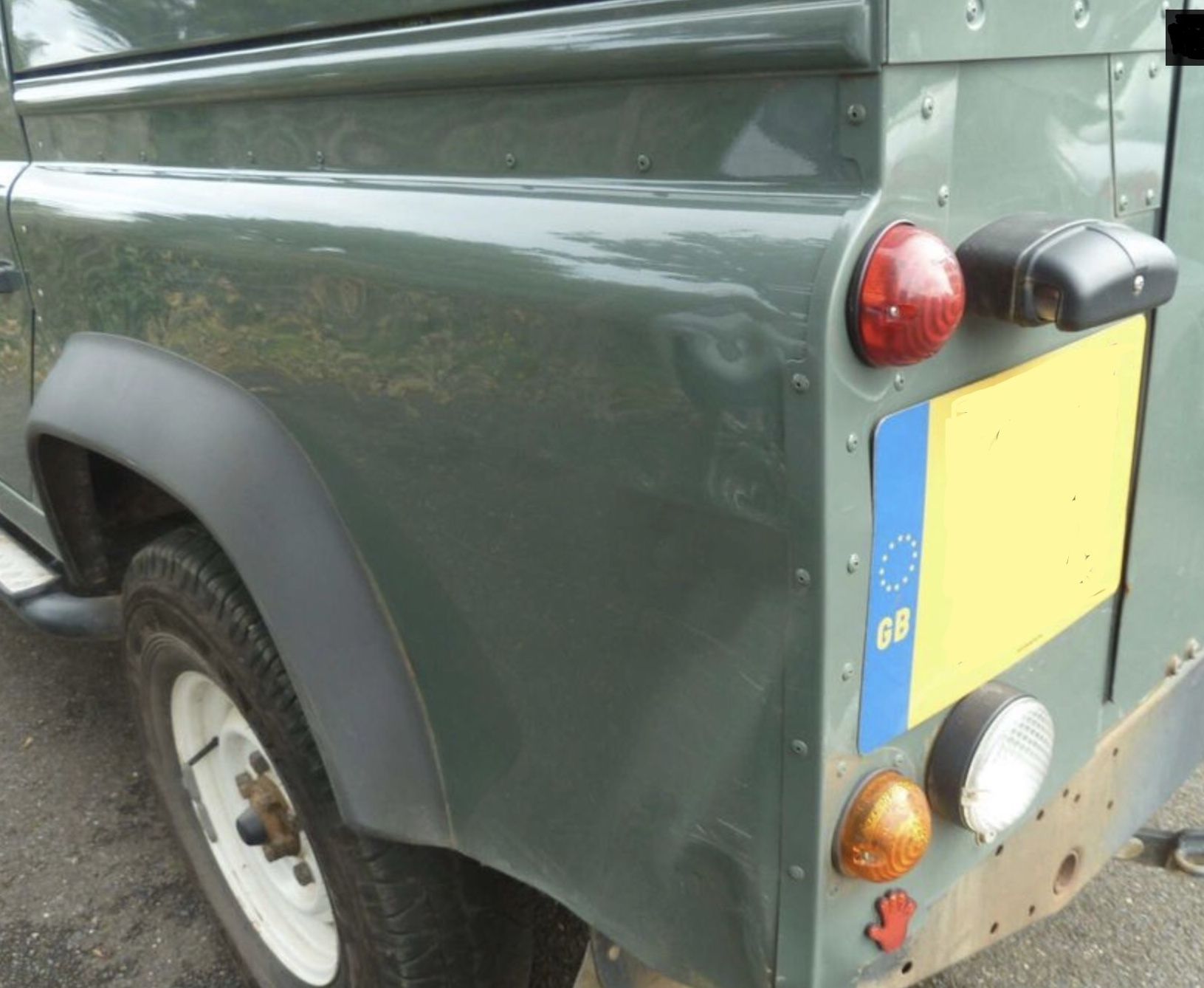

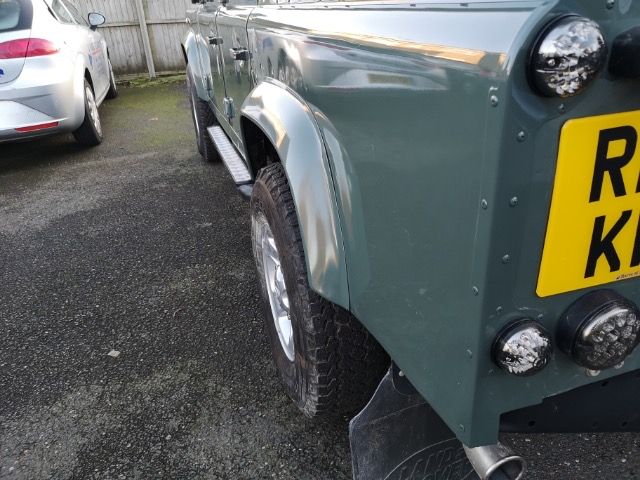

    The last time l saw the car was roughly four weeks ago and at the time the body had quite a few major dents, these have now been filled and resprayed.

    New photographs in a couple of week
    53DA7CDF-75D2-4B67-809B-12ABA2289813.jpeg 37BF63B3-8446-47C8-8A57-B1410F1E1FA3.jpeg





    Attached Files:

    Knappster likes this.
  2. dieseldog69

    dieseldog69 Well-Known Member LZIR Despatch Agent

    Joined:
    May 21, 2010
    Posts:
    9,088
    Likes Received:
    6,702
    Location:
    Back in the UK, Sunny Hampshire.
    Interested to know your plans?

    Never understand all the fuss about dents and scrapes but that's just me lol :D

    Are you having a custom pop up roof made or is have you found something off the shelf to fit?

    Stanleysteamer likes this.
  3. Barney’s Landy

    Barney’s Landy Active Member

    Joined:
    Nov 25, 2019
    Posts:
    52
    Likes Received:
    47
    Location:
    East Anglia
    First photo update...
    My philosophy and direction on this Campervan project will be guided firstly by design, then quality, product material, then price, the reason being is l am a fussy old ******.
    My other Defender vehicles l have owned have mostly been led by cost, they have looked okay, but this is the first campervan.
    Lil (Landy) will look retro, l will keep the white roof, front end change, single pivot spare wheel carrier, mainly because l don’t want to drill through the body. (Fussy);)

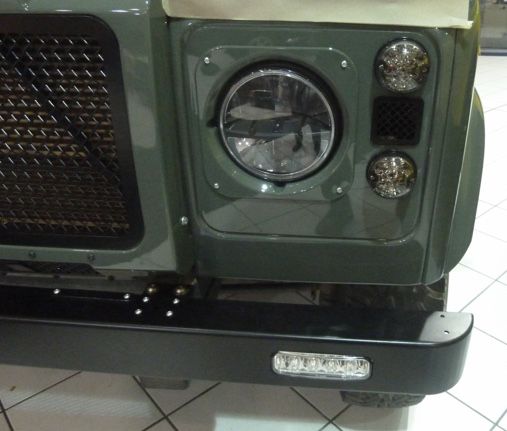

    The boost wheels were thrown in with the purchase, so l will keep those for now. New style LED lights
    and LED headlights, l managed to get some headlights that didn’t look too modern.
    The vinyl seats will be re-trimmed to tan leather, maybe also grab handles, carpets will be added, also a stereo.
    Steering wheel looks tatty, but l have sourced out a mint condition XS off plumtree.
    Lil will be a five seater, and turned into a camper by tumbling the 2nd row seats forward, adding aluminium
    stack containers and a fridge all locked down to cargo rails.
    I will also add a Gull wing window, split charger, diesel heater, sink, under chassis water tank, and solar panel.
    The units will be handmade, not off the shelf units, hopefully made out of metal.
    The roof, l am not sure about yet. l might go for a classic side fixed roof, or a more modern wedge shape.
    There are of course pros and cons with each design, so l will need to look into this further.
    From this point the work will mostly be done by me. It is all new to me, so l hope not too many mistakes are made.

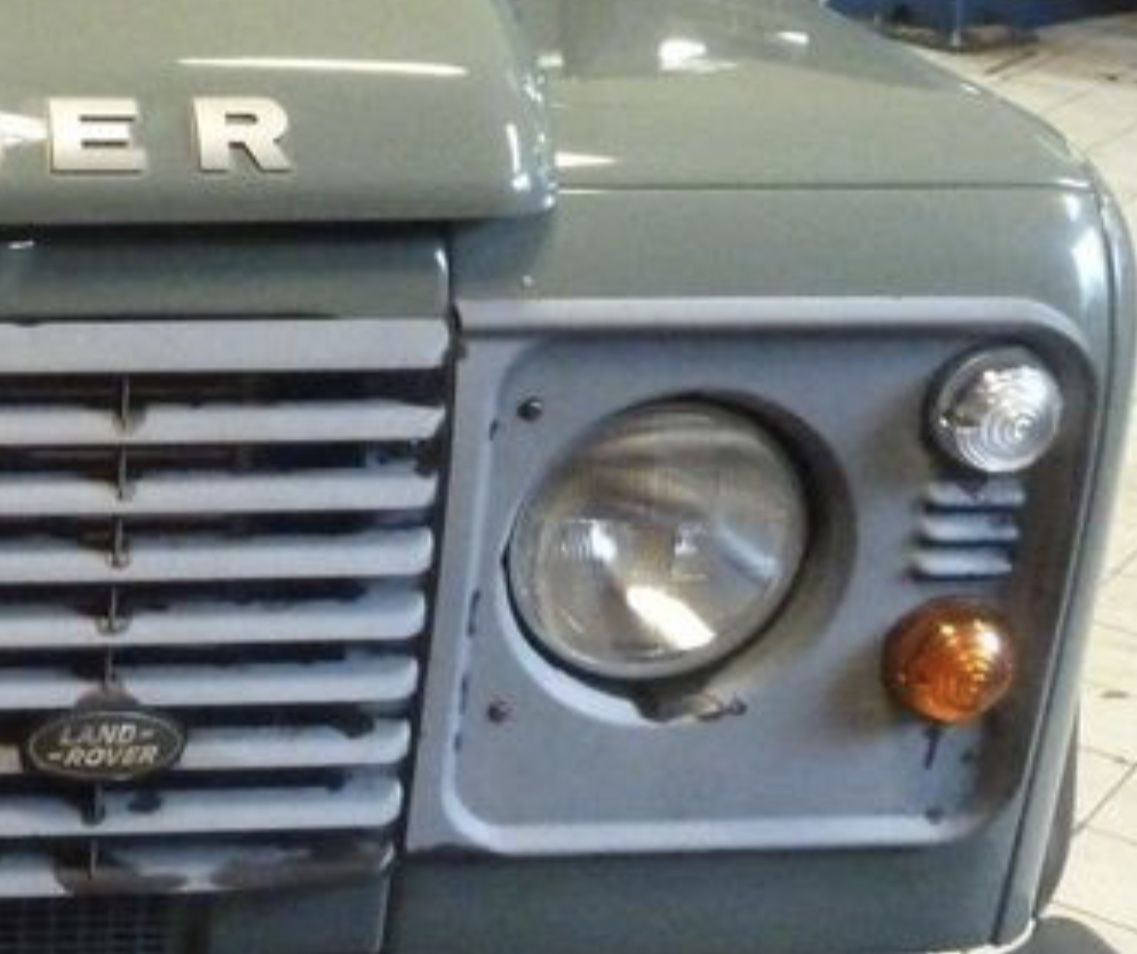

    Before
    A bit different.
    Before
    After

    Stanleysteamer and Knappster like this.
  4. dieseldog69

    dieseldog69 Well-Known Member LZIR Despatch Agent

    Joined:
    May 21, 2010
    Posts:
    9,088
    Likes Received:
    6,702
    Location:
    Back in the UK, Sunny Hampshire.
    There is a place here on the island that does custom fibreglass roofs for campers, he mostly does the VW and Tranny van conversions, chops the steel roof out and fits a frame with a bellows and the new reinforced roof.

    I was looking at it for the Disco at a later date.

    I like your idea for the gull wing windows, going to be super neat.

  5. Barney’s Landy

    Barney’s Landy Active Member

    Joined:
    Nov 25, 2019
    Posts:
    52
    Likes Received:
    47
    Location:
    East Anglia
    :) Thanks, one side mounted roof l have seen, you can decide on the bellow colour. They do a sandy colour which would then match the retro styling and look good against the white roof.

    Two options for the Gullwing: l hope maybe to bring the level of the inside units above window, so it allows me to access the back of the units from outside, more storage, or l can drop the level of the units down so that l can access the sink from outside.
    Not sure yet l might have to wing it :) when the time comes. I think it will be down to how much storage I will end up with.
    A good thing with this type window Is that l could mount some supports/tracking, then use these as extra storage on the outside of the vehicle.
    They do two types, glass and the more expensive aluminium, both with rounded corners, but l have come across a company that do a with squared off corners. Time will tell ;)

  6. Trench Rat

    Trench Rat Well-Known Member

    Joined:
    Jan 11, 2018
    Posts:
    2,701
    Likes Received:
    2,066
    Location:
    Hayling Island
    Opposite pullingers next to what was the billy? Didn't realise they did modifications. Thought just traded. There's a nice old series in their garage.

  7. Barney’s Landy

    Barney’s Landy Active Member

    Joined:
    Nov 25, 2019
    Posts:
    52
    Likes Received:
    47
    Location:
    East Anglia
    Where would l find the info?

  8. kermit_rr

    kermit_rr Well-Known Member

    Joined:
    Dec 9, 2018
    Posts:
    6,622
    Likes Received:
    3,867
    Location:
    North Shropshire
    I'm thick, what's a gull wing window?
    If you're building it yourself, keep a check on the weight that you're adding in :)
    Sounds like a fun project!!

  9. Barney’s Landy

    Barney’s Landy Active Member

    Joined:
    Nov 25, 2019
    Posts:
    52
    Likes Received:
    47
    Location:
    East Anglia
    Should be okay for weight, most of the units will be Aluminium, hopefully;)

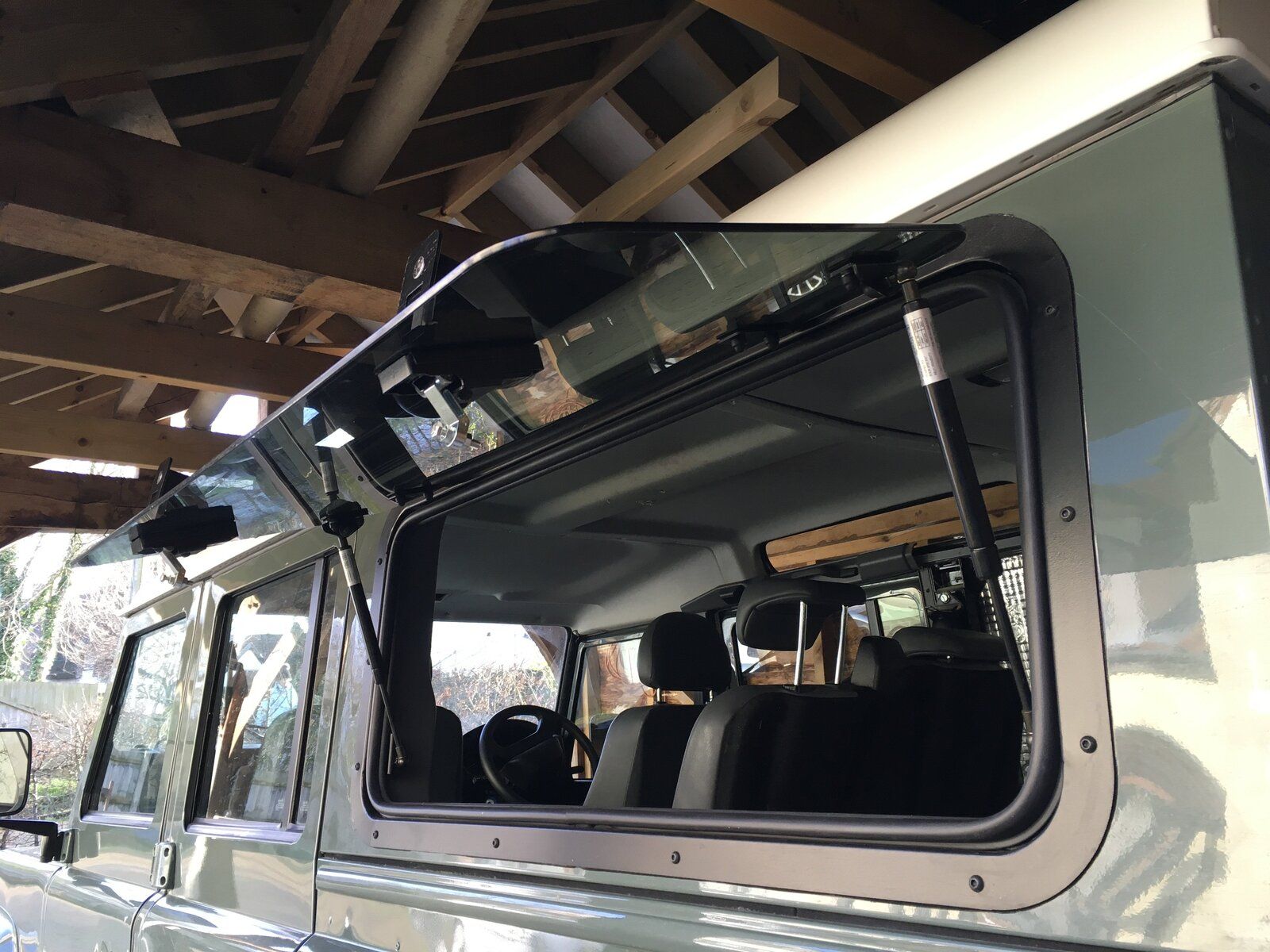

    Photo attached of a Gullwing, with table.

    Allegro ma non Troppo likes this.
  10. kermit_rr

    kermit_rr Well-Known Member

    Joined:
    Dec 9, 2018
    Posts:
    6,622
    Likes Received:
    3,867
    Location:
    North Shropshire
    Ah yes, didn't know what they were called!

  11. doriz

    doriz Well-Known Member

    Joined:
    Feb 18, 2015
    Posts:
    8,894
    Likes Received:
    5,666
    Location:
    Cowroast
  12. Barney’s Landy

    Barney’s Landy Active Member

    Joined:
    Nov 25, 2019
    Posts:
    52
    Likes Received:
    47
    Location:
    East Anglia
    I managed to collect the Lil a few weeks ago, an enjoyable 180 mile round trip.
    It drives well and l was impressed as to how how quickly the inside warms up compared to my old TD5 90, and it wasn’t too noisy.
    I drove it back in the rain, and it has felt like it has rained everyday since, or it has been to dark to do anything, so l have been a bit delayed getting things moving.
    Finally!

  13. Barney’s Landy

    Barney’s Landy Active Member

    Joined:
    Nov 25, 2019
    Posts:
    52
    Likes Received:
    47
    Location:
    East Anglia
    First thing on my to do list was to change the standard wing grilles to stainless steel ones, they now match my front grille, so shouldn’t rust. I also added a rear swing away with a 2nd hand wheel and tyre, and a new Defender badge and the very important Union Jack.
    C2998615-BFF1-417C-8B22-B10061BC45D6.jpeg 13238595-1061-42EC-BE9A-1C8F68E961E7.jpeg CEA8EB21-CF1C-4DDA-9631-1D489B98074B.jpeg One issue l found with the car was that the front hinges were bent and were close to hitting the bulkhead. These were both straightened and welded, and the stay bracket on the car positioned correctly.
    Next l concentrated on the electrics or should l say l gave it to someone else to concentrate on them.
    On the before and after photographs you will notice the differences, double din facia with new Alpine head unit, heated seat wiring and buttons, electric windows and a small auxiliary button facia, this also has a battery voltage meter to keep an eye on the starter battery.

    kermit_rr, Knappster and Hicap phill like this.
  14. Barney’s Landy

    Barney’s Landy Active Member

    Joined:
    Nov 25, 2019
    Posts:
    52
    Likes Received:
    47
    Location:
    East Anglia
    Also fitted a rear view camera to the jet wash, the car is so long and thought it was only a matter of time before l dented it, and adding a camera is cheaper!

    kermit_rr and Knappster like this.
  15. Barney’s Landy

    Barney’s Landy Active Member

    Joined:
    Nov 25, 2019
    Posts:
    52
    Likes Received:
    47
    Location:
    East Anglia
    Just fitted the Gullwing window, it wasn’t too bad to fit, but l had to make sure that the position was inline with the
    window trim.
    I Purchased the glass version in the end because l want to drop the level of the units, more light and l think it looks better. Removed the internal window trim and the vertical bar, just had to remove rivets and prize off.

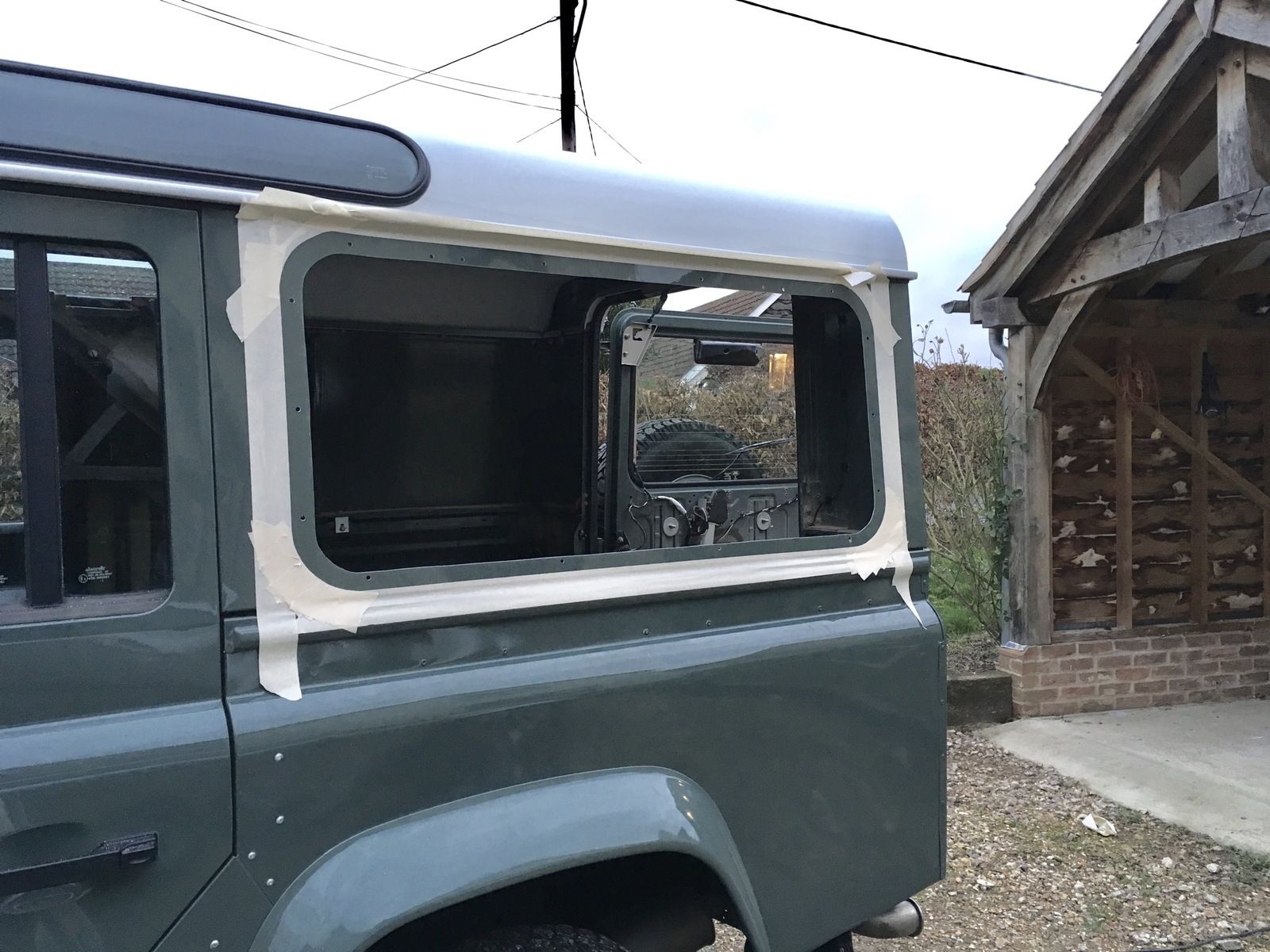

    ED3E1878-E438-4019-9B8D-9A92A6D539B2.jpeg The area was marked off using a pen over some masking tape, this was cut out.
    AD5AE68B-2429-42AC-A9A4-A379D02E3761.jpeg The tape was removed and the window placed back in position. I then drilled though the holes in the frame and into the shell of the car.

    Last edited: Feb 19, 2020
    mick the builder and Knappster like this.
  16. Barney’s Landy

    Barney’s Landy Active Member

    Joined:
    Nov 25, 2019
    Posts:
    52
    Likes Received:
    47
    Location:
    East Anglia
    Making tape was placed around the window as a mask for the silicone, this oozes out once the bolts are tightened up. 1FBF1546-F977-4A31-870C-84AF1DBA00A1.jpeg

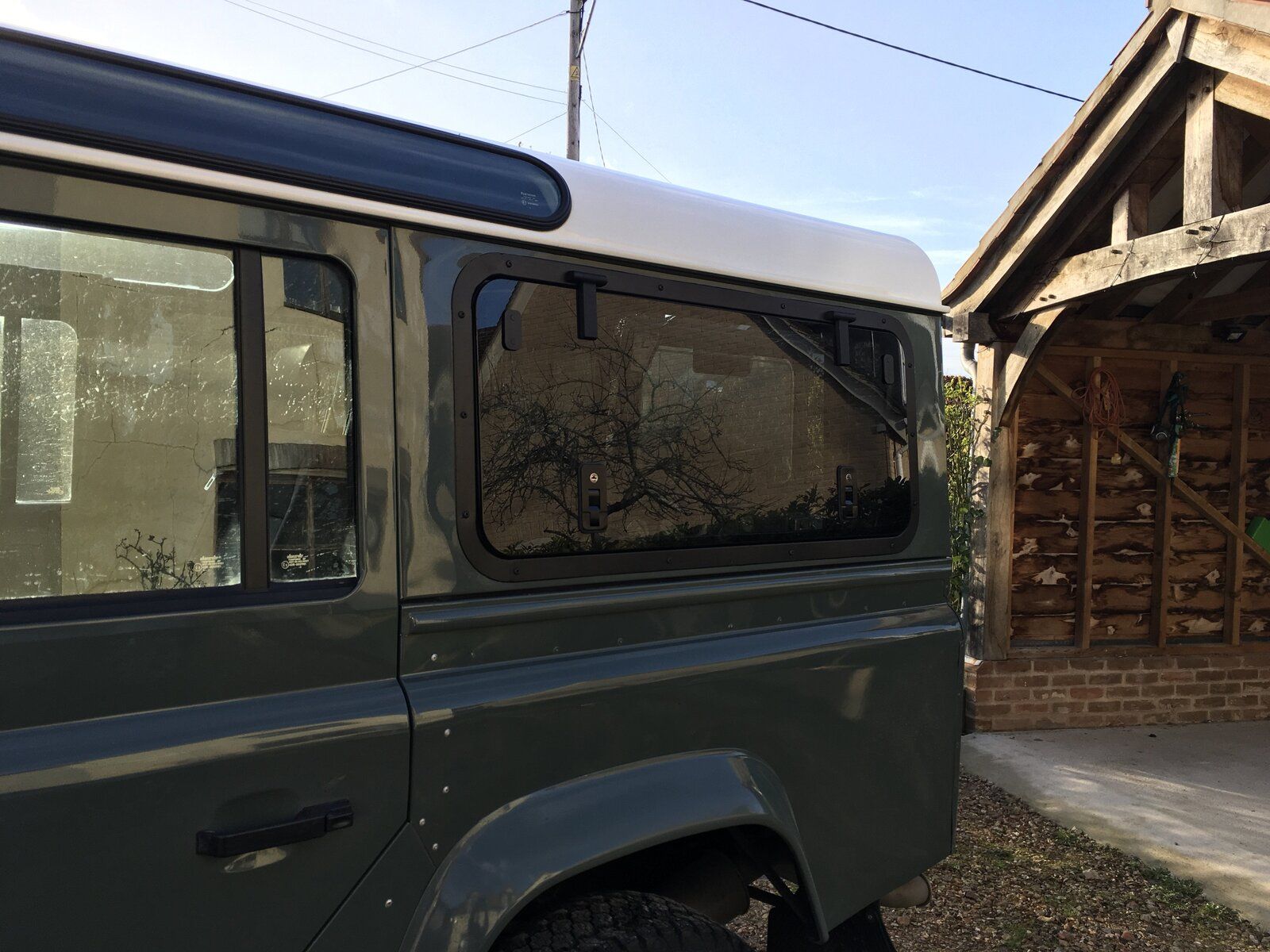

    Finished window!
    054CCDE9-5727-4E84-BA48-F7A14F0E8E0C.jpeg 32B6552B-8B9C-435C-BC22-F61C6666CC71.jpeg

  17. kevstar

    kevstar Well-Known Member

    Joined:
    Sep 25, 2013
    Posts:
    5,026
    Likes Received:
    5,339
    Location:
    In the next Glen
    Stanleysteamer likes this.
  18. haza88

    haza88 Well-Known Member

    Joined:
    Nov 10, 2009
    Posts:
    639
    Likes Received:
    209
    Agreed job well done

  19. Barney’s Landy

    Barney’s Landy Active Member

    Joined:
    Nov 25, 2019
    Posts:
    52
    Likes Received:
    47
    Location:
    East Anglia
    On my to do list was the the sound insulation, so that was my next job. The problem is the temperature was so cold that l had to get the heat gun to warm up the insulation. 513CF4D5-AC51-40BC-9432-510ECF960DEC.jpeg
    I left two areas clear on the floor, this is where l will place the two new seat striker plates.
    Next l removed the cab headliner, faced it with sound proofing and thermal insulation. I also added insulation to the
    roof sections. The flat area of the roof will be removed to add the elevated roof, so this area was left alone.
    While the head liner was of, l thought l would recover it.
    Do you ever think to yourself, I wish l hadn't started this!
    Well It started off easy enough, but as l started pulling the old surface off it also started to rip up the surface. l found it best to rip away from the centre, but it still messed up the surface. The edges were then wire brushed to remove some of the old foam surface. For the really poor areas l painted on several coats of PVA glue and sandpapered this down. It did help, although in hindsight l could have used filler.
    The end result was okay, but was it worth the hassle? It took a long time, longer than l thought it would.
    And make sure you don’t get caught using the dinning room table, wife was not happy!:rolleyes:
    868D3391-A177-451F-BB34-1696AE17B57B.jpeg B4F73528-32A2-4296-A9C2-5FF03377CF83.jpeg D5C5F699-B94C-4D85-BEC5-5DC97A8DD8CD.jpeg 8E90F96D-FB3A-4054-BBDD-7EF05619FFC0.jpeg AE59018E-AE55-49A8-BF34-527D64F0A6C2.jpeg E83BDD84-D44E-4861-A89D-6306D24FFBF1.jpeg 46C0E5B5-A671-406C-9A6A-649D3A53E508.jpeg
    Sorted!
    6270AEA2-B5CA-43B7-B61E-DFCD86BC1024.jpeg ABFB2151-BE42-4CF8-957C-322A868C0F00.jpeg

    Knappster and Trailstar like this.
  20. Barney’s Landy

    Barney’s Landy Active Member

    Joined:
    Nov 25, 2019
    Posts:
    52
    Likes Received:
    47
    Location:
    East Anglia
    Not just one Defender Camper but four!
    (Lil is the second from the Right.)

    Many more photographs to come..

    Knappster and My Old Landy like this.
