Freelander 1 1.8 camshaft locking tool LRT-12-134

Discussion in 'Land Rover Freelander' started by sierrafery, Oct 5, 2016.

< Previous Thread | Next Thread >
  1. sierrafery

    sierrafery Well-Known Member

    Joined:
    Jun 30, 2007
    Posts:
    13,936
    Likes Received:
    2,144
    Location:
    West of Transylvania
    Hi guys. i need help for a friend, can anybody explain as to be understandable even for me if the camshaft alignment can be done without that dedicated tool cos he told me that he changed the belt but after two turns the signs are not together as at first setting, is that normal?, also after the belt tensioner was set there is one tooth difference as he said... unfortunately i'm completely dumb when it comes to mechanics so maybe i can't explain well, please if somebody can explain clearely how to do it without that tool i'll be extremely gratefull. Thanks in advance

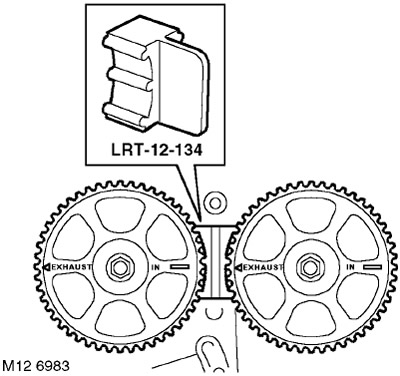

    LRT 12-134.jpg

  2. freelance

    freelance Well-Known Member

    Joined:
    Mar 5, 2009
    Posts:
    7,446
    Likes Received:
    3,829
    Location:
    essex and beyond
    The tool keeps the gears in the right place against valve spring pressure on the lobes, however if you have three hands and two spanners, you can get timing right without it, if I remember after a couple of turns the marks are nowhere near.

  3. Nodge68

    Nodge68 Well-Known Member

    Joined:
    Nov 15, 2011
    Posts:
    21,415
    Likes Received:
    4,803
    Location:
    Near Newquay
    If the cams were timed correctly. After 2 exactly turns of the crank, the timing marks should be exactly together again. The crank turns exactly 2 revolutions for the cams to turn exactly 1 revolution.
    If timing marks aren't lining up, they're not set correctly;)

  4. freelance

    freelance Well-Known Member

    Joined:
    Mar 5, 2009
    Posts:
    7,446
    Likes Received:
    3,829
    Location:
    essex and beyond
    I obviously don't remember !!

  5. sierrafery

    sierrafery Well-Known Member

    Joined:
    Jun 30, 2007
    Posts:
    13,936
    Likes Received:
    2,144
    Location:
    West of Transylvania
    Thanks for the info guys

  6. davidsmith1307

    davidsmith1307 Well-Known Member

    Joined:
    Nov 21, 2014
    Posts:
    1,333
    Likes Received:
    305
    Location:
    Hull
    You don't have to be embarrassed about coming on the Freelander section - you know you want to replace your Disco with a nice FL1.... :)
