00KK53 - My Soft Top 12v GS TUL 90. So a soft top 90 then......

Discussion in 'Defender 90 / 110 / 130' started by flat, Mar 11, 2013.

< Previous Thread | Next Thread >
  1. neilly

    neilly Well-Known Member

    Joined:
    Jan 10, 2011
    Posts:
    14,779
    Likes Received:
    5,989
    Location:
    Oxfordshireness
    Looks like your waffles got a work out...LOL.

    Cheers

    flat likes this.
  2. flat

    flat Well-Known Member

    Joined:
    Mar 11, 2013
    Posts:
    6,341
    Likes Received:
    1,341
    Location:
    Far away from you!!
    Yep they did, and they have stood up quite well. Used them about 6/7 times Sunday for various vehicles as either traction mats or a bridge - they work good. Might get a second pair as they are only cheap

    neilly likes this.
  3. flat

    flat Well-Known Member

    Joined:
    Mar 11, 2013
    Posts:
    6,341
    Likes Received:
    1,341
    Location:
    Far away from you!!
    Okay, took the electric fan out today after it stopped working at the weekend, got it working on the bench but it sounds squeaky and rough so have ordered replacement viscous unit - as LR intended. Stripped out all the electrical fan loom as I hate snipped off redundant wires left in the loom, makes future wiring harder.

    Hard - Wired in the cb finally using an ignition live off the back of the fuse box


    Attached Files:

  4. Huntinghicap

    Huntinghicap Active Member

    Joined:
    Dec 13, 2017
    Posts:
    78
    Likes Received:
    53
    Location:
    South East
    Leith Hill?

  5. flat

    flat Well-Known Member

    Joined:
    Mar 11, 2013
    Posts:
    6,341
    Likes Received:
    1,341
    Location:
    Far away from you!!
    nah the one that we decided not to do was down near petersfield

  6. callisr

    callisr Well-Known Member

    Joined:
    Jun 21, 2005
    Posts:
    432
    Likes Received:
    142
    Location:
    Burton-on-Trent, Staffs
    Your Land Rover looks stunning with that truck cab tilt!

    flat likes this.
  7. flat

    flat Well-Known Member

    Joined:
    Mar 11, 2013
    Posts:
    6,341
    Likes Received:
    1,341
    Location:
    Far away from you!!
    Cheers, it’s warmer as well :)

  8. flat

    flat Well-Known Member

    Joined:
    Mar 11, 2013
    Posts:
    6,341
    Likes Received:
    1,341
    Location:
    Far away from you!!
    Did a couple of small jobs this evening, spent about 30mins.

    Fitted my new viscous fan unit - am picking up the cowling at the weekend from a fellow LZ’er. I binned off the electric fan I fitted 3 years ago after I killed it wading (not that deep either). I got it working again but have lost confidence in it because it fails to ‘off’ leaving you with no cooling! So I went back to as LR designed. *May* have to hange my top coolant hose as the fan catches the stupid RDX aluminium thing that holds the switch for the electric fan - I have zip ties it out the way at the moment but will see how it is with the cowl in place before changing it.



    Also, fed up of my wiper arms falling off. Not sure why, I think it’s a shi.t design. I replaced the 2 spindle adaptors and fitted a new wiper arm to replace the one that got lost laning the other day. Except this time I tapped an m4 x0.70 thread and fitted some pointed grubscrews to ‘lock’ the wiper arms onto the spindles. Hopefully it works....

    capo, Jam1 and Hicap phill like this.
  9. flat

    flat Well-Known Member

    Joined:
    Mar 11, 2013
    Posts:
    6,341
    Likes Received:
    1,341
    Location:
    Far away from you!!
    Okay today I cut a dirty big hole in my wing....

    Why you ask? So I can fit a fresh air intake for the heater because the normal fresh air intake is used by a wingtop snorkel.

    Been psyching myself up to do this for a few years.....

    No more engine bay fresh air in the cab! Will at some point mask off the wing and spray the air intake with matt black paint, probably in about 3 years knowing me.

    3F377372-5405-46E9-959E-965952097ED2.jpeg C3F14736-B922-4FB5-86CD-D0EE5047C79F.jpeg 130AD959-AFAD-49C3-A24C-75C4BB00DEF1.jpeg

    callisr likes this.
  10. callisr

    callisr Well-Known Member

    Joined:
    Jun 21, 2005
    Posts:
    432
    Likes Received:
    142
    Location:
    Burton-on-Trent, Staffs
    Fresh air? In the cab? That’s not right! It’ll never catch on!!:D
    Looks a tidy job. Does it just use flexible ducting from the intake grille to the fan?

  11. flat

    flat Well-Known Member

    Joined:
    Mar 11, 2013
    Posts:
    6,341
    Likes Received:
    1,341
    Location:
    Far away from you!!
    Yep exactly that, fed along inside the wing

  12. lucifus

    lucifus Active Member

    Joined:
    Aug 9, 2010
    Posts:
    650
    Likes Received:
    28
    Location:
    Herts
    Is that an old series intake cover?

  13. flat

    flat Well-Known Member

    Joined:
    Mar 11, 2013
    Posts:
    6,341
    Likes Received:
    1,341
    Location:
    Far away from you!!
    Yep it is

  14. lucifus

    lucifus Active Member

    Joined:
    Aug 9, 2010
    Posts:
    650
    Likes Received:
    28
    Location:
    Herts
    Looks good. Almost sporty lol

  15. flat

    flat Well-Known Member

    Joined:
    Mar 11, 2013
    Posts:
    6,341
    Likes Received:
    1,341
    Location:
    Far away from you!!
    I was trying to get away with not doing it but the heater intake - even extended down to the headlight - definitely draws in fumey air.
    Not noticeable when your driving about but in traffic or idling for long periods it definitely gets fumey in the cab so sucked it up and got out the saw.....

    Definitely think it needs spray painting though, probably satin black

  16. flat

    flat Well-Known Member

    Joined:
    Mar 11, 2013
    Posts:
    6,341
    Likes Received:
    1,341
    Location:
    Far away from you!!
    So.

    While cleaning the mud out I poked at the passenger footwell and made a hole. What a dick move. So I cut out the bad bit, and cut off all the rusty double skin bit in the back.
    IMG_1958- resized.JPG IMG_1959- resized.JPG

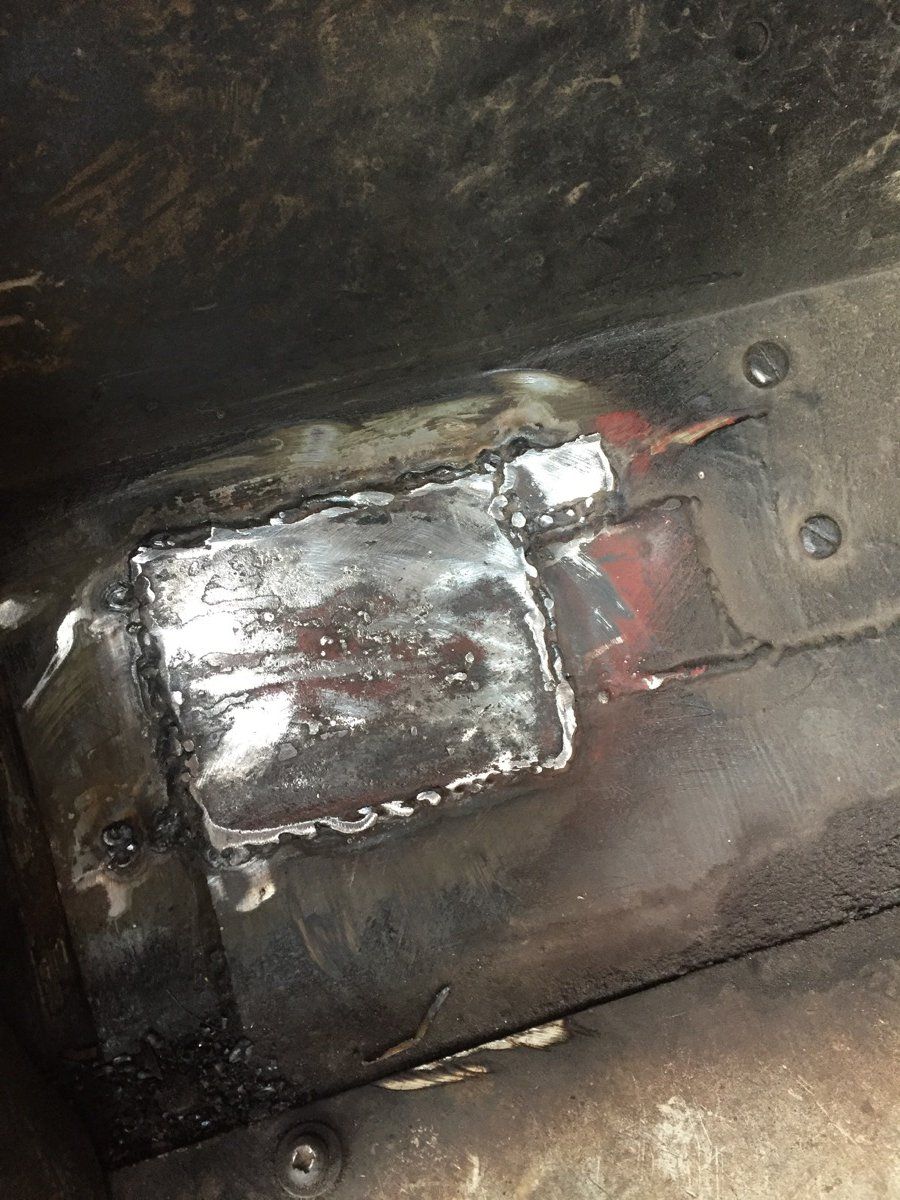

    Then welded a plate over the top, wasn’t actually that easy as I stick welded it with my r-tech arc welder.
    IMG_1960- resized.JPG

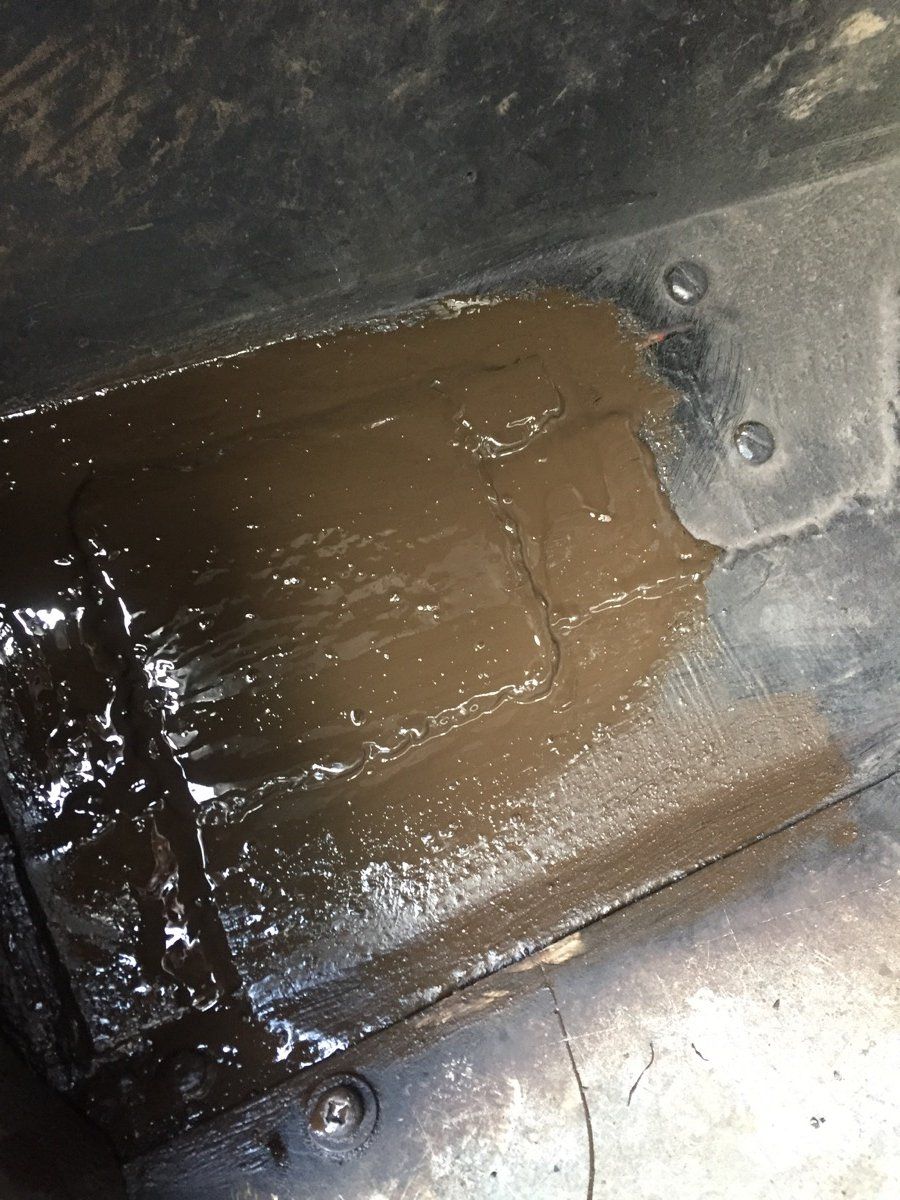

    Went okay but I had to do a series of small welds so not to blow holes. Looks like **** but seems to be solid. Painted with anti-rust paint and when that’s dry I will use underbody sealer on the back of the footwell to protect it a bit. Have priced up new footwells on YRM....
    IMG_1961- resized.JPG IMG_1962- resized.JPG

    Don’t judge me, I am not a welder and have never welded stuff this thin. Have emailed r-tech to see if they will part-ex my stick for a mig...

  17. lucifus

    lucifus Active Member

    Joined:
    Aug 9, 2010
    Posts:
    650
    Likes Received:
    28
    Location:
    Herts
    Doesn’t look too bad.

  18. flat

    flat Well-Known Member

    Joined:
    Mar 11, 2013
    Posts:
    6,341
    Likes Received:
    1,341
    Location:
    Far away from you!!
    was not easy tbh, had to turn the welder right down, but it was okay tbh. should last a while at least

  19. flat

    flat Well-Known Member

    Joined:
    Mar 11, 2013
    Posts:
    6,341
    Likes Received:
    1,341
    Location:
    Far away from you!!
    Well that didn’t go according to plan......


    Attached Files:

  20. neilly

    neilly Well-Known Member

    Joined:
    Jan 10, 2011
    Posts:
    14,779
    Likes Received:
    5,989
    Location:
    Oxfordshireness
    What was the plan??

    Cheers
