00KK53 - My Soft Top 12v GS TUL 90. So a soft top 90 then......

Discussion in 'Defender 90 / 110 / 130' started by flat, Mar 11, 2013.

< Previous Thread | Next Thread >
  1. Huddy84

    Huddy84 Well-Known Member

    Joined:
    Jul 10, 2013
    Posts:
    739
    Likes Received:
    212
    Location:
    East Anglia
    Looks good!

    flat likes this.
  2. flat

    flat Well-Known Member

    Joined:
    Mar 11, 2013
    Posts:
    8,132
    Likes Received:
    3,004
    Location:
    Far away from you!!
    Hmm photobucket finally deleted my photos after ignoring their emails for months.

    Will sit down and re-upload them direct to the forum page by page!

    In the meantime, rear diff leaking - investigated and the flange is quite scored, so new seal ordered (corteco) and new OEM flange and mud shield.

    Going to do the front to and the 2 seals on the transfer box in due course to, as they are all leaking to a greater or lesser degree!


  3. dieseldog69

    dieseldog69 Well-Known Member LZIR Despatch Agent

    Joined:
    May 21, 2010
    Posts:
    9,110
    Likes Received:
    6,736
    Location:
    Roaming the UK on assignments
    Know your pain, I found it a few years ago when none of my pictures worked and they were pretty much holding my account to ransom, I clicked the link to try an do something and poof it all disappeared before my eyes and never to be seen again.

    It's a ball ache :(

    Bad luck on the drive flange, I remember when speedisleeves were cheap and you could get them readily to repair the seal lands, times have certainly changed to the point where it's cheaper to get a whole new flange, seal, lock nut, felt washer and set of nuts an bolts for half the price of a speedisleeve these days.

  4. flat

    flat Well-Known Member

    Joined:
    Mar 11, 2013
    Posts:
    8,132
    Likes Received:
    3,004
    Location:
    Far away from you!!
    Yeah for the price (£25 for OEM) it’s not worth the effort of turning it down then sleeving it to the right size tbh.

    Parts won’t arrive until 3rd jan though :(

    dieseldog69 and Hicap phill like this.
  5. dieseldog69

    dieseldog69 Well-Known Member LZIR Despatch Agent

    Joined:
    May 21, 2010
    Posts:
    9,110
    Likes Received:
    6,736
    Location:
    Roaming the UK on assignments
    Kieth Gotts are open tomorrow and I'm heading there in the morning!!!

  6. flat

    flat Well-Known Member

    Joined:
    Mar 11, 2013
    Posts:
    8,132
    Likes Received:
    3,004
    Location:
    Far away from you!!
    Aah don’t worry I have ordered from LRdirect, it’s safe tucked up and I have a few other jobs I can be doing in the meantime :)

    dieseldog69 likes this.
  7. Def90man

    Def90man Well-Known Member

    Joined:
    Aug 31, 2016
    Posts:
    4,106
    Likes Received:
    6,128
    Location:
    The People’s Republic of Islay

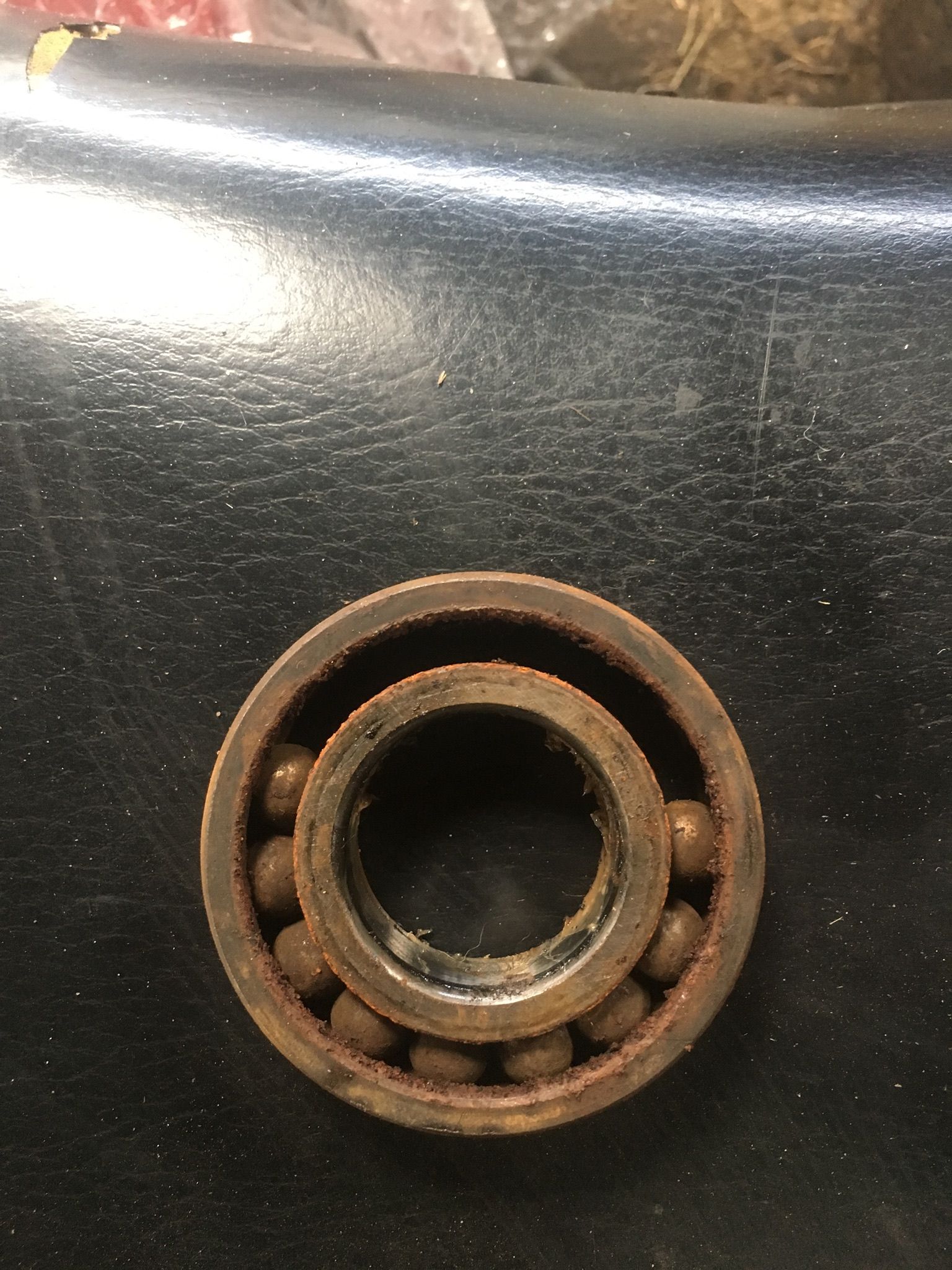

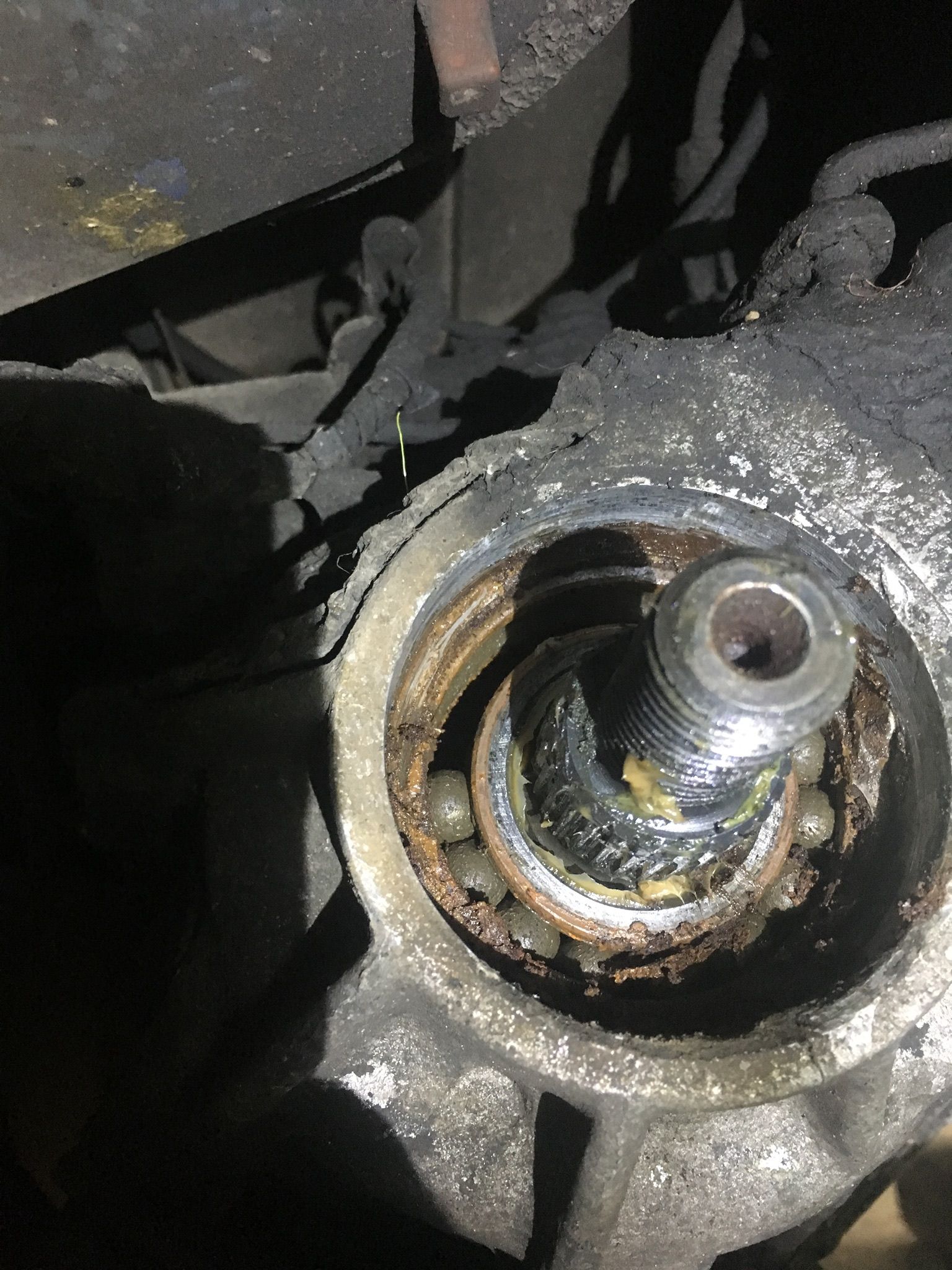

    I changed the output seal on the transfer box last year and it was much quieter on the road once I changed the bearing as well:oops:
    IMG_2246.JPG IMG_2247.JPG

    Hippo and freelance like this.
  8. dieseldog69

    dieseldog69 Well-Known Member LZIR Despatch Agent

    Joined:
    May 21, 2010
    Posts:
    9,110
    Likes Received:
    6,736
    Location:
    Roaming the UK on assignments
    Jesus wept, a drop of oil in the box might not have gone a miss either lol

    mine was positively sparkly in comparison lol

  9. Def90man

    Def90man Well-Known Member

    Joined:
    Aug 31, 2016
    Posts:
    4,106
    Likes Received:
    6,128
    Location:
    The People’s Republic of Islay
    It always had some oil put in every couple of months but it was noisy for a couple of years before I got round to it:oops:

  10. flat

    flat Well-Known Member

    Joined:
    Mar 11, 2013
    Posts:
    8,132
    Likes Received:
    3,004
    Location:
    Far away from you!!

    Woah.

    Will pull mine apart later and have. Look, was the bearing hard to change or does it just pull out like the diff pinion bearings?

  11. Def90man

    Def90man Well-Known Member

    Joined:
    Aug 31, 2016
    Posts:
    4,106
    Likes Received:
    6,128
    Location:
    The People’s Republic of Islay
    Drain the oil then spacers, large socket or something and keep winding the nut on to thread of shaft to withdraw the shaft is how I did it

  12. dieseldog69

    dieseldog69 Well-Known Member LZIR Despatch Agent

    Joined:
    May 21, 2010
    Posts:
    9,110
    Likes Received:
    6,736
    Location:
    Roaming the UK on assignments
    I wrote a piece in my blog.

    http://projectrusty1992.blogspot.com/2018/03/

    flat likes this.
  13. flat

    flat Well-Known Member

    Joined:
    Mar 11, 2013
    Posts:
    8,132
    Likes Received:
    3,004
    Location:
    Far away from you!!
    Thanks guys :)

  14. flat

    flat Well-Known Member

    Joined:
    Mar 11, 2013
    Posts:
    8,132
    Likes Received:
    3,004
    Location:
    Far away from you!!
    Boring thread update

    Flange changed and order is restored.

    ADA93CD5-FADC-44D4-82F5-C7FA49D6A341.jpeg 41510D25-2BCE-4F49-8B72-F6C97DFFCC8C.jpeg

    Huddy84, dieseldog69 and Def90man like this.
  15. flat

    flat Well-Known Member

    Joined:
    Mar 11, 2013
    Posts:
    8,132
    Likes Received:
    3,004
    Location:
    Far away from you!!
    MOT today, all is fine, tester commented that 'its a good one'.
    SMoke opacity was 1.9 so i think i can turn my fuelling up a bit :D

  16. Hicap phill

    Hicap phill Well-Known Member

    Joined:
    Dec 30, 2017
    Posts:
    9,341
    Likes Received:
    16,379
    Location:
    Wiltshire
    It’s nice when they comment on the motor & you know it was a year well spent looking after it .

    Huddy84 and flat like this.
  17. flat

    flat Well-Known Member

    Joined:
    Mar 11, 2013
    Posts:
    8,132
    Likes Received:
    3,004
    Location:
    Far away from you!!
    Did some more minor repairs today, put some timesert threaded inserts in my thermostat housing as the jubille clip and stripped thread jsut wasnt cutting the mustard anymore. now leak free :)

    IMG_8239.JPG IMG_8240.JPG IMG_8241.JPG IMG_8243.JPG

    Zed., Gottschalk and Hicap phill like this.
  18. flat

    flat Well-Known Member

    Joined:
    Mar 11, 2013
    Posts:
    8,132
    Likes Received:
    3,004
    Location:
    Far away from you!!
    couple of small lockdown tasks i did inbetween the weeks of mayhem at work.

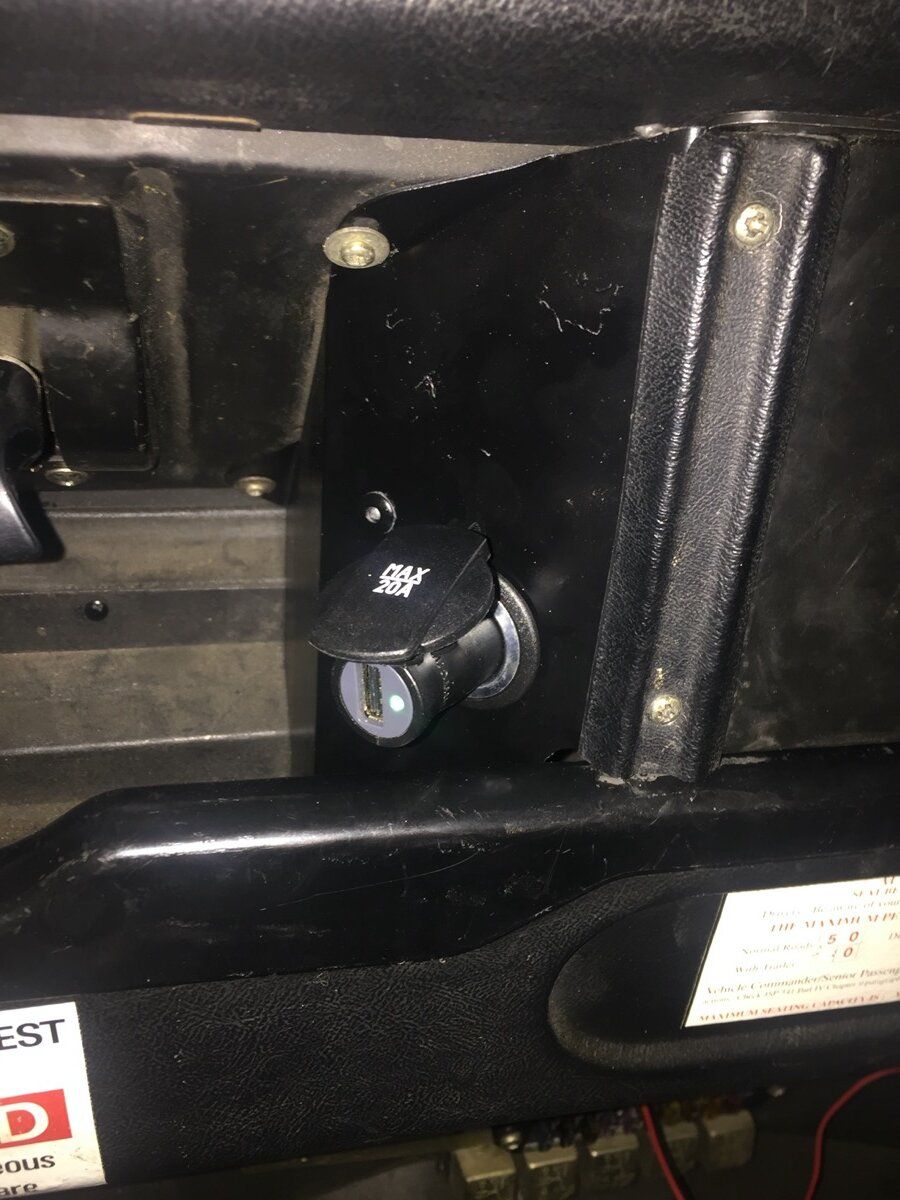

    first one was fit a small fusebox, i used the unused lighter feed and split it into 2 fused feeds, each one going to a seperate 'cigar socket' to put my phone charger etc in. These i just mounted in the sides of the military centre console, one for me and one for passengers.

    I fitted a 6 fuse box but 4 of the ports are unused, then in future i can just run a cable direct straight from the battery, or use the unfused brown feed in the main loom, and add circuits as i need.

    IMG_8551- resized.JPG IMG_8552- resized.JPG IMG_8553- resized.JPG

    Hippo likes this.
  19. flat

    flat Well-Known Member

    Joined:
    Mar 11, 2013
    Posts:
    8,132
    Likes Received:
    3,004
    Location:
    Far away from you!!
    Next thing i did was fit a 300tdi clutch pedal box, LOF PowerMASTER clutch master cylinder and uprated assist spring to make the clutch lighter. I have lower limb issues (long story) and the clutch was just too heavy for me.

    Interestingly my actual clutch is barely worn HD item and the uprated LOF spring is to much so the pedal just stayed on the floor - phone call with Luke at LOF and he explained that that was because my clutch isnt worn enough to need it, he suggested put the standard spring on and then fit his LOF spring in future when the clutch wears enough to warrant it. Even with the standard spring the new master cylinder makes the clutch shockingly light.

    All went well, tiny bit of superficial rust under the gasket area that was treated, then the clutch was gravity bled and after a couple of road tests it got it adjusted up properly. Clutch is genuinely one finger light.... rubbish video below.....



    Any photos
    Old MC - nothing wrong with it, just the LOF is betterer lol
    IMG_8566- resized.JPG

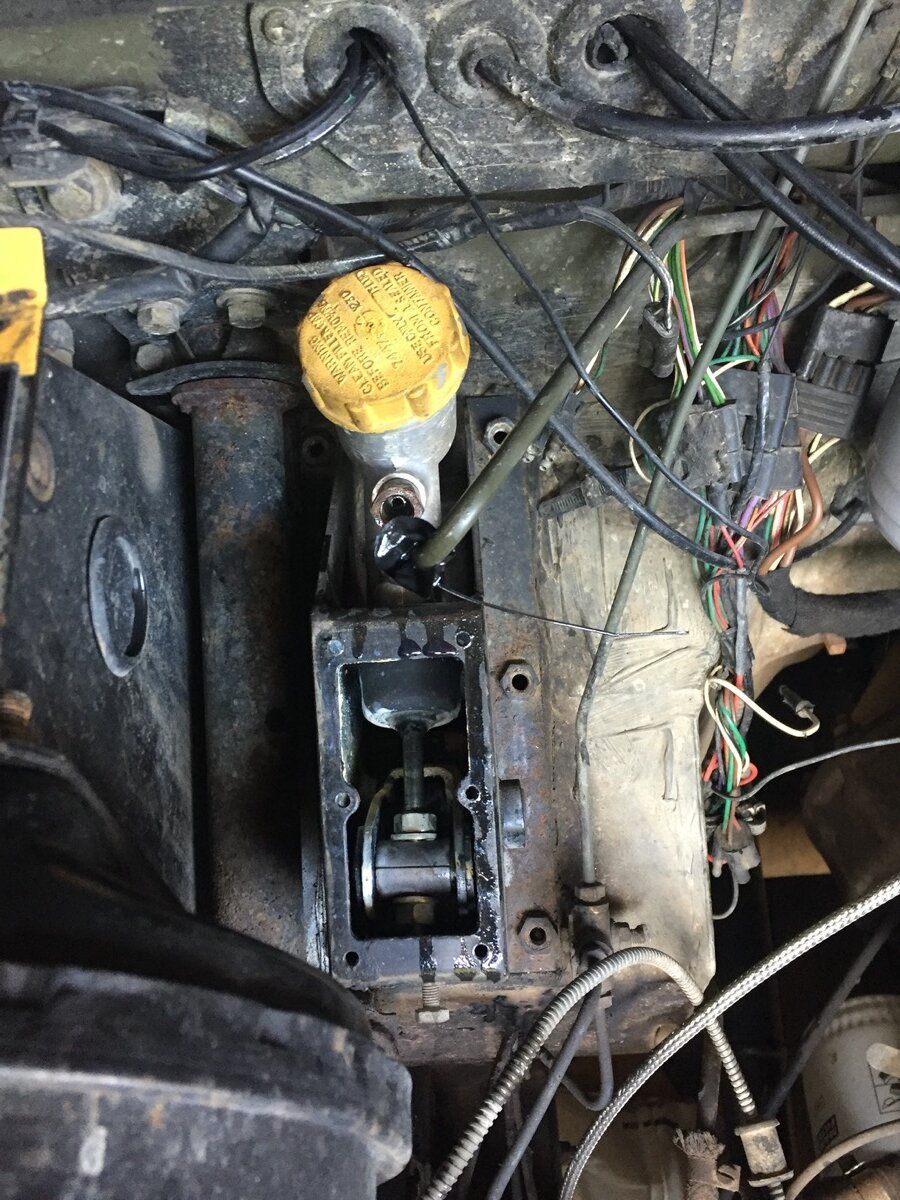

    Old out, some slight rust from where the gasket sat
    IMG_8567- resized.JPG

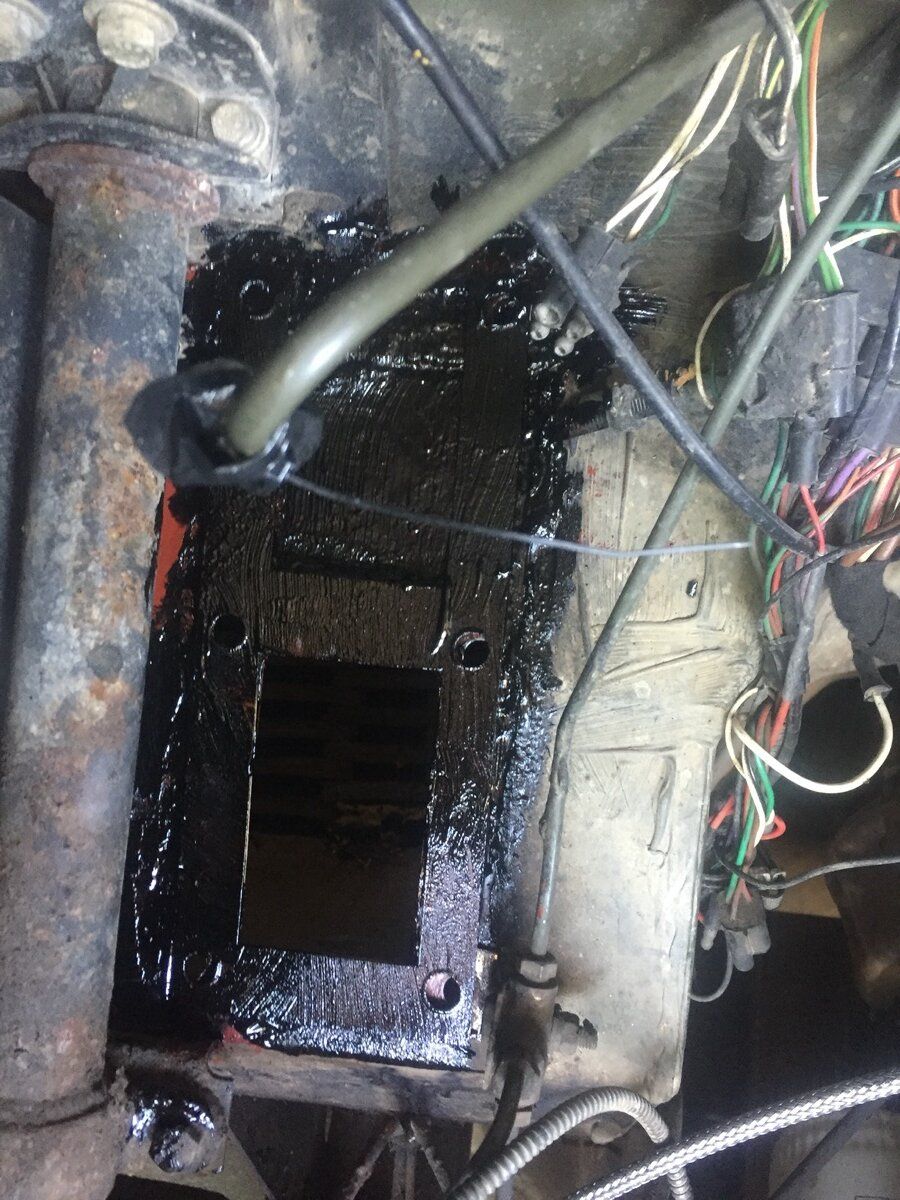

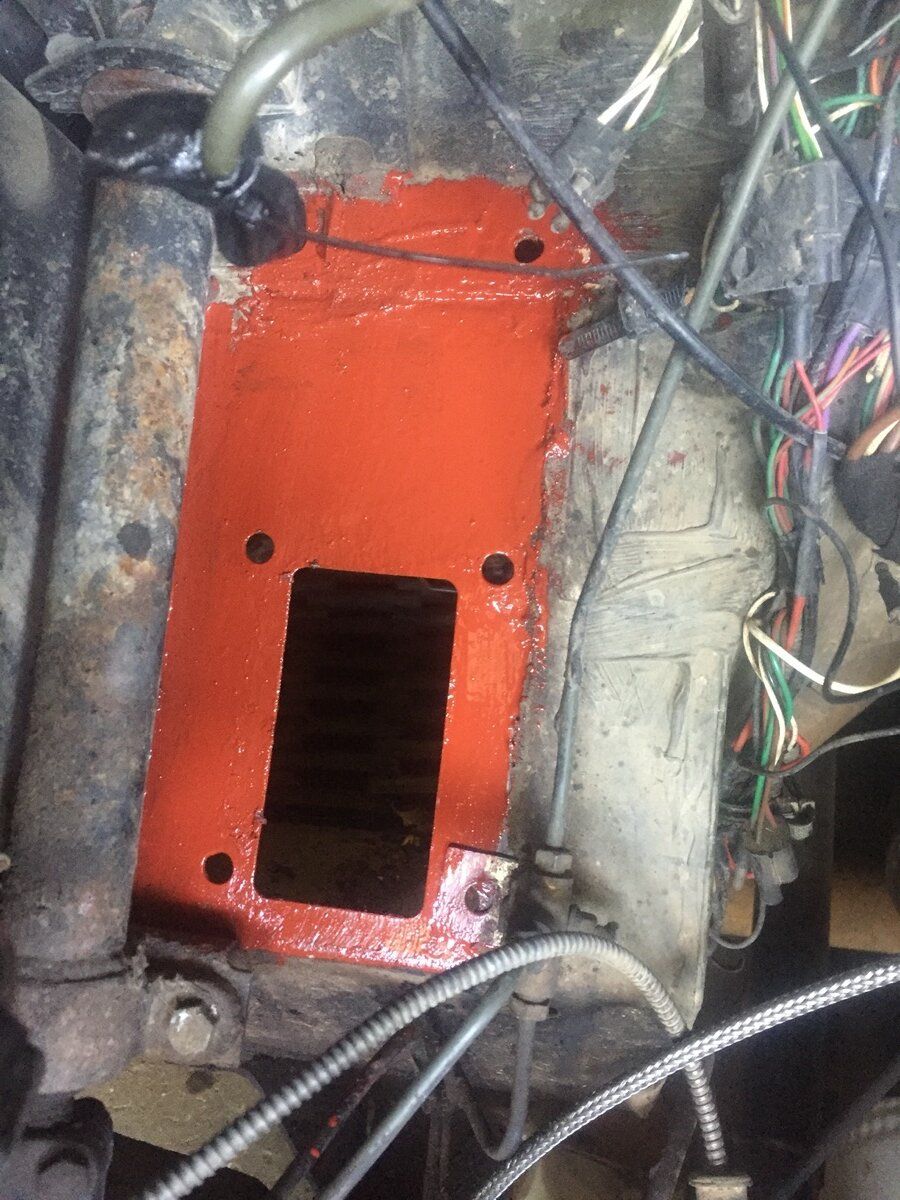

    So i treated it with red lead, then seam sealer then the new gasket (cut myself) then more seam sealer over the whole lot.
    IMG_8568- resized.JPG

    IMG_8569- resized.JPG

    IMG_8570- resized.JPG

    Then i set the clutch pedal height and free play at the MC
    IMG_8573- resized.JPG

    IMG_8581- resized.JPG

    and that was it, all done,
    IMG_8578- resized.JPG

    IMG_8652- resized.JPG

    makes a shocking difference, and i would highly recommend!

    Costs:
    - pedal box (as i had an old style that wouldnt take the assist spring) £20 from a breakers
    - LOF kit £50
    - sundries £10

    so way cheaper than a servo assist system and IMO just as good!

    Zed. and Hippo like this.
  20. flat

    flat Well-Known Member

    Joined:
    Mar 11, 2013
    Posts:
    8,132
    Likes Received:
    3,004
    Location:
    Far away from you!!
    Nothing major. Just swapped out the front output seal in n the transfer box as it was steadily getting worse.

    New corteco seal, new flange (old one was scored) and order is restored.

    Bearing looks okay


    Flange, not so much

    New in place.

    Boring thread update ends.

    Zed., callisr, Kev12 and 1 other person like this.
