Work lights

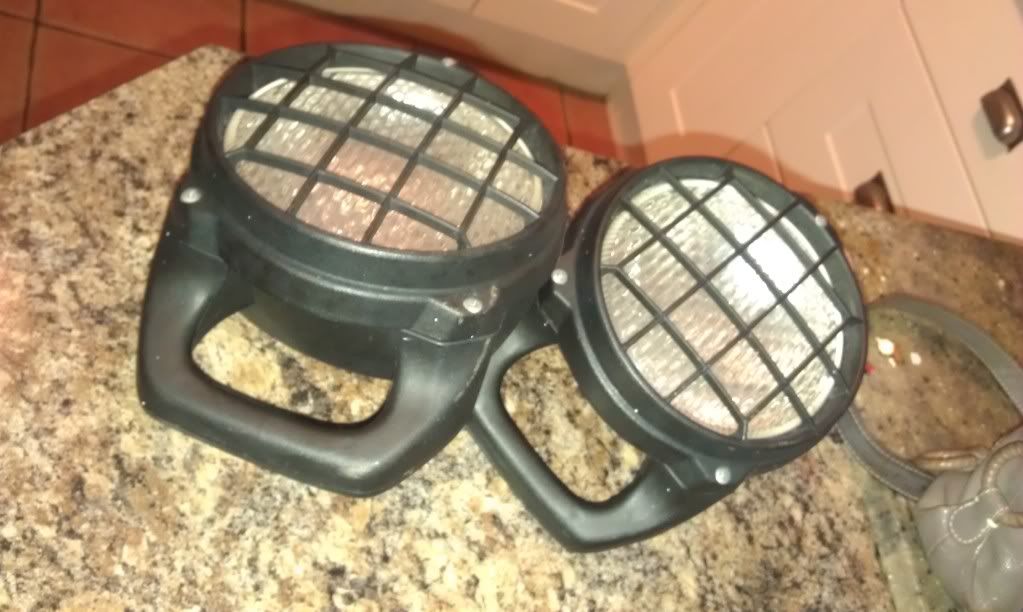

I have just bought these on fleabay for £3.20



I want to fit them to the back of my 90 as independent work lights, so not connected to any other switches/lights.

I am a novice at electrics, so I need an idiots guide please, such as.....

1, Remove self from sofa
2, open garage
3, bolt lights to car
4,
5,
6,
7,

If someone could fill in the gaps that would be great.

I know I need some wire, a relay, and a switch, the brackets came with the lights,

Is it just a case of a new wire on the battery, through a fuse, into a relay and a switch and back to earth?

Much appreciated

try a search for wiring spot lamps plenty of wiring diagrams on here

lazydog said:

try a search for wiring spot lamps plenty of wiring diagrams on here

Click to expand...

I have, but i dont really understand, and they all seem to be connected to the main headlights, and thats not really what I am looking for. :doh:

you need a relay 30 amp should do a on-off switch and cable.
power to switch from live via fuse 10 amp suggest battery +
feed from switch to relay terminal 85
battery feed to terminal 30
terminal 86 earth -
terminal 87 to lamps other connection from lamp to earth -

lightbar wiring HELP! - LR4x4 - The Land Rover Forum
post 10 but dont use 3 way switch so no feed from headlamp circuit

lazydog said:

you need a relay 30 amp should do a on-off switch and cable.
power to switch from live via fuse 10 amp suggest battery +
feed from switch to relay terminal 85
battery feed to terminal 30
terminal 86 earth -
terminal 87 to lamps other connection from lamp to earth -

lightbar wiring HELP! - LR4x4 - The Land Rover Forum
post 10 but dont use 3 way switch so no feed from headlamp circuit

Click to expand...

Huh?!?!

Battery - Fuse - relay 30
Switch - relay 85
Earth - 86
Lights - 87
Black wire to earth?

£3.30? f**ker!

Where are you based?

Bump said:

£3.30? f**ker!

Where are you based?

Click to expand...

NO :doh: £3.20, you have gotta love esnipe

Wiltshire!

Ah ok, someone local maybe able to offer advice for you.

Good price though, well done!

If your not sure with autoelectrickery, get some help in.

It's very easy to start a hot-spot in your vehicle if you use too small a gauge of wire.

I think i will!

Although being an engineer by trade I would use the biggest wire i could find.
