Wood burning stove for my trailer camper, tin tent.

Bobsticle said:

I was hoping to burn wood but what the hell.

Click to expand...

Oh well, seeing as you are so precious about yer stove, I will just have to build a smelter on the bank, fired by old tyres pulled out of the cut!

So that's what the drilling was. Make sure it doesn't poison the caravan with carbon monoxide!

John S said:

So that's what the drilling was. Make sure it doesn't poison the caravan with carbon monoxide!

Click to expand...

I think they thrive on Carbon Monoxide up Mancester! Brought up on it, their lungs have evolved to breathe it.

Bobsticle said:

View attachment 133214

Click to expand...

Yep exactly that!

So finally you admit the cheese fetish...

...good chap it is the first step (for Land Rover kind)

John S said:

So that's what the drilling was. Make sure it doesn't poison the caravan with carbon monoxide!

Click to expand...

I'll try

Turboman said:

Oh well, seeing as you are so precious about yer stove, I will just have to build a smelter on the bank, fired by old tyres pulled out of the cut!

Click to expand...

Just get a galvanized bucket, plant it firmly on the lower deck and fill it with lead and thermite. The boat wont budge again.

I am interested in the "no smoke" design. How's that meant to work? And does it actually work?

Stretch said:

I am interested in the "no smoke" design. How's that meant to work? And does it actually work?

Click to expand...

Secondary combustion, it's what the upper chamber with its own separate air supply is for.

Not exactly smokeless but much reduced smoke and far better efficiency.

Bobsticle said:

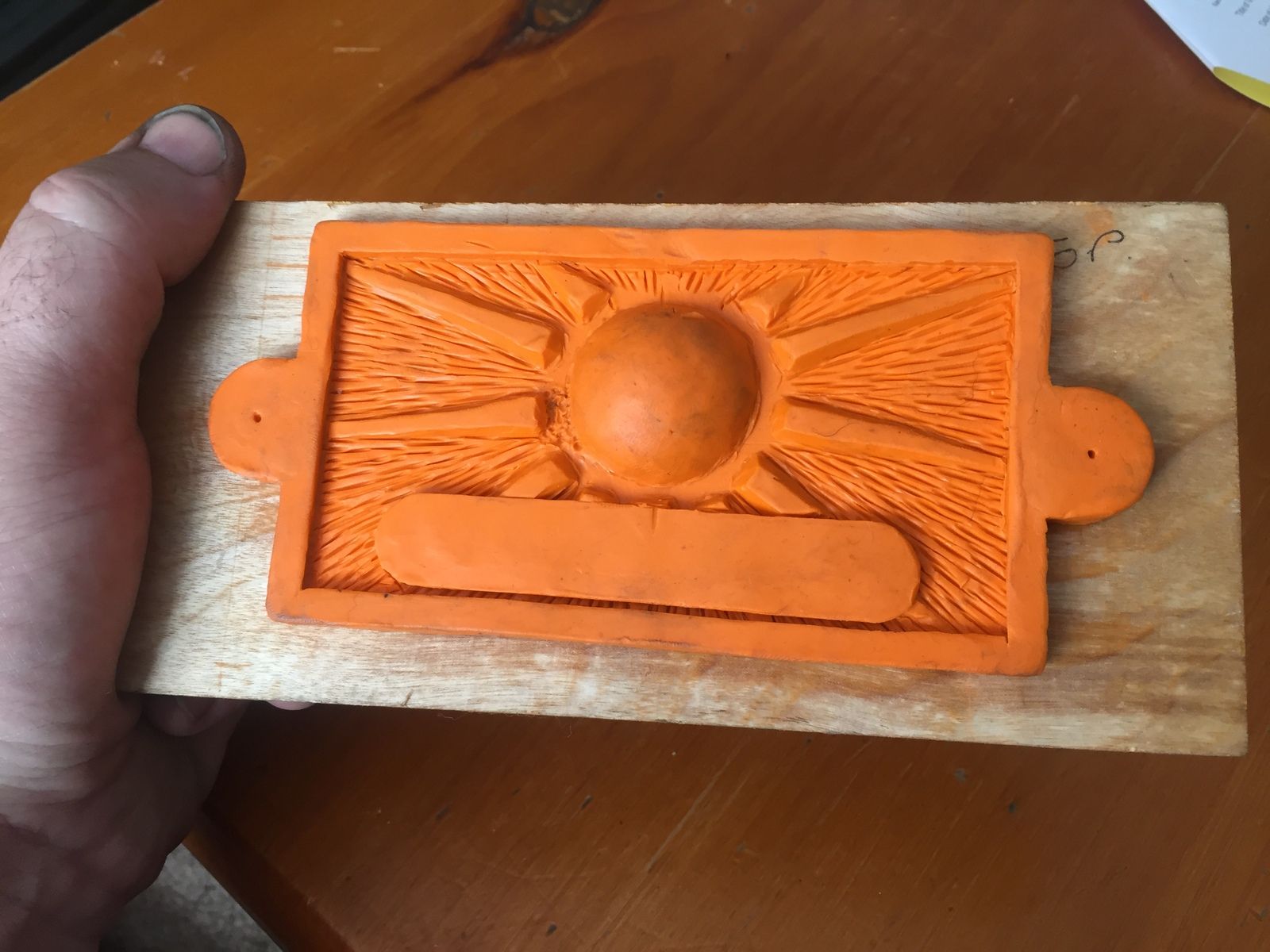

While waiting for supplies I got the modelling clay out this morning.
I will plainly need a big brass plaque on the front of mi rocket so there is only one thing for it. Time to smelt a couple of old taps and have a bash at casting.
How hard can it be.

View attachment 133215

Now, what to wright on it. Answers on a post card.

Click to expand...

How about HOT, WATCHIT!

Col

Colthebrummie said:

How about HOT, WATCHIT!

Col

Click to expand...

Yea.

Stretch said:

I am interested in the "no smoke" design. How's that meant to work? And does it actually work?

Click to expand...

Mine aint proven yet and it may have shortcomings. Primary air on a modern stove comes from 'above' the door. It flows downward over the glass (keeps it clean) then under the fuel and feeds the fire. This burns away nicely but within a few inches of rising towards the flue, all the oxygen is used up and whats left along with a pile of unburnt fuel (smoke) exits the chimley.
If you can introduce more air at the top of the fire, the smoke re ignites and a secondary burn takes place at the top of the fire.

This process's efficiency depends on a few things. The baffle above the flames should slope so that the rear of the fire ceiling is higher than the exit. This creates two temperatures of smoke. The cooler smoke swirls round the higher end until reburnt whenst it gets a bit otter and finally exits. The air feeding the secondary burn jets should be super heated on its way to the jets. Some of the secondary burn should take place in the secondary burn chamber as the ignited smoke exits the main fire on its way to the flue.

Im sure the manufacturers spend years perfecting the flow and temps and whatnot. Me on the other hand wing it quite a bit and suck it and see.
Its the way I roll MF.

At the end of the day it will get hot. If I can see a second burn taking place at the top its got to be more efficient and less smokey. If I can see flames lapping round the rim of the top chamber I will be a happy boy and @Nig may get his sausage

This chap had good results with a very simple ammo box design. You can see by the smoke or lack of it, its quite efficient.

Bobsticle said:

Mine aint proven yet and it may have shortcomings. Primary air on a modern stove comes from 'above' the door. It flows downward over the glass (keeps it clean) then under the fuel and feeds the fire. This burns away nicely but within a few inches of rising towards the flue, all the oxygen is used up and whats left along with a pile of unburnt fuel (smoke) exits the chimley.
If you can introduce more air at the top of the fire, the smoke re ignites and a secondary burn takes place at the top of the fire.

This process's efficiency depends on a few things. The baffle above the flames should slope so that the rear of the fire ceiling is higher than the exit. This creates two temperatures of smoke. The cooler smoke swirls round the higher end until reburnt whenst it gets a bit otter and finally exits. The air feeding the secondary burn jets should be super heated on its way to the jets. Some of the secondary burn should take place in the secondary burn chamber as the ignited smoke exits the main fire on its way to the flue.

Im sure the manufacturers spend years perfecting the flow and temps and whatnot. Me on the other hand wing it quite a bit and suck it and see.
Its the way I roll MF.

At the end of the day it will get hot. If I can see a second burn taking place at the top its got to be more efficient and less smokey. If I can see flames lapping round the rim of the top chamber I will be a happy boy and @Nig may get his sausage

Click to expand...

Cocktail or knockwurst ?

Nig said:

Cocktail or knockwurst ?

Click to expand...

Saveloy. Big boy.

Great project, thanks for sharing it.
I hope it does all you want it to.....and more.

I suspect the trick is getting the secondary air feed hot enough. Looking forwards to seeing how well it works

I've wondered about making a vented double skinned angled throat plate with holes just under the leading edge.

I reckon that'd get nicely warm but it'd be a right faff to make in a circular burner.

blue beasty said:

I suspect the trick is getting the secondary air feed hot enough. Looking forwards to seeing how well it works

I've wondered about making a vented double skinned angled throat plate with holes just under the leading edge.

I reckon that'd get nicely warm but it'd be a right faff to make in a circular burner.

Click to expand...

I think flow is the key. As you dont need a massive amount at the jets it makes sense to have a larger than needed delivery chamber. this should keep the flow rate down and give it time to heat.

Bobsticle said:

Saveloy. Big boy.

Click to expand...

blue beasty said:

I suspect the trick is getting the secondary air feed hot enough. Looking forwards to seeing how well it works

I've wondered about making a vented double skinned angled throat plate with holes just under the leading edge.

I reckon that'd get nicely warm but it'd be a right faff to make in a circular burner.

Click to expand...

Sounds like a mouthful

Nig said:

Sounds like a mouthful

Click to expand...

You aint had ye saveloy yet.

Bobsticle said:

Im sure the manufacturers spend years perfecting the flow and temps and whatnot. Me on the other hand wing it quite a bit and suck it and see.
Its the way I roll MF.

Click to expand...

I am sure the manufacturers spend years perfecting their sales literature. But TBH I haven't seen it makes a lot of difference in practice.

I have had a few stoves, ancient and modern, cheap and expensive. And my MO was always the same, light it up, all dampers except the bottom shut, get a good fire going, and then shut the bottom damper down as well, and wait until the heat goes off, then refuel.

Wouldn't surprise me if yours is as good as theirs when finished. At the end of the day, it is a metal box with burning wood in it.

I always found the business about airwash keeping the glass clean was rubbish as well.
The glass always gets a bit black. Best way to clean it off is to spit on a rag, pick up a bit of wood ash, and wipe the black away with that.
