wiring spots

ahairyhaggis · Aug 9, 2009

Hi all

I have 4 x 50w spots i want to wire up. Can anyone give me a heads up on how to go about it. I have checked the forums for previous posts but being a noob to wiring i cant make head nor tail of it. If anyone can help me out it would be appreciated.

regards

The Haggis

Pikey · Aug 9, 2009

If you really can't understand the pretty simple and basic wiring diagrams that have been posted on this forum. Then you definitely don't want to be wiring your own spot lamps up.

Griffdowg · Aug 9, 2009

keep starring at them... they eventually make sense!

diesel_jim · Aug 9, 2009

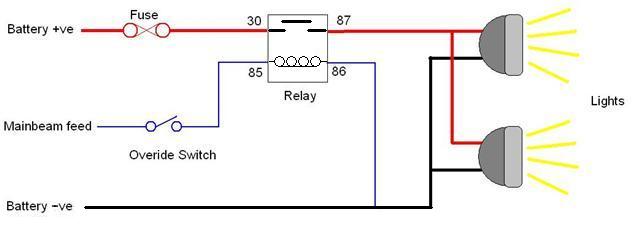

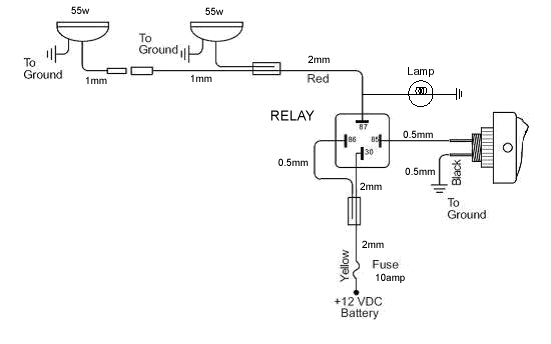

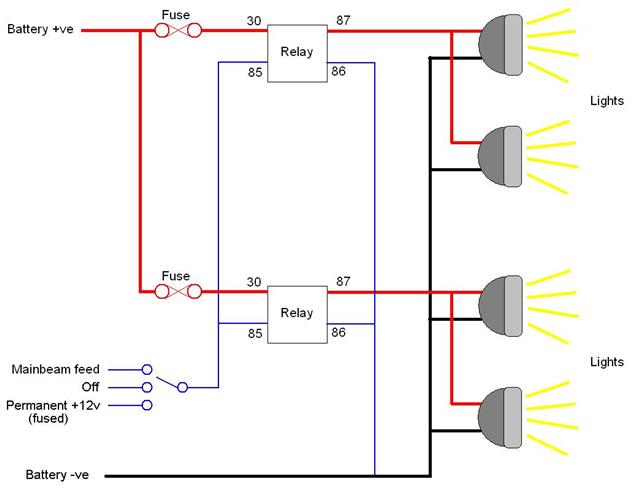

These are diagrams i've saved from various other forums, as basic as you can get really. They show clearly where fuses and relays go.

MrJC · Aug 9, 2009

Look for a mobile auto electric guy... for around 1 hours work at £20 - £30 an hour. He will wire them to your main beam (maybe an over ride switch on dash if you want) and you wont have worries about the correct wire/fuses/relays etc.
The big plus is you will not run the risk of your Landy catching fire when you least expect it.
People who know what they are doing its a piece of cake... if not (like me) pay the expert rather than take a chance.

diesel_jim · Aug 9, 2009

If you were down this way i'd do it for ya (in exchange for a bottle of plonk!)

ahairyhaggis · Aug 9, 2009

cheers guys, looking at the diagram you put up jim makes sense never noticed that one before. Thanks for pratical responses guys......appreciated

The Haggis
