Wiring problem - can anyone identify these wires?

I was in the process of tidying the engine bay wiring today and managed to break a wire, but also unplug it :doh:

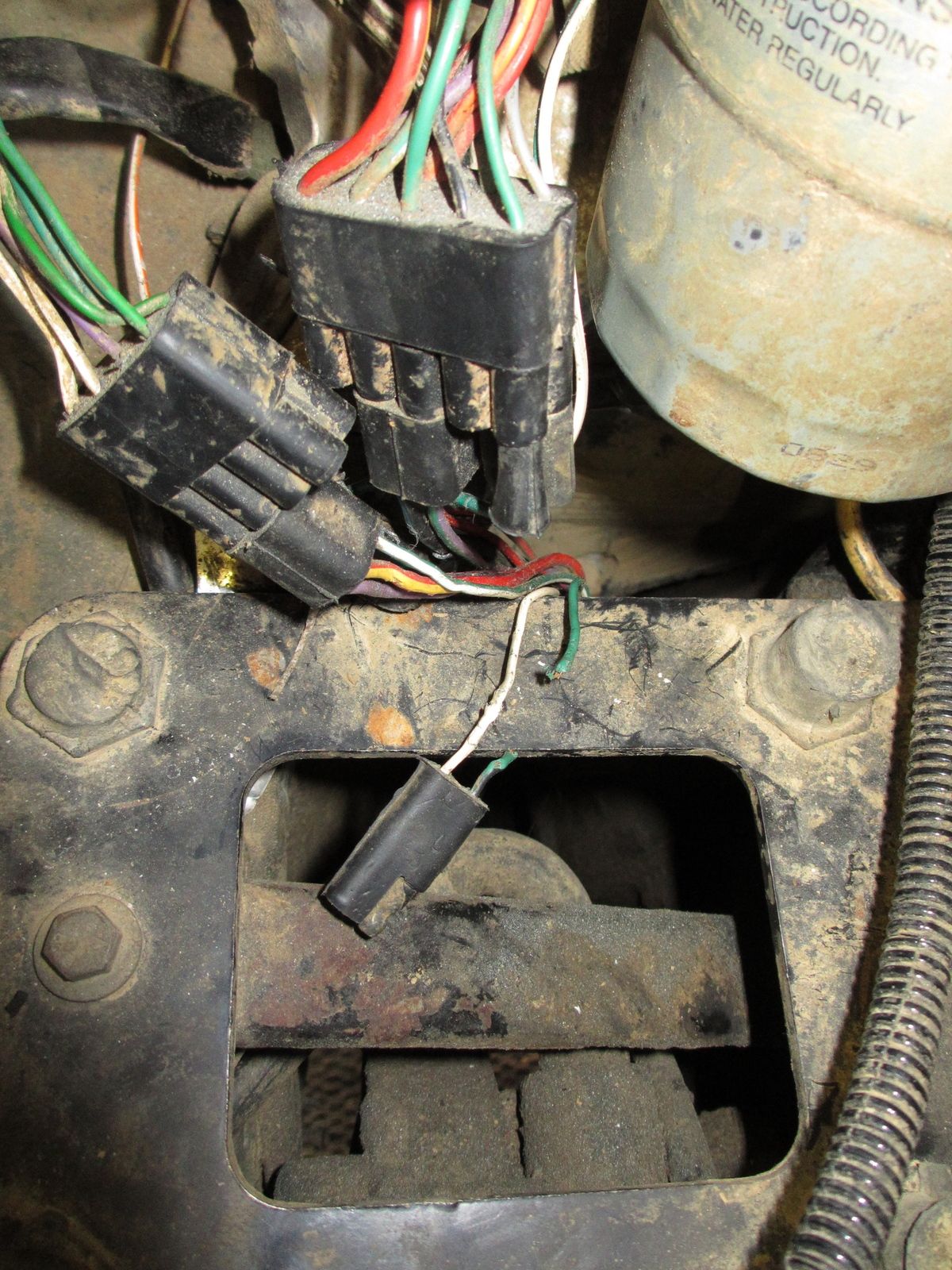

One is white with a grey tracer, the other green with a black tracer. They run down to the fuel gauge sender unit but where/what do they connect to on the wiring loom?

The bulkhead/loom is from a 200tdi vehicle.

Cheers

Harry

I'm guessing fuel warning light maybe.

White with grey? Are you sure it's not white with a purple trace?

Sure its not out of that connector block above it?

Think I've solved it.

It's definitely white with grey trace, and for the fuel warning light but I was stuck on where it plugged into the main loom because there wasn't a space in a connector block with the same wire colours.

It's doesn't go in the large block shown in the picture, that has room for a 2 pin plug, but for 2 male connectors rather than one of each.

I did a bit more searching today and there are 2 pairs of wires in the colours described, both going to the fuel tank. One pair are already plugged in to the loom and the other is spare so presuming it was 2 extra wires I forgot to remove when I did the bulkhead swap... it had been a long day

Cheers all

What do I win?

warrior said:

What do I win?

Click to expand...

A slightly second-hand, pre-dunked, crescent-shaped Garibaldi made with real flies!

Oldseadog said:

A slightly second-hand, pre-dunked, crescent-shaped Garibaldi made with real flies!

Click to expand...

yum yum

Oldseadog said:

A slightly second-hand, pre-dunked, crescent-shaped Garibaldi made with real flies!

Click to expand...

Afraid I can't do better than that
