For the love of god someone help me I’m going mad

Since I look the engine out to do the clutch I cannot for the life of me work out where to plug the fuel gage back into the wiring loom at the back of the bulkhead

I’ve looked at wiring diagrams, trial and errored every plug possible but still can’t work it out. Feel like I’m going mad.

Could someone with a 200tdi defender see where it plugs in?

see photos for which wire I mean

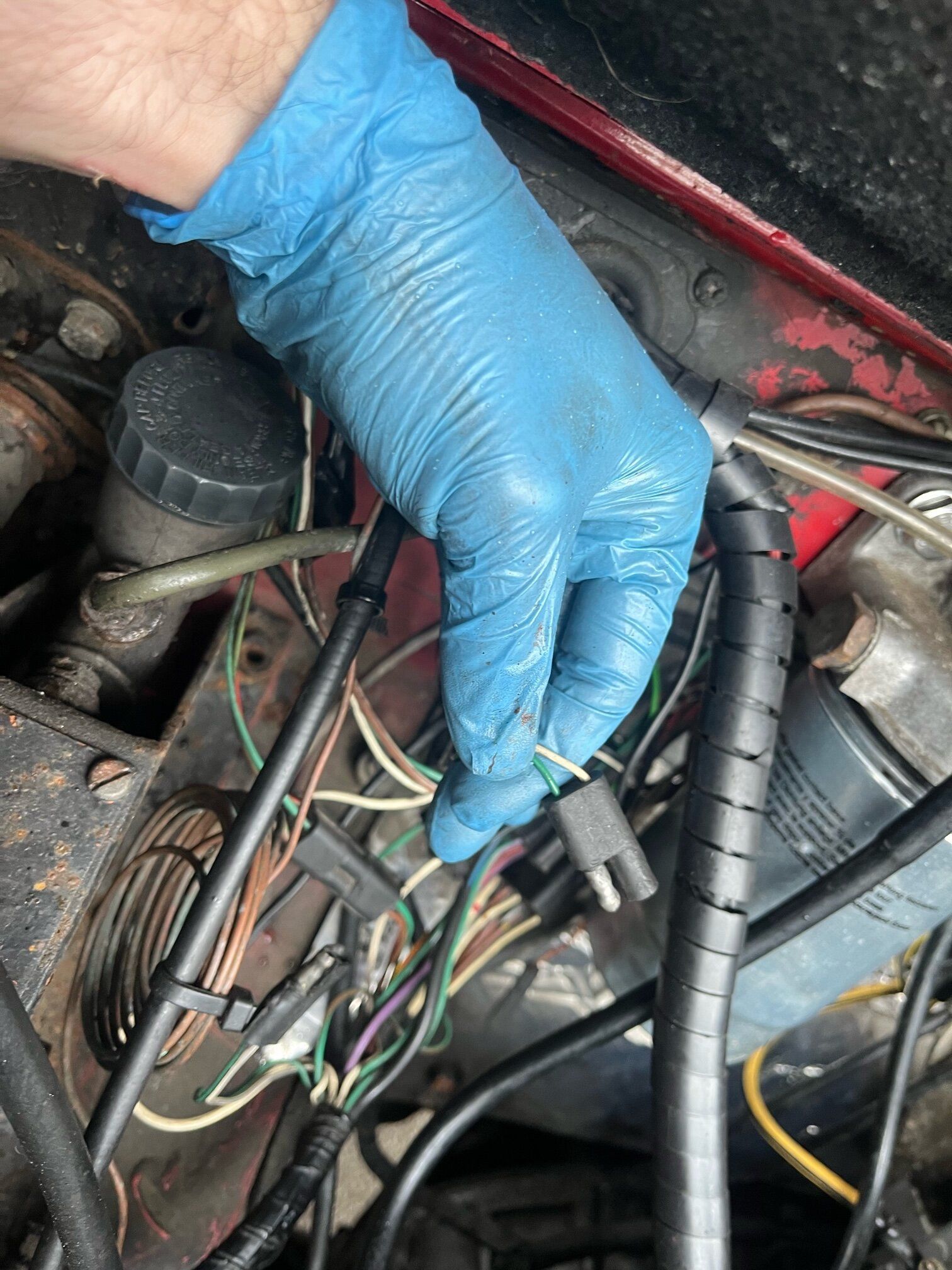

photo 1 - end of wire coming from the fuel tank sender that I can’t work out where to plug it back in

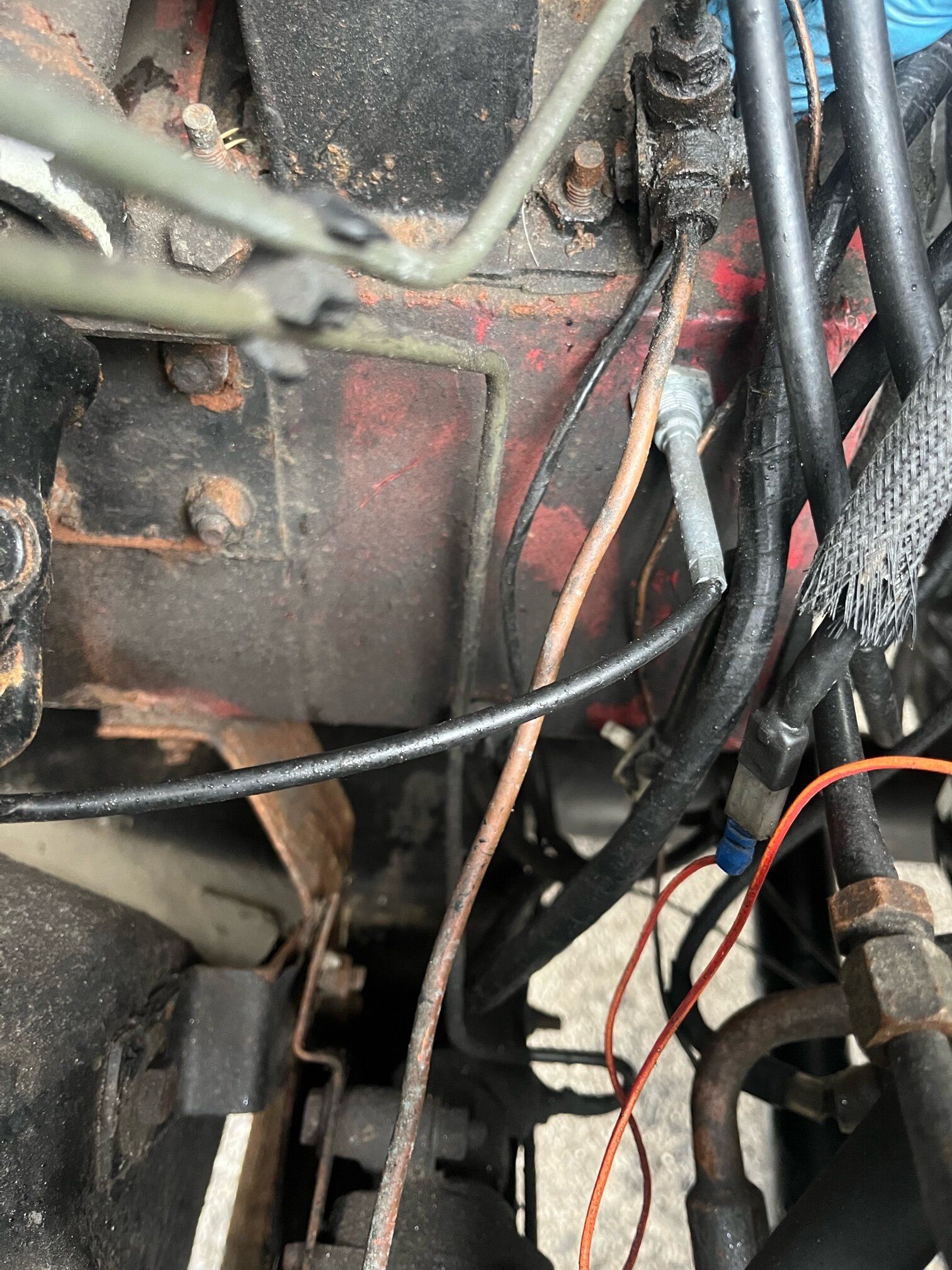

photo 2 - the wire as it come up into the engine bay from the fuel tank sender

Weird - doesn't let me upload photos anymore just says "i don't have permission" but its the plug that has a white and a green wire and you can see the bound wire come up from the fuel tank into the engine bay if that makes sense. Will try and upload tomorrow

You 'drag and drop' photo's these days, the normal way is broken ...

Photos uploaded. Any help greatly appreciated

You will see a multiplug on the bulkhead, I think it's a 10 way. The gauge plugs in at one end. On mine, there's only one way for a two way plug to fit.

zeaphod said:

You will see a multiplug on the bulkhead, I think it's a 10 way. The gauge plugs in at one end. On mine, there's only one way for a two way plug to fit.

Click to expand...

Mine is playing up too, and I haven't checked that plug. I know there is an iffy contact somewhere!

zeaphod said:

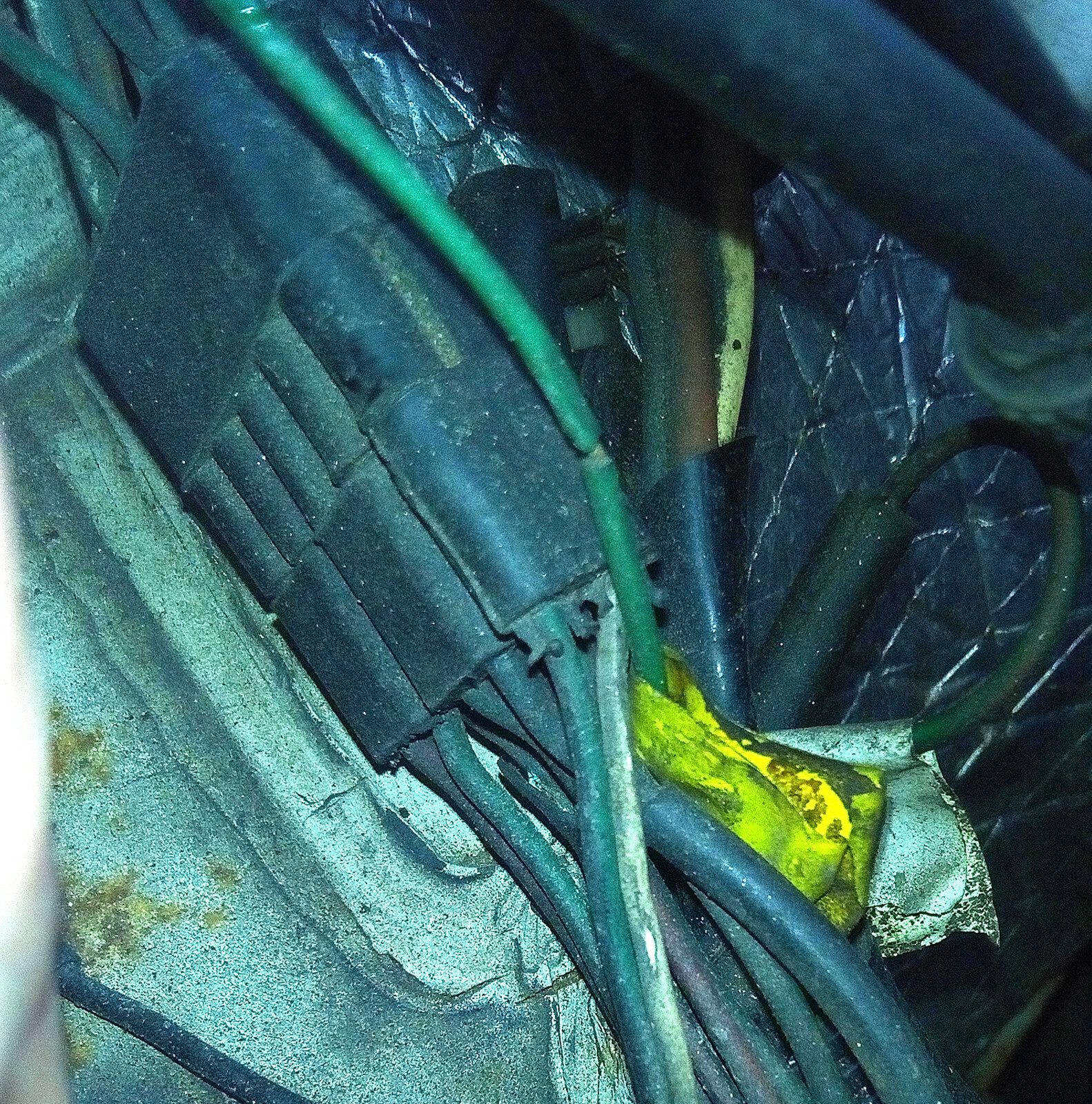

View attachment 285328

Click to expand...

amazing. Thanks. I‘ll have a look tomorrow. If this solves it I’ll buy you a beer

Alpinewoodsman said:

Mine is playing up too, and I haven't checked that plug. I know there is an iffy contact somewhere!

Click to expand...

Check the earth which is direct into the bulkhead

zeaphod said:

You will see a multiplug on the bulkhead, I think it's a 10 way. The gauge plugs in at one end. On mine, there's only one way for a two way plug to fit.

Click to expand...

Im amazed I couldn’t work that out myself. That’s sorted it. I’d plugged another cable into that plug. 18months of not having a working fuel gage have finally ended
