Wiring loom advice needed.

Discussion in 'Land Rover Discovery' started by brianconwy, Sep 19, 2019.

< Previous Thread | Next Thread >
  1. brianconwy

    brianconwy Well-Known Member

    Joined:
    Nov 1, 2007
    Posts:
    971
    Likes Received:
    203
    Location:
    conwy, north wales
    I am tidying up the wiring loom and there is a loose white/yellow wire. I have tried to see which pin it goes to on the ECU with a multimeter but cannot find a connection at the ECU. Also the black wire from the oil pressure switch connector at the oil cooler has broken. Should there just be one black wire. i can't see where this has broken off from.
    Thanks
    Brian

  2. dieseldog69

    dieseldog69 Well-Known Member LZIR Despatch Agent

    Joined:
    May 21, 2010
    Posts:
    8,410
    Likes Received:
    6,093
    Location:
    Back in the UK, Sunny Hampshire.
    Black wires are usually earth wires.

    White/yellow could be anything.

    brianconwy likes this.
  3. mystery

    mystery Active Member

    Joined:
    Jan 11, 2010
    Posts:
    579
    Likes Received:
    65
    Location:
    torquay Devon
    IS IT NOT PIN 10 RED PLUG WHITE YELLOW CABLE ENGINE ECU TO( IAT) PIN 4 INLET AIR TEMPERATURE SENSOR DISCO 2 ,DON'T ASSUME BLACK WIRE ARE ALL GROUND OR EARTH WIRES WHEN AN ALARM OR IMMOBILISER IS FITTED THEY USE BLACK TO HIDE THE CIRCUIT AND ITEM IT FEEDS

    Last edited: Sep 19, 2019
    brianconwy likes this.
  4. brianconwy

    brianconwy Well-Known Member

    Joined:
    Nov 1, 2007
    Posts:
    971
    Likes Received:
    203
    Location:
    conwy, north wales
    I will check again tomorrow. Thanks.

  5. sierrafery

    sierrafery Well-Known Member

    Joined:
    Jun 30, 2007
    Posts:
    12,289
    Likes Received:
    1,490
    Location:
    West of Transylvania
    Black wires are all earth on a D2 but the oil pressure switch's black wire is useless cos the switch is earthed via fixing ,

    WY wires at the ECU as follows:
    red plug :
    - pin 6 - IAT(inlet air temp input part of the MAP/IAT sensor on the inlet manifold)
    - pin 10 - AAP(ambient air pressure sensor on the airbox)
    black plug:
    - pin 15 - cruise control master switch

    that's all

    brianconwy likes this.
  6. brianconwy

    brianconwy Well-Known Member

    Joined:
    Nov 1, 2007
    Posts:
    971
    Likes Received:
    203
    Location:
    conwy, north wales
    Thanks. I have checked again today and in better sunlight with reading glasses on I discovered it is white/brown and checking with a meter it goes to this grey connector.
    white brown connection.jpg
    I have no idea where it goes from here though.

  7. sierrafery

    sierrafery Well-Known Member

    Joined:
    Jun 30, 2007
    Posts:
    12,289
    Likes Received:
    1,490
    Location:
    West of Transylvania
    The WN wire through pin 1 of that connector(C0162) comes from the oil pressure switch and goes to the instrument pack for the warning

    brianconwy likes this.
  8. brianconwy

    brianconwy Well-Known Member

    Joined:
    Nov 1, 2007
    Posts:
    971
    Likes Received:
    203
    Location:
    conwy, north wales

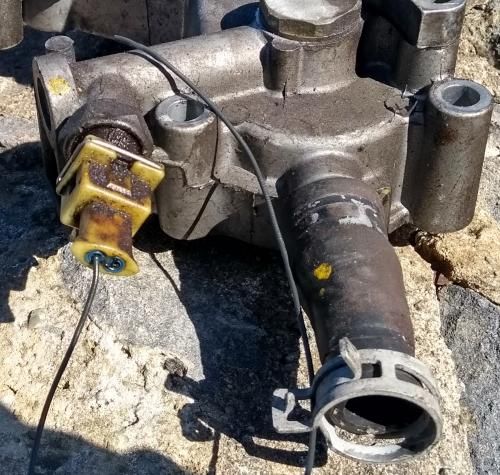

    That sounds about right as this is the oil pressure switch plug with only the black wire which doesn't connect to anything in the socket as there is no pin. The part of the plug that connects to a pin has no wire attached. What does this pressure switch actually do? It can't have been that which helped the engine destruct can it?
    oill switch.jpg

  9. sierrafery

    sierrafery Well-Known Member

    Joined:
    Jun 30, 2007
    Posts:
    12,289
    Likes Received:
    1,490
    Location:
    West of Transylvania
    Better rewire the switch to that WN wire cos otherwise you dont have oil pressure warning... the black wire is futile there... the switch is NC to earth and opens when there is enough oil pressure as to extinguish the oil pressure warning and if the pressure is low it closes to earth and brings on the warning... didnt you observe that there was no oil pressure warning on dash untill now ? ... who knows how much you drove it with low oil pressure eventually

  10. brianconwy

    brianconwy Well-Known Member

    Joined:
    Nov 1, 2007
    Posts:
    971
    Likes Received:
    203
    Location:
    conwy, north wales
    I wasn't driving it at the time it is my wife's car. My stepson was driving it when it happened. There had been a lot of diesel getting into the sump despite changing injector seals and washers. It was cylinder one that was affected and not any of the others. I think there may be a cylinder head crack near that injector pocket. The piston ring had gone and then the piston was damaged and also the bore. The switch doesn't affect the pressure then - it just operates the warning light? Perhaps the wire got yanked when removing the gearbox in March. I will get it fixed for when I get a replacement engine. Thanks.

  11. sierrafery

    sierrafery Well-Known Member

    Joined:
    Jun 30, 2007
    Posts:
    12,289
    Likes Received:
    1,490
    Location:
    West of Transylvania
    Yes, just for warning

  12. brianconwy

    brianconwy Well-Known Member

    Joined:
    Nov 1, 2007
    Posts:
    971
    Likes Received:
    203
    Location:
    conwy, north wales
    I don't think it was low oil pressure that killed the engine as when it went the camshaft seal cap popped out and there was oil everywhere.
