Wiring Help: Front Lights

Discussion in 'Defender 90 / 110 / 130' started by toxichumans, Jun 24, 2022.

< Previous Thread | Next Thread >
  1. toxichumans

    toxichumans New Member

    Joined:
    Jan 16, 2022
    Posts:
    1
    Likes Received:
    0
    Location:
    Belfast, Northern Ireland
    Hi Everyone, another day another question. I am on my final steps of restoring my 1993 90 200tdi and am currently sorting out the front lighting loom. On the drivers side I have an extra two wires, a blue and orange wire and a blue and black wire. On the passenger side I have another two extra wires, a blue and grey wire and a blue and pink wire. Would anyone know what these wires are for as I cannot seem to find them in any diagram online. Thanks.

  2. David Leech

    David Leech Well-Known Member

    Joined:
    Apr 13, 2017
    Posts:
    273
    Likes Received:
    141
    Location:
    Galway, Ireland
    OP seems to have disappeared, obviously doesn't need help now!.....

    Last edited: Jun 28, 2022
  3. robbie the greatl

    robbie the greatl Member

    Joined:
    Mar 19, 2022
    Posts:
    50
    Likes Received:
    10
    Location:
    uk,
    connect a bulb to one side earth and possitive either way round and see what makes it come on could be for extra lights or side indicaters

  4. mick the builder

    mick the builder Well-Known Member

    Joined:
    Jul 12, 2010
    Posts:
    5,616
    Likes Received:
    5,791
    Location:
    Sligo,Wild West of Ireland.
    Look at your face book messages

  5. mystery

    mystery Well-Known Member

    Joined:
    Jan 11, 2010
    Posts:
    1,098
    Likes Received:
    280
    Location:
    torquay Devon

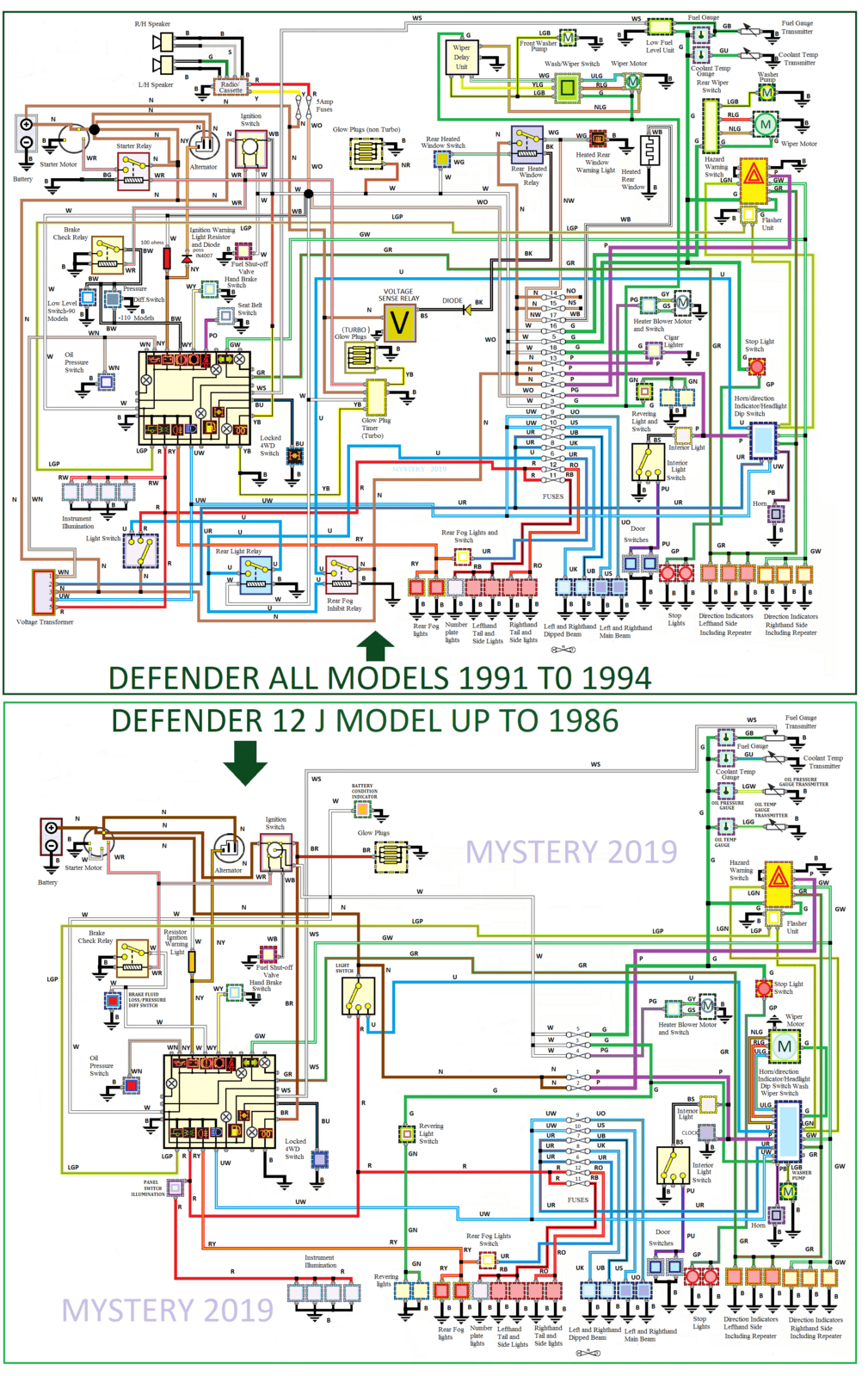

    Defender 1991 to 1994  and 1986 12j engine (2).png Headlights blue/ orange ( drivers side) and blue/ slate ( passengers side) main beam blue/pink (passengers side)and blue/black (drivers side )dipped beam

    mick the builder likes this.
  6. mick the builder

    mick the builder Well-Known Member

    Joined:
    Jul 12, 2010
    Posts:
    5,616
    Likes Received:
    5,791
    Location:
    Sligo,Wild West of Ireland.
    That's what I told him on another group.
