Series 2 Wiring harness help

Phil Gibbs

Active Member

Posts

119

Location

Nuneaton

• Aug 8, 2019

• #1

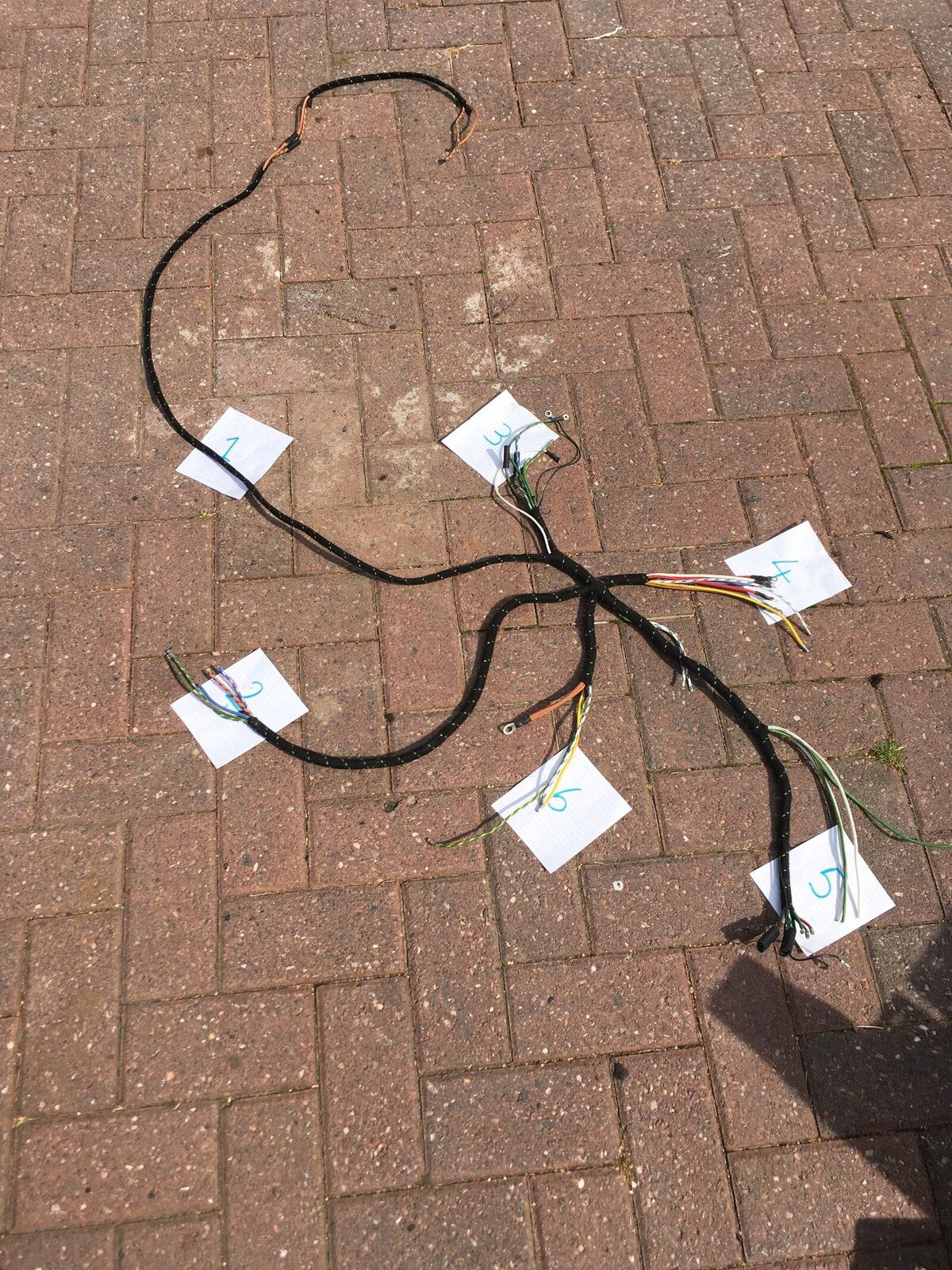

Me again, the nightmare continues, I really am stuck with this wiring, can anyone help,? What numbers goes into the dash ? And any one can help I am willing to travel to look at someone,s series 2 with auto sparks wiring.



Palagius

Well-Known Member

Posts

819

Location

the west

• Aug 8, 2019

• #2

Phil Gibbs said:

View attachment 186348 Me again, the nightmare continues, I really am stuck with this wiring, can anyone help,? What numbers goes into the dash ? And any one can help I am willing to travel to look at someone,s series 2 with auto sparks wiring.

Click to expand...

3 looks like the connectors for the clocks,atb



Last edited: Aug 8, 2019

Phil Gibbs

Active Member

Posts

119

Location

Nuneaton

• Aug 9, 2019

• #3

rynner said:

3 looks like the connectors for the clocks,atb

Click to expand...

Hi, thanks for taking the time to reply, I agree with number 3, but looking at holes in bulkhead I am tempted to go with 4 as well .



mystery

Well-Known Member

Posts

1,510

Location

BULKINGTON

• Aug 12, 2019

• #4

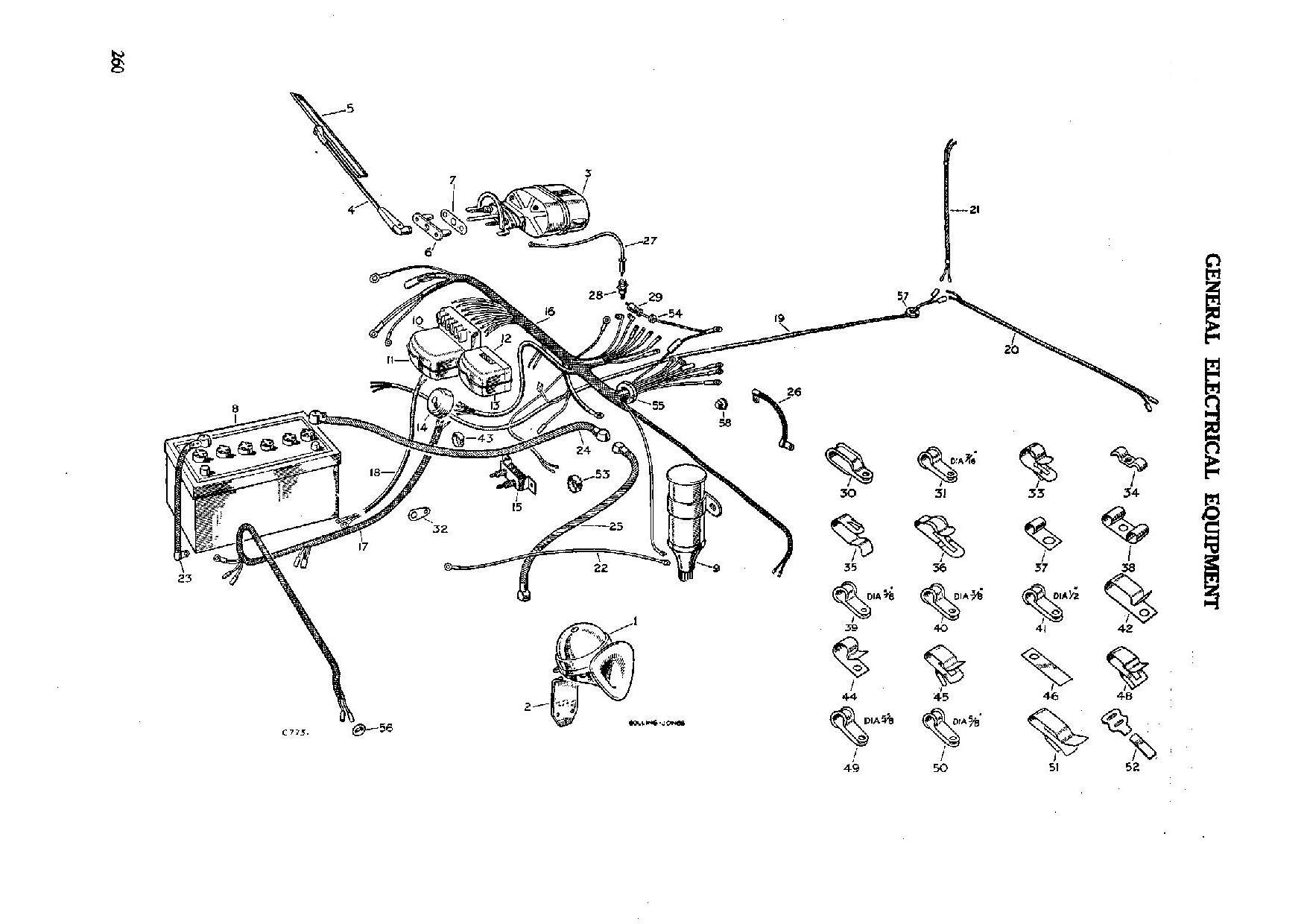

may be of help



Attachments

• Land_Rover_Series_II_Parts_Catalogue part 1.pdf

  58.8 KB · Views: 216

mystery

Well-Known Member

Posts

1,510

Location

BULKINGTON

• Aug 12, 2019

• #5

or



mystery

Well-Known Member

Posts

1,510

Location

BULKINGTON

• Aug 13, 2019

• #6

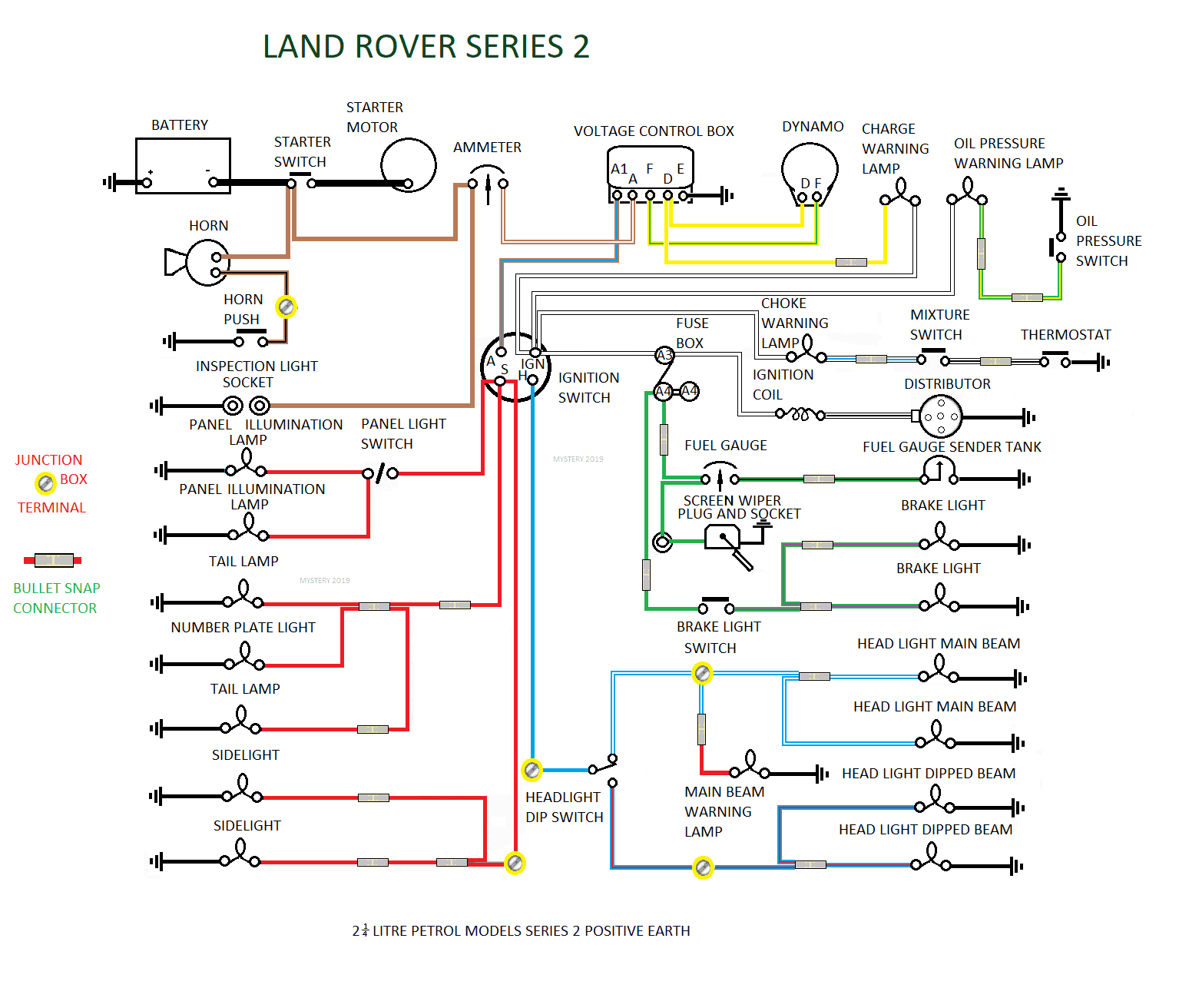

ASSUMING EARLY 2 PETROL



mystery

Well-Known Member

Posts

1,510

Location

BULKINGTON

• Aug 14, 2019

• #7



mystery

Well-Known Member

Posts

1,510

Location

BULKINGTON

• Aug 17, 2019

• #8

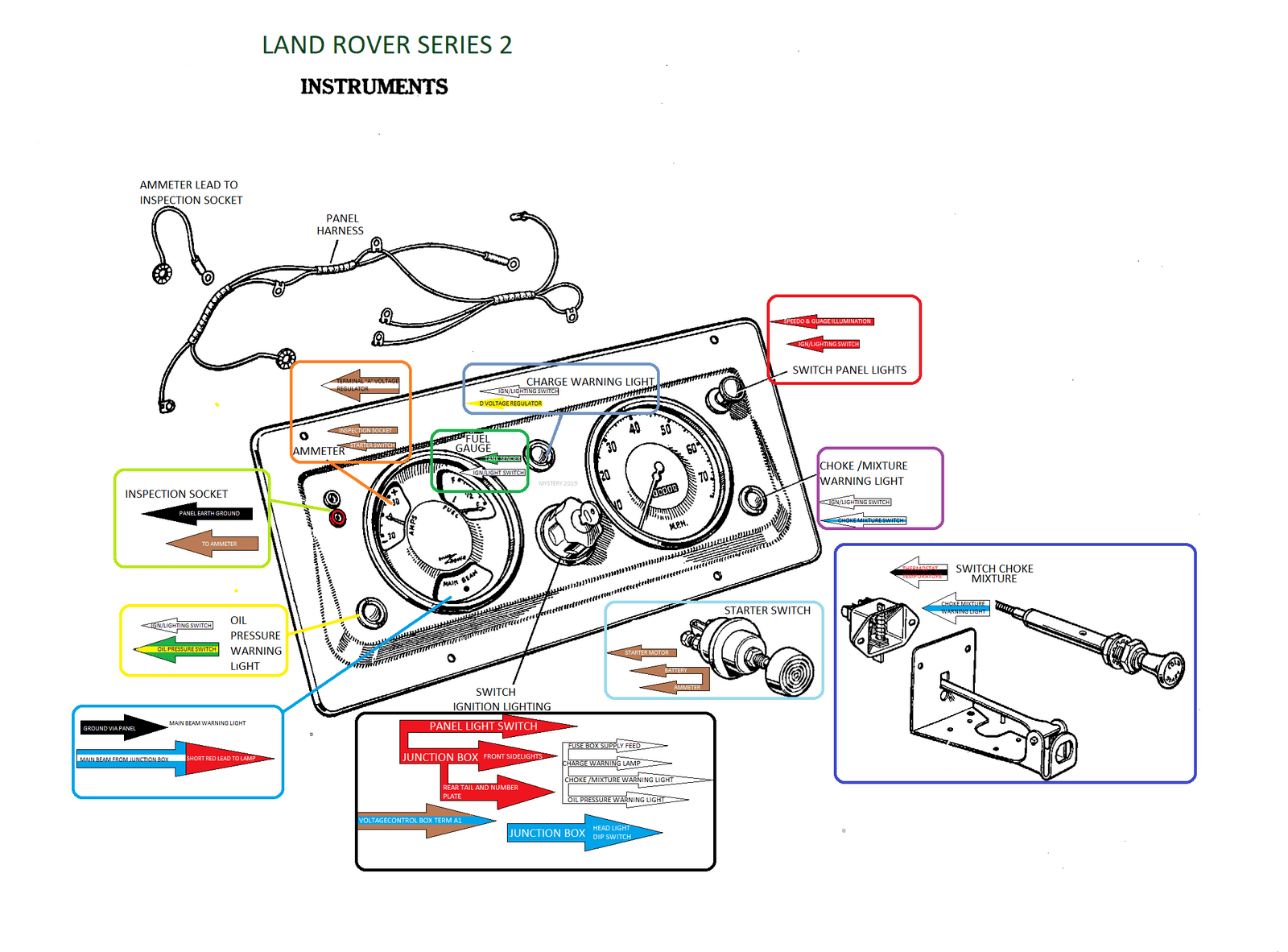

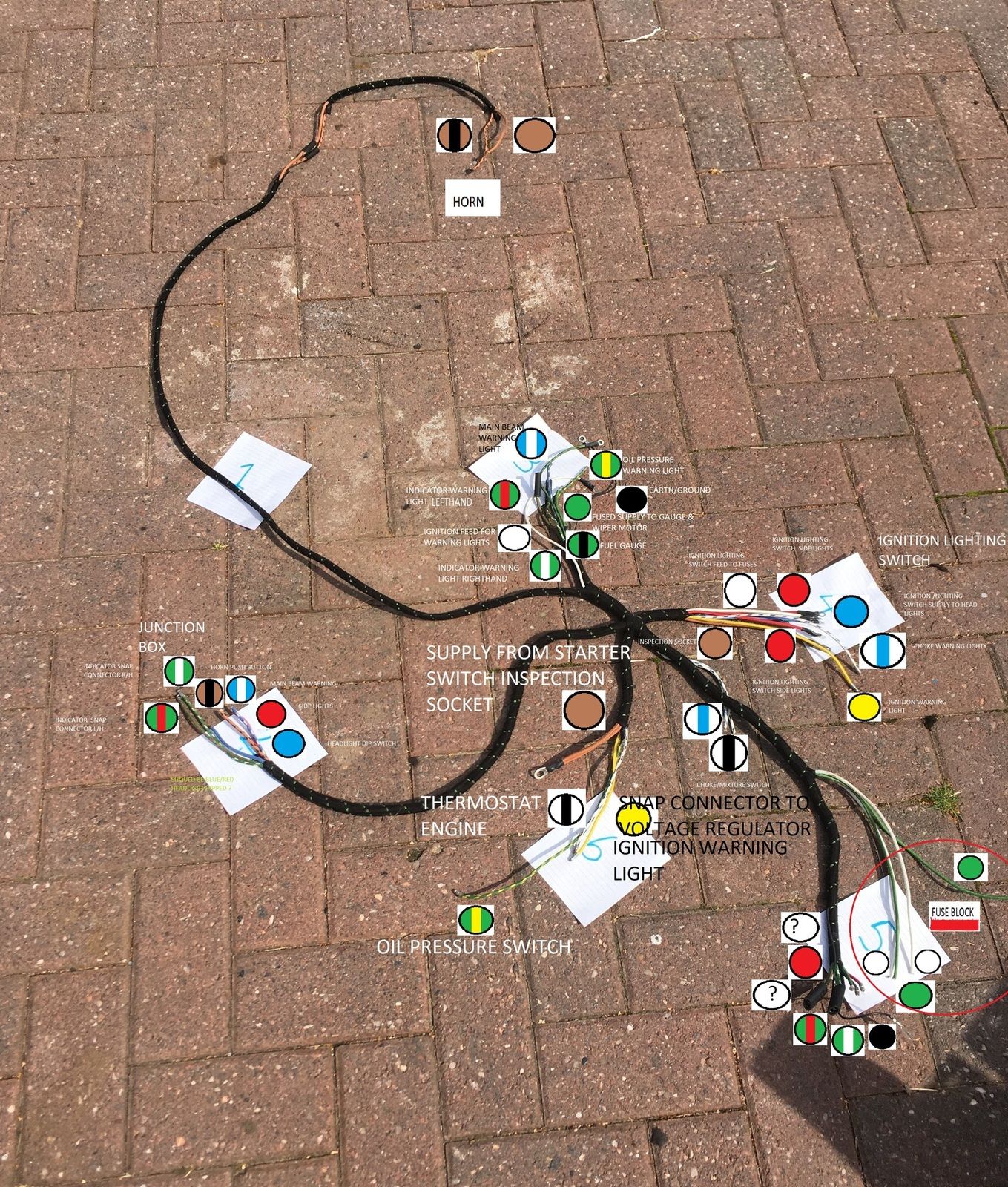

THE HARNESS YOU ACQUIRED DID YOU ASK FOR INDICATORS ,CANNOT SEE SOME OF THE WIRES BUT THIS IS HOW I SEE IT
