Wiring colours

davidsw · Jul 9, 2020

Good evening people

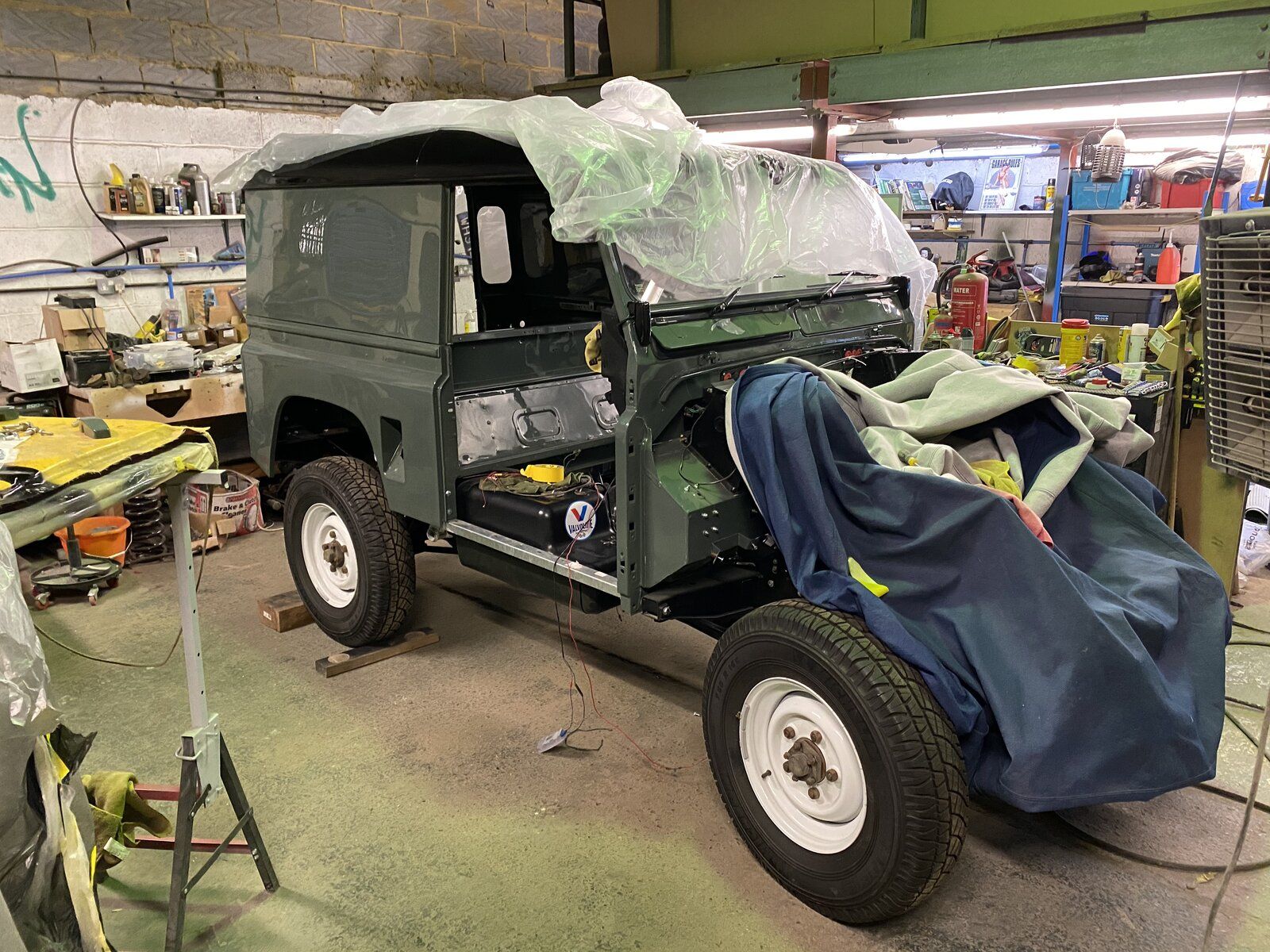

well I’m now doing the wiring rear end and yes wires cut off . Any one have wire colours for indicators and stop lights etc . Fog basically back end . Oh yes and that towing plug

or a diagram . Thanks in advance

Rougharse Racing · Jul 9, 2020

http://www.expeditionlandrover.info/Lucaswirecode.htm

davidsw · Jul 9, 2020

Thank you

Scooby22 · Jul 9, 2020

I don't know what your landy is but here is a 300 tdi diagram link
https://www.google.com/url?sa=t&sou...FjAAegQIAhAB&usg=AOvVaw0kBPDNoYBwxqtCu5LvQ_pW

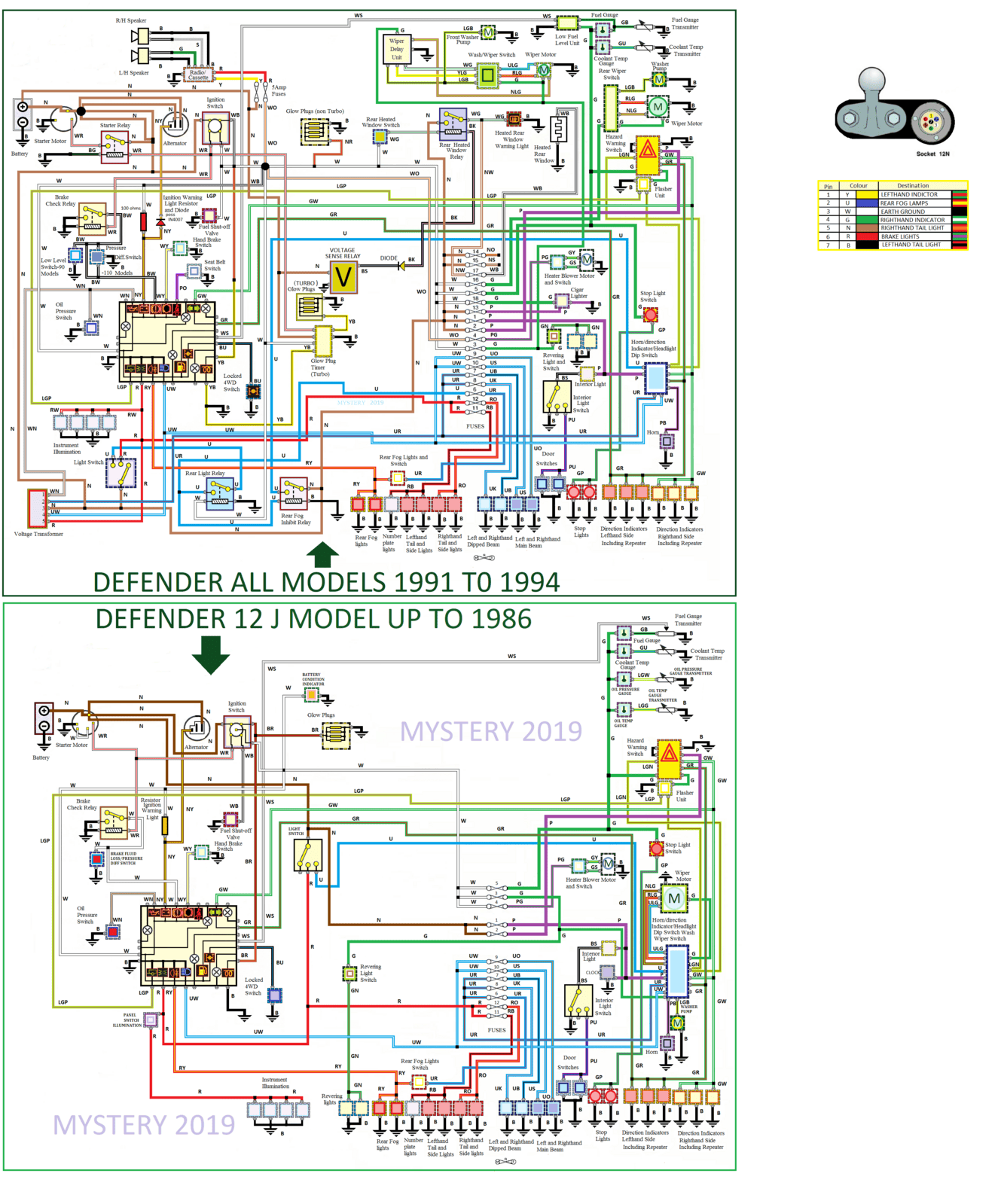

mystery · Jul 10, 2020

davidsw · Jul 10, 2020

Well thank you very much . Just have the fuel gauge to get working with the light on the dash and the 4 x 4 engagement light . It’s those multi plugs on the bulkhead be nice to,know what they all do , the individual connections.

mystery · Jul 11, 2020

it would help if the year and power unit fitted was shown
