Wire for dipped beam???

StuRox · Mar 15, 2010

Howdy all,

I am trying to locate the wire that switches on the dipped beam from the steering stalk - does anyone have any idea on the easiest place to locate it, or what colour it is? Its on a 300TDi 1996 model in case they are different.

Cheers

[JP] · Mar 15, 2010

is that to wire something that will turn on when dipped beam is turned on?

if that's the case, its easier to get the feed from the fuse box, it even has a little picture of the dipped beam, so you know where to get it

StuRox · Mar 15, 2010

yup, got it in one.

good thinking, as I was going to go from the wire on the stalk

Will have a look for that wire now

....but will need to check that this wire does not switch off when the main beam is switched on, as that's why i thought I maight need to go from the switch itself, and not once its been through the electric gizmo's etc......

The Mad Hat Man · Mar 15, 2010

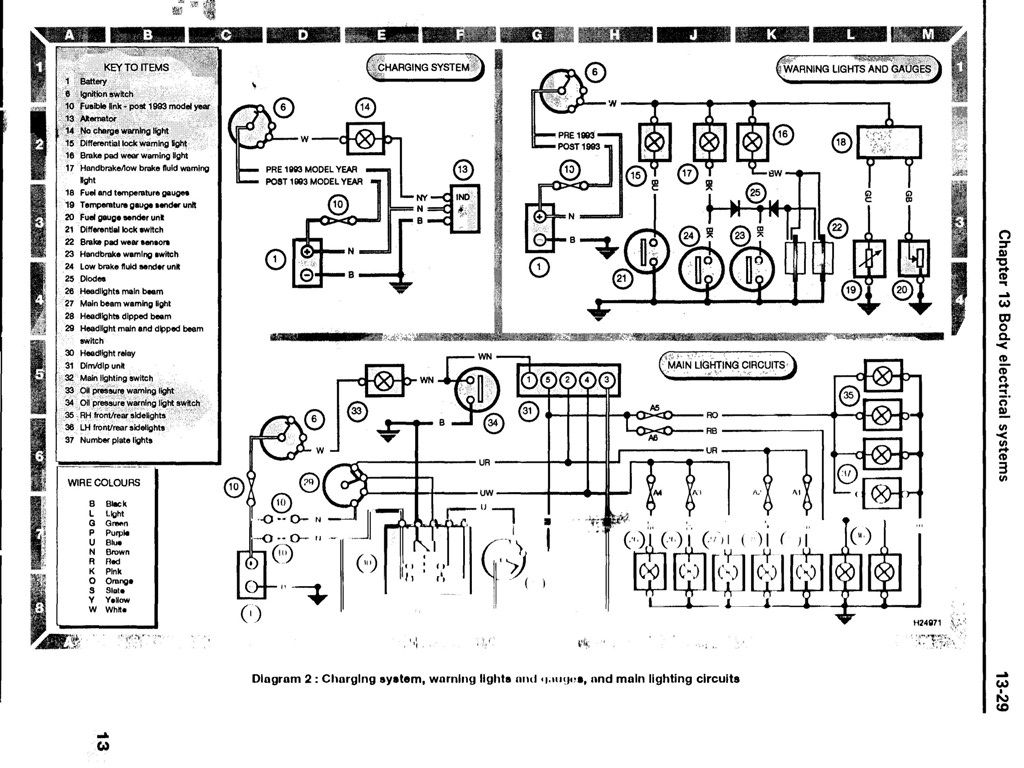

14466d1268679489-wire-dipped-beam-charging-system-warning-lights-gauges-main-lighting-circuits.jpg
