P38A Window Reset

Discussion in 'Range Rover' started by Lukas018, Jun 22, 2020.

< Previous Thread | Next Thread >
  1. Lukas018

    Lukas018 Active Member

    Joined:
    Oct 24, 2018
    Posts:
    589
    Likes Received:
    96
    Location:
    Sussex
    Hi All,

    Got a niggling issue, the LHS front window will not set, all other windows set ok.

    Any tips on how to resolve?

    Tried numerous times up and down, halfway etc.

    Always been the same issue whenever the battery was disconnected, the only window that plays up.

  2. RangeRoller dt

    RangeRoller dt Well-Sprung Member

    Joined:
    Dec 23, 2018
    Posts:
    12,069
    Likes Received:
    6,113
    Location:
    Trapped inside my head @ LZ asylum
    You can take the door card off and have a look at the teeth on the gear.
    For some reason my passenger window will only set if you do it with door open, try that

    Grrrrrr likes this.
  3. marjon

    marjon Well-Known Member Full Member

    Joined:
    Jul 15, 2018
    Posts:
    6,226
    Likes Received:
    8,114
    Location:
    Bulgaria
    A little bit of silicone spray on the runners and ensure you keep your finger on the button for a good couple of seconds before going to close and do the same.

    stopping at any point and you have to start again.

    J

  4. wammers

    wammers STILL BREATHING. Donater

    Joined:
    Oct 19, 2008
    Posts:
    58,171
    Likes Received:
    11,644
    Location:
    Preston Lancs.
    Window setting is dependent on the motor stalling at each end of travel. That gives the system the full travel info it needs. If there is any clicking at either end of the travel it means the motor is not stalling. Therefore the window cannot be set.

  5. Lukas018

    Lukas018 Active Member

    Joined:
    Oct 24, 2018
    Posts:
    589
    Likes Received:
    96
    Location:
    Sussex
    Ok cheers, the window motor is fine no clicking or jolting, will try with door open and check runners etc all clear. Probably filled with crap as been sitting around for ages :eek:.

  6. RangeRoller dt

    RangeRoller dt Well-Sprung Member

    Joined:
    Dec 23, 2018
    Posts:
    12,069
    Likes Received:
    6,113
    Location:
    Trapped inside my head @ LZ asylum
    Door strip is smashed orf on mine so holes in door was letting water and grit in for few years.

  7. Lukas018

    Lukas018 Active Member

    Joined:
    Oct 24, 2018
    Posts:
    589
    Likes Received:
    96
    Location:
    Sussex
    Ahh not good, mine are just warped from the sun.

    Another question, I need to repair door cills underneath the car, they are rotten, this a common issue aswell?

  8. RangeRoller dt

    RangeRoller dt Well-Sprung Member

    Joined:
    Dec 23, 2018
    Posts:
    12,069
    Likes Received:
    6,113
    Location:
    Trapped inside my head @ LZ asylum

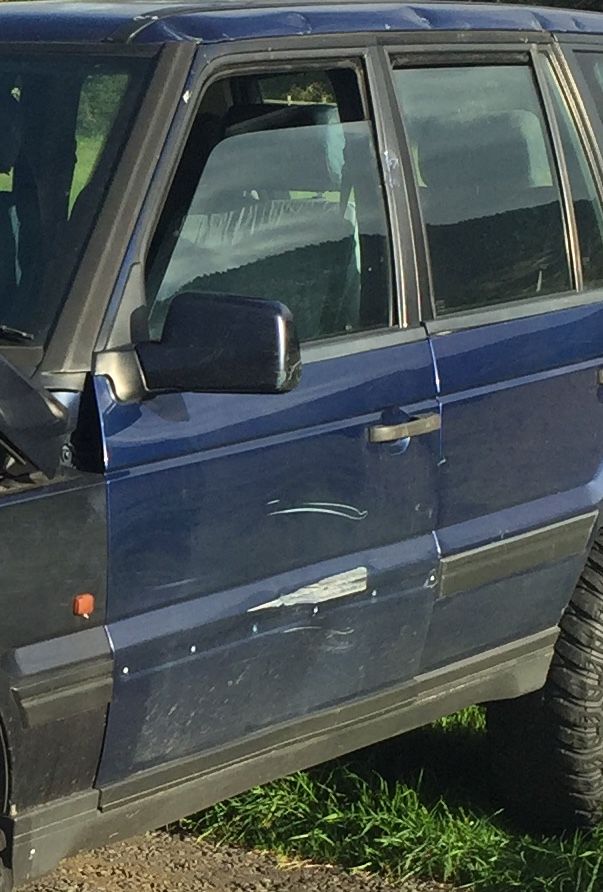

    They may still leak water in was my point. Look for light coming through or run Marks on paint if you ever have door card off


    Attached Files:

    Lukas018 likes this.
  9. Datatek

    Datatek Well-Known Member

    Joined:
    Feb 5, 2009
    Posts:
    36,896
    Likes Received:
    3,884
    Location:
    Near Poitiers SW France
    No rotted cills even on my 94 scrapper, bottom tailgate seem well corroded though

  10. Grrrrrr

    Grrrrrr Technician, Bodgit & Scarper Ltd Full Member

    Joined:
    Jul 8, 2012
    Posts:
    14,793
    Likes Received:
    4,529
    Location:
    Buckinghamshire, UK. ('95 DT)
    No but if parked under conifers the needles can drop in, block stuff up and hold moisture and it is all downhill from there.

  11. Lukas018

    Lukas018 Active Member

    Joined:
    Oct 24, 2018
    Posts:
    589
    Likes Received:
    96
    Location:
    Sussex
    Yea not sure why mine are so bad as rest of under body seems solid, having spent its first 10 years in Scotland looking at service history might have aided it somewhat looked very remote where garages were located :eek:

  12. RangeRoller dt

    RangeRoller dt Well-Sprung Member

    Joined:
    Dec 23, 2018
    Posts:
    12,069
    Likes Received:
    6,113
    Location:
    Trapped inside my head @ LZ asylum
    i can attest to conifers. Few years under them I still find bits.

    I had rust on sills on last MOT as advisory. Is Early 95 so 25 now - no rot though. Later DSEs seem to struggle more than mine with plastic along the trims, perhaps yours used to have rubber side steps??

  13. Lukas018

    Lukas018 Active Member

    Joined:
    Oct 24, 2018
    Posts:
    589
    Likes Received:
    96
    Location:
    Sussex
    I just tried the open door trick and it set in the end :eek: that annoying buzzer these car have drives mad.

    Think it might have had side steps and the brackets on the body as can see where they been removed, or more so, hacked off!

    RangeRoller dt likes this.
  14. RangeRoller dt

    RangeRoller dt Well-Sprung Member

    Joined:
    Dec 23, 2018
    Posts:
    12,069
    Likes Received:
    6,113
    Location:
    Trapped inside my head @ LZ asylum
    Have to have the door ajar in certain position.
    Now we just have to find out why :confused:

    That door is the side I rolled over on so guessed it was always a little out of shape. Wiring maybe?

    Lukas018 and Grrrrrr like this.
  15. Grrrrrr

    Grrrrrr Technician, Bodgit & Scarper Ltd Full Member

    Joined:
    Jul 8, 2012
    Posts:
    14,793
    Likes Received:
    4,529
    Location:
    Buckinghamshire, UK. ('95 DT)
    The teeth tend to wear on the window regulator as they're made of chocolate. Eventually it will just grind at the top and stop.

    Lukas018 likes this.
