Which ABS ECU?

Need to change the ABS ECU, and I don't know which type to get.

On the ebay there are types ANR1250 and ANR4898. I assume they are not interchangable.

Which is correct for a MArch 2001 2.5 Diesel?

OXO said:

Need to change the ABS ECU, and I don't know which type to get.

On the ebay there are types ANR1250 and ANR4898. I assume they are not interchangable.

Which is correct for a MArch 2001 2.5 Diesel?

Click to expand...

There are I think several different ones. Yours will have 4 wheel TC which narows it down a bit. Best way is to check the part number on your faulty one.

Datatek said:

There are I think several different ones. Yours will have 4 wheel TC which narows it down a bit. Best way is to check the part number on your faulty one.

Click to expand...

Is that easily done? I'm in the Uk without all my tools..

OXO said:

Is that easily done? I'm in the Uk without all my tools..

Click to expand...

From memory it's up under the dash on the passenger side. someone will correct me if I'm wrong. You have got to get it out to replace it, so nothing lost.
Otherwise look it up on Microcat.

If I remove the glovebox, will I be able to see it, or is it a bigger job than that?

Did a forum search, some posts say it's under the passenger seat.

Baffled..

ANR1250 rear wheel TC. ANR4898 4 wheel TC. Latest version SRD100501. Bloody silly daft money for any of them new. Rave says behind glove box.

Oh.

That's good info. Thanks Wammers. They can be found for about £20 on ebay.

From Datatek's info, I need a 4 wheel TC type then.

Anyone else got a suggestion on where its located in the car?

OXO said:

Oh.

That's good info. Thanks Wammers. They can be found for about £20 on ebay.

From Datatek's info, I need a 4 wheel TC type then.

Anyone else got a suggestion on where its located in the car?

Click to expand...

It's not under the passenger seat. All you will find there are the Auto, EAS & Transfer box ECU's.
Try a site search, it has been covered before.

OXO said:

Oh.

That's good info. Thanks Wammers. They can be found for about £20 on ebay.

From Datatek's info, I need a 4 wheel TC type then.

Anyone else got a suggestion on where its located in the car?

Click to expand...

There is a schematic in RAVE that appears to show it around steering column, but in the component location table, ABS ECU is listed as being "Beneath facia on passenger side of bulkhead". That would be behind glove box. Just to add. In RAVE showing removal of ECU it shows steering column closure panel being removed to get at it so your guess is as good as mine. Also the Russian Microcat site seems to have gone down (Expired domain).

Passenger footwell. Look upwards. 3 bolts.

You have the later 4 wheel traction one. Costs a hell of a lot more than the pre 2000s.

I had to get one, silly money!

You may be lucky on Ebay. Old boxes are silver, your version is black.

If I recall correctly, the later types ABS ECU is in the engine compartment. For the older ones, pre 4 wheel TC, the ECU is behind the glove box compartment in the LHD models. Not sure for RHD.

mcapinha said:

If I recall correctly, the later types ABS ECU is in the engine compartment. For the older ones, pre 4 wheel TC, the ECU is behind the glove box compartment in the LHD models. Not sure for RHD.

Click to expand...

No ABS ECU in engine compartment on any P38 as far as i know.

As Rachelkgr said - up behind glove box on a RHD model. Might be able to get it out without removing the glove box itself if you are lucky...

Though glove box is only a few bolts and screws anyway.

martyuk said:

As Rachelkgr said - up behind glove box on a RHD model. Might be able to get it out without removing the glove box itself if you are lucky...

Though glove box is only a few bolts and screws anyway.

Click to expand...

Got mine out without removing it....but you have to get right into the footwell and look up. Does crick your neck!! :crutch:

SRD100501-LAND ROVER Ecu Traction Control / Abs Rr P38-Land Rover Parts Direct

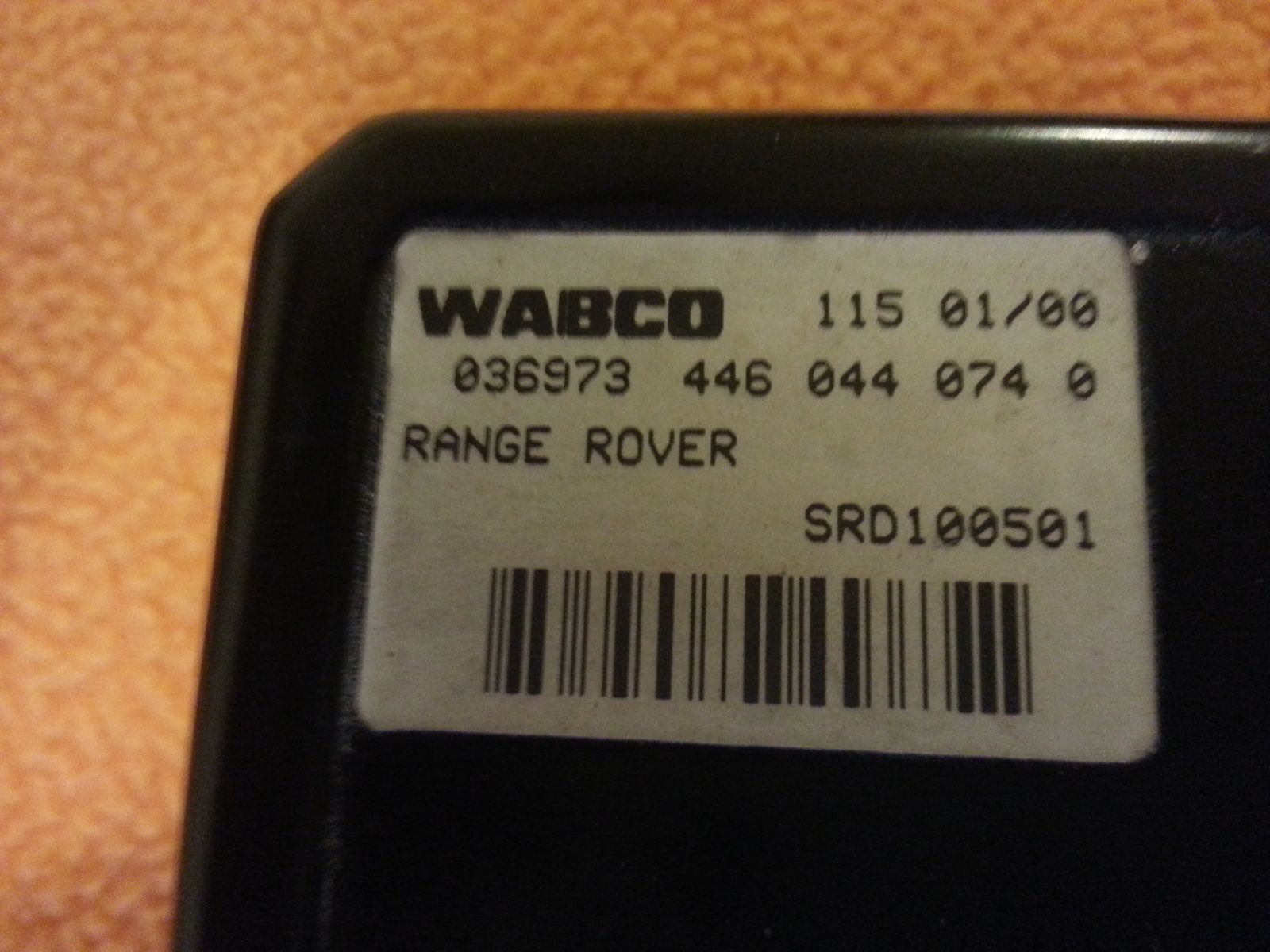

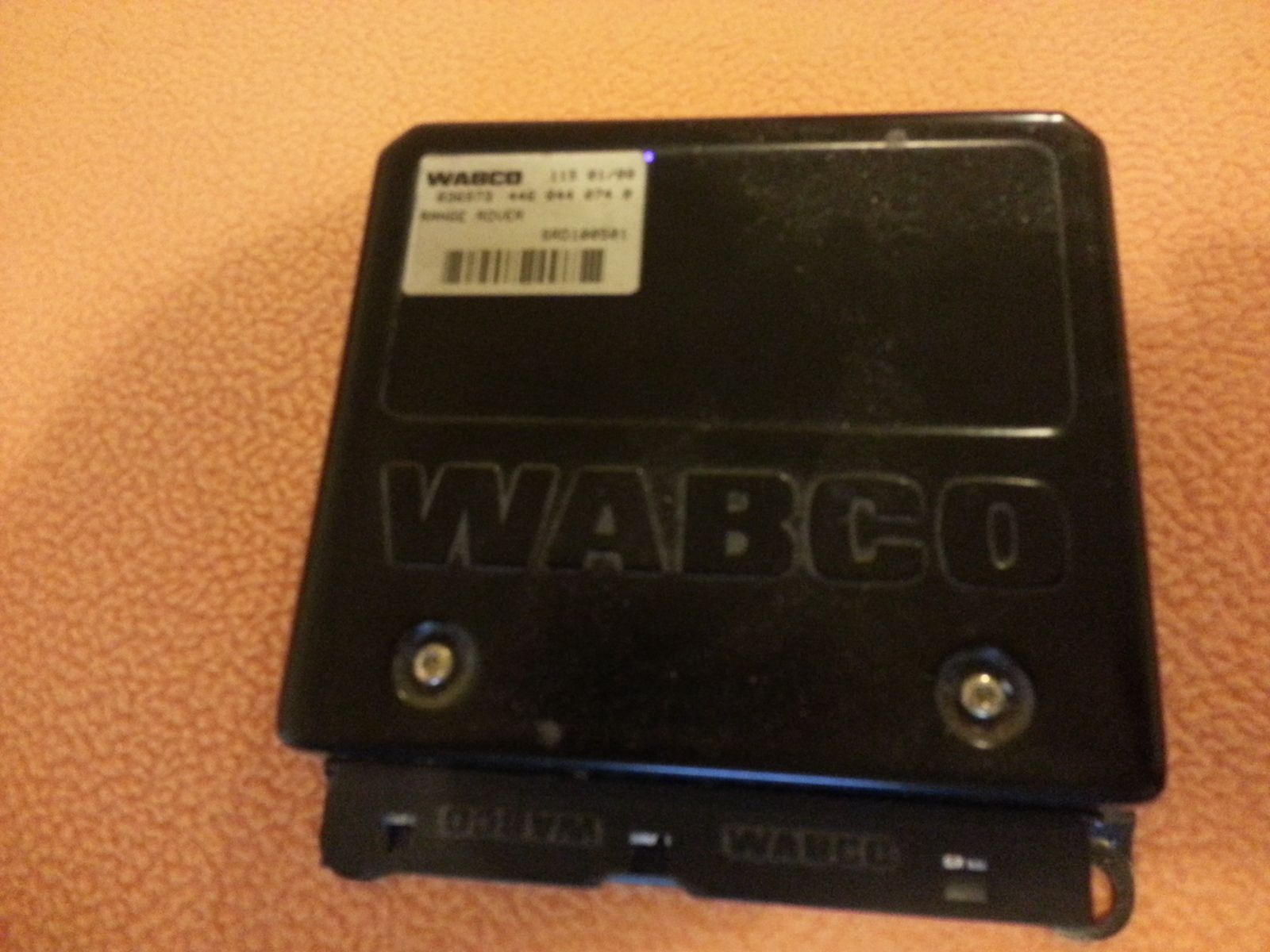

The correct one as some have said SRD 100501 I have a couple of tested units here if you get stuck

Bit cheaper here for brand new ones... but still pretty expensive!

Range Rover P38 NEW WABCO ABS Braking ECU Computer 1999-2002 2.5 TD 4.0 4.6 V8 | eBay

wammers said:

No ABS ECU in engine compartment on any P38 as far as i know.

Click to expand...

I stand corrected.

RAVE said:

The ABS system on vehicles up to 99MY uses a ’C’
series ABS ECU which includes an optional two wheel
electronic traction control feature. The ECU has a
single connector and is located on the bulkhead
behind the glovebox.

On vehicles from 99MY a ’D’ series ABS ECU is used.
The ’D’ series ECU features four wheel electronic
traction control which is a standard feature on all
models. The ECU has three connectors and is located
in the same position as the ’C’ series ECU.

Click to expand...

wammers said:

No ABS ECU in engine compartment on any P38 as far as i know.

Click to expand...

+1. The confusion with the steering wheel is due to it being up by the steering column on LHD, the tech writer got confused.

Datatek said:

+1. The confusion with the steering wheel is due to it being up by the steering column on LHD, the tech writer got confused.

Click to expand...

Yep it would seem that way. Think there are a few confused technical writers that work for Land rover. Hope they never get to work on the production line. Or you really would get the Camel being a Horse designed by a committee syndrome.
