Disco 1 Where does the water come from?

Discussion in 'Land Rover Discovery' started by Marmaduke, Sep 12, 2019 at 3:05 PM.

< Previous Thread | Next Thread >
  1. Marmaduke

    Marmaduke Well-Known Member

    Joined:
    Feb 25, 2012
    Posts:
    7,654
    Likes Received:
    3,504
    Location:
    Near the land of 'Me Duck'

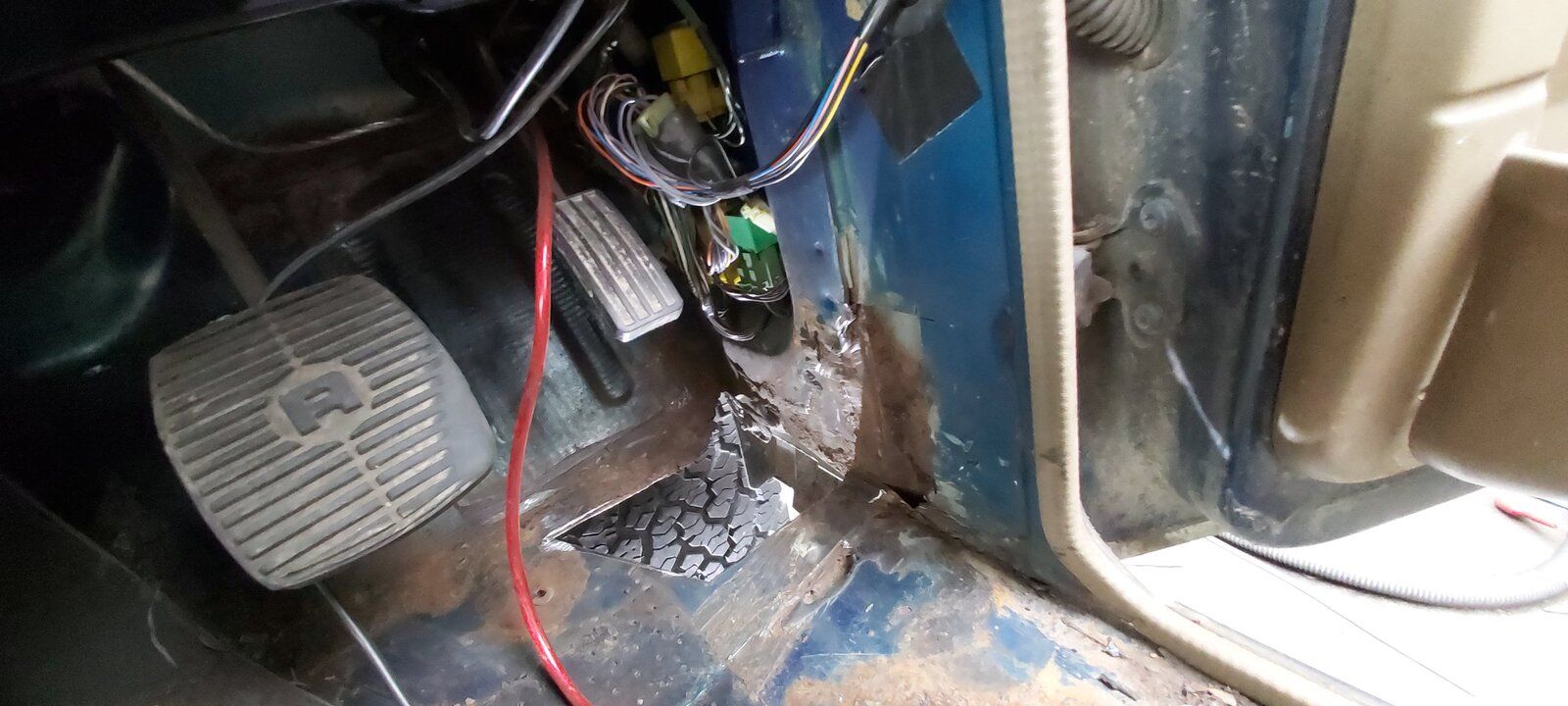

    Any ideas where the water comes from that drains down the inside of this? 20190912_150034.jpg

    It's the front door pillar that the hinges bolt to on the other side :oops:

    I've got no sunroofs but I'd like to block it for a while so I can paint inside it.


  2. Flossie

    Flossie Well-Known Member

    Joined:
    Sep 2, 2015
    Posts:
    5,818
    Likes Received:
    3,035
    Location:
    Shropshire
    I'm no familiar with discos but... windscreen rubber then runs down the pillar internally?.
    A good torch,a mirror and a watering can played over select areas will usually find it.

    Marmaduke likes this.
  3. Interceptorxj

    Interceptorxj Well-Known Member

    Joined:
    Oct 20, 2013
    Posts:
    670
    Likes Received:
    397
    Location:
    Bolton, Greater Manchester.
    This is from Disco ll but may still apply.


    Attached Files:

  4. Marmaduke

    Marmaduke Well-Known Member

    Joined:
    Feb 25, 2012
    Posts:
    7,654
    Likes Received:
    3,504
    Location:
    Near the land of 'Me Duck'
    Thanks both, I'll get the ladders and some tiger seal out tomorrow and have a good look

  5. Marmaduke

    Marmaduke Well-Known Member

    Joined:
    Feb 25, 2012
    Posts:
    7,654
    Likes Received:
    3,504
    Location:
    Near the land of 'Me Duck'

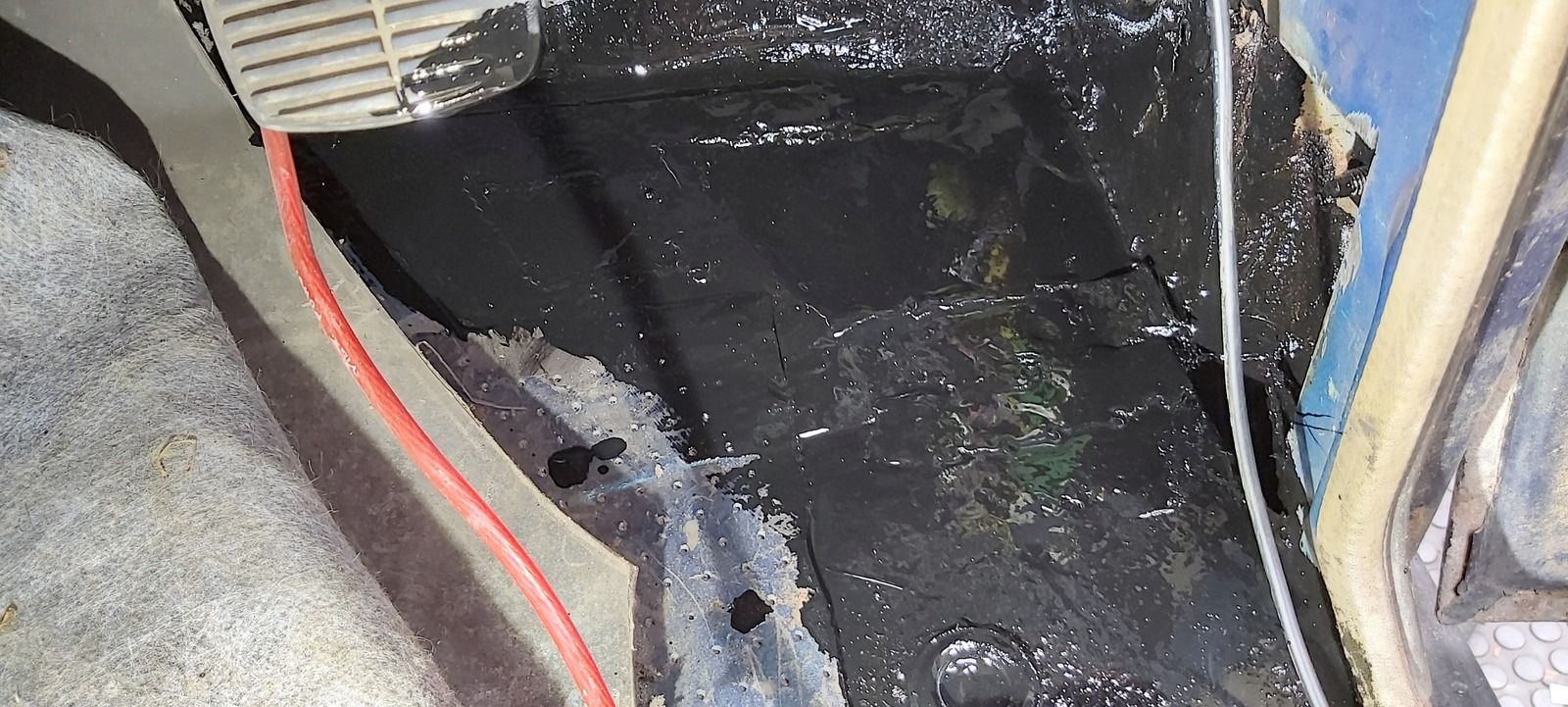

    20190912_180319.jpg repaired and painted, dinitrol tomorrow

  6. Dippypud

    Dippypud Never Knowingly Understood

    Joined:
    May 2, 2011
    Posts:
    47,272
    Likes Received:
    19,630
    Location:
    In my drum, on my Manor, in Wooly Witch, Lunnen
    Is it the scuttle drain ...

  7. Marmaduke

    Marmaduke Well-Known Member

    Joined:
    Feb 25, 2012
    Posts:
    7,654
    Likes Received:
    3,504
    Location:
    Near the land of 'Me Duck'

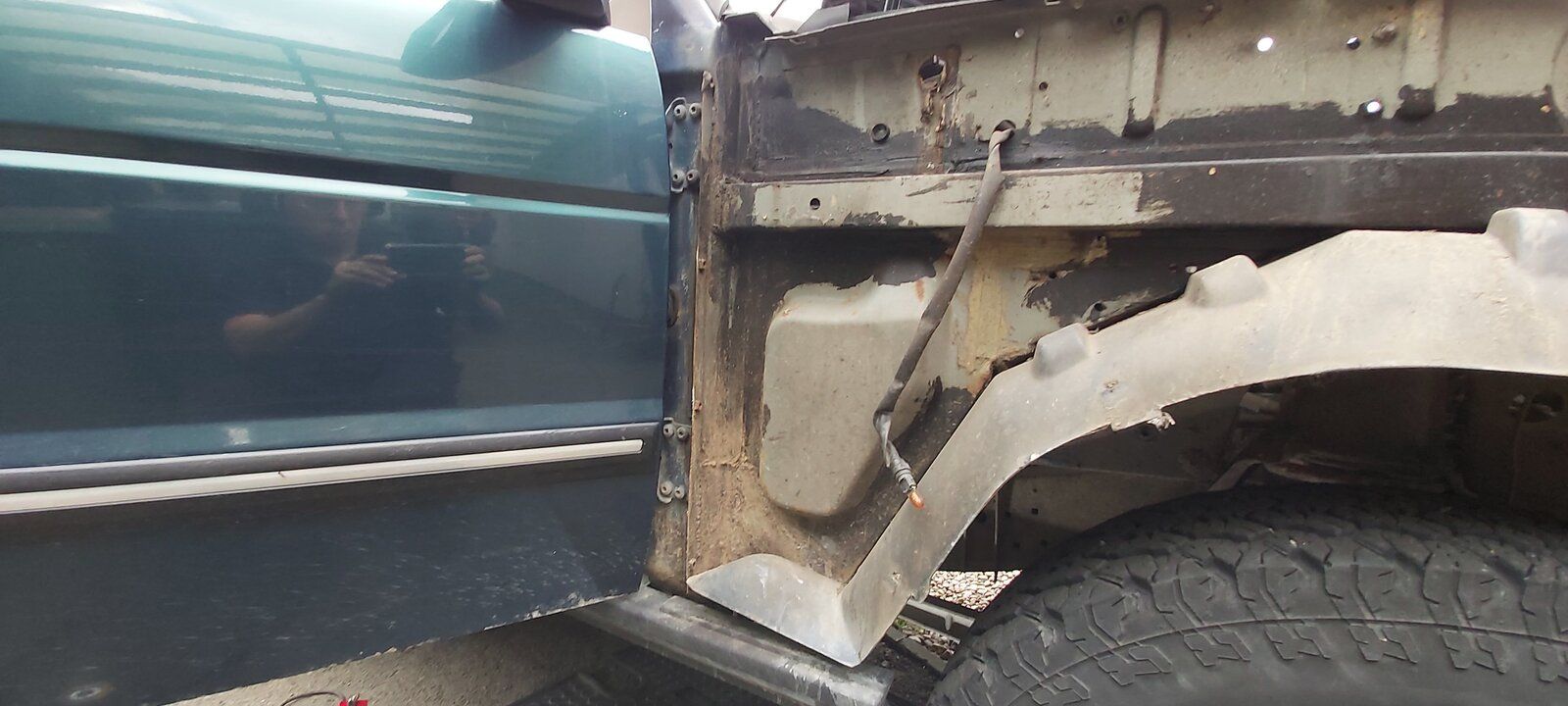

    I'll be honest I don't know its correct name but it drains through a hole behind the plastic sill cover. The hole was blocked with mud and rusty detritus which I've now cleaned out and treated

    Dippypud likes this.
  8. currymunster

    currymunster Active Member

    Joined:
    Jan 12, 2011
    Posts:
    528
    Likes Received:
    29
    Location:
    Folkestone, Kent.
    In doing my sill at the moment - I put my fingers up the a pillar but can't feel any hose or pipe for the sunroof. Where the hell should it be?

  9. lynall

    lynall Well-Known Member

    Joined:
    Feb 28, 2011
    Posts:
    9,823
    Likes Received:
    3,335
    Location:
    Kent
    Is it tilt and slide or just tilt sunroof? I ask as dont think tilt only has any drains?

  10. currymunster

    currymunster Active Member

    Joined:
    Jan 12, 2011
    Posts:
    528
    Likes Received:
    29
    Location:
    Folkestone, Kent.
    Is tilt and slide. Near side. I assume there should be one each side in the a post?
    Thanks

  11. lynall

    lynall Well-Known Member

    Joined:
    Feb 28, 2011
    Posts:
    9,823
    Likes Received:
    3,335
    Location:
    Kent

    Long time since Ive had a D1, but my D2 had one pipe going forwards and one rearwards and iirc the little plastic stubs on the sunroof drain tray come adrift, see If I can find a pic.

    currymunster likes this.
  12. lynall

    lynall Well-Known Member

    Joined:
    Feb 28, 2011
    Posts:
    9,823
    Likes Received:
    3,335
    Location:
    Kent

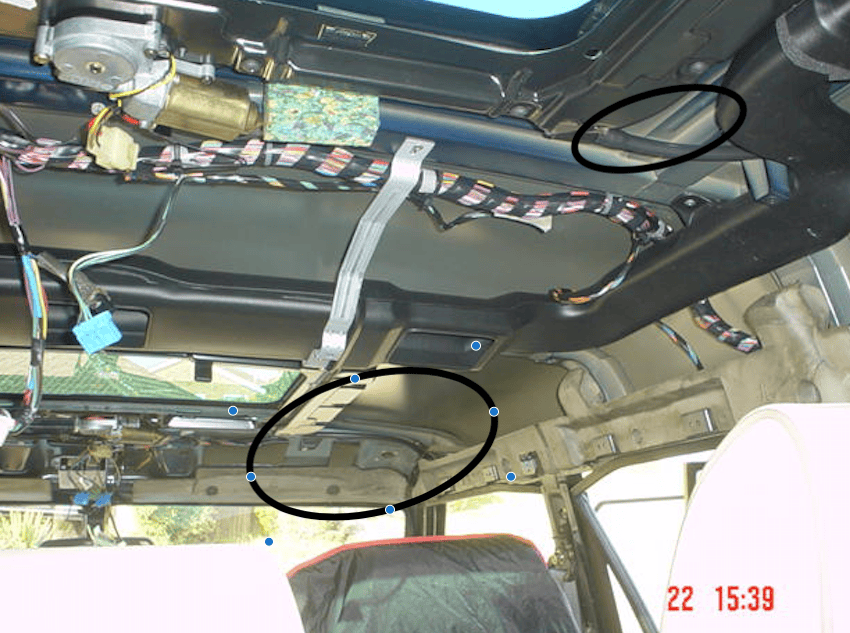

    Pic taken from rear showing both D2 sunroofs, circled are the Offside drain pipes, I think there was the same on the Nearside.
    Extra wiring/trunking was the rear a/c

    Screen Shot 2019-09-13 at 16.35.39.png

    currymunster likes this.
  13. currymunster

    currymunster Active Member

    Joined:
    Jan 12, 2011
    Posts:
    528
    Likes Received:
    29
    Location:
    Folkestone, Kent.
    Thanks, funny thing is I've had all my head lining out to do the sunroofs and can remember it now.
    What I don't understand is why I cannot find the pipe in the o/s a post?

  14. lynall

    lynall Well-Known Member

    Joined:
    Feb 28, 2011
    Posts:
    9,823
    Likes Received:
    3,335
    Location:
    Kent
    Dont forget pic is of a D2 maybe D1 doesnt have two front pipes?

  15. discool

    discool Well-Known Member

    Joined:
    Apr 25, 2007
    Posts:
    11,555
    Likes Received:
    652
    Location:
    Sector 12 in Kent, The Garden of England
    As the D2 has the same sunroof as the D1.

  16. Enzian

    Enzian Active Member

    Joined:
    Apr 8, 2019
    Posts:
    126
    Likes Received:
    74
    Location:
    West Midlands
    Aye Up,

    I’ve recently had this problem on my D1 and spent several weeks tracking down one, then several locations each of which provided a different access point for water. No sooner did I think that I’d sorted it than water reappeared.
    One of the things that I did was to ‘puff’ talcum powder on the footwell sloping footboard to highlight water tracks.

    I tried to post a write up and images of each but every time I did I received a message saying that the post was too data heavy.
    Here is a list of the locations and one image, I will post images in subsequent separate posts tomorrow to see if it works that way.

    Unserviceable Sunroof seals - glass-to-frame and/or frame to roof;
    Damaged/disconnected sunroof drainpipes (front). Pipe runs down inside of FNS A-pillar;
    Junction of bottom of A pillar/inner wing/scuttle

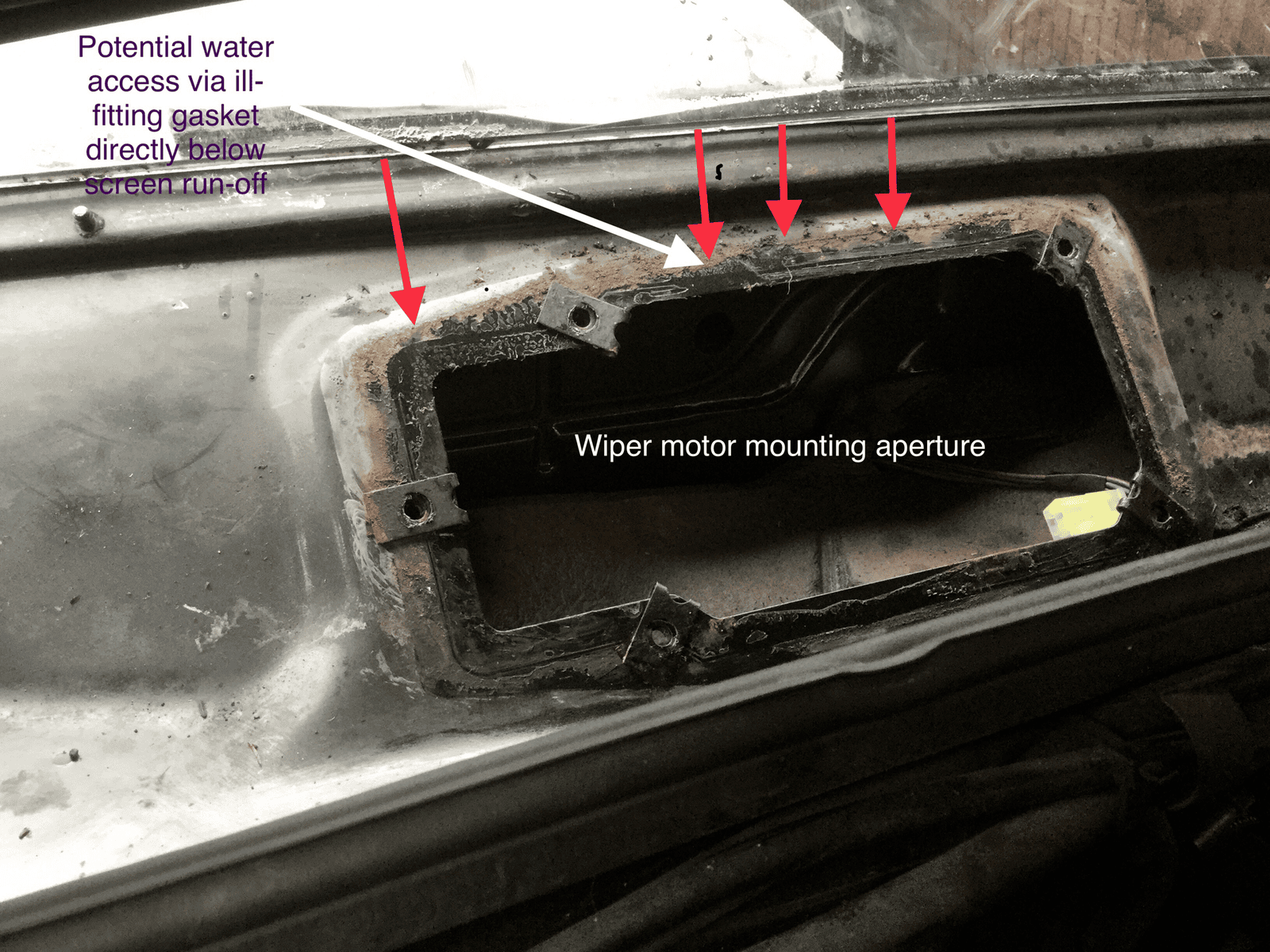

    Windscreen wiper motor housing gasket
    Heater air intake gasket
    The Seam running the full length of scuttle and covered with filler; looked ok but had dried and become porous
    Gap between inner and outer wing local to base of A pillar
    Spot weld joining scuttle to bulkhead panel. Water seeped through this, down bulkhead onto cable harness and through to top of sloping footboard.
    Alpine window seals.


    kevstar and Zed. like this.
  17. Enzian

    Enzian Active Member

    Joined:
    Apr 8, 2019
    Posts:
    126
    Likes Received:
    74
    Location:
    West Midlands
    Aye Up

    D1 leak sources #2 images:


    kevstar likes this.
  18. Enzian

    Enzian Active Member

    Joined:
    Apr 8, 2019
    Posts:
    126
    Likes Received:
    74
    Location:
    West Midlands
    This image goes with the first one I posted showing how panel gap goes through into footwell

  19. Enzian

    Enzian Active Member

    Joined:
    Apr 8, 2019
    Posts:
    126
    Likes Received:
    74
    Location:
    West Midlands
    Aye Up,

    Is anyone seeing the images?

    I’m seeing them in the posting box and the preview but not in the thread?

    Zed. likes this.
  20. Stanleysteamer

    Stanleysteamer Well-Known Member

    Joined:
    Nov 22, 2013
    Posts:
    1,468
    Likes Received:
    565
    When my D1 startred getting water leaks, it turned out to be a badly sealed replacement windscreen, at the top. I used professional mastic and the problem stopped.
