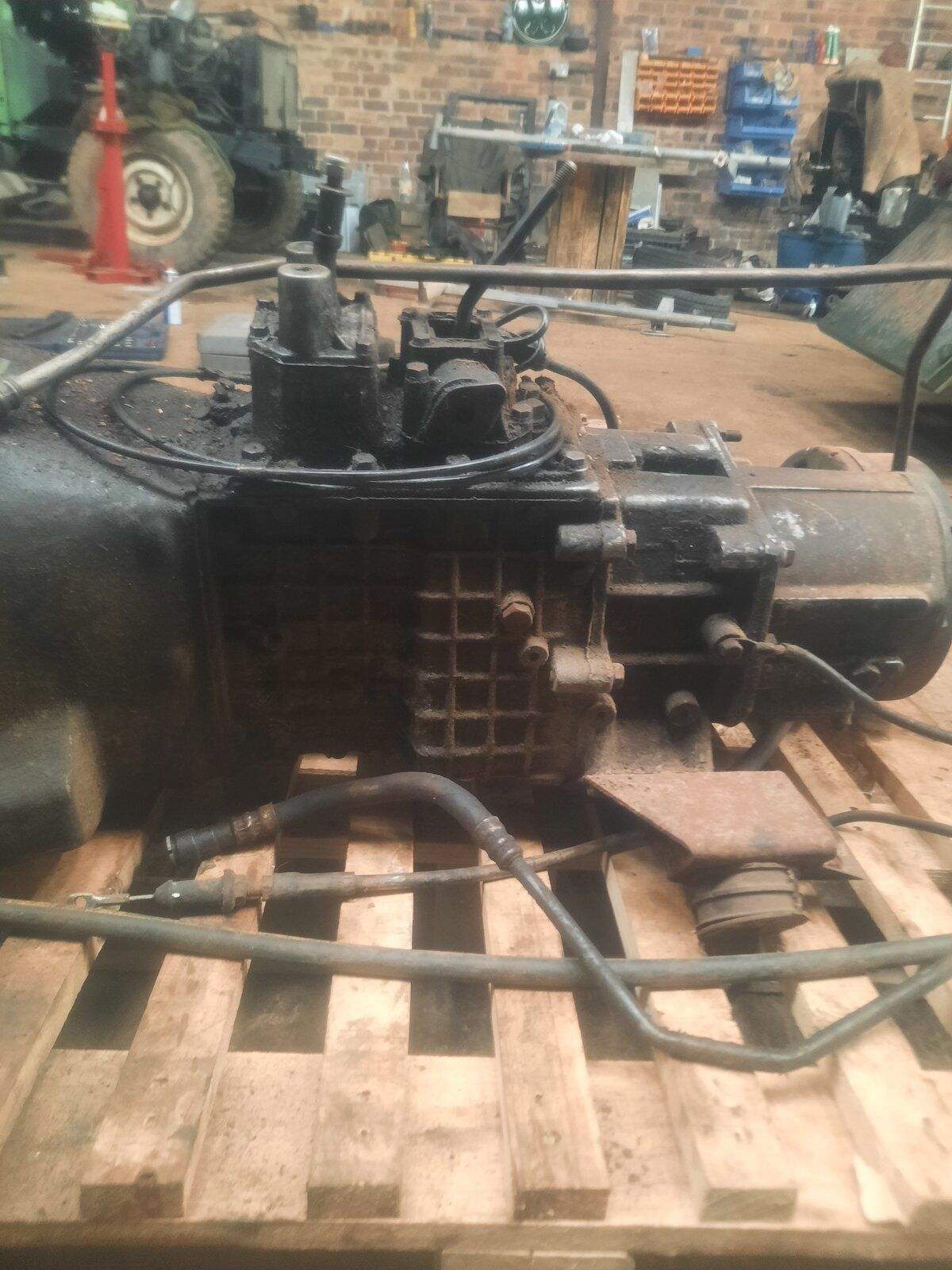

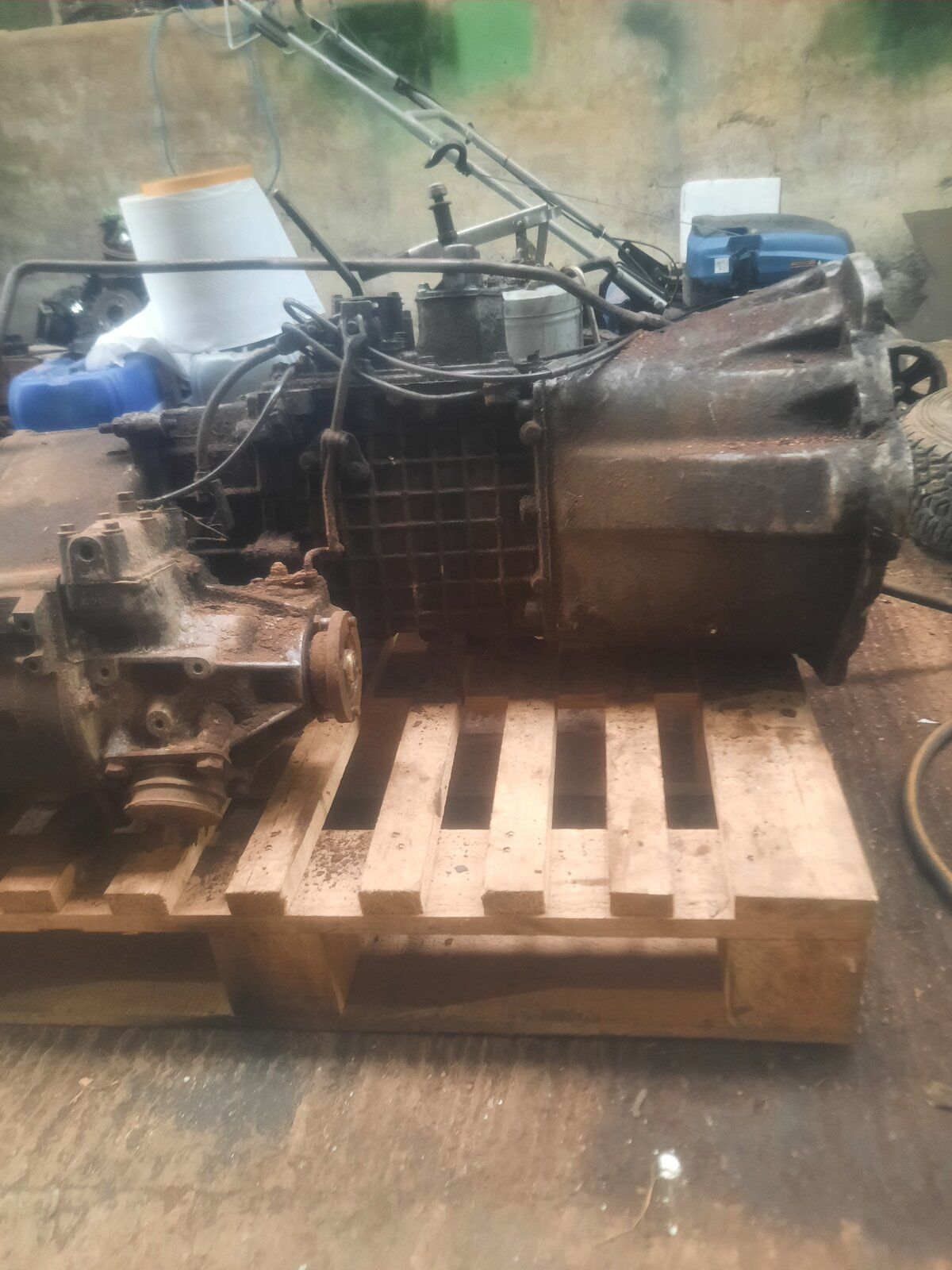

What type of gearbox is this ?
- Thread starter chrisstdt
- Start date
This site contains affiliate links for which LandyZone may be compensated if you make a purchase.
hope this is useful and I’ve also got the correct gearbox, lol
The LT85 (85 mm shaft spacing) was used in all V8 110 and 90 Land Rovers. The LT85 was originally designed under contract by Land Rover for Santana in Spain and was considered to be a strong working gearbox. Rover purchased LT85 gearboxes directly from Santana. It is also known as the Spanish Box. This gearbox was used as originally designed until 1988. A cost reduced, lighter weight, divided case version of the LT85 was introduced in 1988 and used through 1991. The main short coming of the divided case version was its main and lay shaft bearings. The loading on the bearings in 5th gear caused frequent gearbox failure when cruising for long periods of time under high throttle. There was also a bearing quality problem at one stage of manufacture and the gearbox was sensitive to the type of oil used.
In 1991 the relationship between Rover and Santana ended and the LT85 was no longer available to Rover. They needed to find a quick short term solution while they developed a new stronger gearbox.
1991 through 1993 The LT77S was introduced to the Defender V8 line and all models using the Tdi engine as an interim replacement for the no longer available LT85. The LT77S was a strengthened version of the LT77. The 'S' on the LT77S stands for 'Synchromesh'...it was modified for a 'smoother gear change'. The bell housings and input shafts of the LT77S differ between the V8 and Tdi due to Tdi's more aft location.
The LT85 (85 mm shaft spacing) was used in all V8 110 and 90 Land Rovers. The LT85 was originally designed under contract by Land Rover for Santana in Spain and was considered to be a strong working gearbox. Rover purchased LT85 gearboxes directly from Santana. It is also known as the Spanish Box. This gearbox was used as originally designed until 1988. A cost reduced, lighter weight, divided case version of the LT85 was introduced in 1988 and used through 1991. The main short coming of the divided case version was its main and lay shaft bearings. The loading on the bearings in 5th gear caused frequent gearbox failure when cruising for long periods of time under high throttle. There was also a bearing quality problem at one stage of manufacture and the gearbox was sensitive to the type of oil used.
In 1991 the relationship between Rover and Santana ended and the LT85 was no longer available to Rover. They needed to find a quick short term solution while they developed a new stronger gearbox.
1991 through 1993 The LT77S was introduced to the Defender V8 line and all models using the Tdi engine as an interim replacement for the no longer available LT85. The LT77S was a strengthened version of the LT77. The 'S' on the LT77S stands for 'Synchromesh'...it was modified for a 'smoother gear change'. The bell housings and input shafts of the LT77S differ between the V8 and Tdi due to Tdi's more aft location.

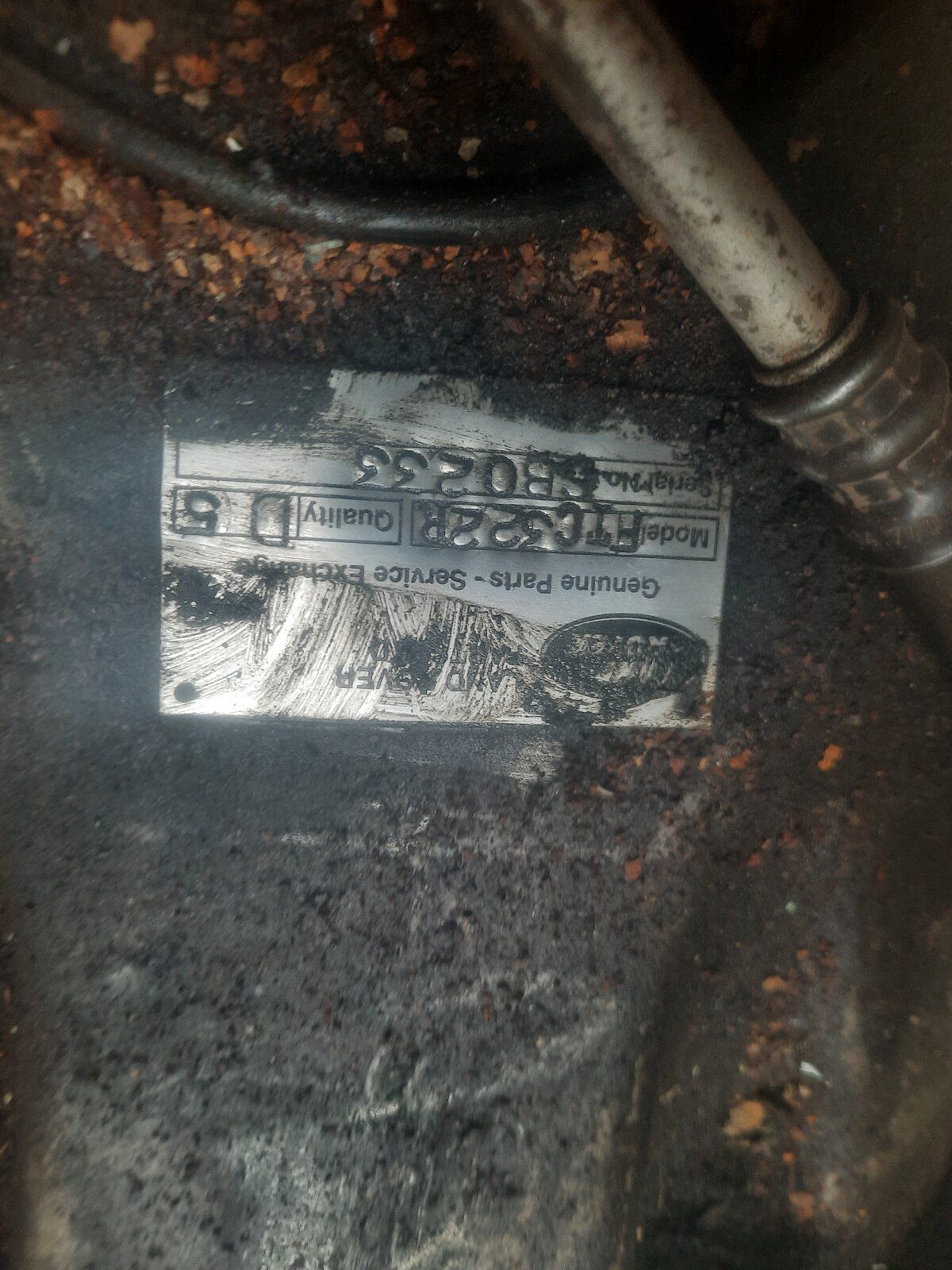

If you google the type it comes up as
FTC322E - Land Rover Transmission assembly manual | Jaguar Land Rover Classic Parts
Wheres reverse
J
FTC322E - Land Rover Transmission assembly manual | Jaguar Land Rover Classic Parts
Wheres reverse
J
chrisstdt
Well-Known Member
- Posts
- 923
- Location
- scottish borders
Thanks I tried Google in the part number and it brought up nothing
Never drove the car as gearbox was in the back
Never drove the car as gearbox was in the back
