what light's what?

i am re-wiring at the mo and i'm confused as to what light has what function.the wiring is a right mess so have nothing to compare to.can anyone tell me?

have yu gorra circuit diagram?

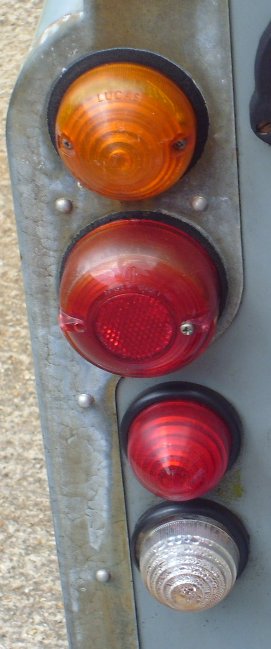

top one indicator
next stop and side lights
fog light
reversing light

at a guess.

pm me if yu want any more info - colour codes etc.

i have a circuit diagram but of no use because it's been wired in the past by someone who only appeared to have pink,black and brown wire so consequently none of it makes any sense.
i obviously knew that the orange one is the indicator,i'm a bit daft but not that stupid!,do you have to switch the reverse light manually?

bigchap said:

i have a circuit diagram but of no use because it's been wired in the past by someone who only appeared to have pink,black and brown wire so consequently none of it makes any sense.

Click to expand...

lol - it werent me - onist.

what do you want/intend to do - rewire it proper - or just get it working?

I can pop up some time and look at it fur ya if yu want.

re-wire it properly,he doesn't know it yet but a mate of mine who used to do the sparks on concorde will be doing it.

hee hee.

just get yoself a test light and follow them thro - easy enuf.

or better still - get him to do it.

oh - and get the correct colour coded and current rated wire

i've got a manual reversing light on me newest series 3, its wired with pink wire too....... its the rectangle deepender style though.

bigchap said:

re-wire it properly,

Click to expand...

i've got a few miles of 16/02 in pink if you want it all to match the exisitng ?

Keep the top two Amber and Red
the other two are none standard and have been added later.
