What have you done to your Landie today.

Discussion in 'General Land Rover Forum' started by madfrank, Aug 26, 2008.

< Previous Thread | Next Thread >
  1. Maroondestroyer

    Maroondestroyer Active Member

    Joined:
    Nov 26, 2017
    Posts:
    146
    Likes Received:
    49
    Location:
    Pink panther territory.
    Removed windscreen wiper mechanism, cleaned and regreased. Now wipers work straight away instead of waiting for the old grease to warm up and melt.

  2. Sofasurfer

    Sofasurfer Well-Known Member

    Joined:
    May 5, 2017
    Posts:
    168
    Likes Received:
    101
    Location:
    Uk
    Taken the sound proofing off the seat boxes and cleaned some of the sticky-back tape off, sounds the same, looks a lot nicer :)

  3. My Old Landy

    My Old Landy Well-Known Member

    Joined:
    Aug 24, 2018
    Posts:
    176
    Likes Received:
    116
    Location:
    Buckinghamshire
    I spent three hours flushing the coolant system. I had to cut off the jubilee clips :( the water is rusty too!!
    The thermostat is not opening fully so I will replace that too :)

    Hicap phill likes this.
  4. marjon

    marjon Well-Known Member

    Joined:
    Jul 15, 2018
    Posts:
    401
    Likes Received:
    263
    Location:
    Bulgaria
    Got it in the garage and took a look at the brakes (and I mean only a look)
    Took a couple of wheels off and the result is the fronts look good, plenty of pad left,pins moved by hand and calipers in good nick. Not going near them for a while:)
    Now the backs are a different kettle of fish,:( although at least the calipers look good so hopefully should not have to mess with them. I can even turn the retaining pins by hand so no corrosion (well not much:rolleyes:) so now to work out the shopping list. Numbers kindly confirmed by James yesterday.

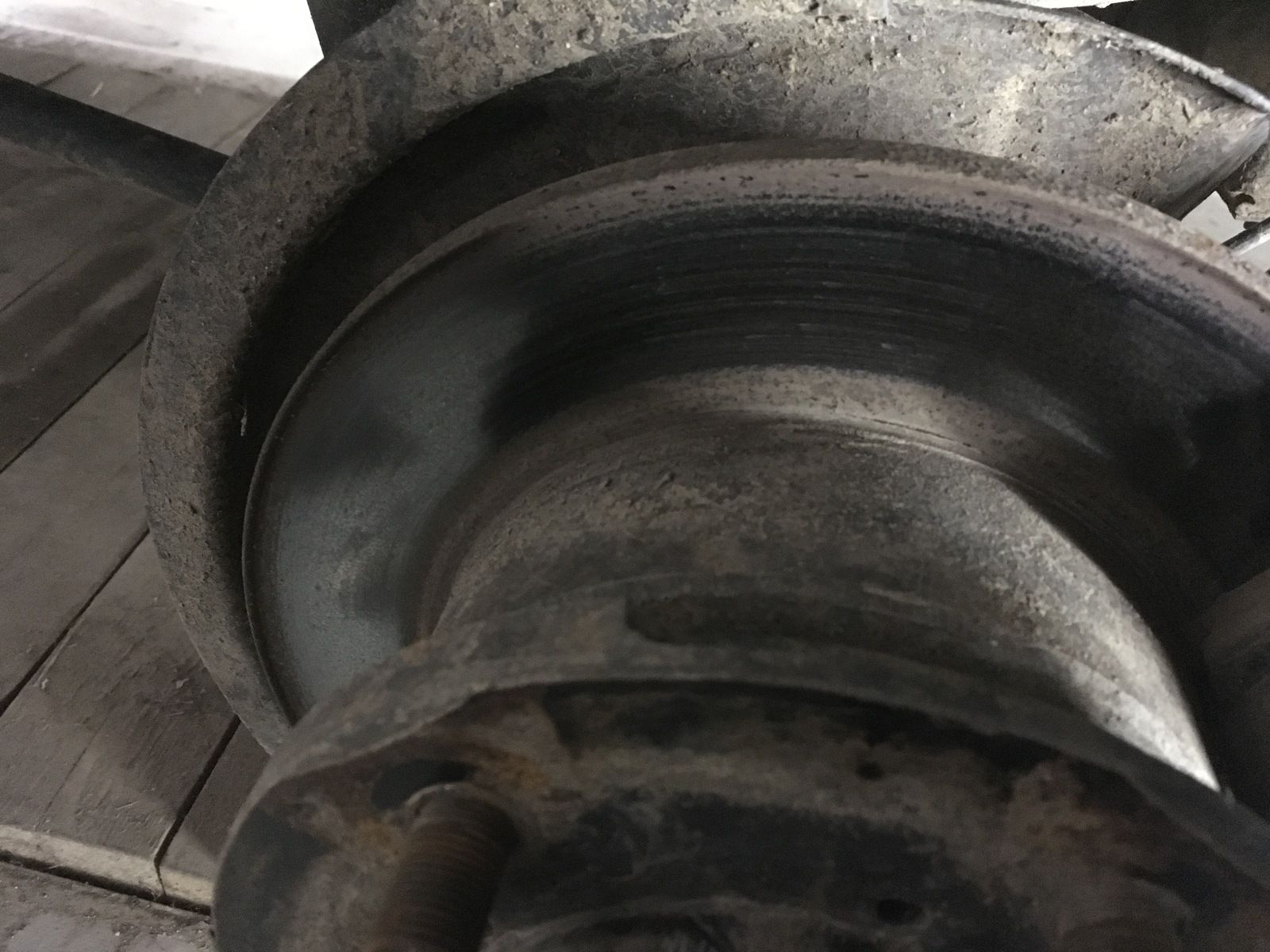

    Not sure I want you to see the condition of my rear discs:oops: but safe to say it won’t be long before the pads touch together:eek:
    There yea go cos I know you will only ask:oops:

    J

    Last edited: Nov 3, 2018
  5. Hicap phill

    Hicap phill Well-Known Member

    Joined:
    Dec 30, 2017
    Posts:
    2,888
    Likes Received:
    1,968
    Location:
    Wiltshire
    Done nothing to mine today.:)
    Wandered into a family members garage to find the S1 107 5door getting built slowly.

    My Old Landy likes this.
  6. My Old Landy

    My Old Landy Well-Known Member

    Joined:
    Aug 24, 2018
    Posts:
    176
    Likes Received:
    116
    Location:
    Buckinghamshire
    I changed the oil and checked the UJ's whilst under there :)
    There is a little play in the front diff bearing that will need to be addressed....

  7. Hicap phill

    Hicap phill Well-Known Member

    Joined:
    Dec 30, 2017
    Posts:
    2,888
    Likes Received:
    1,968
    Location:
    Wiltshire
    Changed another flat tyre. Rear O/S
    Took the mrs out on a drive for draft duties. She's now loverly & warm so Got the all clear after the work.
    Still have a squeak that was there before. I'm going for a bonnet bracket

    My Old Landy likes this.
  8. marjon

    marjon Well-Known Member

    Joined:
    Jul 15, 2018
    Posts:
    401
    Likes Received:
    263
    Location:
    Bulgaria
    Got in garage to change a headlight bulb,no dip on 1 side.
    Easy job no problems here I thought:) 5 mins and it will be done right?:oops:

    Now I know a few of you will know exactly where this is gonna end:eek:.

    So armed with 1 screwdriver and new bulb. 2 mins later headlamp in my hands connector off (a little brittle but still ok) bulb out and take a look, hummm don’t look blown visibly, change anyway and test.:mad: Still no dip.

    Back to the toolbox I go, pick up tool #1, figure this is not what I need right now (but keep it close Incase:D)
    Pickup the meter and start to check. I know the earth is good (high beam ok) check for voltage first. Well that’s strange not sure 1.5v is gonna light a bulb:rolleyes:.

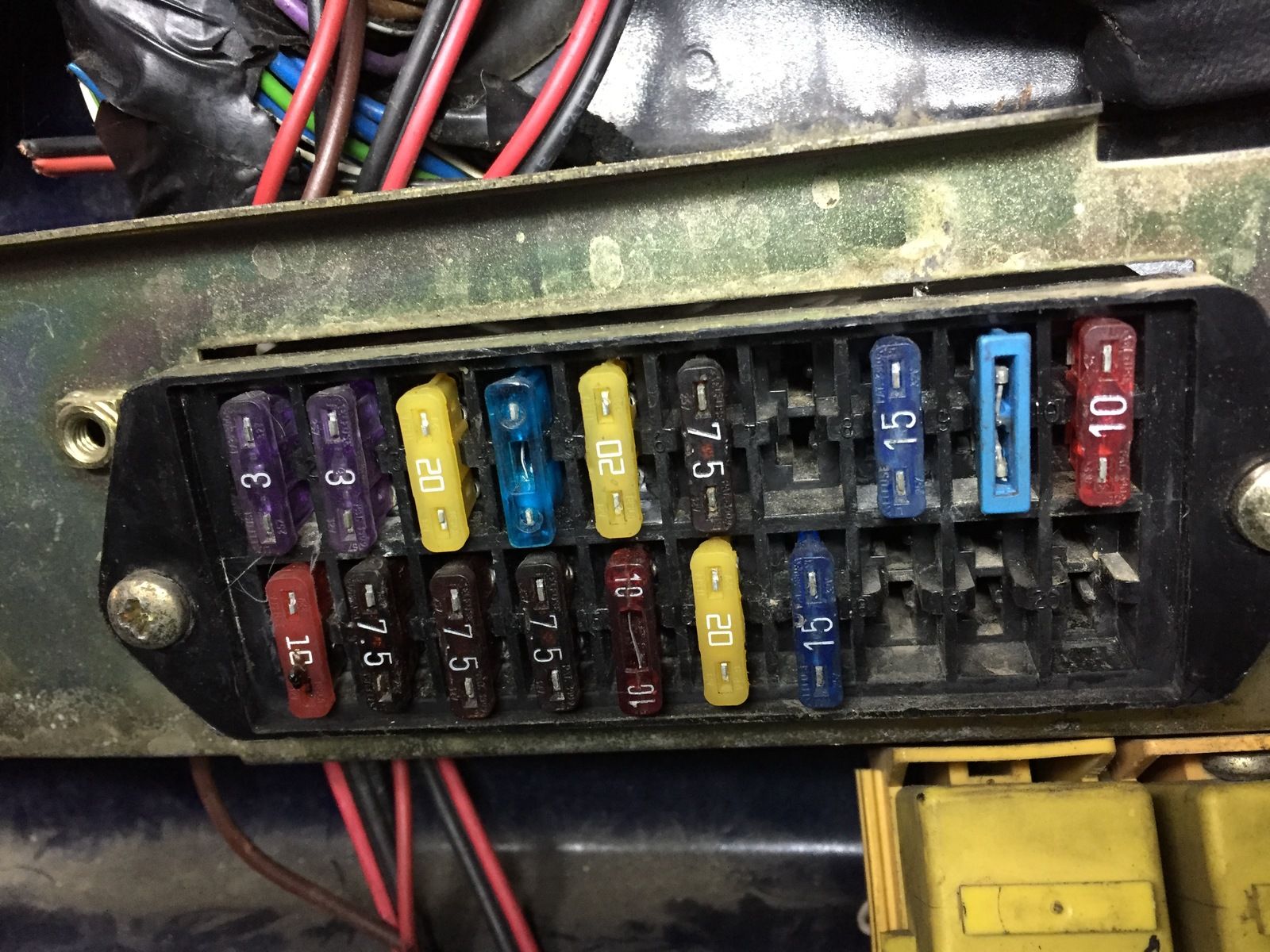

    Fuse box next then

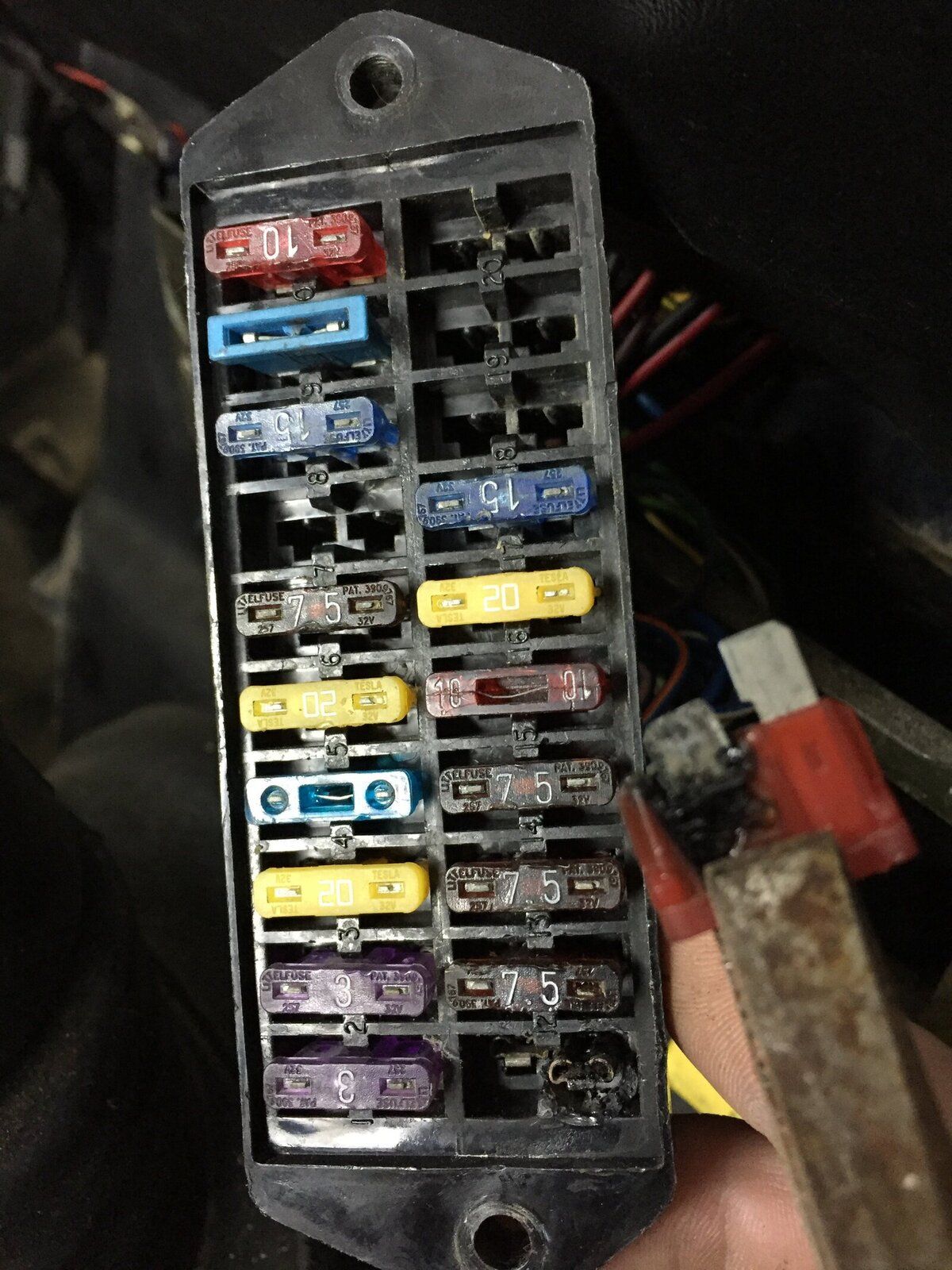

    Certainly a bit of a mix of fuses to change for correct values later.
    Ok 10a in the headlight at fault,not blown but let’s take it out and ge the meter out again.
    The little plastic thingy isn’t man enough to pull the fuse:eek:.

    Pulled and, well pretty obvious where I have my voltage loss:).
    So cleaned it up checked continuity and resistance to the headlight (bridged to earth at connector)all good.
    Checked voltage yep all good same as others. Put in proper sized fuse and change some other to correct rating. Still need more.
    But end result light works fine.
    Why?
    I have a feeling that the 90 had some sort of spots at some point, haven’t traced wiring yet but wonder if they broke into the circuit for a live just on the 1 side hence the 10a probably cooked it a bit. Have left the fuse cover off so can monitor for a while and check it’s not getting hot.
    Anyway loads more wiring to come in the future I am sure.
    Like any other older vehicle it’s had bits added,removed, and botched. I will deal with each as it shows,would hate to fix it all in 1 go:) and have nothing to do.

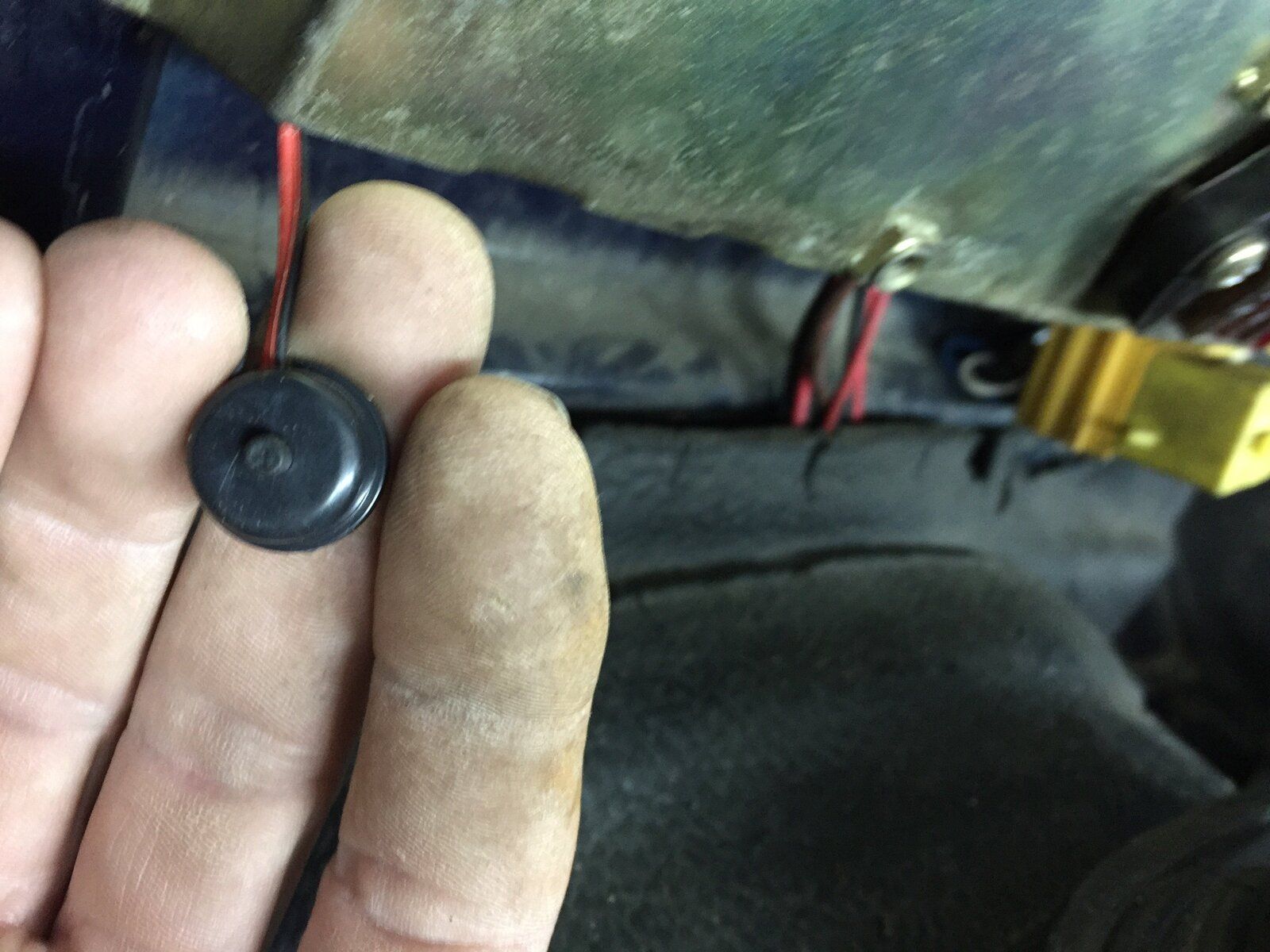

    Anybody want to take a guess at this little bit of electricketry.
    Its a little button. Nothing went off when I pushed it, and the car start fine since. I am wondering if it’s some sort of reset for the aftermarket alarm. The wires are very skinny.

    So there you have it, how to turn a 5min job into 2hours:oops::)

    J.

  9. brian47

    brian47 Well-Known Member

    Joined:
    Jan 24, 2013
    Posts:
    8,670
    Likes Received:
    5,142
    Location:
    Bridgend, Mid Glam. Somebody's got to live here.
    So, you've tried pressing the bit in the middle and come to the conclusion that it's no. Have you tried turning the bit in the middle? There looks like a small screwdriver slot on it. In which case it could be something like a control for maybe some dashboard lights .... or it might be for setting the sensitivity of a motion detector .... maybe.

    marjon likes this.
  10. marjon

    marjon Well-Known Member

    Joined:
    Jul 15, 2018
    Posts:
    401
    Likes Received:
    263
    Location:
    Bulgaria
    Well never saw that. But will check again and have a closer look.
    Need to check on the sensitivity. But it is not fixed, it just hangs there so not sure sensitivity of motion would work not being fixed.
    But open to all suggestions.
    Maybe I should put it in the garage and see if I can nick it:)

    J

  11. Dieselweasel0

    Dieselweasel0 Member

    Joined:
    Nov 21, 2013
    Posts:
    49
    Likes Received:
    1
    Location:
    Portsmouth
    After topping up a dodgy clutch pedal with good old dot 4 for about a month, finally the slave gave up & spilled it's guts on the drive!!
    Sourced a borg & beck slave, changed, bled and wow, that's what the pedal really feels like
    Got a master too, so just waiting for that to pop!

    Dippypud likes this.
  12. Hicap phill

    Hicap phill Well-Known Member

    Joined:
    Dec 30, 2017
    Posts:
    2,888
    Likes Received:
    1,968
    Location:
    Wiltshire
    Mine nothing...
    But if CX11 110(Wiltshire area) is here you need to do the following
    Front O/S side light
    Rear O/S brake light
    High level brake light.
    Don't people walk round their motors to see what's not working

    neilly and Turktowner like this.
  13. derwendolly

    derwendolly Well-Known Member

    Joined:
    Jun 4, 2008
    Posts:
    2,016
    Likes Received:
    995
    Location:
    South West Wales
    I find it extremely difficult to check my brake lights as my legs are not long enough to depress the brake pedal whilst I get out to have a look..:rolleyes:

    Hicap phill likes this.
  14. neilly

    neilly Well-Known Member

    Joined:
    Jan 10, 2011
    Posts:
    15,464
    Likes Received:
    6,498
    Location:
    Oxfordshireness
    You need to press the pedal and run faster.....

    Cheers

    derwendolly and Hicap phill like this.
  15. Hicap phill

    Hicap phill Well-Known Member

    Joined:
    Dec 30, 2017
    Posts:
    2,888
    Likes Received:
    1,968
    Location:
    Wiltshire
    I have a mirror in the garden I can see all rear lights ;)

    Front ones light up the garage door as it opens.

    Or get a special brake test stick

  16. neilly

    neilly Well-Known Member

    Joined:
    Jan 10, 2011
    Posts:
    15,464
    Likes Received:
    6,498
    Location:
    Oxfordshireness
    I pop into my local retail park, they all have nice glass fronts, I check the front lights, spin it around and check the rears....I suppose the people in the shops think I am mad,....but then again....

    Cheers

    Turboman, brianconwy and Hicap phill like this.
  17. derwendolly

    derwendolly Well-Known Member

    Joined:
    Jun 4, 2008
    Posts:
    2,016
    Likes Received:
    995
    Location:
    South West Wales
    Yes, that's my answer but the difficulty is the nearest retail park is a 65 mile trip away so it doesn't get done weekly. Asking my husband to go to the rear to report on the lights is like asking him to perform a major engineering feat! :rolleyes:

  18. derwendolly

    derwendolly Well-Known Member

    Joined:
    Jun 4, 2008
    Posts:
    2,016
    Likes Received:
    995
    Location:
    South West Wales
    What At my age! I'm lucky if I can get in and out without doing myself an injury. :rolleyes:

    Hicap phill likes this.
  19. My Old Landy

    My Old Landy Well-Known Member

    Joined:
    Aug 24, 2018
    Posts:
    176
    Likes Received:
    116
    Location:
    Buckinghamshire
    I have spent the day tinkering with the 90 :)

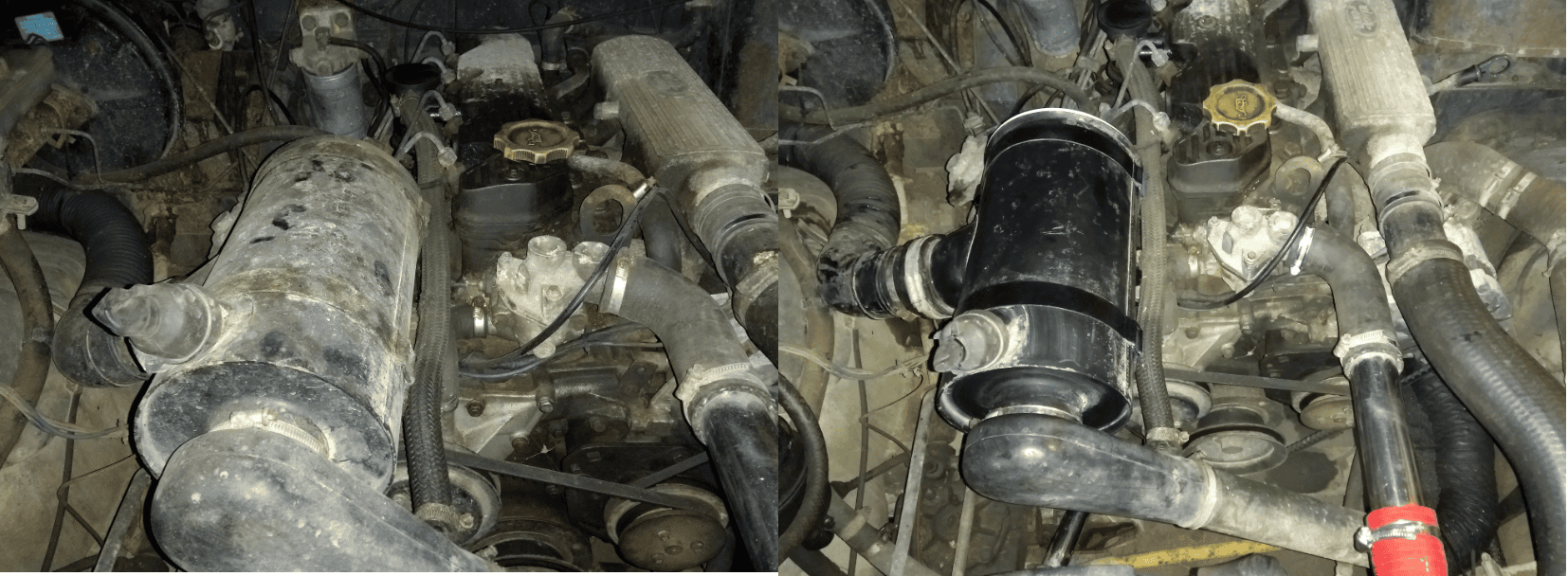

    Sorted a few loose nuts :rolleyes: and I am quite pleased with the air box repair :)

    neilly likes this.
  20. neilly

    neilly Well-Known Member

    Joined:
    Jan 10, 2011
    Posts:
    15,464
    Likes Received:
    6,498
    Location:
    Oxfordshireness
    Looking good,

    If that air box goes to a snorkel, then make sure the docks beak is sealed as well, then test it to make sure it works and all the system is sealed.

    Cheers

    My Old Landy likes this.
