What have you done to your Freelander today

Discussion in 'Land Rover Freelander' started by Freelaner, Sep 21, 2012.

< Previous Thread | Next Thread >
  1. Nodge68

    Nodge68 Well-Known Member

    Joined:
    Nov 15, 2011
    Posts:
    26,914
    Likes Received:
    7,424
    Location:
    Near Newquay
    I expect the cover is distorted slightly. I'm not going to worry about it, as it'll cause no harm.
    The crankshaft on the DW12 is a super strong steel job, so not prone to the type of failure that the M47R suffers.

  2. Dee Tees

    Dee Tees New Member

    Joined:
    Mar 7, 2021
    Posts:
    9
    Likes Received:
    9
    Location:
    Iceland
    Last night I proceded to open the tailgate, I pulled on the handle and either the window had not completed its descent or I didn't wait long enough for it to do so before opening the door, the window did manouve a release (with a slap) out from under the hard plastic thing and the door opened. Naturally I couldn't close the door fully. So today I learned about a new thing, that the rear window can be operated fully as a power window, that there is a button in the center console that operates the power window and all is well. Dead handy I suppose if you're being chased by people with evil intent, you or partner can return fire elegantly without having to smash the rear window into smithereens.

  3. rob_bell

    rob_bell Well-Known Member

    Joined:
    Jul 18, 2016
    Posts:
    2,780
    Likes Received:
    641
    Location:
    London
    That's super strange. I am not familiar with this engine - is this a direct injection engine with injector ports close to the water jacket and head gasket?

  4. Nodge68

    Nodge68 Well-Known Member

    Joined:
    Nov 15, 2011
    Posts:
    26,914
    Likes Received:
    7,424
    Location:
    Near Newquay

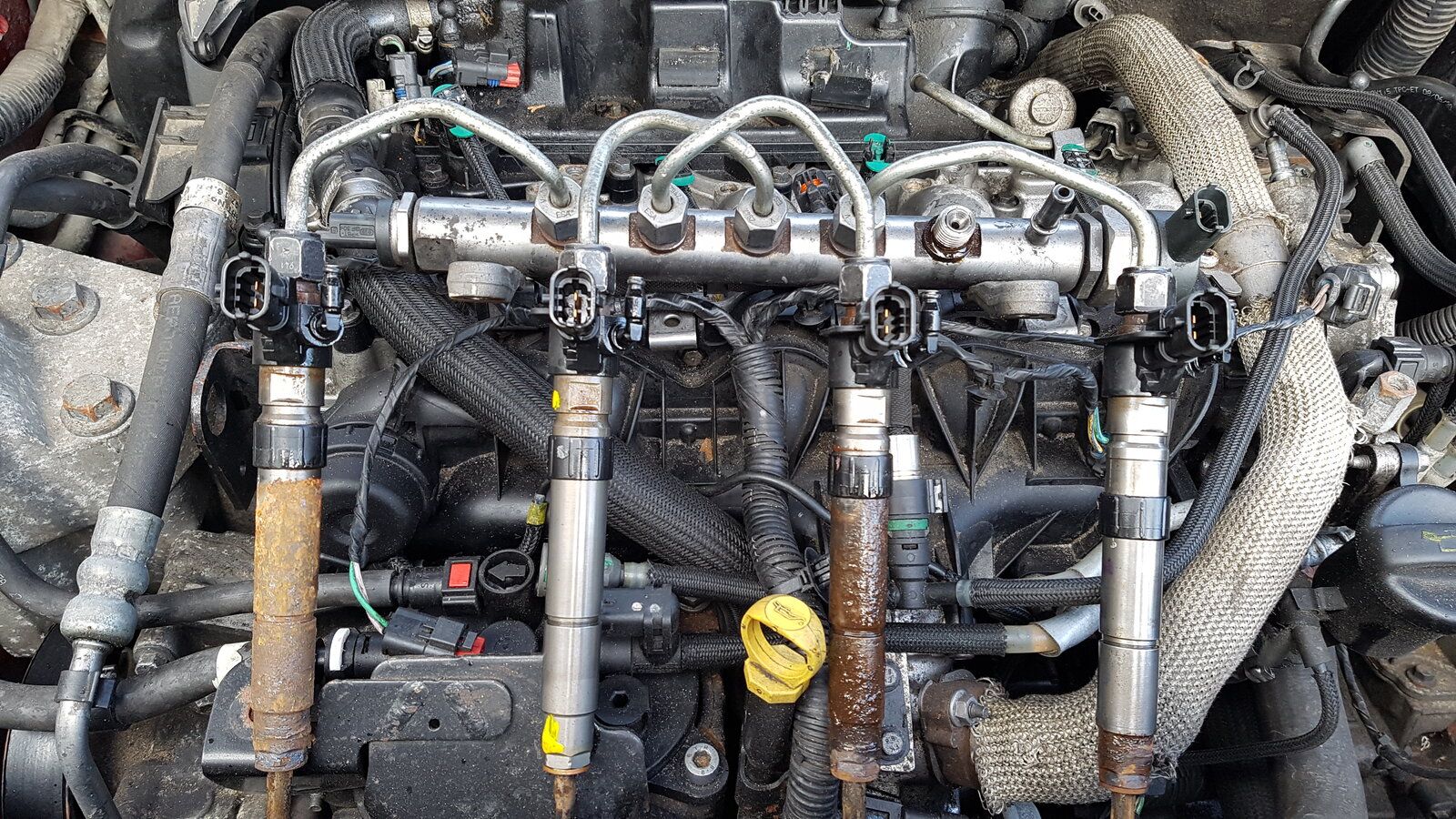

    I'm not sure where the water has come from, but as those 2 injectors were still wet when I removed them, I can only assume they've got wet either from road water (I've gone through loads of puddings recently) , or water has come through the radiator and somehow made its way to the injectors.

    There's no cooling system joints around the injectors, so it can only come from an outside source, and if it was coolant, the corrosion inhibitors would prevent corrosion anyway.

    It's very odd, and I'd love to find the source, just in case I need to remove them again in the future.

    Last edited: Nov 4, 2021
  5. GrumpyGel

    GrumpyGel Well-Known Member

    Joined:
    Oct 31, 2013
    Posts:
    20,705
    Likes Received:
    15,130
    Location:
    Christchurch, New Zealand
    Dunno how long rust takes to establish when water comes into contact with metal - but you'd have thought those would get hot when the engine was running and moisture around the injectors would evaporate.

    Is the area where they enter the head recessed where water could pool?

  6. Nodge68

    Nodge68 Well-Known Member

    Joined:
    Nov 15, 2011
    Posts:
    26,914
    Likes Received:
    7,424
    Location:
    Near Newquay
    Light surface rust forms in minutes. However this is heavy enough to stick them in, so it's not new.
    The head will get hot (normal running temperature is 82°C), but the injectors run pretty cold, as they have minimal contact with the hot engine, as only the bottom seal and top clamp touch the head, and the injectors are cooled by the fuel that continually flows through them, so if water did get in, it could potentially hang about for a long time before it evaporates. As it happens, the vehicle only does short journeys, so it probably never gets hot enough to dry out properly.
    Yes, they're recessed into the head.
    I just need to stop the water getting in the injector recesses.

    rob_bell and GrumpyGel like this.
  7. Nodge68

    Nodge68 Well-Known Member

    Joined:
    Nov 15, 2011
    Posts:
    26,914
    Likes Received:
    7,424
    Location:
    Near Newquay

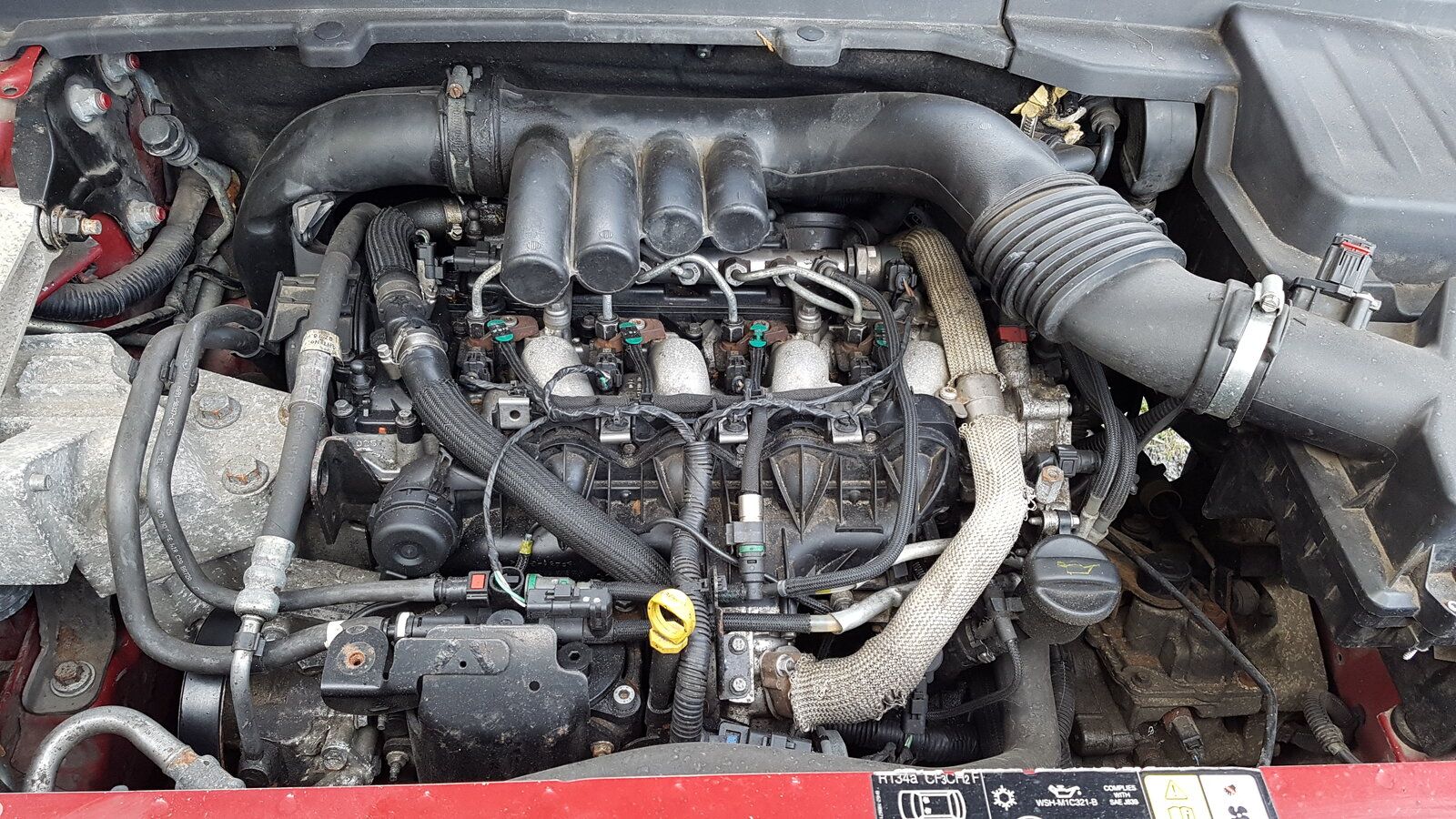

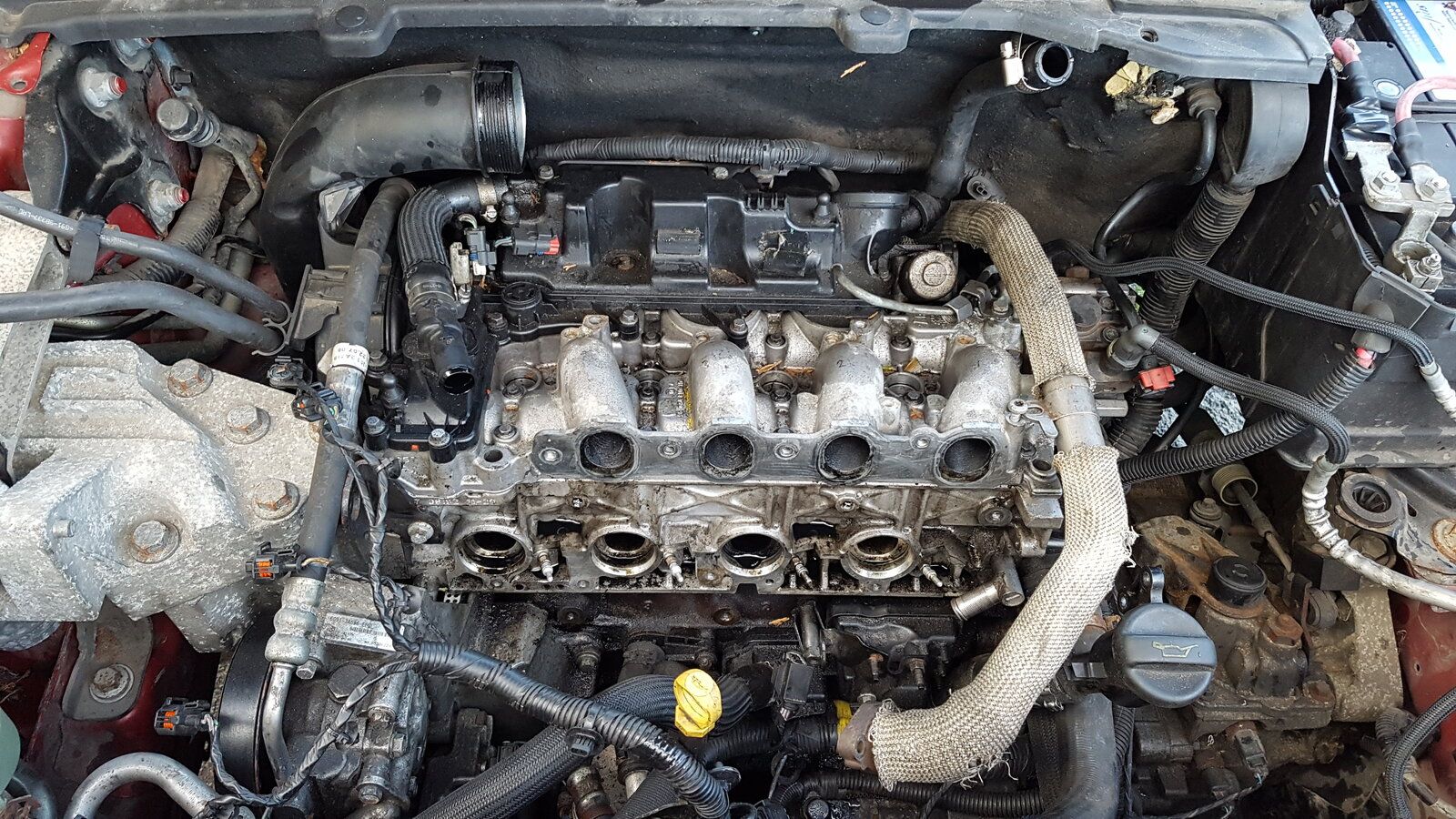

    Here's some more pictures of the engine strip down.
    The design is rather silly, as the whole top end needs to be stripped down, so the head bolts can be accessed.

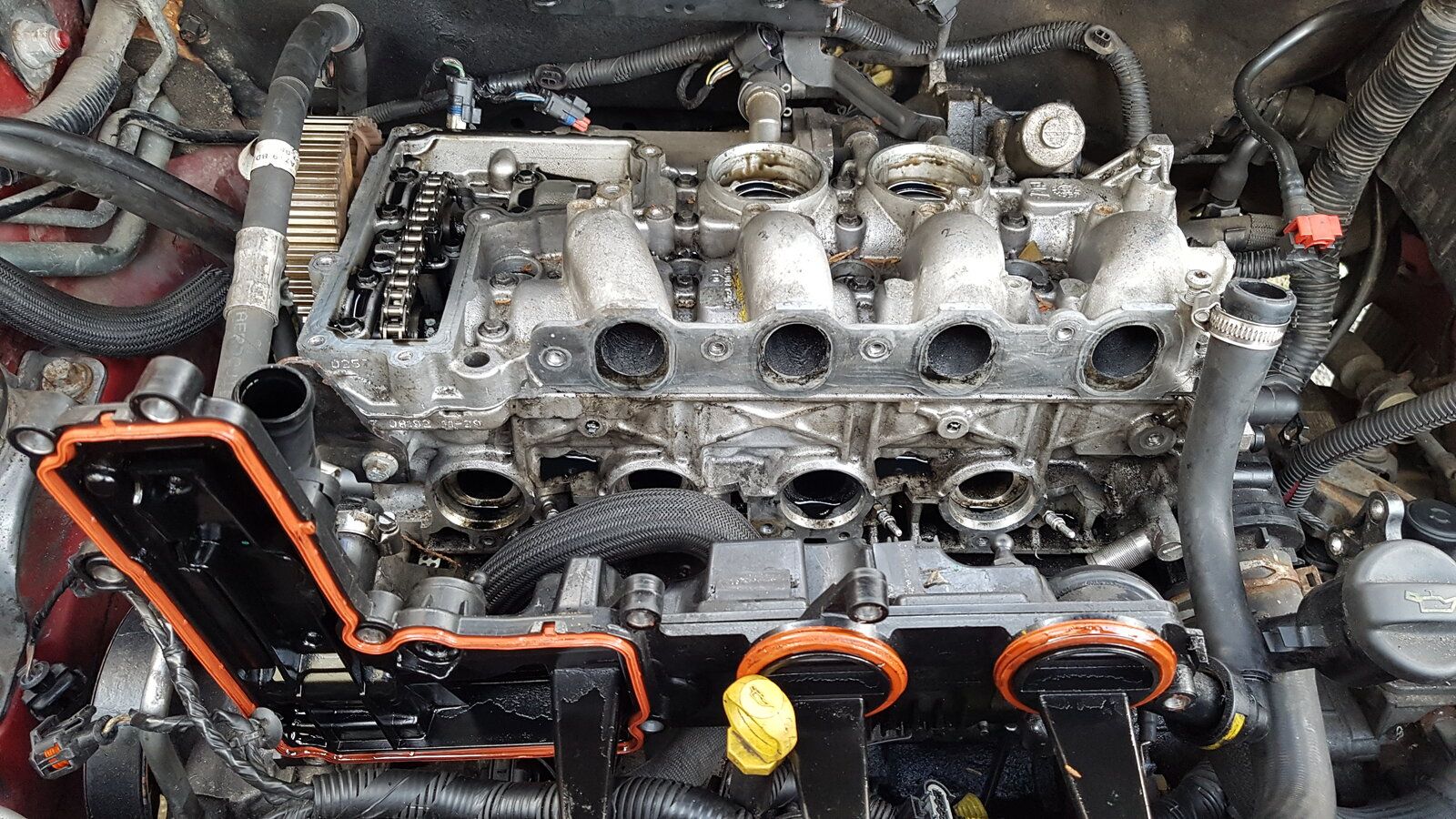

    Plastic top cover removed.

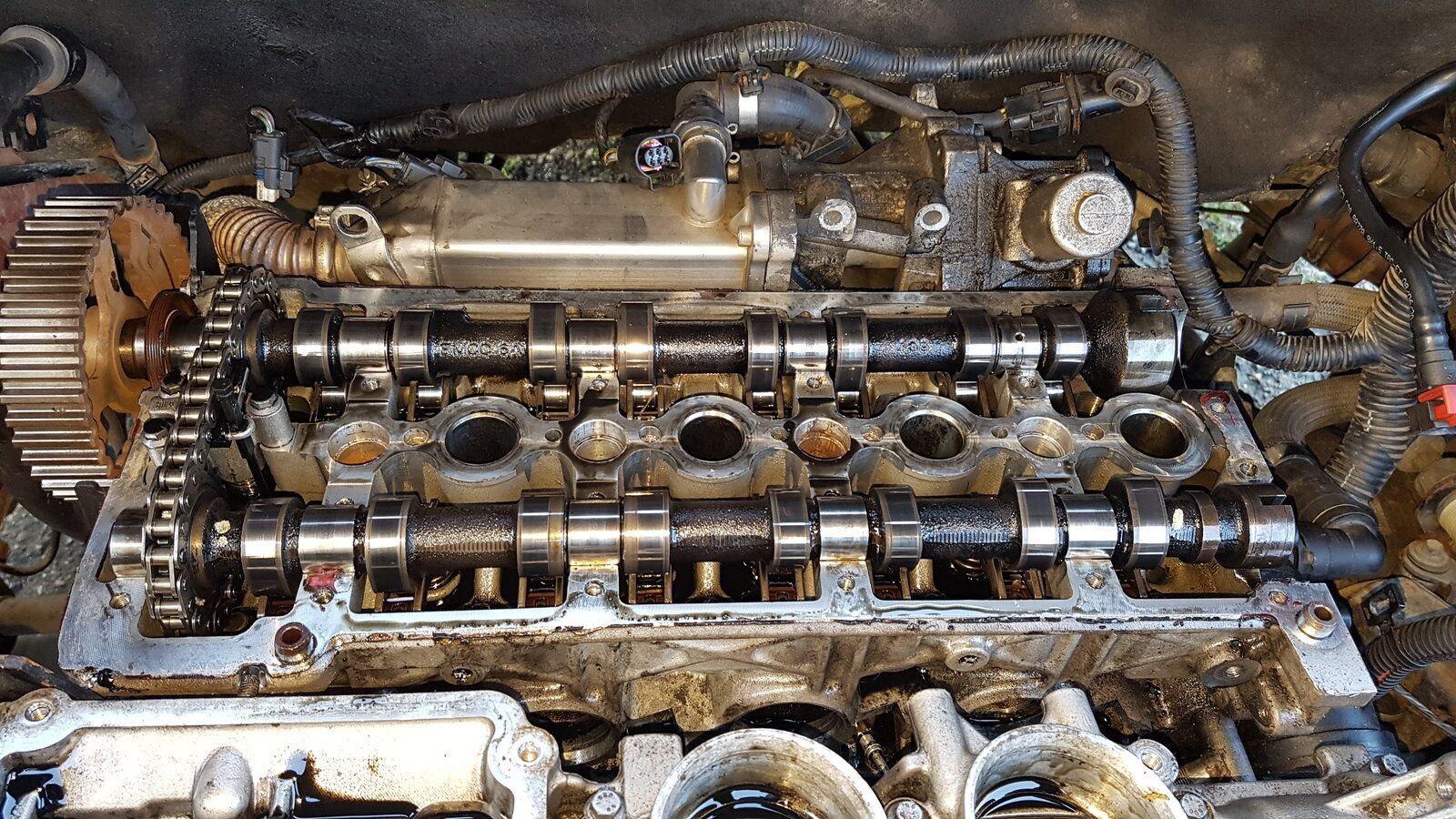

    Cam bearing ladder/housing removed.

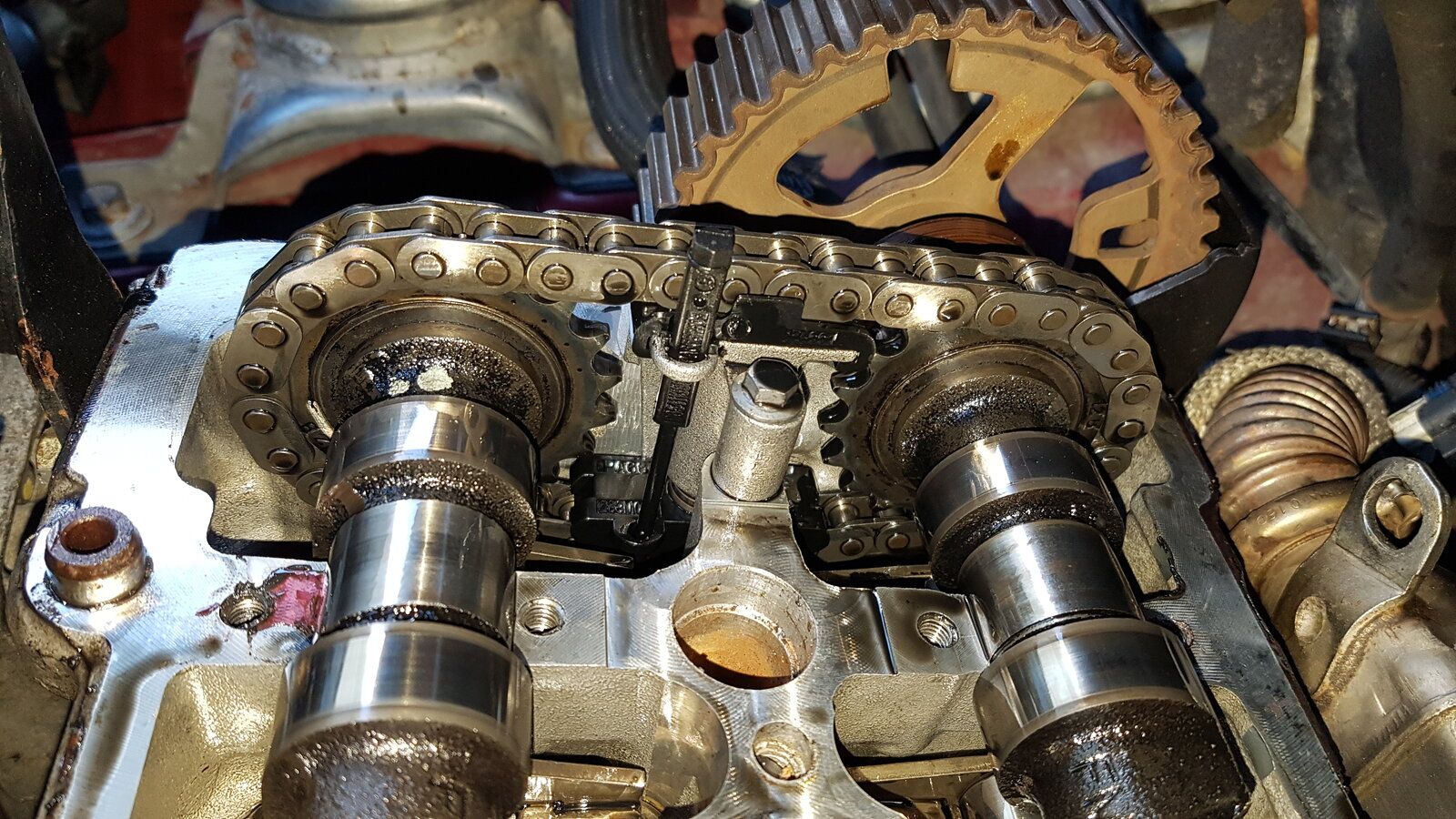

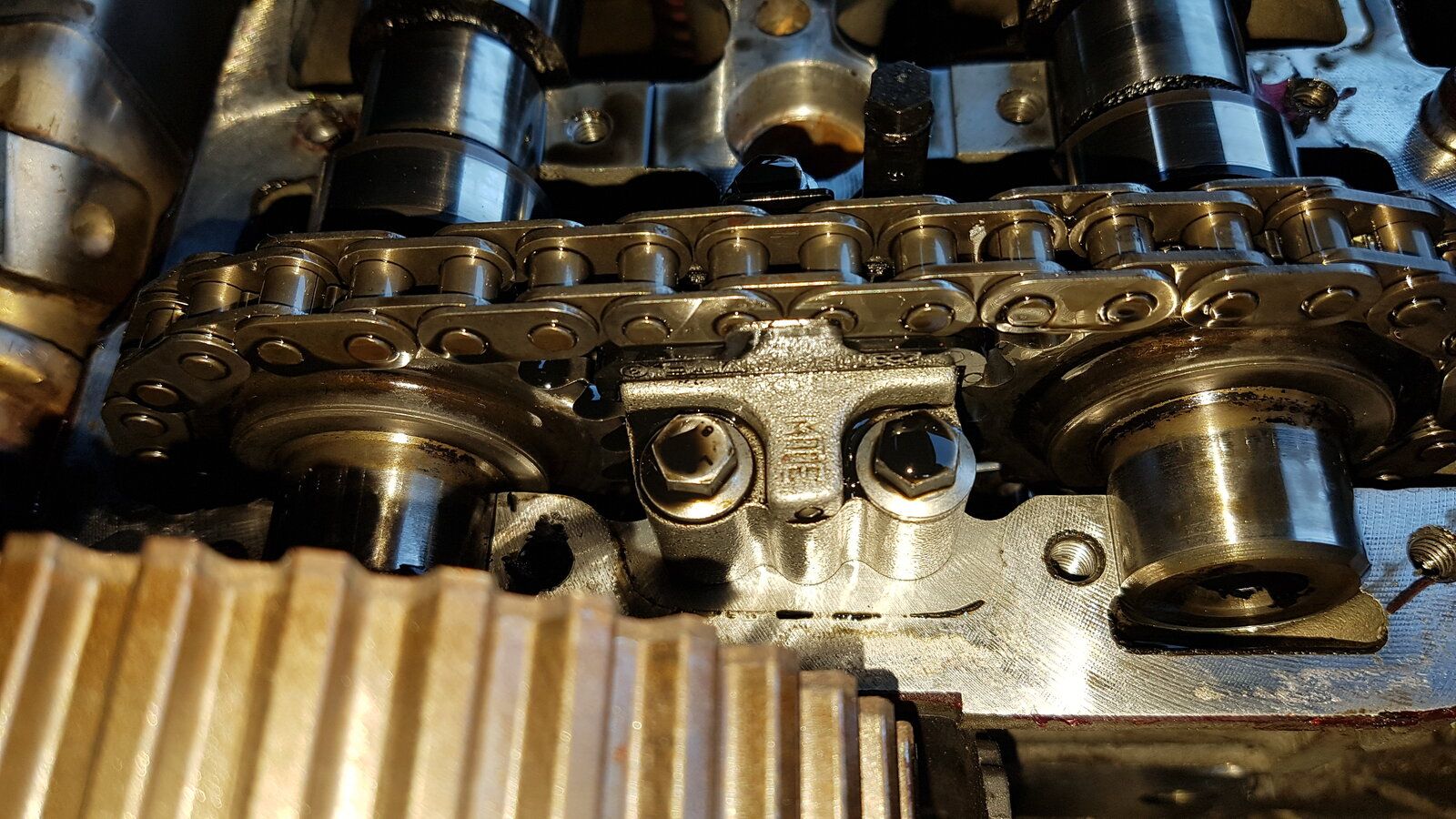

    I took pictures of the link timing chain, to try to identify the different colour links, needed for timing the cams, but I couldn't see them.:confused:
    I seem to remember the different colour links were almost impossible to see, when I put it together last time.
    It's mute on this head anyway, as the replacement head is complete with everything I need, so tomorrow I'm just going to get this head off and clean everything up, ready for reassembly of the new head.

    There's also a lot of wet oil around this engine too, but again I've no ideas as to where it's coming from, but I'd like to fix that issue too.

  8. andyfreelandy

    andyfreelandy Well-Known Member

    Joined:
    Jul 29, 2010
    Posts:
    3,596
    Likes Received:
    1,327
    Location:
    Devon
    How do you get timing chain off?? Is there a link to remove?

    Last edited: Nov 4, 2021
  9. Nodge68

    Nodge68 Well-Known Member

    Joined:
    Nov 15, 2011
    Posts:
    26,914
    Likes Received:
    7,424
    Location:
    Near Newquay

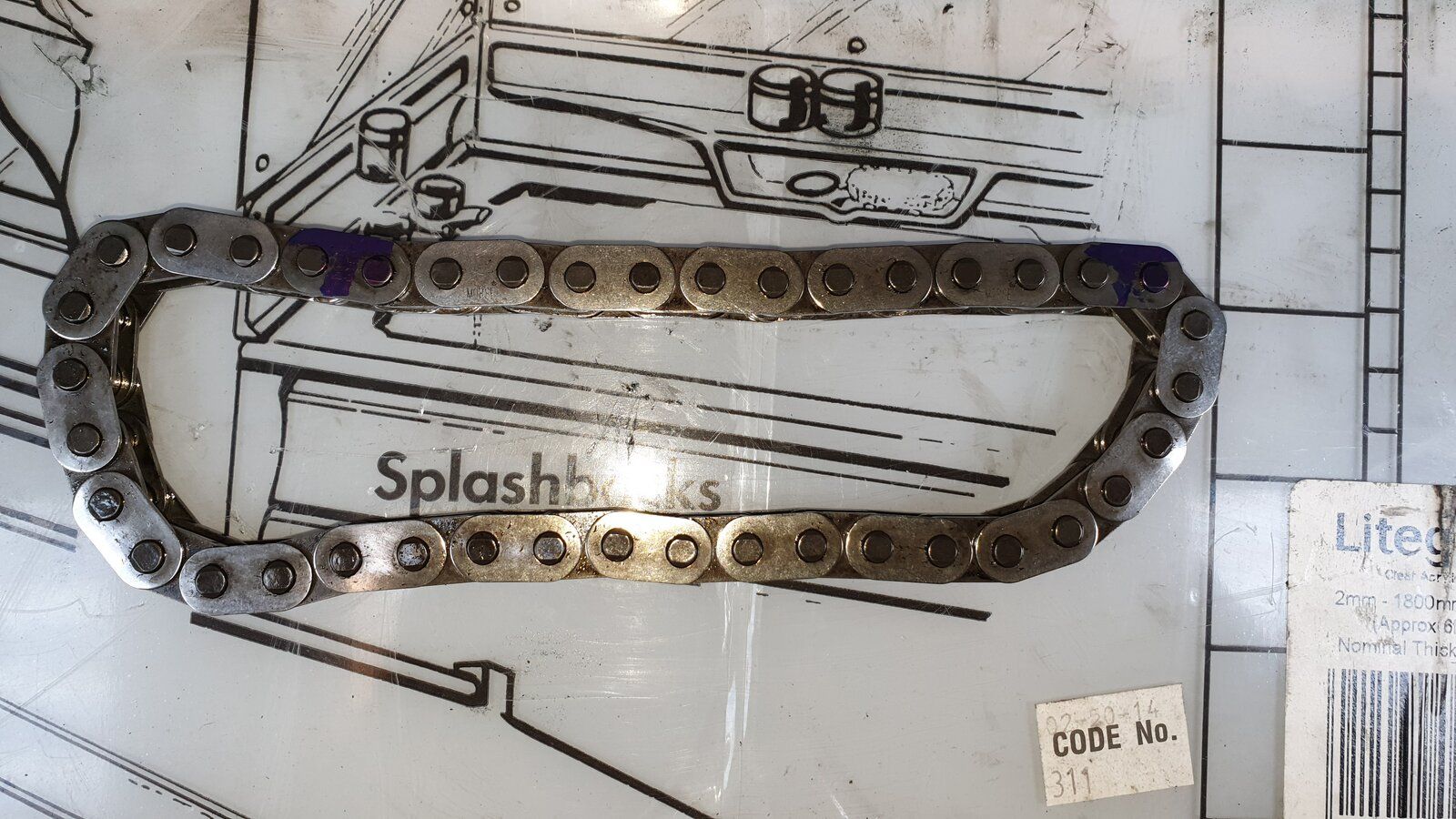

    No it's a jointless chain, so it's slipped over both cams and then timed against the marks.

    I marked the chain with a Sharpie last time, but it's obviously not oil resistant.
    The Sharpie marks were then lined up with the dots on the cam sprockets, and the whole assembly is put in the head.

  10. NeilTD4

    NeilTD4 Active Member

    Joined:
    Mar 31, 2012
    Posts:
    372
    Likes Received:
    36
    Location:
    Warwickshire
    Part exchanged my 09 plate TD4 for an 11 plate SD4.
    Both HSE spec.

  11. Jayridium

    Jayridium Well-Known Member

    Joined:
    Aug 23, 2013
    Posts:
    1,078
    Likes Received:
    408
    Location:
    Pedronapper (Peterhead)
  12. Nodge68

    Nodge68 Well-Known Member

    Joined:
    Nov 15, 2011
    Posts:
    26,914
    Likes Received:
    7,424
    Location:
    Near Newquay
    Got Buddy (my FL2) running!!
    No starting on 3 cylinders, no tapping tappets, it just runs smoothly. Happy now.:D

    Alibro, 4Bee4Bee, rob_bell and 2 others like this.
  13. NeilTD4

    NeilTD4 Active Member

    Joined:
    Mar 31, 2012
    Posts:
    372
    Likes Received:
    36
    Location:
    Warwickshire
    Good work Nodge.

    Nodge68 likes this.
  14. Jayridium

    Jayridium Well-Known Member

    Joined:
    Aug 23, 2013
    Posts:
    1,078
    Likes Received:
    408
    Location:
    Pedronapper (Peterhead)
    Congrats... Now you can crunch the numbers and see if it was worth the punt buying a cheap but borked FL2 vs a running one. I'd suggest you discount the brakes and maybe even the diff from the costs as the brakes and diff are separate from the engine repair that discounted the purchase price.

  15. Nodge68

    Nodge68 Well-Known Member

    Joined:
    Nov 15, 2011
    Posts:
    26,914
    Likes Received:
    7,424
    Location:
    Near Newquay

    I'd already done that.
    It's cost me £3112 all in, which includes a replacement head, new brakes all round, a replacement rear diff, which I then rebuilt, a Haldex service, all new fluids in the gearbox, PTU and obviously rear diff, oh and 1 identical replacement tyre.

    So yes it was worth the money.
    I couldn't buy an equivalent vehicle for what it's cost me, so I'm happy.

    Apart from the moron working on it before I got it, it's quite clearly been looked after previously, so it seems a good vehicle, on the hole.

    rob_bell, Andy Warren and Jayridium like this.
  16. Jayridium

    Jayridium Well-Known Member

    Joined:
    Aug 23, 2013
    Posts:
    1,078
    Likes Received:
    408
    Location:
    Pedronapper (Peterhead)
    That's a great success then, happy for you bud :)

  17. Andy Warren

    Andy Warren Well-Known Member Full Member

    Joined:
    Jun 27, 2017
    Posts:
    1,114
    Likes Received:
    513
    Location:
    Hertfordshire
    Hi, is there a noticeable difference in performance ?

  18. kernowsvenski

    kernowsvenski Well-Known Member

    Joined:
    Feb 27, 2013
    Posts:
    1,122
    Likes Received:
    517
    Location:
    Truro
    Top news! Well done Nodge.

    Nodge68 likes this.
  19. rob_bell

    rob_bell Well-Known Member

    Joined:
    Jul 18, 2016
    Posts:
    2,780
    Likes Received:
    641
    Location:
    London
    Now that will have come with a HUGE sense of achievement! Fantastic news - well done! :D

    Nodge68 likes this.
  20. Nodge68

    Nodge68 Well-Known Member

    Joined:
    Nov 15, 2011
    Posts:
    26,914
    Likes Received:
    7,424
    Location:
    Near Newquay
    It's a lot of work compared to a K series, that's for sure.
    Cold start seems ok though.

    rob_bell likes this.
