What have you done to your Freelander today

Discussion in 'Land Rover Freelander' started by Freelaner, Sep 21, 2012.

< Previous Thread | Next Thread >
  1. Nodge68

    Nodge68 Well-Known Member

    Joined:
    Nov 15, 2011
    Posts:
    25,551
    Likes Received:
    6,745
    Location:
    Near Newquay
    The rear shafts last twice that distance, and the fronts not much less, unless the extra load of a failing VCU has caused premature CV joint wear.

  2. Nodge68

    Nodge68 Well-Known Member

    Joined:
    Nov 15, 2011
    Posts:
    25,551
    Likes Received:
    6,745
    Location:
    Near Newquay
    Ordered a Mongoose cable and JLR SDD software, which I hope will allow me to program a replacement EDC for my FL2.

  3. Jonny H

    Jonny H Active Member

    Joined:
    Aug 10, 2012
    Posts:
    171
    Likes Received:
    18
    Location:
    Spain
    I've had the car 10 years and when I bought it, the tyres were non matched, least worn on the front. Not sure how long it had been driven like that and I will admit to not knowing much about the FL1 transmission at that stage. Soon realised the error of mine/previous owners ways after spending a lot of time on this forum. Thanks.
    Assume that could be the reason for early wear of the driveshafts?
    IRD rebuilt and ever since, matching tyres, pressures etc.
    It would seem I have the original GKN VCU still fitted, the last OWUP test I did, a month ago, returned a 42 second time. Should I change the VCU at this stage?

  4. Alibro

    Alibro Well-Known Member

    Joined:
    Jan 5, 2015
    Posts:
    5,928
    Likes Received:
    1,743
    Location:
    Northern Ireland
    Not only today but over the last few days I've one this.

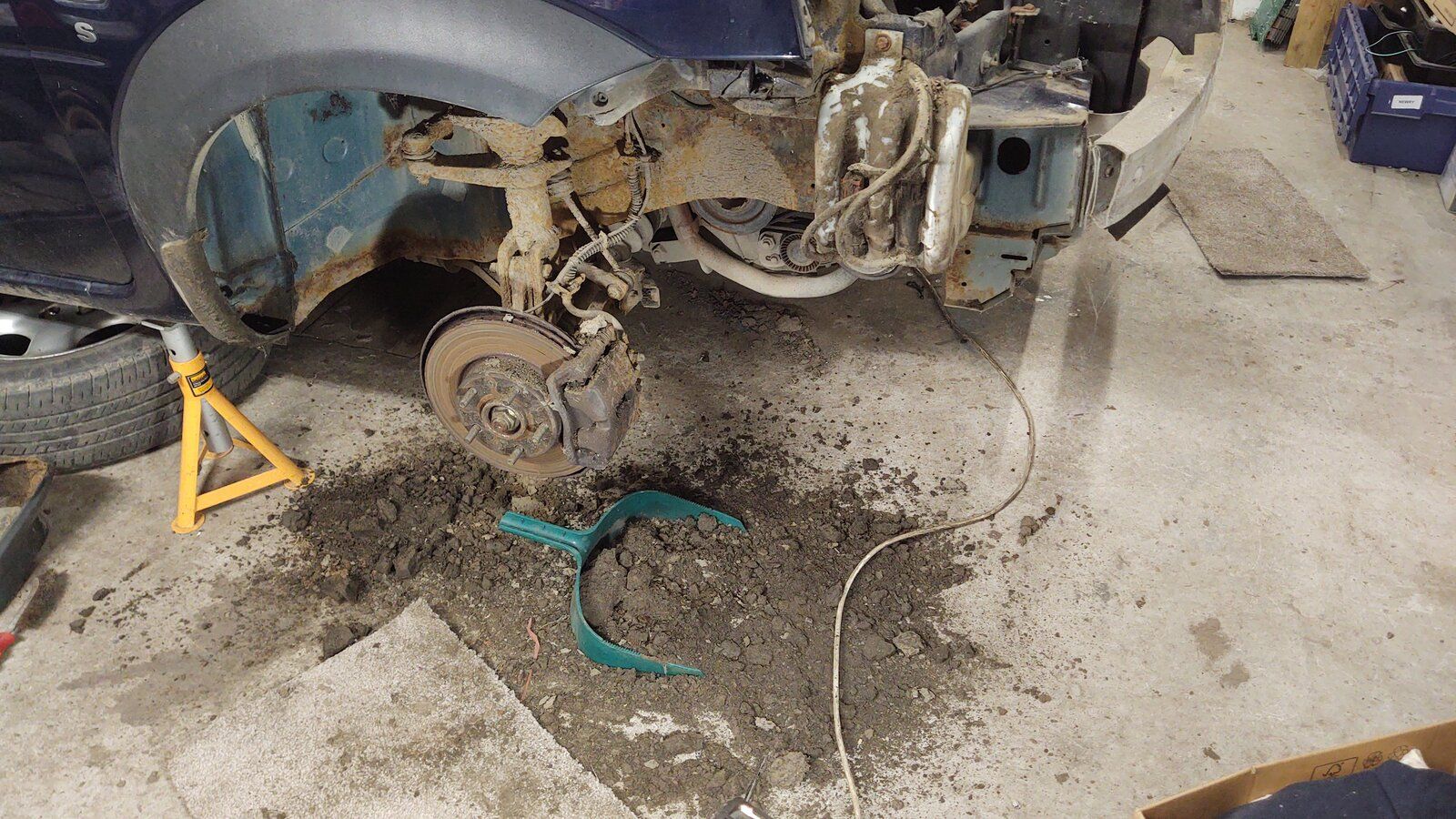

    Found half the soil in Ireland behind the wing liner on the drivers side. Maybe some evidence of past misdemeanours.

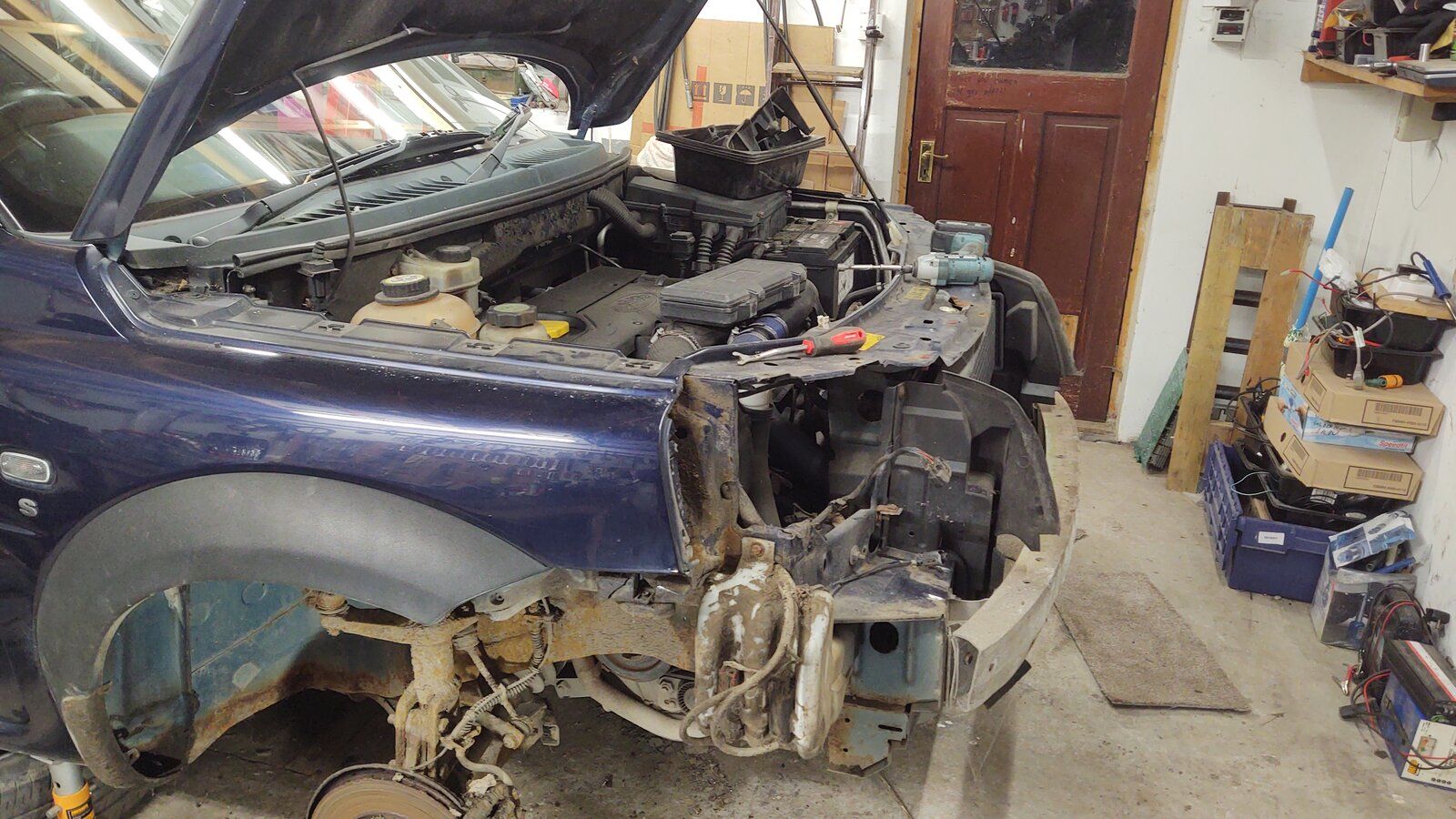

    So carried on stripping in preparation for the engine removal.

    I'm hoping to get the engine out this weekend so that I can measure the gearbox for the coupler and adapter plate.

    Last edited: Oct 16, 2020
    kernowsvenski likes this.
  5. kernowsvenski

    kernowsvenski Well-Known Member

    Joined:
    Feb 27, 2013
    Posts:
    998
    Likes Received:
    436
    Location:
    Truro
  6. Alibro

    Alibro Well-Known Member

    Joined:
    Jan 5, 2015
    Posts:
    5,928
    Likes Received:
    1,743
    Location:
    Northern Ireland

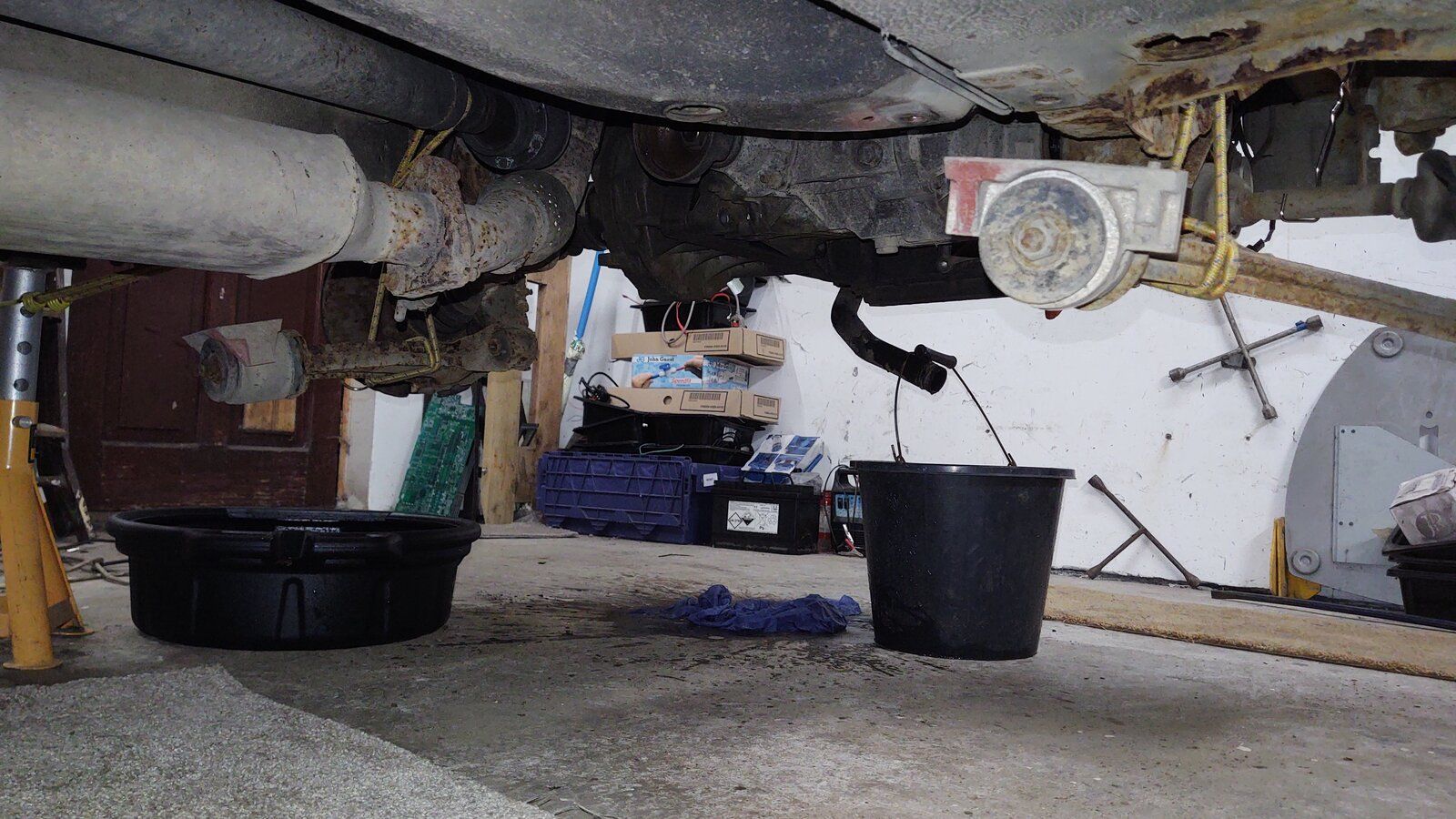

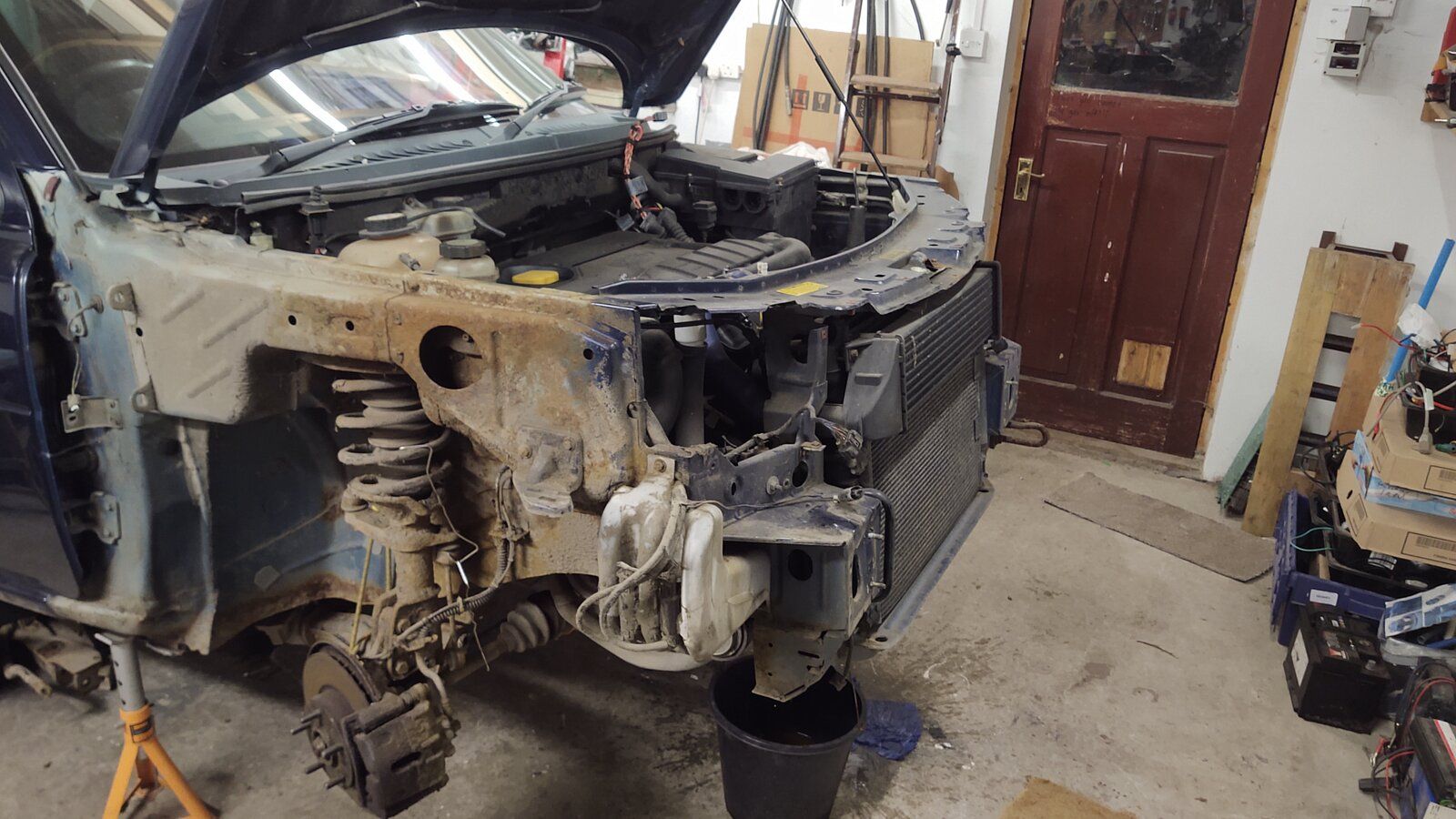

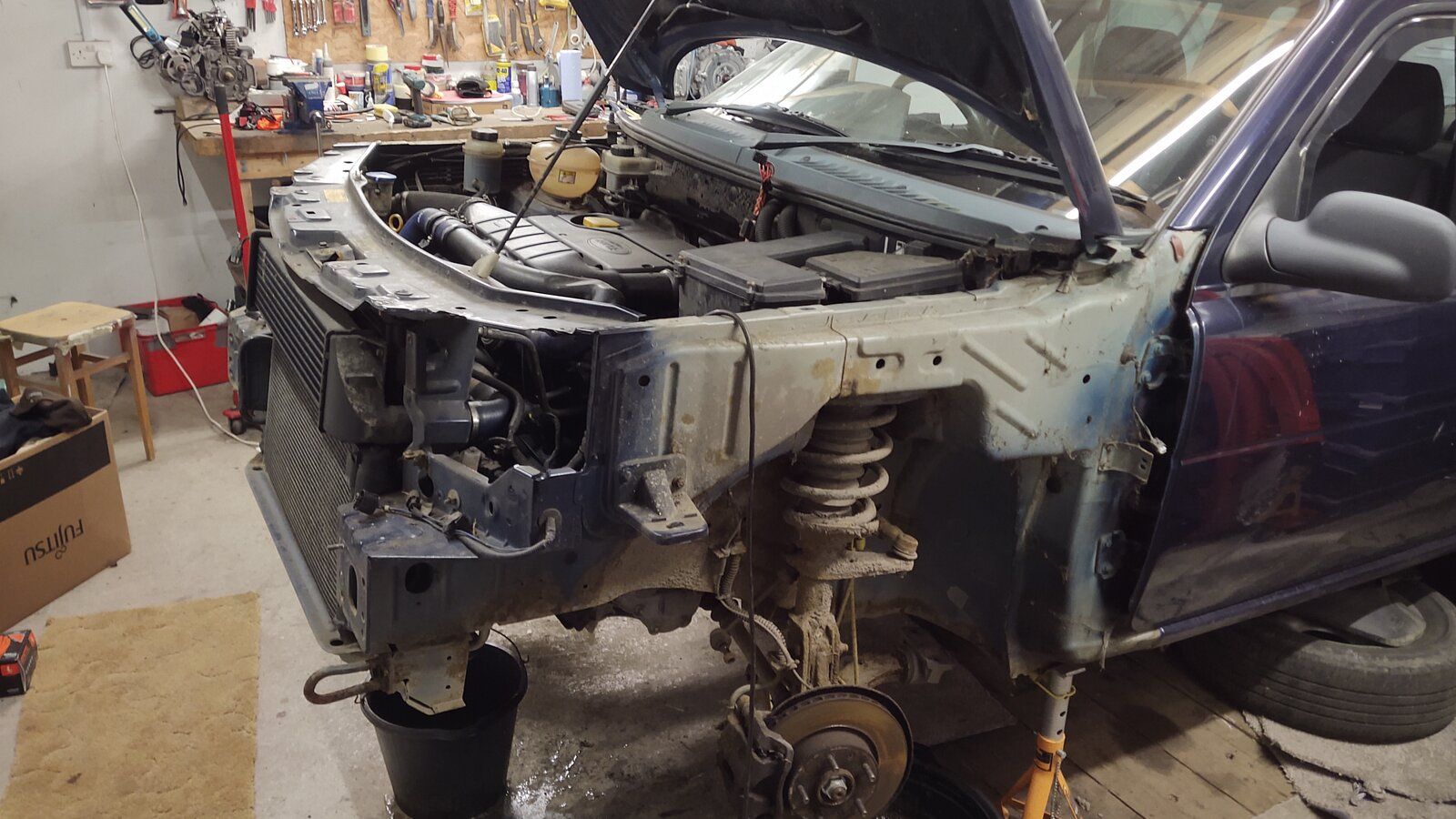

    Subframe is dropped already as can be seen in 2nd last photo so the current plan is to disconnect everything in the way then lower the car as far as possible but still let the engine hoist under. Hopefully with the bonnet removed there will be enough room to lift the engine, gearbox and IRD out.

  7. ChknMnky

    ChknMnky New Member

    Joined:
    Oct 11, 2020
    Posts:
    6
    Likes Received:
    0
    Location:
    Sumter, SC
    ABS modulator/ ecu came today. Going to inventory equipment in the morning and see if I can swap it out myself

  8. Nodge68

    Nodge68 Well-Known Member

    Joined:
    Nov 15, 2011
    Posts:
    25,551
    Likes Received:
    6,745
    Location:
    Near Newquay
    Are you going to drop the engine/gearbox/IRD assembly out the bottom, lifting the body up with your hoist?

  9. potus

    potus Well-Known Member

    Joined:
    Sep 22, 2011
    Posts:
    1,850
    Likes Received:
    1,148
    Location:
    South Devon
    Nice job, how I'd love to have a garage with space like that!

  10. potus

    potus Well-Known Member

    Joined:
    Sep 22, 2011
    Posts:
    1,850
    Likes Received:
    1,148
    Location:
    South Devon
    Charged my F2 battery, shows green on the battery indicator but it's starting to sound sluggish on engine start - meter showed 12.36V off with 14.5 V charging engine running.

  11. Alibro

    Alibro Well-Known Member

    Joined:
    Jan 5, 2015
    Posts:
    5,928
    Likes Received:
    1,743
    Location:
    Northern Ireland
    I hadn't decided yet but was thinking of lifting the engine out with the car as low as possible.

  12. Nodge68

    Nodge68 Well-Known Member

    Joined:
    Nov 15, 2011
    Posts:
    25,551
    Likes Received:
    6,745
    Location:
    Near Newquay
    You might find space is limited, with the box and IRD still attached.
    If you are separating the box and IRD, then there's plenty of room for the engine to come out the top. ;)

  13. Alibro

    Alibro Well-Known Member

    Joined:
    Jan 5, 2015
    Posts:
    5,928
    Likes Received:
    1,743
    Location:
    Northern Ireland
    I had originally planned to remove the IRD first and have most of the bolts out so may go ahead with that to make things easier.

    Nodge68 likes this.
  14. Nodge68

    Nodge68 Well-Known Member

    Joined:
    Nov 15, 2011
    Posts:
    25,551
    Likes Received:
    6,745
    Location:
    Near Newquay
    Not done it yet, but today I'm going to start to pull the auto box apart, in an attempt to solve the gearbox issue. If it works, I'll be able to get more for it when it goes up for sale.

    Alibro likes this.
  15. Hippo

    Hippo Lord Hippo

    Joined:
    Nov 22, 2007
    Posts:
    43,645
    Likes Received:
    35,664
    Where from and which option? All the ones I've looked at so far look dodgy.

  16. Alibro

    Alibro Well-Known Member

    Joined:
    Jan 5, 2015
    Posts:
    5,928
    Likes Received:
    1,743
    Location:
    Northern Ireland
    De-ICEd it. :p


    Nodge68 likes this.
  17. andyfreelandy

    andyfreelandy Well-Known Member

    Joined:
    Jul 29, 2010
    Posts:
    3,211
    Likes Received:
    1,173
    Location:
    Devon
    Looks lovely and warm!!!

    Alibro likes this.
  18. Nodge68

    Nodge68 Well-Known Member

    Joined:
    Nov 15, 2011
    Posts:
    25,551
    Likes Received:
    6,745
    Location:
    Near Newquay
    So you went will pulling the ICE out the bottom then.:)

  19. Nodge68

    Nodge68 Well-Known Member

    Joined:
    Nov 15, 2011
    Posts:
    25,551
    Likes Received:
    6,745
    Location:
    Near Newquay
    Over the last couple of days, in-between DIY and and fixing Fiat 500 brakes, I pulled out all the gearbox solenoids, tested them, cleaned them, replaced the internal harness and refitted the valve body cover. This was sealed with some leftover nasty sealer from the FL2 engine repair. Unfortunately I didn’t have anything else suitable to hand, so I kept away from this poisonous stuff as much as possible.

    Hopefully I'll get the ATF later in the, so I can test the box, in the hope it's been worth my time, and long term health.:oops:

  20. Alibro

    Alibro Well-Known Member

    Joined:
    Jan 5, 2015
    Posts:
    5,928
    Likes Received:
    1,743
    Location:
    Northern Ireland

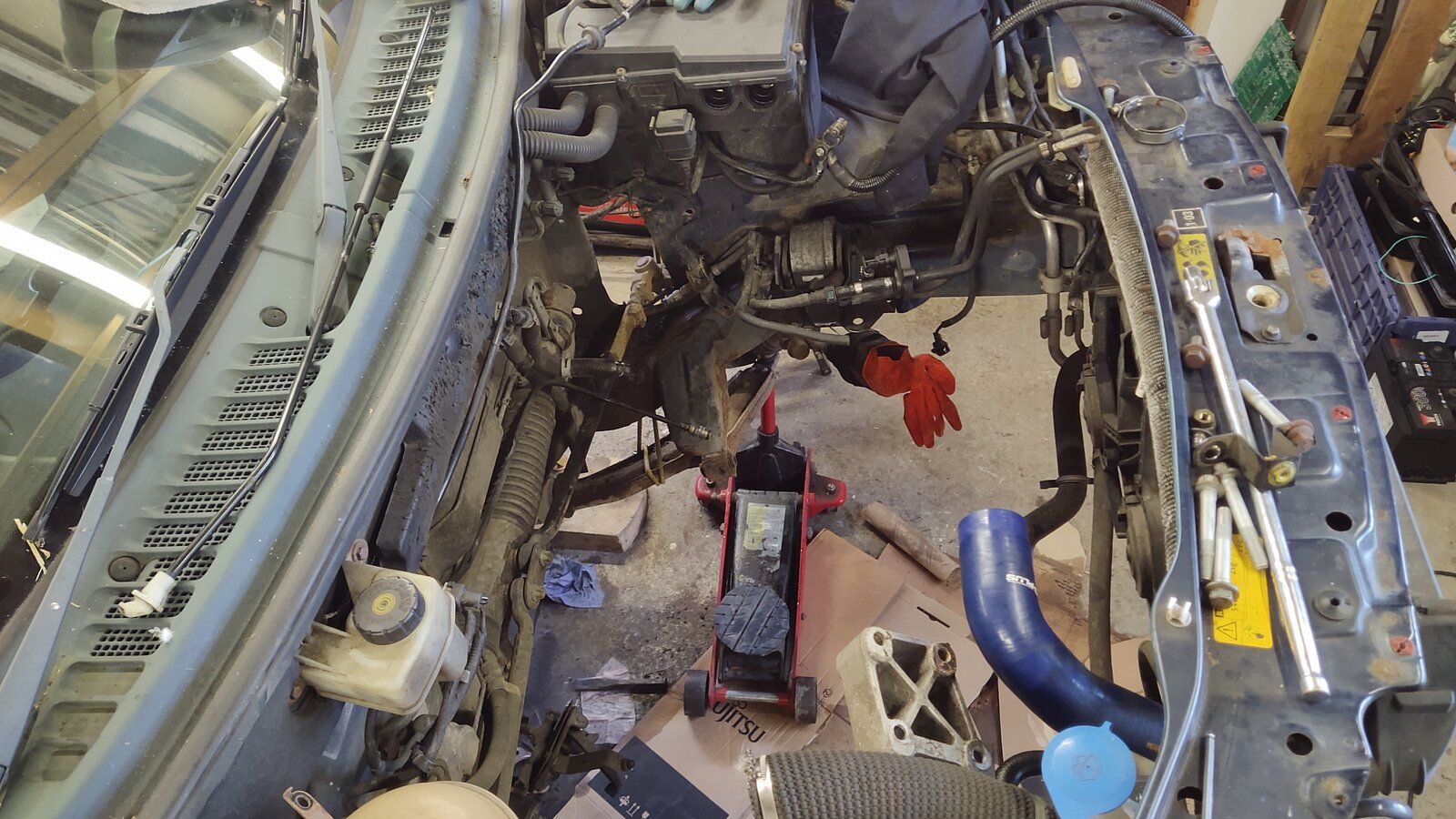

    Yes mate, it went mostly to plan until the engine fell off the trolley jack. :eek:
    Turned out for the better though cause with it on the jack I was going to have to lift the front of the car higher than I was comfortable with. When it fell off the jack I managed to slip a piece of wood under the sump and had plenty of room, it wasn't too hard to slide out on the wood.
    Just spilled its guts on the garage floor while lying at a bad angle. :(

    Last edited: Oct 18, 2020
