What have you done to your Freelander today

Discussion in 'Land Rover Freelander' started by Freelaner, Sep 21, 2012.

< Previous Thread | Next Thread >
  1. Rich in Vancouver

    Rich in Vancouver Well-Known Member

    Joined:
    May 15, 2016
    Posts:
    395
    Likes Received:
    191
    Location:
    Near Vancouver Canada
    UPS came by with a big box today.
    This is almost too nice to install! :)

    [​IMG][​IMG]

    GrumpyGel likes this.
  2. Nodge68

    Nodge68 Well-Known Member

    Joined:
    Nov 15, 2011
    Posts:
    25,503
    Likes Received:
    6,723
    Location:
    Near Newquay
    Nice. But I have to ask why? That's an expensive way to fix a ticking cam follower. Are you removing the engine to change the head? In my experience, trying to change a head with the engine in the vehicle is a nightmare, which runs a very real risk of breaking the seal on the liner.

    Rich in Vancouver likes this.
  3. DCUNNINGHAM

    DCUNNINGHAM Active Member

    Joined:
    Oct 24, 2016
    Posts:
    197
    Likes Received:
    36
    Location:
    West Yorkshire
    Passed the retest :)
    Thanks all for the help and great advice
    On the rear brakes I would honestly be
    (Beep) without this site and it's great members

    GrumpyGel likes this.
  4. Rich in Vancouver

    Rich in Vancouver Well-Known Member

    Joined:
    May 15, 2016
    Posts:
    395
    Likes Received:
    191
    Location:
    Near Vancouver Canada
    The head was (comparatively) very cheap. I have previously tried changing lifters, Which wasn't a fun job. That is what prompted me to just replace the head as there will be no messing around with the cam cradle etc. The head is ready to go so it should just be old head off, new head on. I'm not too worried about the liners. I have done head gaskets on K-series before without an issue so don't really anticipate a problem. I'm changing a few other bits while I am in there, a timing belt idler I really should have changed last time and I am also doing the oil pump and the oil pickup O-ring. I only want to take the engine apart once so am going for it.
    It's running well at this point, just sounds a bit like a diesel so it's time to deal with it before the winter. As well, when I have the head off I should be able to see if there is are any issues with piston/bores. I'm hoping that's not the case.

    GrumpyGel likes this.
  5. Nodge68

    Nodge68 Well-Known Member

    Joined:
    Nov 15, 2011
    Posts:
    25,503
    Likes Received:
    6,723
    Location:
    Near Newquay

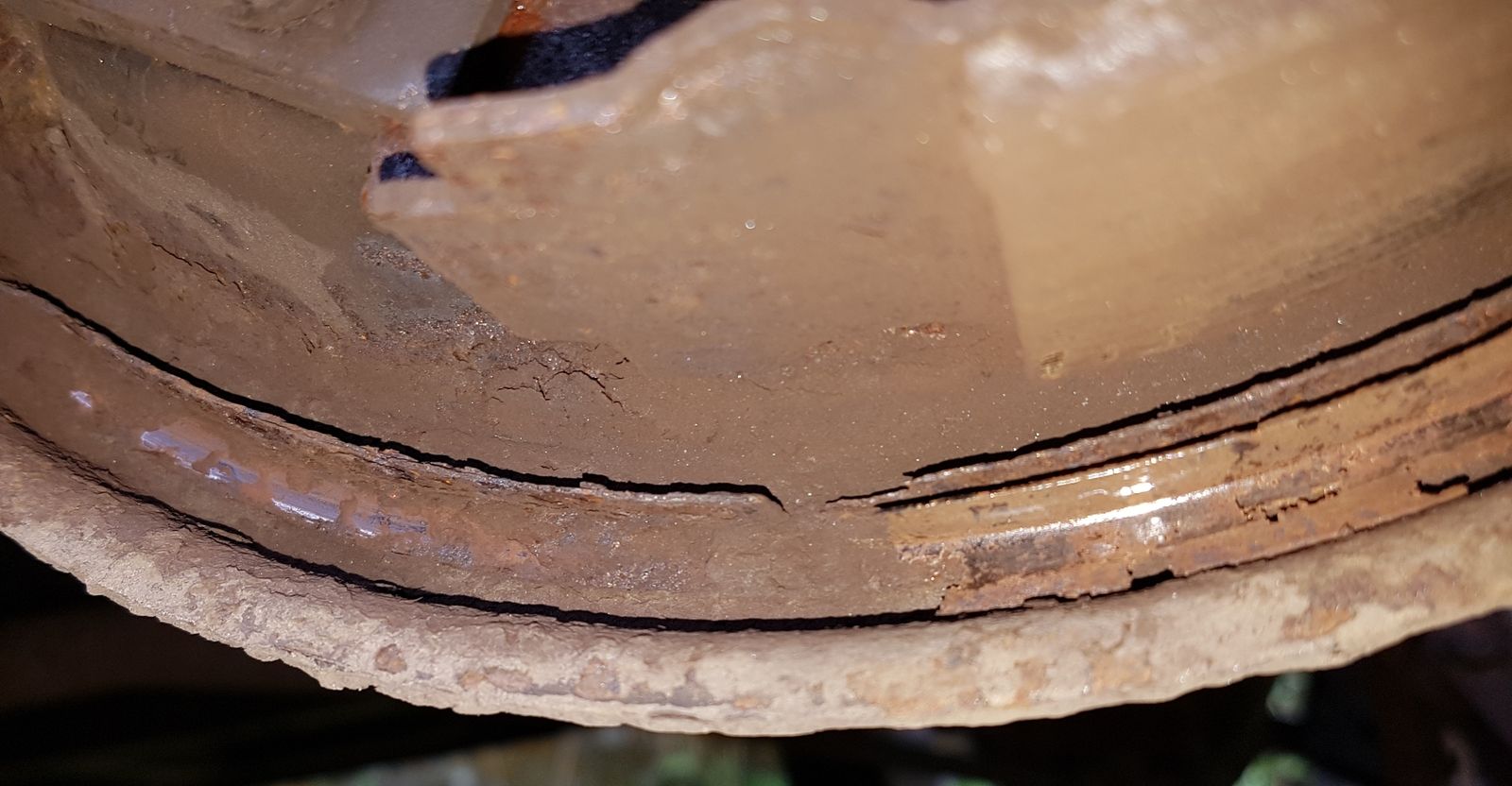

    It was yesterday. But I found what what making the rubbing sound from the NSR wheel. Part of the backplate's stone guard had rusted off and was rubbing on the inside of the drum. 20180916_153622.jpg

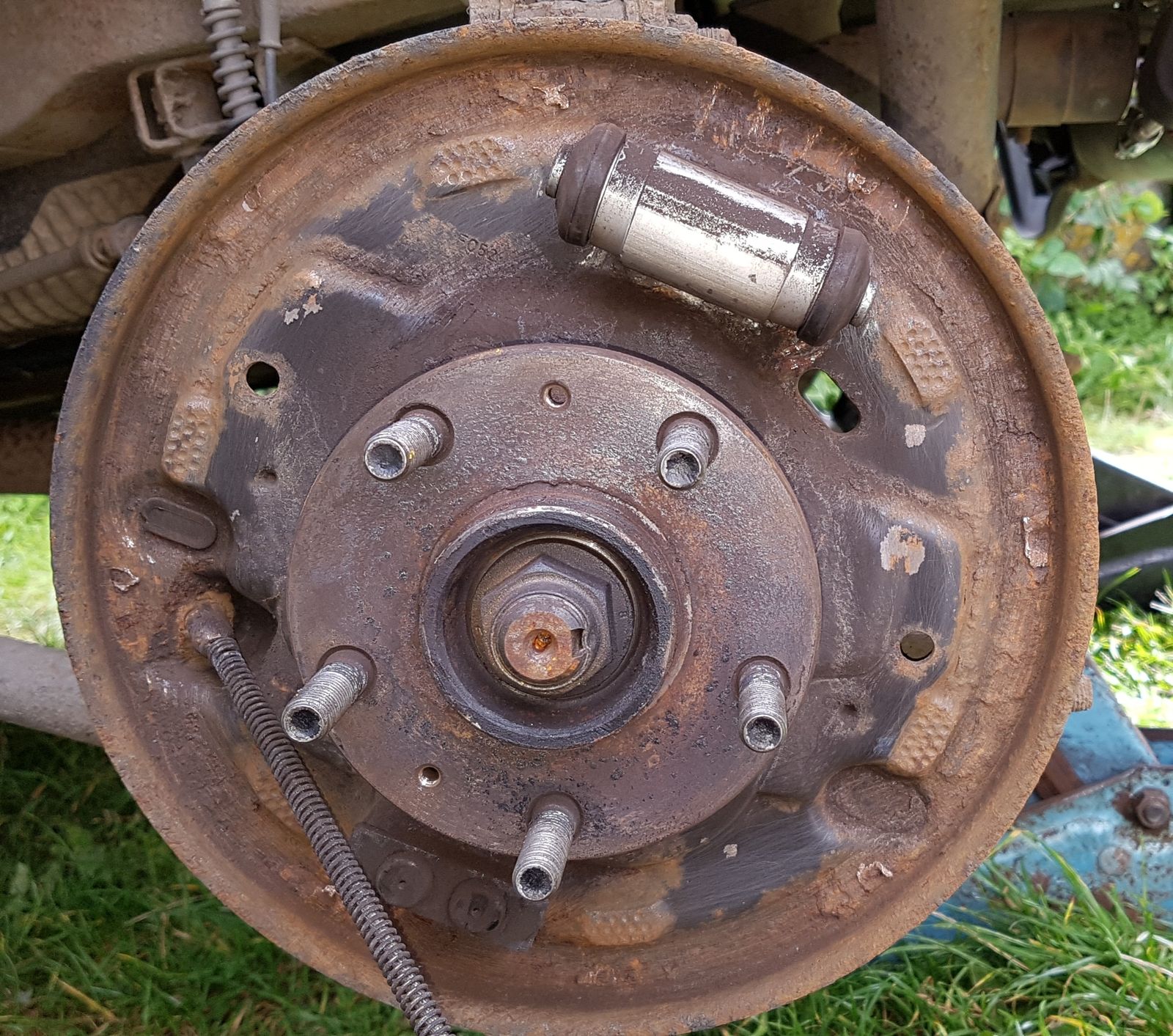

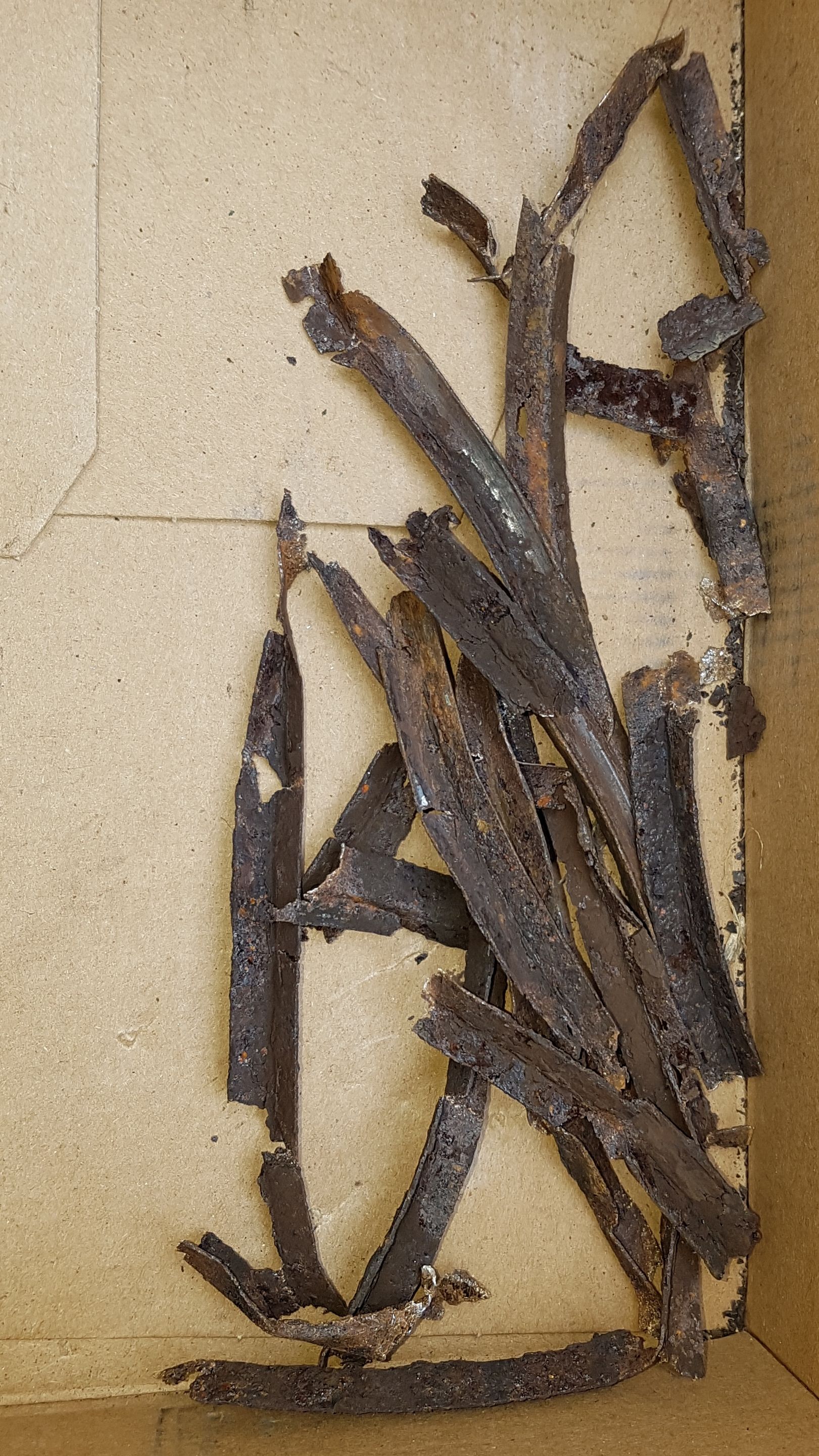

    So I decided to take all the remaining stone shields off, both sides. 20180916_153852.jpg

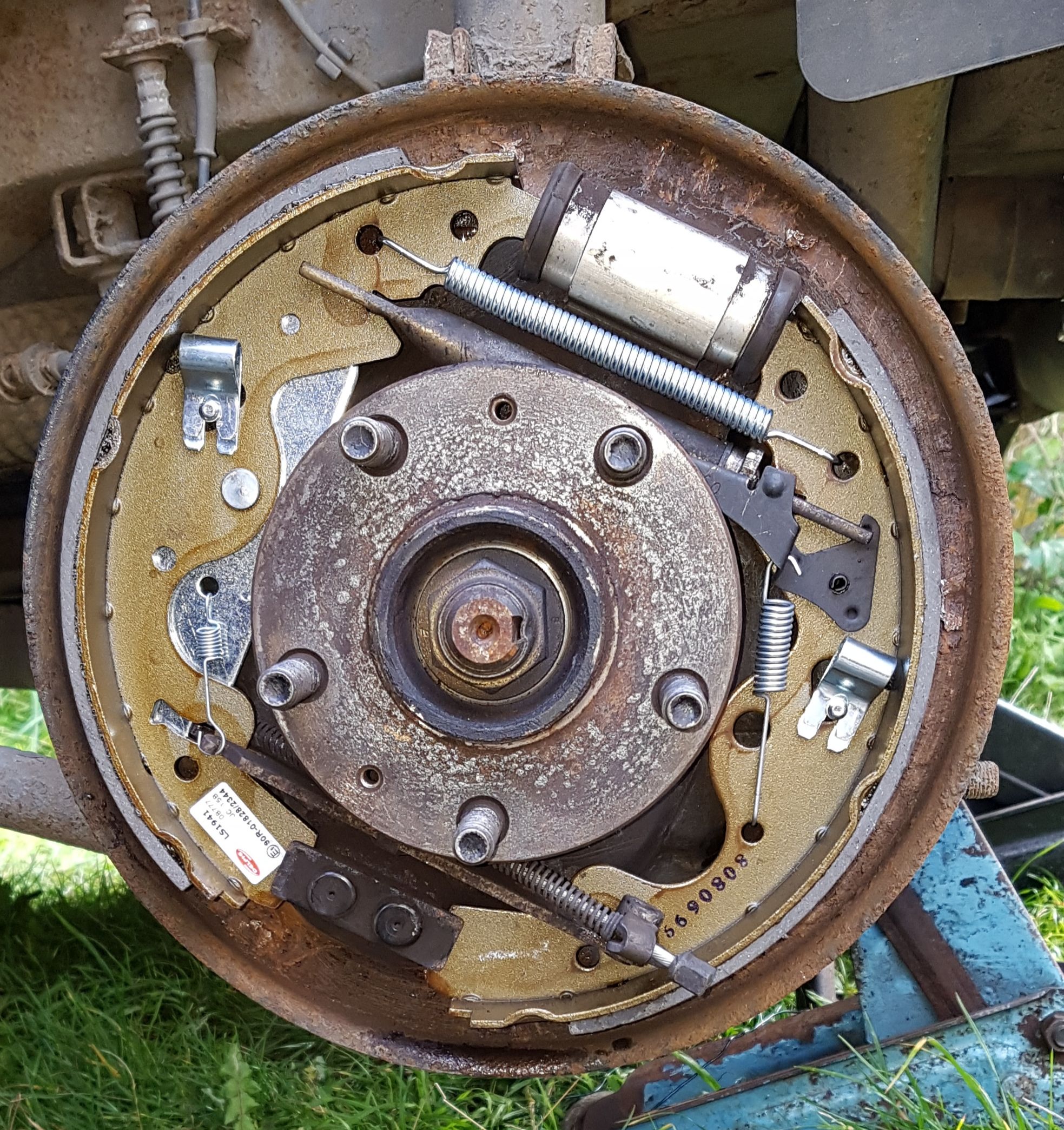

    I also took the opportunity to replace all the brake parts, including shoes, springs and drums. I used mostly Delphi parts, except the drums, which were Britpart. :eek: 20180916_153952.jpg

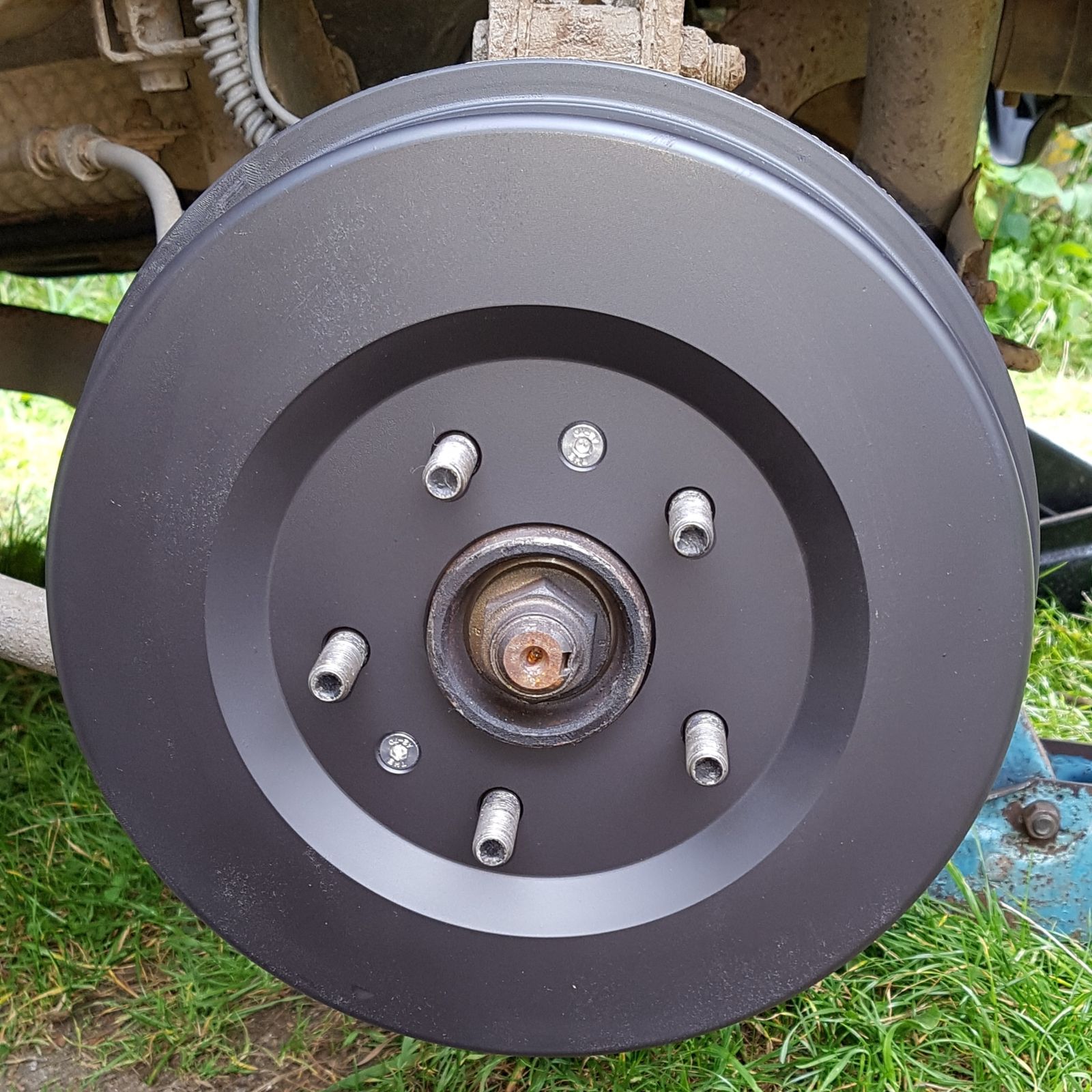

    I painted the drums too, just to make it look like better, especially with the addition of stainless steel retaining screws. 20180916_154746.jpg
    It's good to have a handbrake that actually holds on a hill, and also slows the car down as an emergency brake.:)

    I also repaired an exhaust metal hanger, and replaced both exhaust rear rubbers.

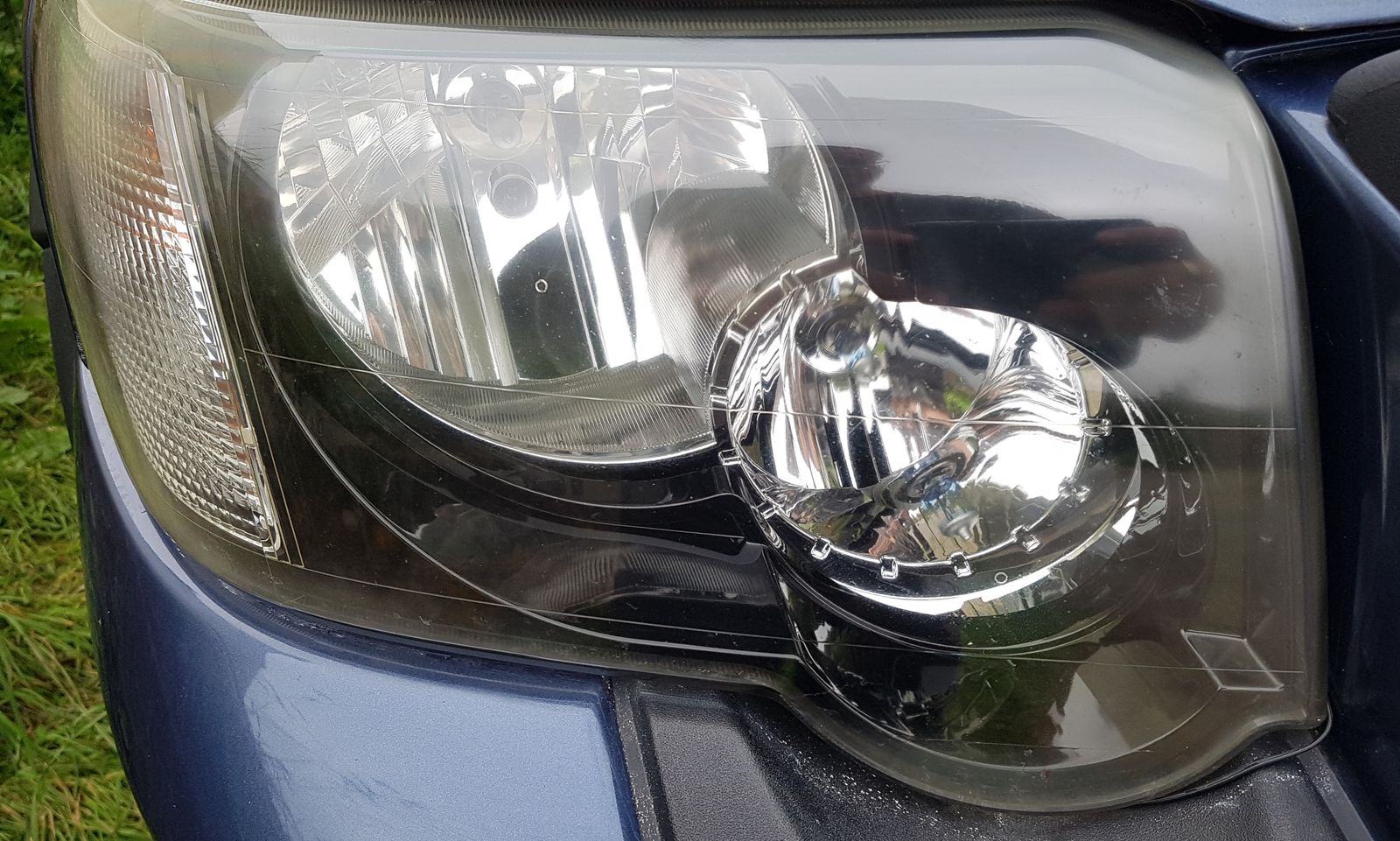

    The headlights also got there anual abrasive clean and quality polish too. 20180916_155218.jpg
    I even found time to re-aim the windscreen washers and replace the broken window cable on the driver's door.

    Fingers crossed for the MOT on Wednesday.

    Danyou, Alibro and DCUNNINGHAM like this.
  6. DCUNNINGHAM

    DCUNNINGHAM Active Member

    Joined:
    Oct 24, 2016
    Posts:
    197
    Likes Received:
    36
    Location:
    West Yorkshire
    Drums look great

  7. Nodge68

    Nodge68 Well-Known Member

    Joined:
    Nov 15, 2011
    Posts:
    25,503
    Likes Received:
    6,723
    Location:
    Near Newquay
    Hopefully they'll stay that way for a while.

  8. DCUNNINGHAM

    DCUNNINGHAM Active Member

    Joined:
    Oct 24, 2016
    Posts:
    197
    Likes Received:
    36
    Location:
    West Yorkshire
    I did mine with caliper paint :)
    Good luck for Wednesday mate

  9. kernowsvenski

    kernowsvenski Well-Known Member

    Joined:
    Feb 27, 2013
    Posts:
    992
    Likes Received:
    432
    Location:
    Truro
    And the headlights too. I think mine would benefit from that treatment. What product did you use?

    On the what have "I" done today... replaced the rear wiper arm that has recently started removing paint from the boot door. Time to get the paint out now!

  10. Nodge68

    Nodge68 Well-Known Member

    Joined:
    Nov 15, 2011
    Posts:
    25,503
    Likes Received:
    6,723
    Location:
    Near Newquay
    I use Maguires headlight restoration and then finish off with Auto-Glym Supre Resin Polish. I do it once a year, just before the MOT.

  11. Nodge68

    Nodge68 Well-Known Member

    Joined:
    Nov 15, 2011
    Posts:
    25,503
    Likes Received:
    6,723
    Location:
    Near Newquay
    I find Wilko BBQ/ Stove paint works well on brake components, and is easy to repaint later if needed.

    DCUNNINGHAM likes this.
  12. Rich in Vancouver

    Rich in Vancouver Well-Known Member

    Joined:
    May 15, 2016
    Posts:
    395
    Likes Received:
    191
    Location:
    Near Vancouver Canada
    I did a drain and fill on my auto gearbox this weekend.
    It took about 3.7L of Ravenol JF506E ATF and is running much smoother.

    [​IMG]

  13. Nodge68

    Nodge68 Well-Known Member

    Joined:
    Nov 15, 2011
    Posts:
    25,503
    Likes Received:
    6,723
    Location:
    Near Newquay
    Well it passed the MOT, and with only 1 advisory. This was the smell of diesel from the engine bay. I'm attributing it the the HP pump leaking, again. :(

    At least the MOT is out the way. He asked what I'd done to the rear brakes, because he'd never seen his Tapley meter show 65% on a handbrake before. He said the last Discovery he tested only just managed 70% on the foot brake.:eek:
    The brakes are very good, and they're not bedded in fully yet.
    So just the fuel leak to sort and this creaking sound, and she's all good.

    htr, Alibro, freelandy2004 and 3 others like this.
  14. DCUNNINGHAM

    DCUNNINGHAM Active Member

    Joined:
    Oct 24, 2016
    Posts:
    197
    Likes Received:
    36
    Location:
    West Yorkshire
    Well done mate

  15. Alibro

    Alibro Well-Known Member

    Joined:
    Jan 5, 2015
    Posts:
    5,916
    Likes Received:
    1,736
    Location:
    Northern Ireland
    You know what happens once you've finished working on it and everything is sorted 100%.

    It breaks again!!!! :eek: :p

    LOL, well done mate.

    Rich in Vancouver likes this.
  16. rob_bell

    rob_bell Well-Known Member

    Joined:
    Jul 18, 2016
    Posts:
    2,727
    Likes Received:
    629
    Location:
    London
    Great result! :D

  17. Nodge68

    Nodge68 Well-Known Member

    Joined:
    Nov 15, 2011
    Posts:
    25,503
    Likes Received:
    6,723
    Location:
    Near Newquay
    I'm hoping not Ali. I've got a time consuming project on at the moment, so could do with the Freelander behaving it's self for a bit. I have got to so a basic oil and filters service, and sort the fuel leak, but those will wait for a couple of weeks.

    Last edited: Sep 22, 2018
  18. Nodge68

    Nodge68 Well-Known Member

    Joined:
    Nov 15, 2011
    Posts:
    25,503
    Likes Received:
    6,723
    Location:
    Near Newquay
    Cheers guys.:cool:


    I've worked out why the handbrake is so good. I think it's due to the VCU transferring an amount of the braking effect from the rear wheels, to the front. I must say the HB is the best I've ever got any Freelander, so I'm happy. The daft part is, I don't actually use the HB in normal driving, I just stuff it into park and be done with it.:D

  19. kernowsvenski

    kernowsvenski Well-Known Member

    Joined:
    Feb 27, 2013
    Posts:
    992
    Likes Received:
    432
    Location:
    Truro
    Well, a day of major positives, but a couple of negatives too.

    Both trailing links replaced and new ARB bushes fitted. What a difference they've made! lots of knocks and grumblings have disappeared. Very pleased!

    I also installed one of those LED replacement boot lights. Got it from ebay for £9. If it lasts it will be money well spent. I can highly recommend them.

    New aero wiper blades fitted to the front. They're great.

    The downsides of today are that my recently sorted courtesy/map lights are playing up again (bloody switches!), and the rear wiper arm that I fitted the other day still contacts the boot door and there is some play in the gears/mechanism. Are the rear wiper motor mechanisms/gears a serviceable part or is a new motor assembly the only option?

  20. Nodge68

    Nodge68 Well-Known Member

    Joined:
    Nov 15, 2011
    Posts:
    25,503
    Likes Received:
    6,723
    Location:
    Near Newquay
    I made my own, which is very bright.
    I fitted a new pair to mine this morning too. I like to replace them every 6 months.
    I always fit AP aero blades as they are top quality.
    Replacement unit only I'm afraid. Mine is also very sloppy. I've adjusted the arm so it stops on the rubber.

    kernowsvenski likes this.
