What does this canvas fit?

Discussion in 'Series Land Rovers' started by Rodeo Joe, May 26, 2020.

< Previous Thread | Next Thread >
  1. Rodeo Joe

    Rodeo Joe Well-Known Member

    Joined:
    Dec 30, 2017
    Posts:
    1,547
    Likes Received:
    694
    Location:
    norfolk
  2. Blackburn

    Blackburn Well-Known Member

    Joined:
    Feb 21, 2013
    Posts:
    2,651
    Likes Received:
    442
    Location:
    Tyneside
    The piece you think is the roof goes down the cab rear not long enough for roof section.

  3. Shippers

    Shippers Well-Known Member

    Joined:
    Mar 7, 2017
    Posts:
    6,548
    Likes Received:
    4,442
    Location:
    Algarve
    That is not as described in advert...
    First pic shows on right ..cab roof...on left..rear with window...top and bottom...side panels showing to left the overflaps for rear window panel...to many hoops and also says side window needs replaced there is no side window...

    Last edited: May 27, 2020
  4. Rodeo Joe

    Rodeo Joe Well-Known Member

    Joined:
    Dec 30, 2017
    Posts:
    1,547
    Likes Received:
    694
    Location:
    norfolk
    Its got the fittings on it to hook onto the sharks tooth bar.
    Anyway I don't think the seller knows what it is if he thinks the side window is actually the rear one.

  5. John S

    John S Well-Known Member

    Joined:
    Oct 30, 2008
    Posts:
    3,279
    Likes Received:
    653
    Location:
    Kinross
    If it’s got the sharks teeth front it’s too short for a 109 truck cab but it seems to have enough sticks for a 109 cab. It’s not got the front sticks for the full tilt. Looks like a mish mash.

  6. Shippers

    Shippers Well-Known Member

    Joined:
    Mar 7, 2017
    Posts:
    6,548
    Likes Received:
    4,442
    Location:
    Algarve
    Have you read the ebay description?...it says its the canvas for the rear of an mod 109 truck cab why would it have the sharks teeth fitment clearly seen in the photo of it upside down...no side window either...

  7. John S

    John S Well-Known Member

    Joined:
    Oct 30, 2008
    Posts:
    3,279
    Likes Received:
    653
    Location:
    Kinross
    Yes I’ve seen and I’ve got one (SWB) . You’re right it doesn’t have side windows; it’s what I said; the canvas is for a SWB but the sticks are sort of for a 109 but not full tilt just a pick up. It’s a muddle offer.

  8. John S

    John S Well-Known Member

    Joined:
    Oct 30, 2008
    Posts:
    3,279
    Likes Received:
    653
    Location:
    Kinross

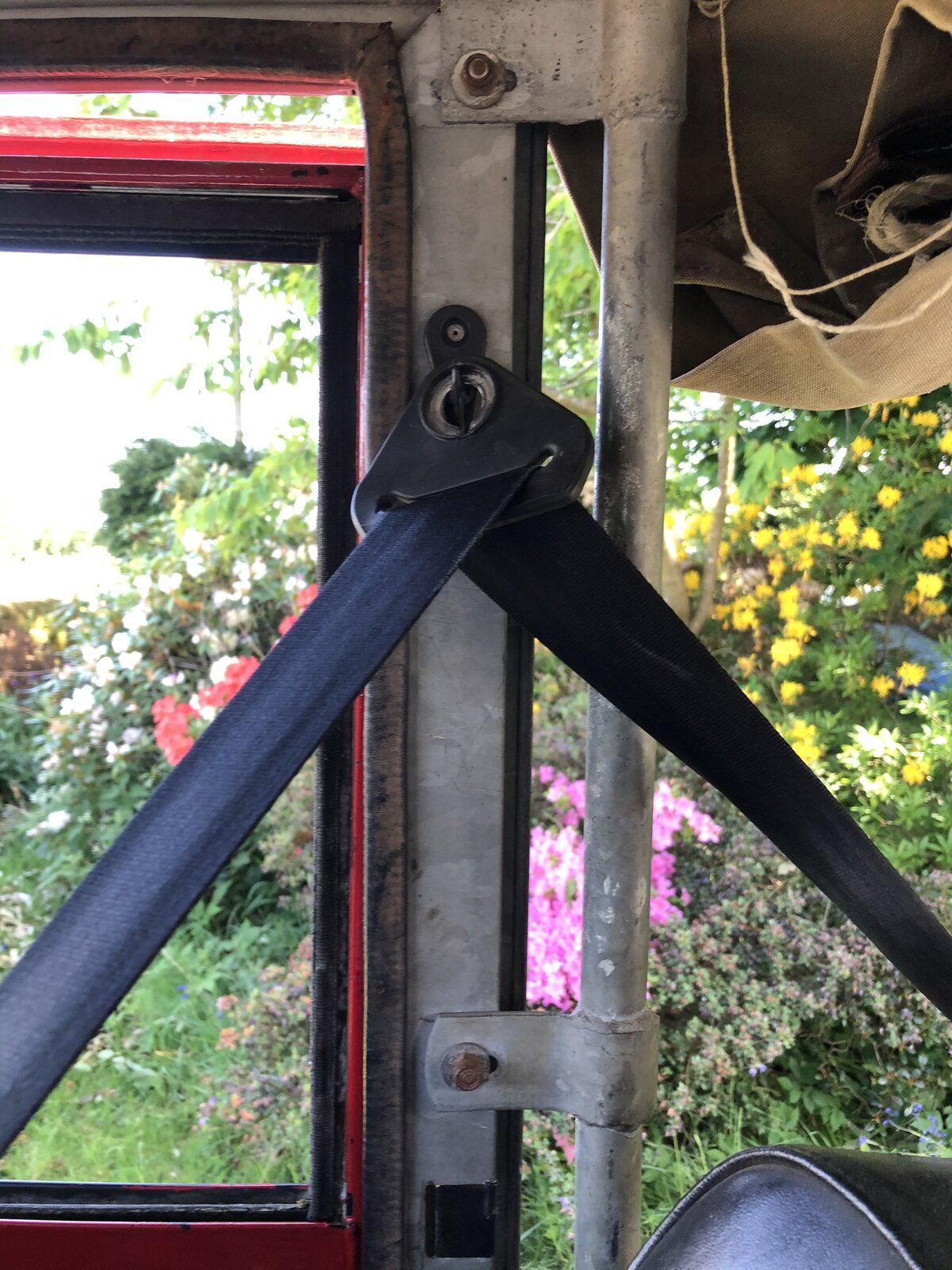

    Okay, have a look at these.


    Attached Files:

  9. Shippers

    Shippers Well-Known Member

    Joined:
    Mar 7, 2017
    Posts:
    6,548
    Likes Received:
    4,442
    Location:
    Algarve
    The canvas is for a SWB what according to you...the description says truck cab does it not?

  10. John S

    John S Well-Known Member

    Joined:
    Oct 30, 2008
    Posts:
    3,279
    Likes Received:
    653
    Location:
    Kinross
    FFS. Are you labouring a pointless point, the description says truck cab for a 109. It’s not that? The advert is misleading, duh!

  11. Shippers

    Shippers Well-Known Member

    Joined:
    Mar 7, 2017
    Posts:
    6,548
    Likes Received:
    4,442
    Location:
    Algarve
    Thats where you were getting me confused...was only replying dont get upset...

  12. dag019

    dag019 Well-Known Member

    Joined:
    May 18, 2014
    Posts:
    3,094
    Likes Received:
    1,221
    Location:
    Warwick

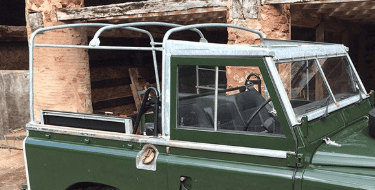

    it is missing the shark tooth rail and the over door pieces:

    It also has too many hoops to be a 109, and not enough the cross brace side side pieces, even if it was for a truck cab and was just the load bay cover it is mising the peices that attache the canvas to the back of the truck cab.

    I think the reality of it is is it is an incomplete 88 hood frame (missing the over door sections), with some extra hoops (for some reason), and a very very old and worn 88 canvas.

  13. tottot

    tottot Well-Known Member

    Joined:
    Nov 7, 2010
    Posts:
    4,626
    Likes Received:
    1,082
    Location:
    west wales coast
    The canvas is for an 88 truck cab. [ and it is well past its sell by date ]

  14. dag019

    dag019 Well-Known Member

    Joined:
    May 18, 2014
    Posts:
    3,094
    Likes Received:
    1,221
    Location:
    Warwick

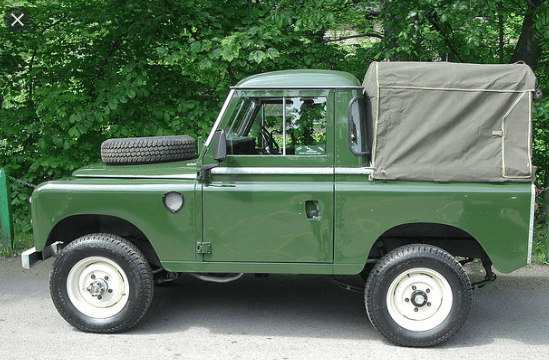

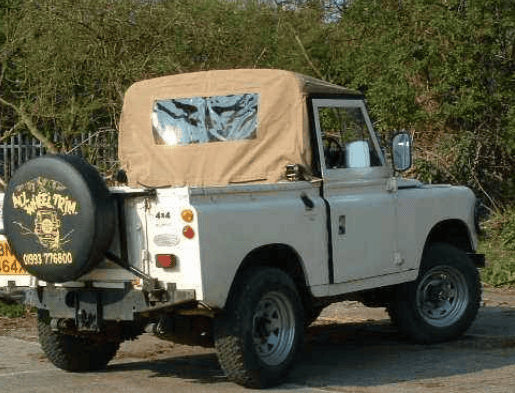

    I agree that is is well past its sell by date but I do not agree it is for a truck cab. I think it is just a standard 88 canvas with plain sides rather than windows. It is not either of these which would be for a truck cab:

    upload_2020-6-2_19-31-44.png upload_2020-6-2_19-32-2.png

    John S likes this.
  15. Shippers

    Shippers Well-Known Member

    Joined:
    Mar 7, 2017
    Posts:
    6,548
    Likes Received:
    4,442
    Location:
    Algarve
    Agree a bog standard 88 tilt...

    Rodeo Joe likes this.
