well needed restoration of my series 2a

right ok , i split the transfer box off and cleaned everythin up, checked play against spec in landrover book, all ok, bearings ok , end float of gears ok, checked with feelers and dial test indicator, done the oil seals, new gaskits all round, not a lot of pics of the stripping , but a few of rebuilding , been in and out so not had much time fer photography.

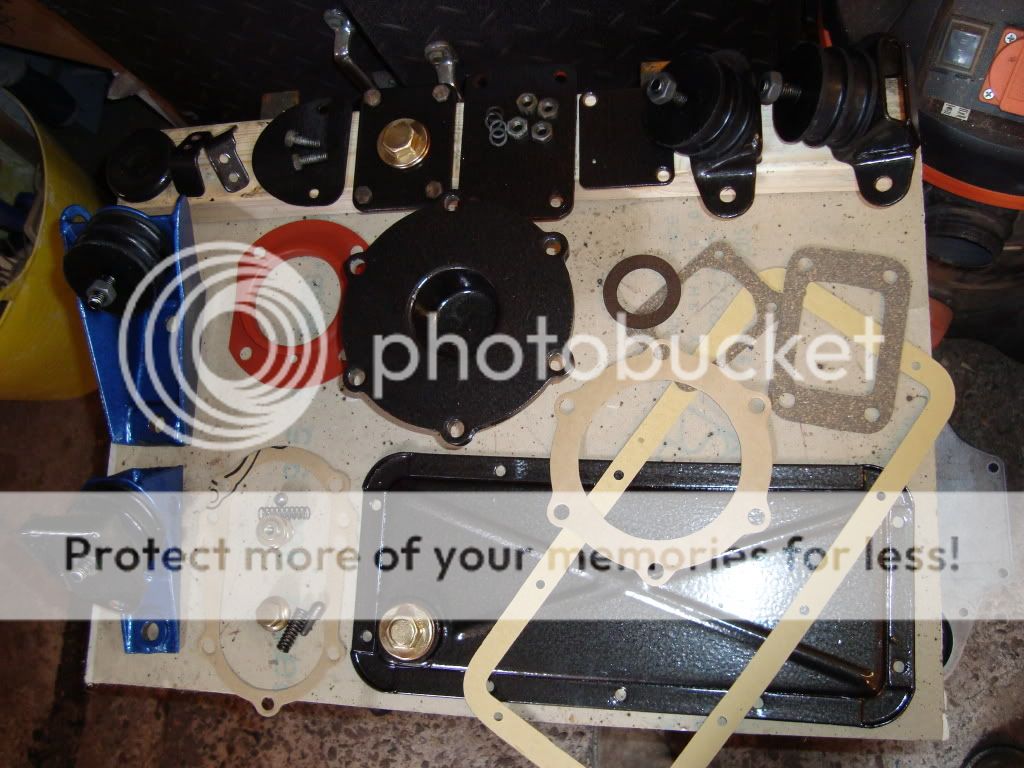

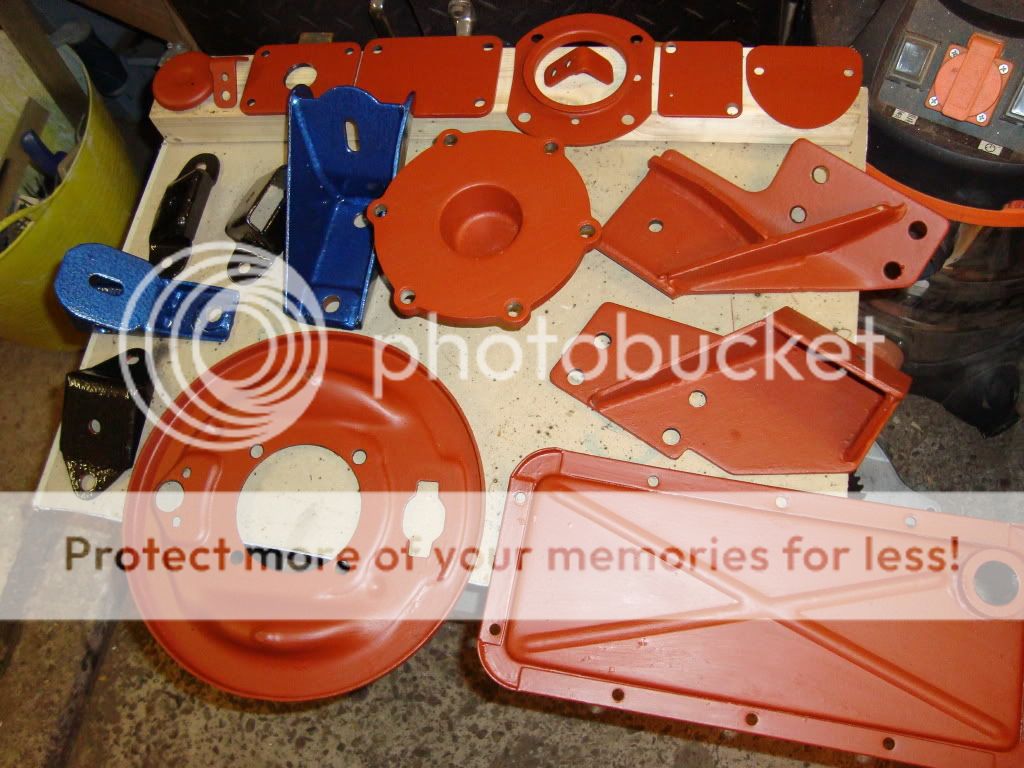

few bits that were stripped off sprayed





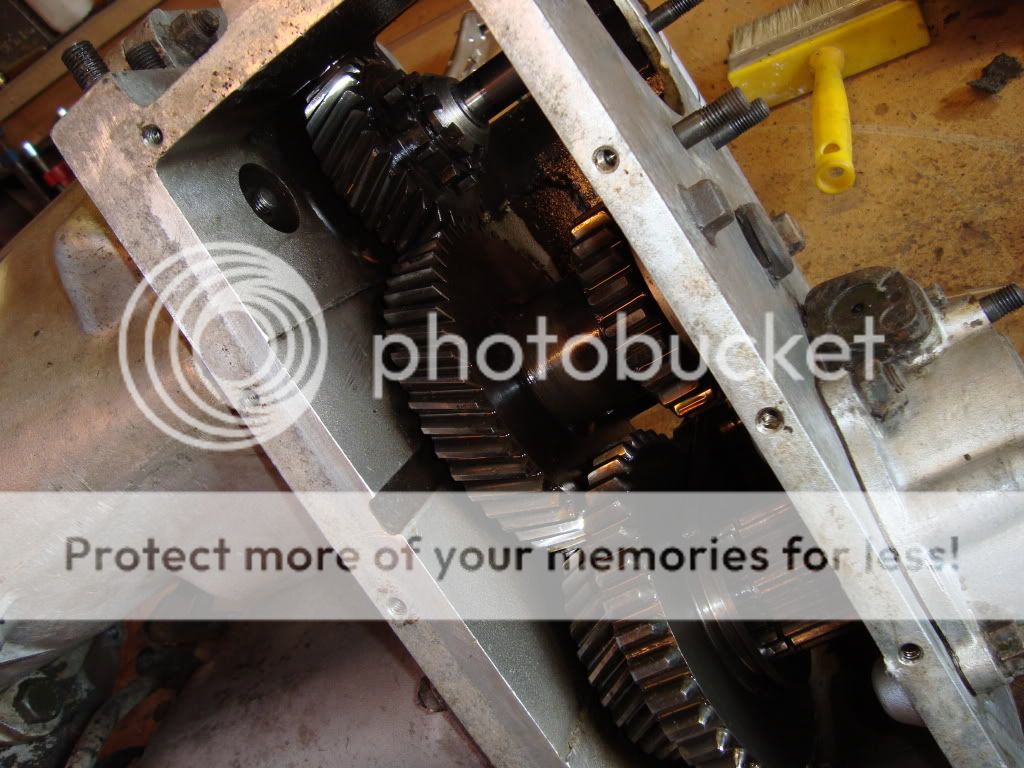

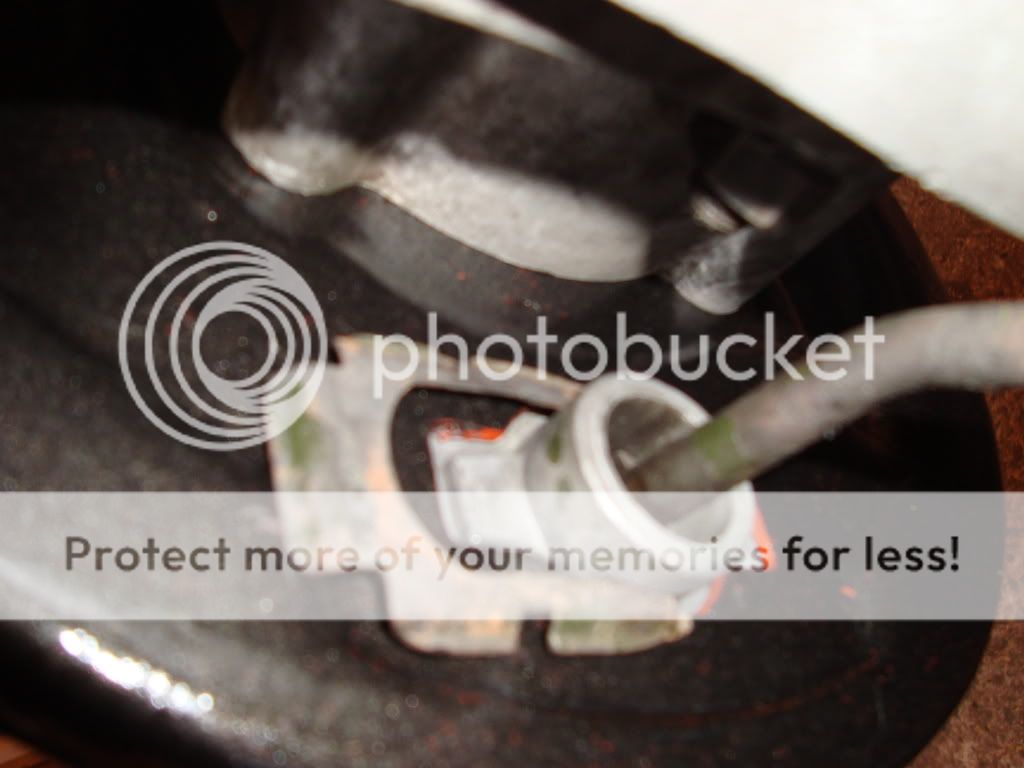

fork / thrust bearing





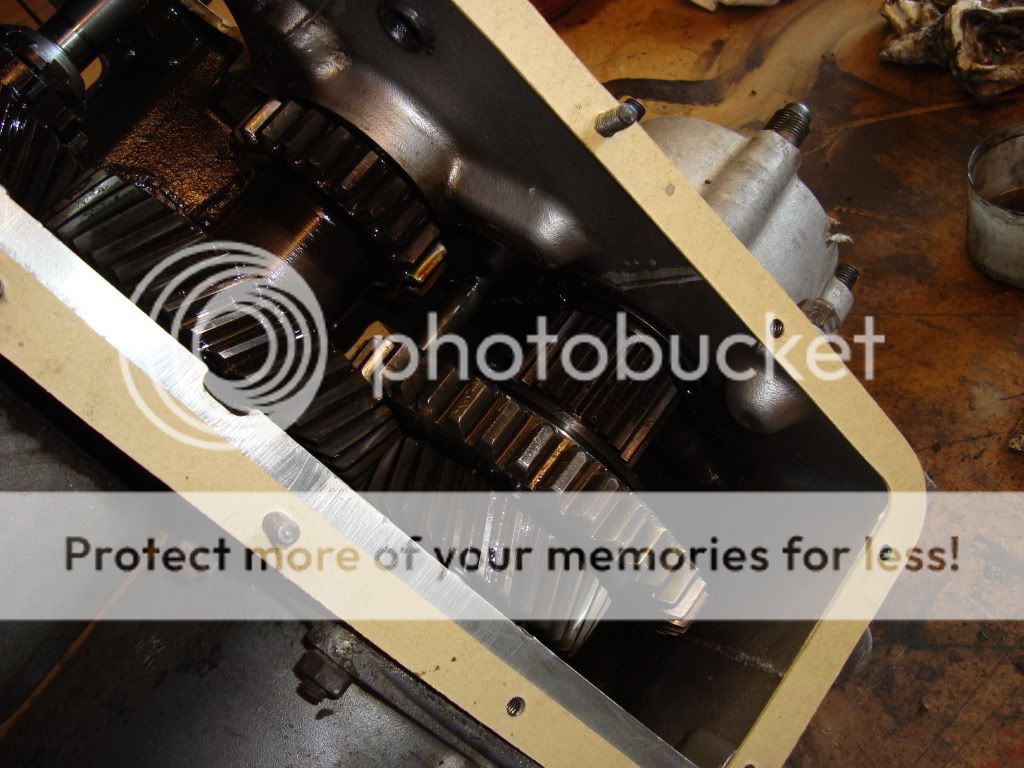

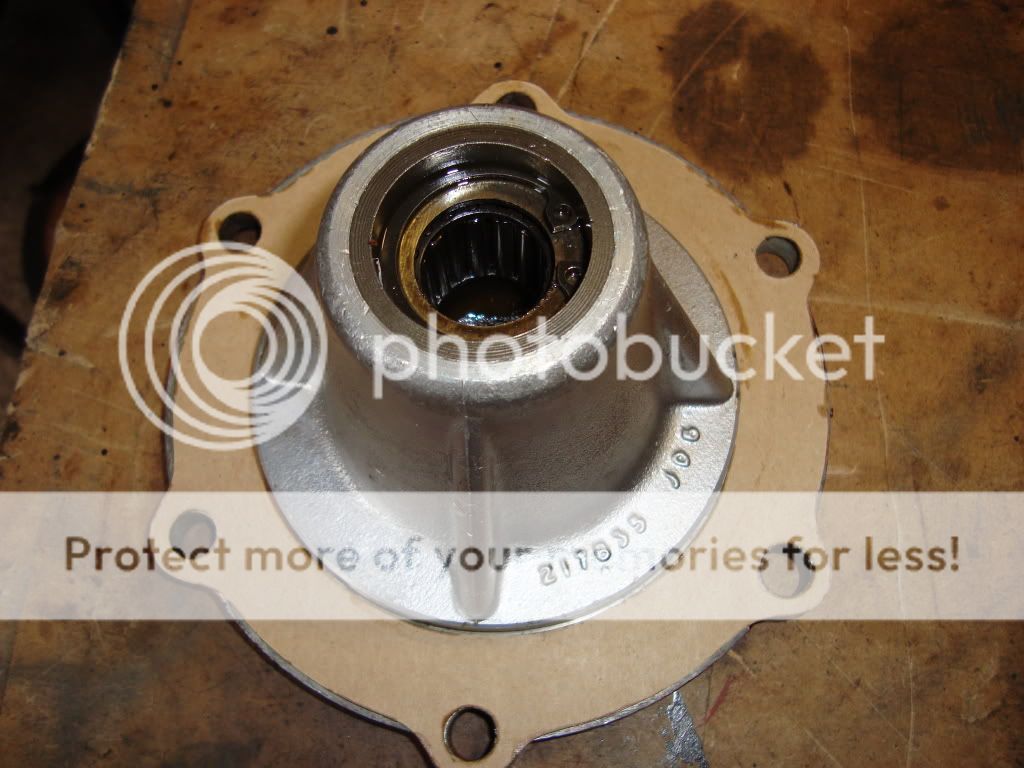

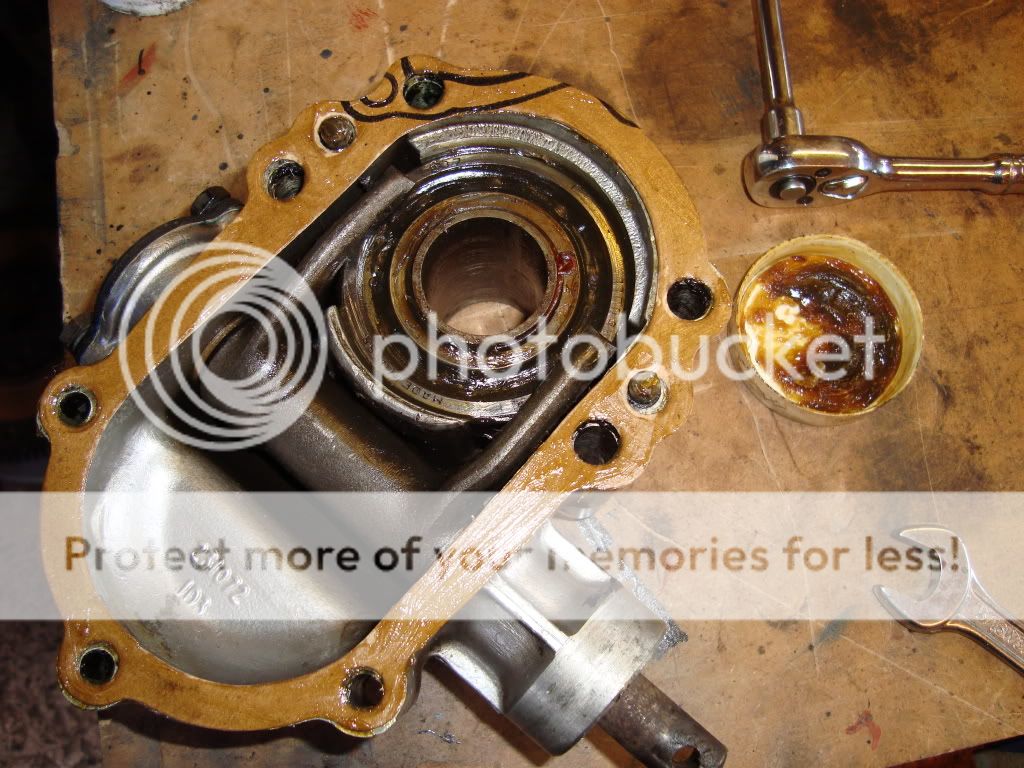

cleaned up and new gaskits





stuck gaskits with grease only as easy to remove for service



fitted



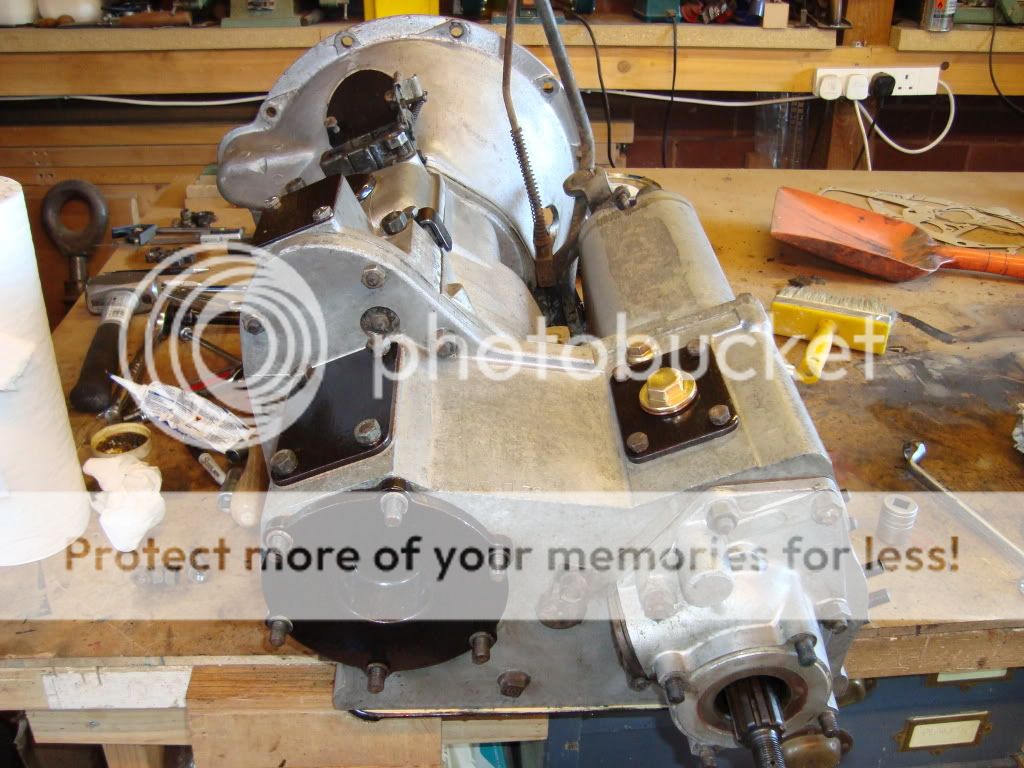

box back together



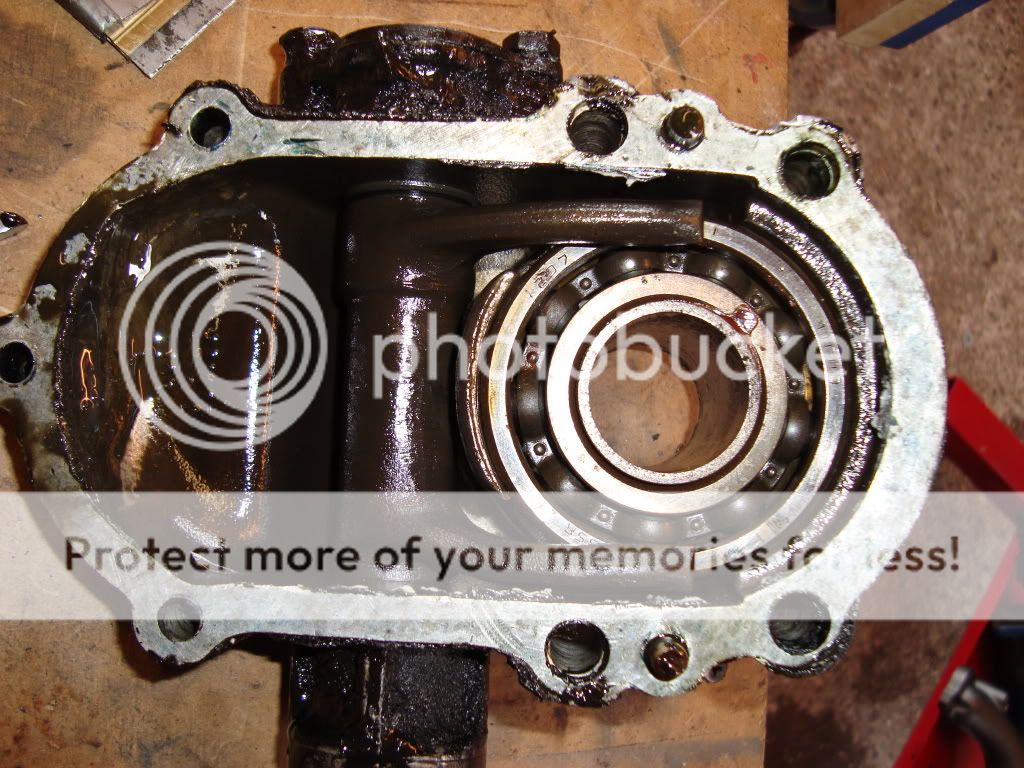

gaskit on



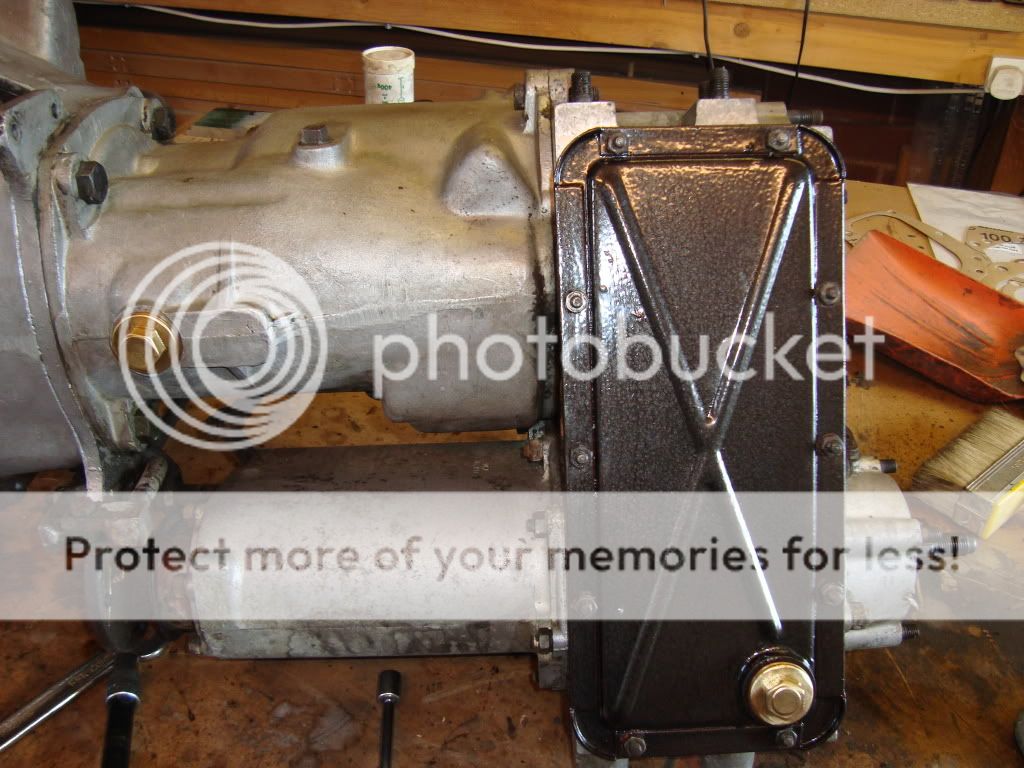

bottom plate on



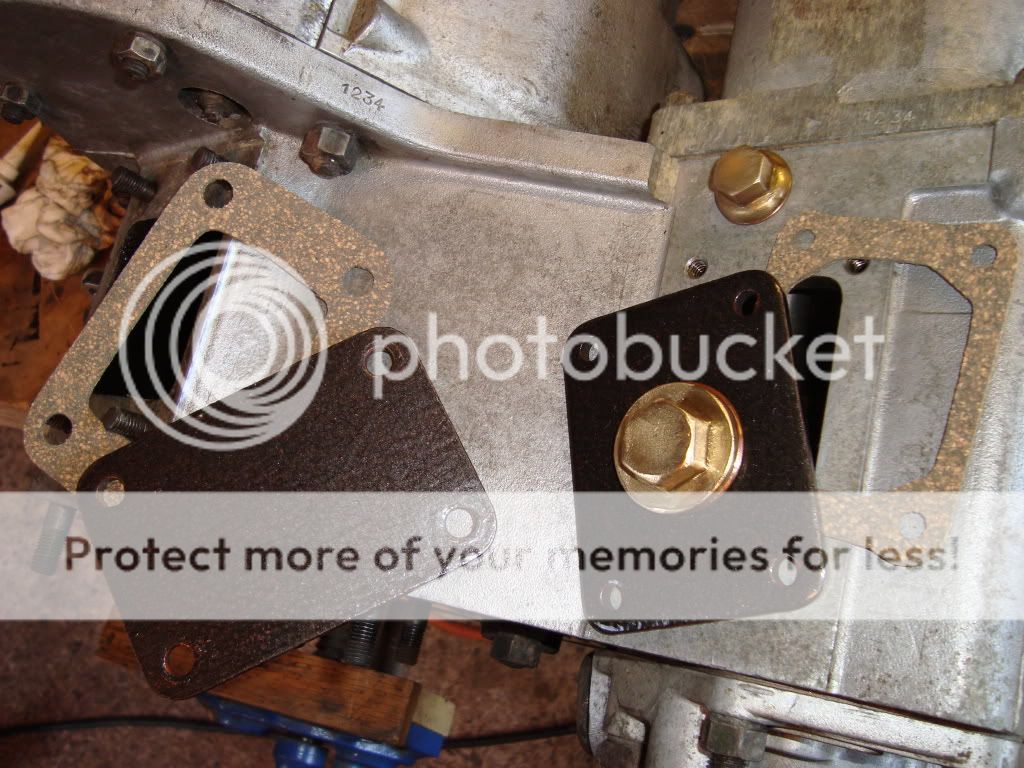

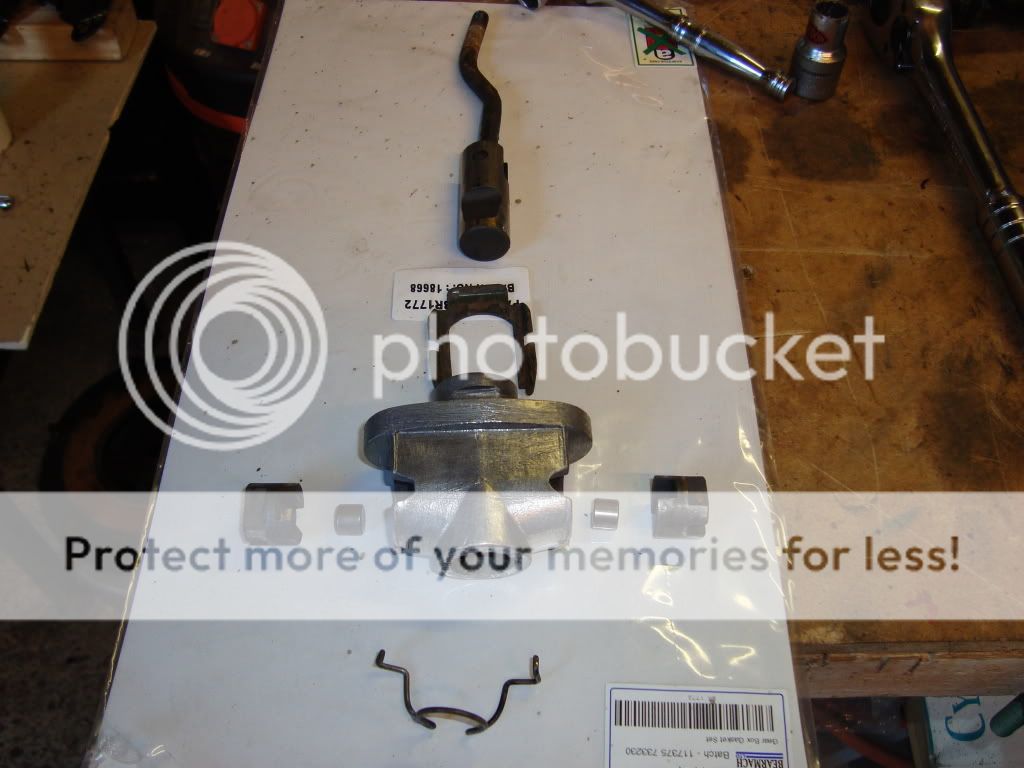

top covers and cork gaskits ready to fit



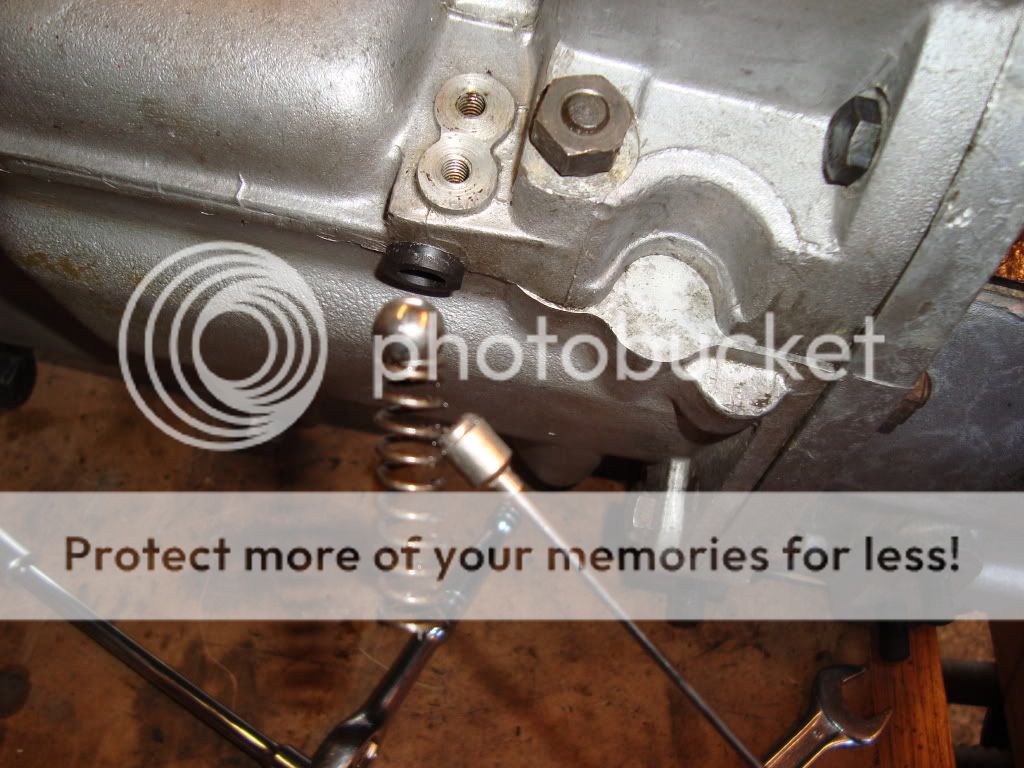

detent springs and balls, inter lockers fitted first



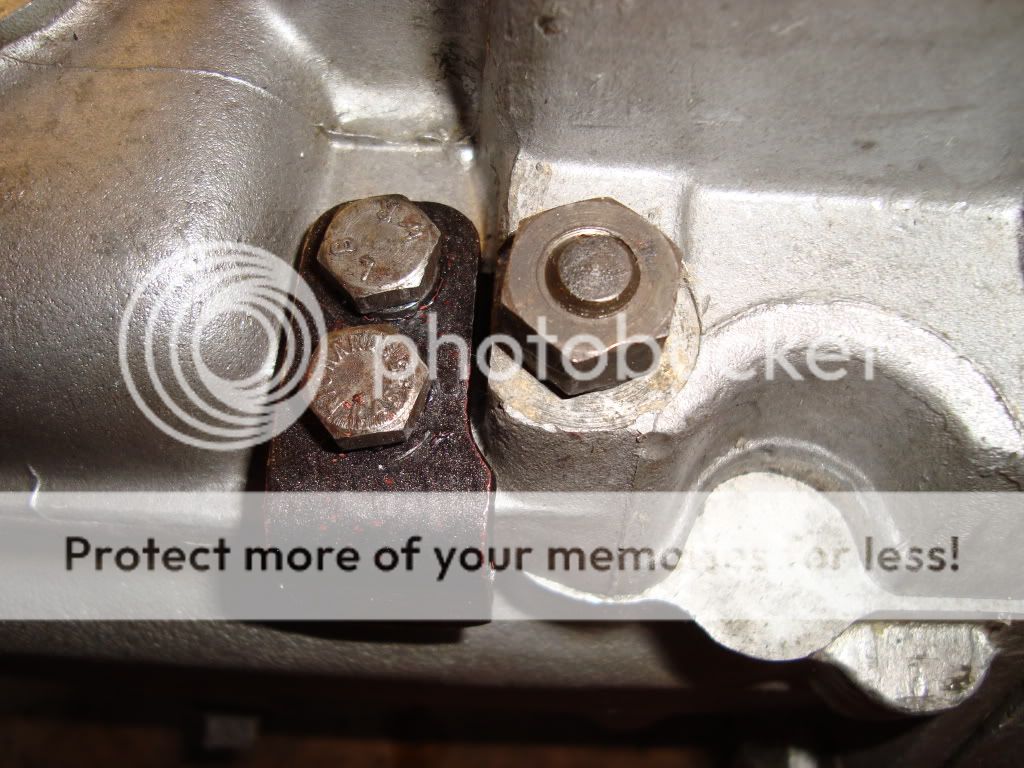

held in with clips bolted on



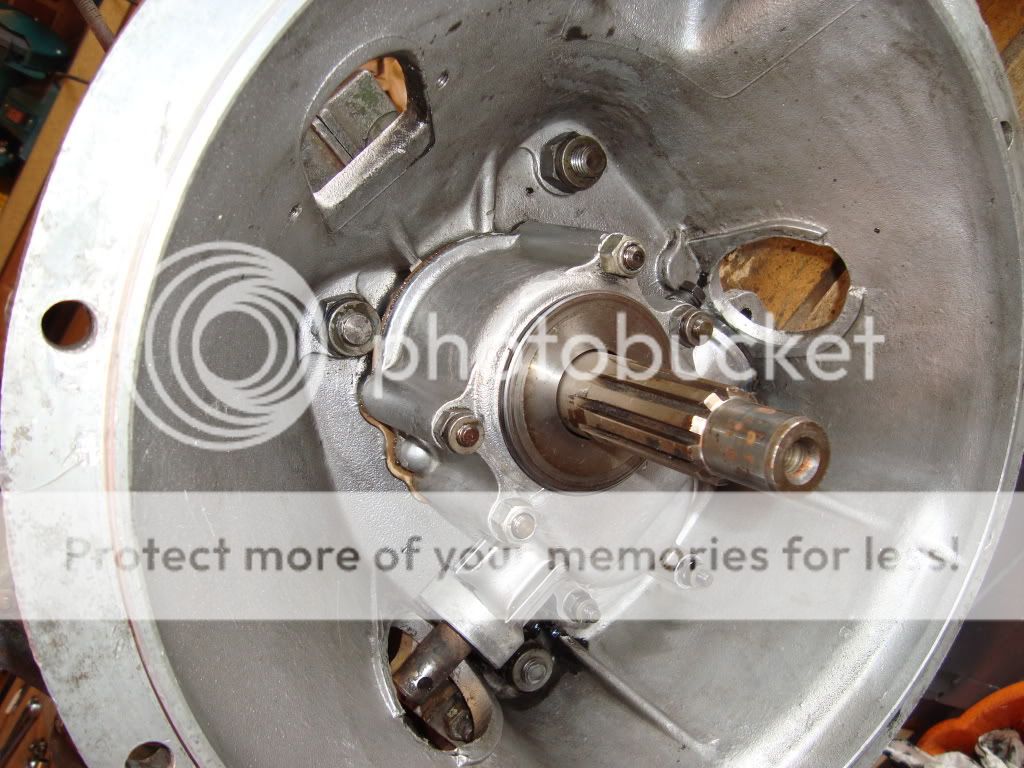

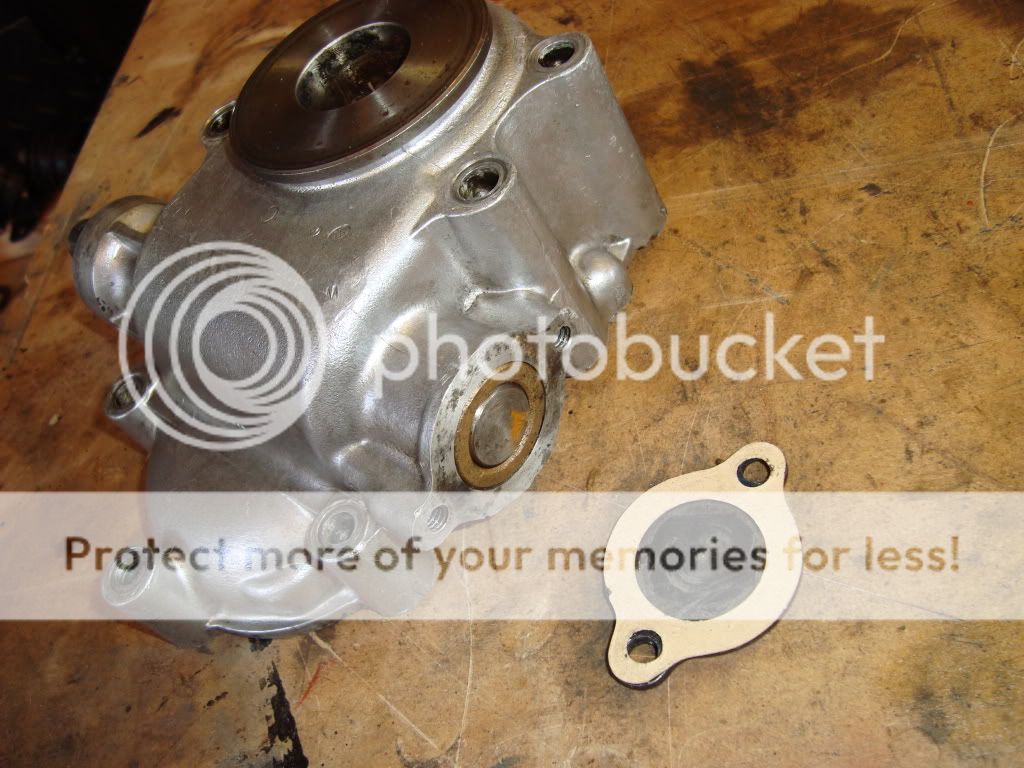

pto cover



bit more done



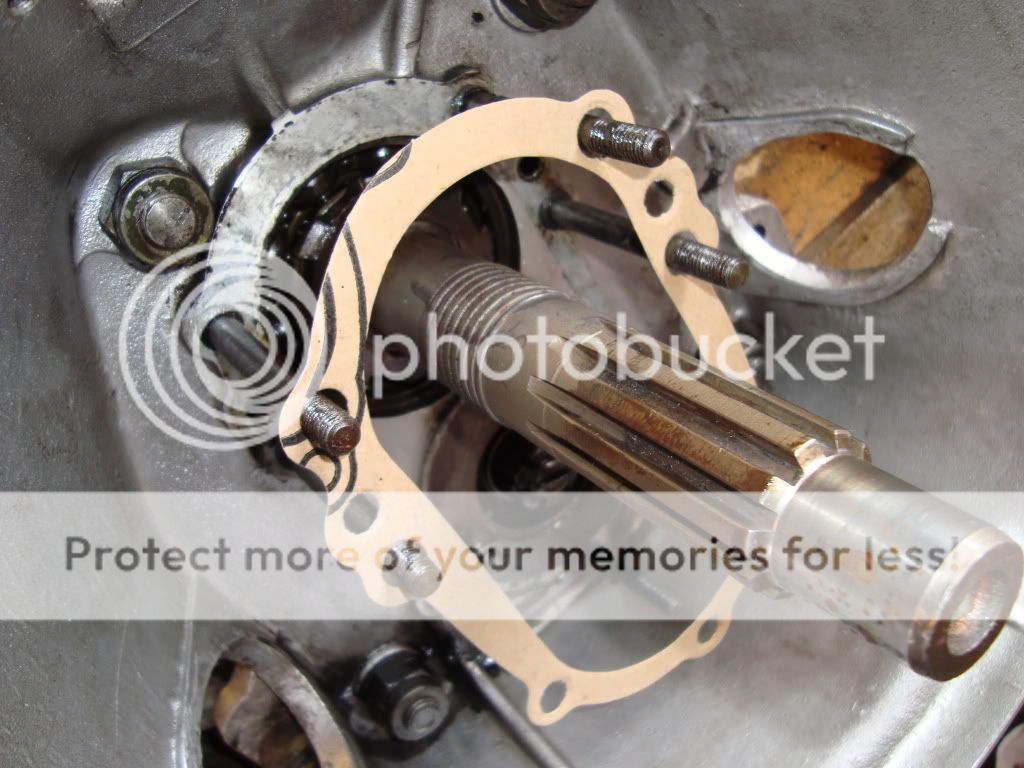

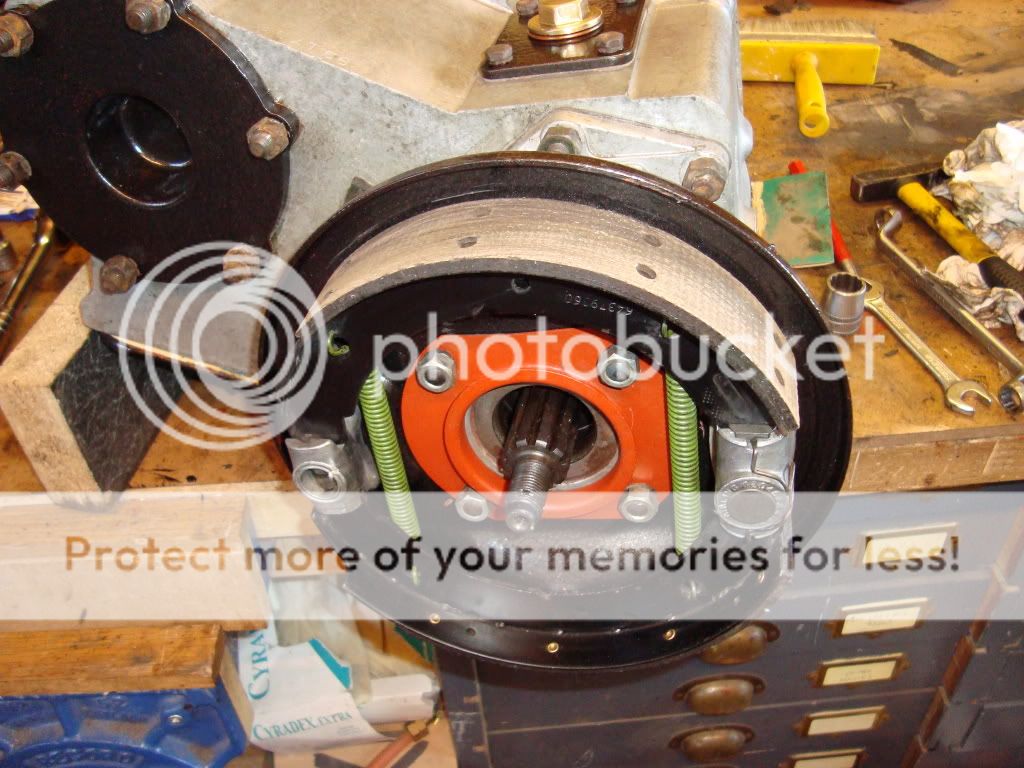

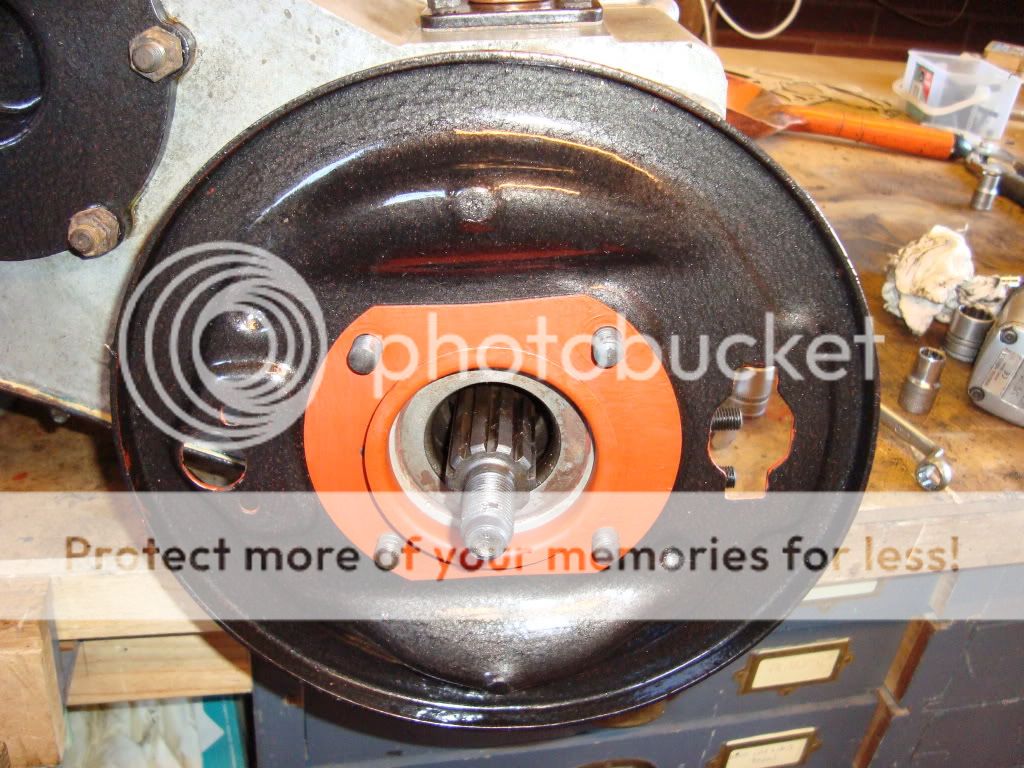

transmition brake back plate fitted









should get it finished off by weekend , shame ther wernt more pics of the inside of the gear / t/fer box.

as usual first rate,keep up the good work and keep the pics coming.well done mate.

gemsdad said:

as usual first rate,keep up the good work and keep the pics coming.well done mate.

Click to expand...

cheers, am off out in a bit to finish it off, gives me tomorrow free then , fancy a longer weekend ,

90truckcab said:

cheers, am off out in a bit to finish it off, gives me tomorrow free then , fancy a longer weekend ,

Click to expand...

make sure to use your rubber hammers and spanners etc,so as not to disturb yer drugg, sorry neighbours.

gemsdad said:

make sure to use your rubber hammers and spanners etc,so as not to disturb yer drugg, sorry neighbours.

Click to expand...

that tosser will be walkin round town now, prob only just got up ! no one else says a word as they kno they can come and ask for anything any time, did a water leak 20 pas 3 one morning fer a neighbour that nocked on the door , but i spose where ever yer live yer gona gerra ****er int yer !

90truckcab said:

that tosser will be walkin round town now, prob only just got up ! no one else says a word as they kno they can come and ask for anything any time, did a water leak 20 pas 3 one morning fer a neighbour that nocked on the door , but i spose where ever yer live yer gona gerra ****er int yer !

Click to expand...

yep.

Have you got any photos of the transfer box and 4wd dog clutch in bits? Mine is stuck in 4wd at the moment, be nice to see what I will be letting my self in for in about xx yrs time when I can do it

what gear box ian ser2 ?

series 3, thought the transfer box were the same tho?

yeah tis, will look at me drawings and pm yer a copy, sorry no pics mate ah were busy and forgot to take ma camera

ok mate, thanks

bet you all thort i had given up ! it were the end of july when i last did anything to my series, due to being loaded with too much other work , bout time i got somethin done again, picking all the bits for the steering and axles up in the morning so will be removing the front axle and steering first , pics to come

well hurry up been missing the pics

sorry, have got the front axle and steering off today in the pooring rain and freezing winds so will post pics tomorrow

you think yours will be on the road before mine ?

finally finished me GB rebuild today

Sean said:

you think yours will be on the road before mine ?

finally finished me GB rebuild today

Click to expand...

dunno really mate, hoping to have both axles ready for the new year, then get a galvo chassis ,

yours will see the road first i think, i seem to spend too much time cleaning the bits up, ah well, least it will be like a new un' by the time its done, just got to find a way of gerrin it in the front room !


what did yer need for yer gbox in the end ?

me GB just needed some time spending on it, it went together in a couple of hours once i got my head around it - i bet it took me longer to find/order and unwrap the new bearings than it took to put together - why is there so little info around regarding the late S3 boxes ?

i also needed to find a little bit of enthusiasm

plus i had a couple of engine rebuilds to finish along with the need to sleep occasionally

Any pictures of the G'box rebuild Sean? Doing mine after Christmas.... Only ever stripped a FWD box before....

Mseries3 said:

Any pictures of the G'box rebuild Sean? Doing mine after Christmas.... Only ever stripped a FWD box before....

Click to expand...

only some of it before - in a pile of bits - and after the rebuild, none of which are likely to be of much use

to be honest there isn't very much to it, as long as you dismantle methodically (so you know how it goes back together) keep everything very clean and don't rush it

i can't think of any special tools you'll need, even the castle spanner can be made from a old deep socket if it's a 2 or 2a box - a blow torch will come in handy when you replace the two bearings in the bell housing - don't expect the box to run silent unless you replace all bearings and gears, I've done a few of these now and apart from broken teeth the main issue is the loss of case hardening on them

replacing the selector rods is a pain if you cant remember the correct sequence, haynes tells you how (and then it takes 30 seconds)

cant really say much else other than get yer spanners out

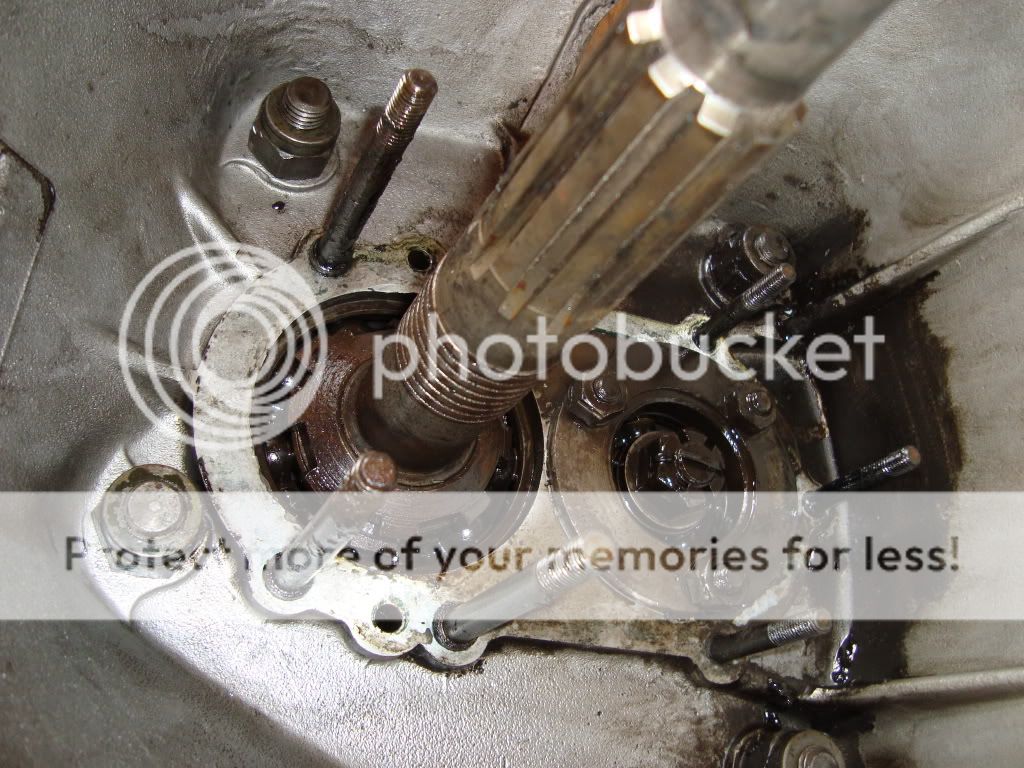

here's some nice motivational pictures showing a GB build

Putting things together

cant really add much to that, do yer oil seals, bearings , clean everythin and check for dammage, replace as needed, dont mix the bits up
