Water in Cyclone Breather

This site contains affiliate links for which LandyZone may be compensated if you make a purchase.

pos

Well-Known Member
Posts
3,685
Location
West Yorkshire
Hello,

I'm getting water in my 200TDi Cyclone Breather which is resulting in the breather pipe to my air intake being filled with spunk. I've followed Busters cyclone cleaning guide here (http://www.landyzone.co.uk/lz/f41/cyclone-breather-76543.html) assuming that some moisture may have worked its way into there during the engine conversion, but there's still 'new' water getting into there from somewhere. I am not loosing any coolant what so ever, nor is the header tank bubbling or pressuring up as if the head gasket were leaking. There is no sign of water amongst the remnants of oil under the rocker cover, nor in the bulk of the oil in the sump. I've whipped off the CAF pipe between my K&N like filter and the turbo, and the internals of the pipe are a little oily as you'd expect, along with a few small droplets of water, which I don't want sucking into the engine. Could it just be condensation that is forming or is there likely more to it? The head gasket was replaced about 1,500 miles ago, and the head was skimmed, but there are zero signs of head gasket failure, and the head appeared to be in good condition.

Any ideas?
-pos

Last edited:
I know. Well I've got all my other problems sorted now and I'm happy knowing that they're all sorted properly :) I'm just waiting for the better weather so that I can get a few rusty bits on the under side cleaned up and waxoiled. Anyone got any ideas with my cyclone?

-Pos

It might just be moisture build up - when yo cleaned it did you test it ?? .
The diaphram might be stuffed in it ? .

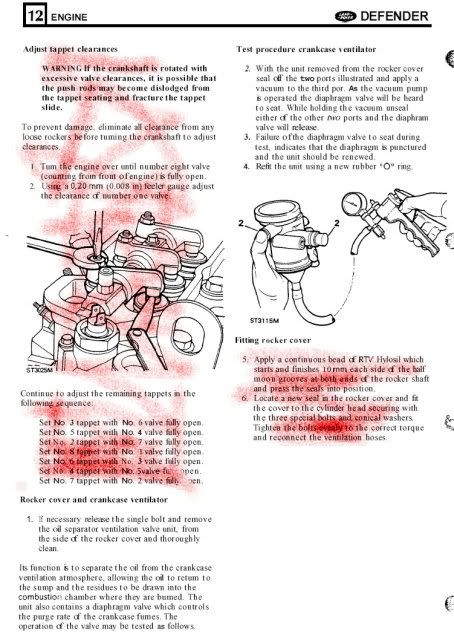

This might help to test it



Last edited:
That's cracking Sypher thank you :) I will whip the cyclone off tomorrow, clean it again and then test it with some form of gadgetry. Do you have a slightly larger version of that scan that you can send me? I don't suppose it's from the work shop manual is it?

-Pos

I thought I had the workshop manual in PDF but I've only got chunks, has anyone got a link? Search isn't bringing it up =/
