Waiting for a RonBox 2a + maf + dash switch

Waiting for delivery of a RonBox 2a + maf + dash switch. As a complete novice how easy is it going to be to fit. I do know my way around an engine and have a practical logical mind!!

I ordered mine today as well,so same boat as you.Apparently they're a piece of p*** to fit,but someone will be along here shortly and give some further/better info.
Where are you planning to put the switch?someone on here put it in the drivers side glove box,which sounds ok but a bit of a long reach,I'm toying with trying to get it on the door arm rest somewhere,but I'll wait til I see the switch before I commit.
Good luck.
Dave

I have the HSE so there are already a lot of buttons in the cabin. However, have my eye on a blanking switch near the radio. Problem is that when you remove blanking switches the electrics for what should be there is behind it!!!

So no idea yet!!

mines also HSE,theres a blank switch to the right of steering wheel,next to the switch that disables the rear parking sensor,just above the glove box.I've got my eye on that as a back up position.No idea whats behind untill I get there.
It'll be interesting to see where others have put theirs.

hi

i got mine in the centre console, as mine is a 3 door, had the spare electric window blanks which u can adapt, if u do a search got some pics on here when i mounted the 3 way toggle switch behind a blanked switch in the centre console and put the blank front back over it so knowone could see it, or u can order it so u can have a two setting switch using an existing click oem switch

with regards to the wiring they're very easy to do, come with good instructions and just take it it bit by bit

very good units and transformed my td4

hope that may help abit

gary

how easy is it going to be to fit

Click to expand...

see the pic attachments in this post
http://www.landyzone.co.uk/lz/2587620-post9.html

How much does this set up cost lads please

illy

TriumphDave said:

... someone on here put it in the drivers side glove box,which sounds ok but a bit of a long reach,I'm toying with trying to get it on the door arm rest somewhere,but I'll wait til I see the switch before I commit...

Click to expand...

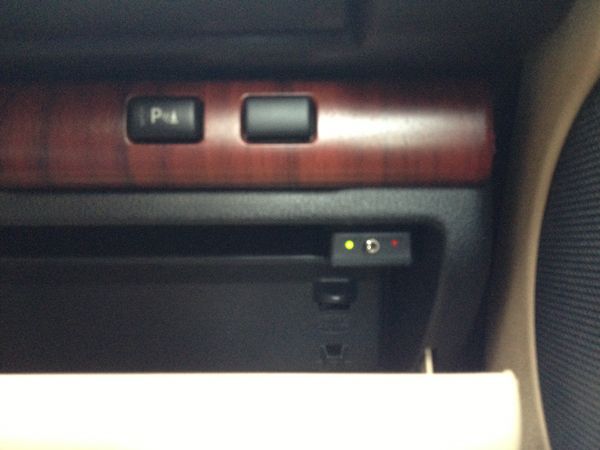

That would be me! The thing to consider is that the switch comes mounted in a little black box to keep the wiring nice and tidy, but it means that if you plan to mount it in a blank you'll have to take it out. This is partly the reason I went for the glovebox mount. I usually drive with the switch in Eco mode and don't have the need to regularly operate it, but its easy enough to pop the glovebox open and switch to performance mode when required... It just stuck to the top edge with a piece of reg plate mounting tape

RichStone said:

That would be me! The thing to consider is that the switch comes mounted in a little black box to keep the wiring nice and tidy, but it means that if you plan to mount it in a blank you'll have to take it out. This is partly the reason I went for the glovebox mount. I usually drive with the switch in Eco mode and don't have the need to regularly operate it, but its easy enough to pop the glovebox open and switch to performance mode when required... It just stuck to the top edge with a piece of reg plate mounting tape

Click to expand...

Looks ok in the glove box, might do the same.

illy said:

How much does this set up cost lads please

illy

Click to expand...

Follow the link below and see all the products and special offers available.

Tuning-diesels - low cost diesel tuning

Once you have found the package contact the team and ask them what there best price might be!!!!

It arrived at Lunch time approx 1310hrs and at 1405hrs I was out test driving the car.

Happy with it so far. Just need the dash switch to arrive then all will be complete.

Next on the to do list Air Filter and PCV change.

hiya this is what i done, put it into the centre console

gary

then put the blank back over the switch

just a suggestion

gary

gstuart said:

then put the blank back over the switch

just a suggestion

gary

Click to expand...

Must be a bit of a bugger removing that blank to change the setting whilst you're on the move Gary.

hiya

doing well today, doooh, ive got the ild setting where u have to turn the engine off to change the setting

when i get mine updated going to get an oem switch and put it in with my fog light and driving light panel

sorry having another dim moment today


sorry about that

gary

with some of the switches in

just trying to find the part numbers for the other switches connectors that goes into the back

as i want to buy another 2 switches and also the electrical multiplugs that go into the back of them

gary

Connectors are ZZPlug02 (from dingocroft anyway) and the switches are VVN100000, although what I did was go to a scrappy and cut off a few connectors and crimp them.

DuncanS said:

Connectors are ZZPlug02 (from dingocroft anyway) and the switches are VVN100000, although what I did was go to a scrappy and cut off a few connectors and crimp them.

Click to expand...

bless u for that most appreciated and thks for the good tipmref connectors etc

thks again

gary

blimey i think i will be going to the breakers as well couldnt belive the cost of the switches, gulp, lolol

just got to find some breakers in kent, will have a look on ebay


thks again

gary

The switches are very hard to find, I managed to nab the switch frame, one switch and three blanks for two quid from a scrappy. I bought the switches new direct from LR as they are the cheapest anyway, but was still near £13 each, and I needed five (replaced the cruise control switch hole for one as well, and then had the blank repainted.
