Wading kit

Hi all i have looked all over for this could anybody post up some pics of were the brather is on the gear box and timing cover i have done the axels but that is about all i can find it is on a 200tdi 90 any help would be mich appreciated thanks

I have found the gear box breather now i understand there is a fuel tank breather could anybody point this out to me please

Timing cover breather is just a hole in the triangle plate. My 300Tdi didn't have the hole, although I had seen pictures of ones that do have it. So I took it off and drilled a hole.

My fuel tank also didn't have a breather as the kit instructions explained. The only breather as such is the smaller rubber hose that runs parrellel to the main filler tube and joins the filler tube just behind the filler cap. It just allows air to flow out of the top of the tank when you're filling it. There was no separate 6mm breather.

I've since changed the fuel tank and there is definitly no other holes for a breather.

Thanks for the reply much appreciated

azzer said:

Thanks for the reply much appreciated


---
I am here: http://tapatalk.com

Click to expand...

Great idea posting where you live

nathan5346 said:

Great idea posting where you live

Click to expand...

It is usually frowned upon

As above, there is no dedicated fuel tank breather on a 200tdi 90. As fuel is drawn out, air enters from around the fuel filler cap. I suppose you could make some form of breather and seal the filler cap though.

Don't forget your wading plugs if you are going swimming

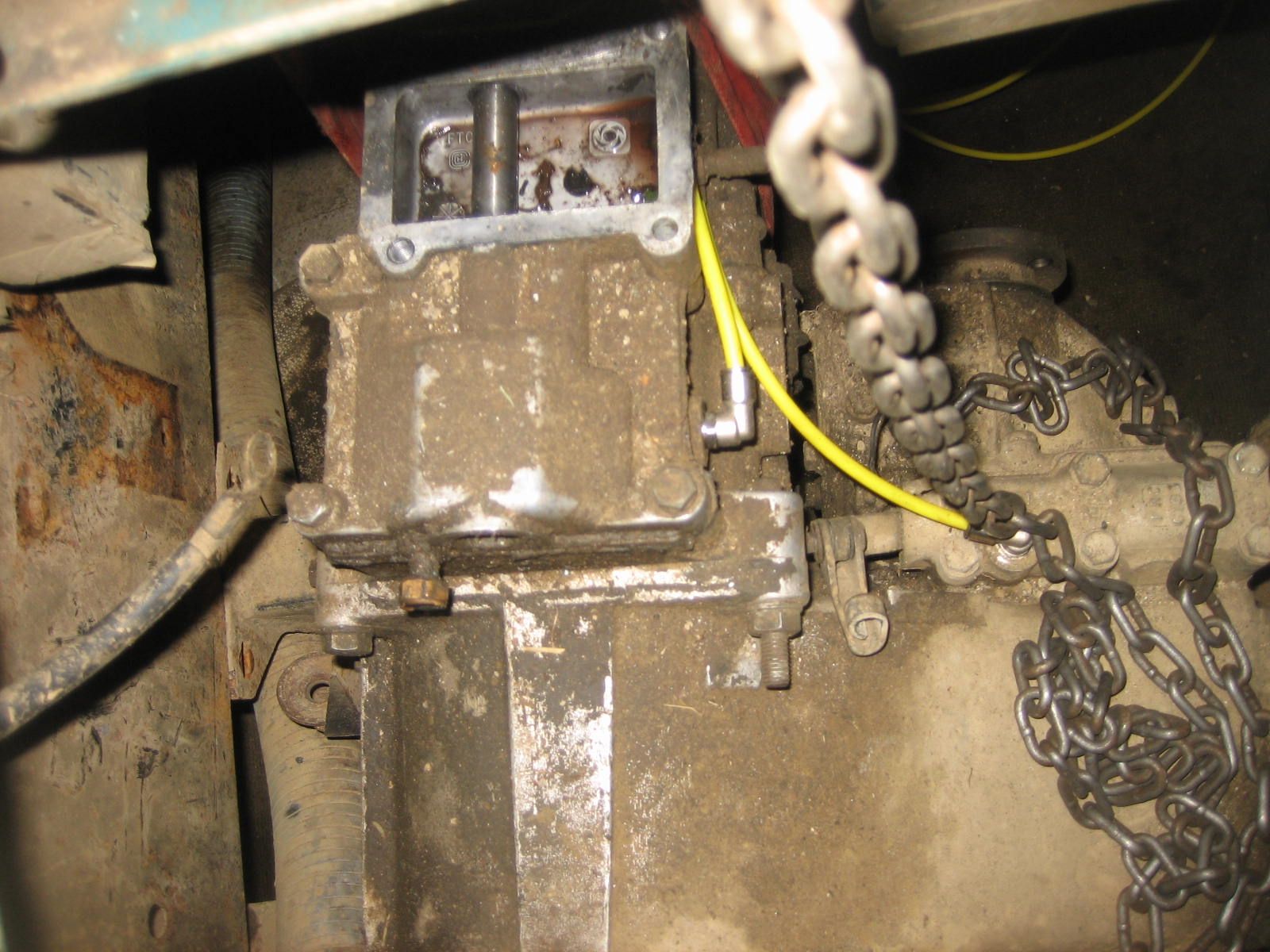

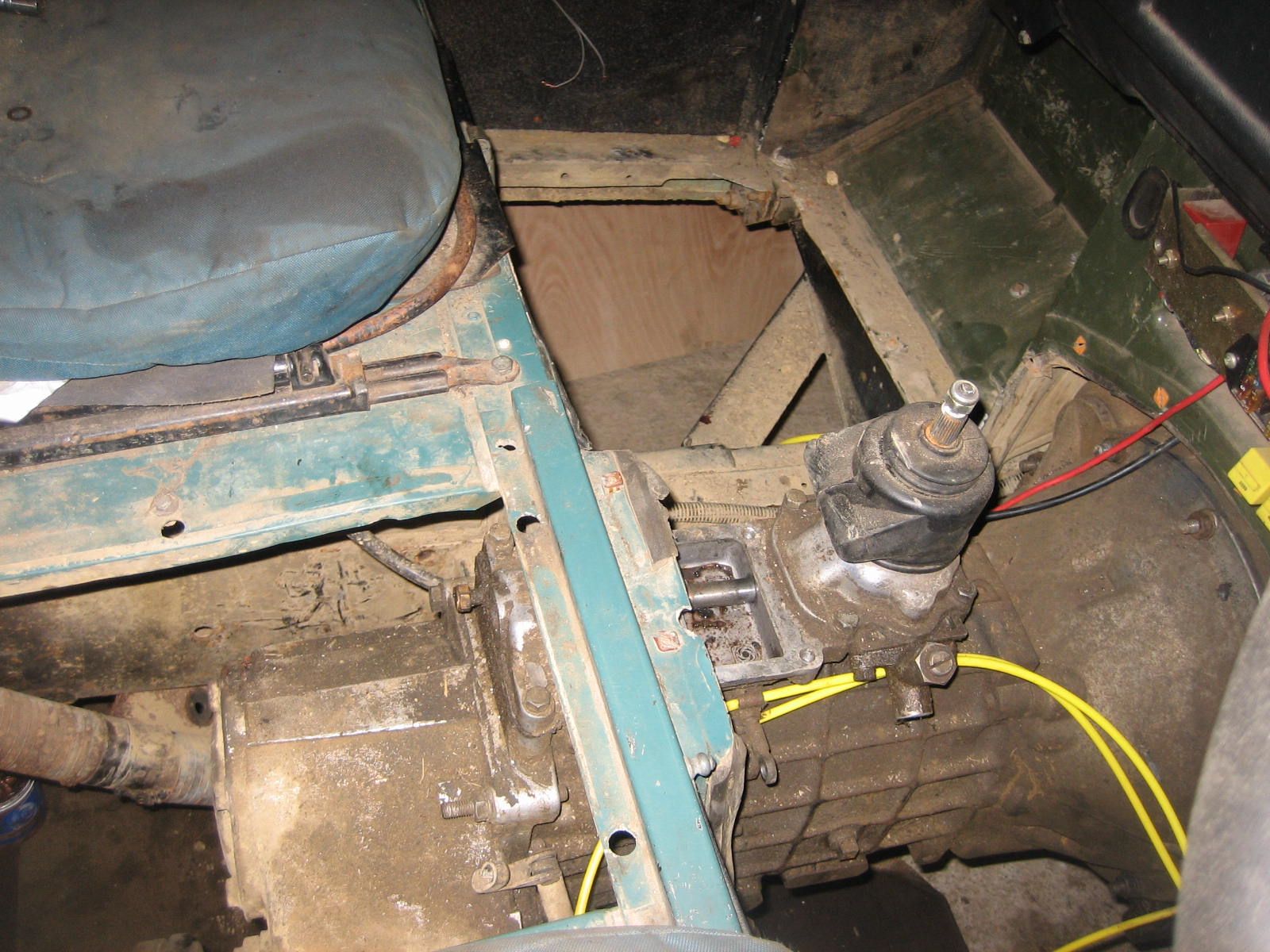

The pics aren't of any use if you've already found the breathers for gearbox and transfer box but may be of help to someone when searching

nathan5346 said:

Great idea posting where you live

Click to expand...

Never noticed that turned it off now thanks
