Freelander 1 Vacuum hoses

Jasonskn · Aug 16, 2018

Hi sorry if I’m repeating
But freelander is doing my head in today been for mot and says poor braking the pedal is soft goes all the way down and stops eventually but says I have servo problem checked all vacuum pipes some split so redone
Problem I have is one pipe goes under the engine cover and out towards the servo but not connected to anything it has vacuum but dammed if I can find out where it goes come out of the back of the
Turbo vacuum control box
Ta j

Nodge68 · Aug 16, 2018

It would be helpful to know what Freelander you have and the year it was made.

Arctic2 · Aug 16, 2018

Jasonskn said:
Hi sorry if I’m repeating
But freelander is doing my head in today been for mot and says poor braking the pedal is soft goes all the way down and stops eventually but says I have servo problem checked all vacuum pipes some split so redone
Problem I have is one pipe goes under the engine cover and out towards the servo but not connected to anything it has vacuum but dammed if I can find out where it goes come out of the back of the
Turbo vacuum control box
Ta j

HI Ta j

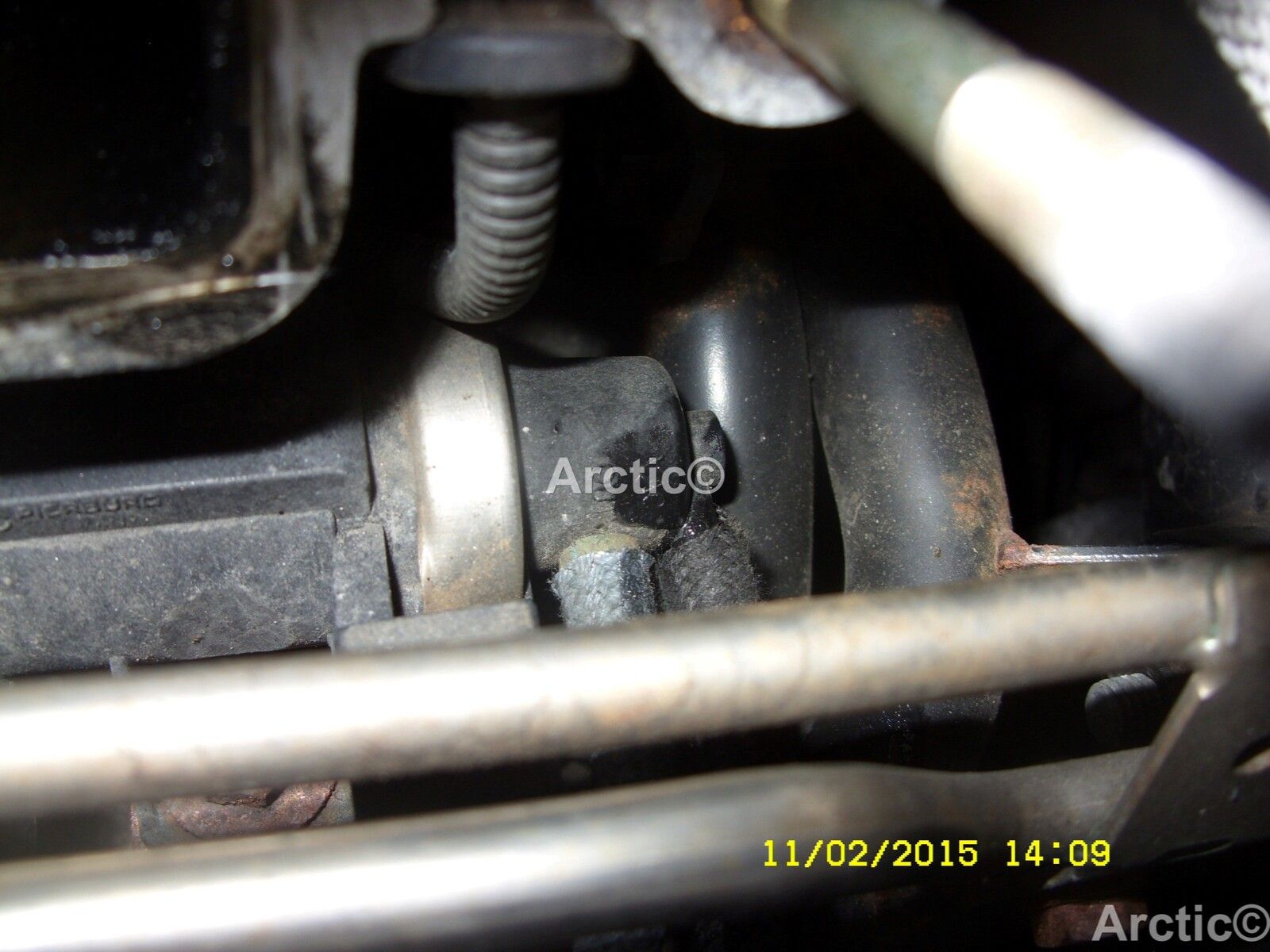

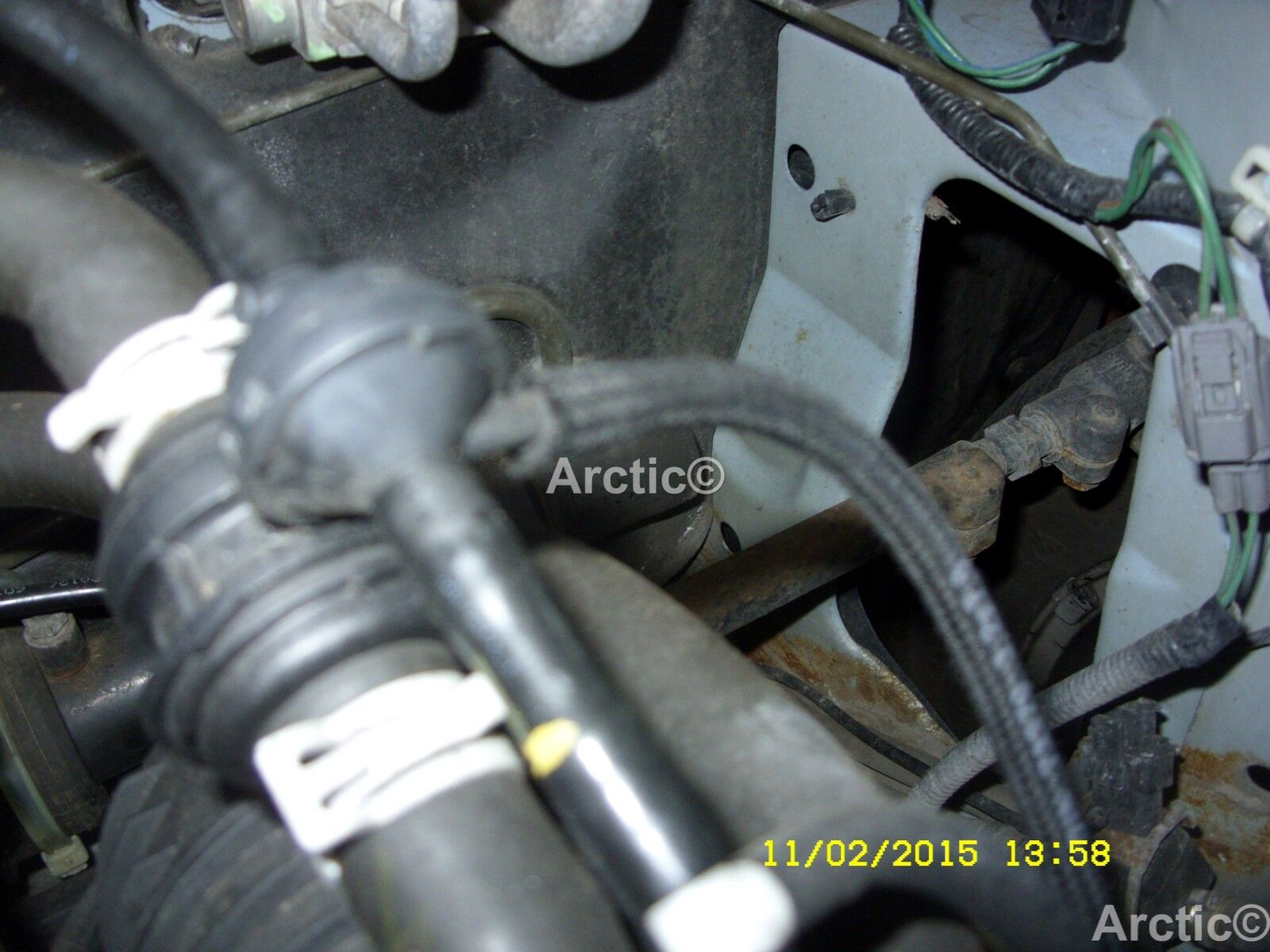

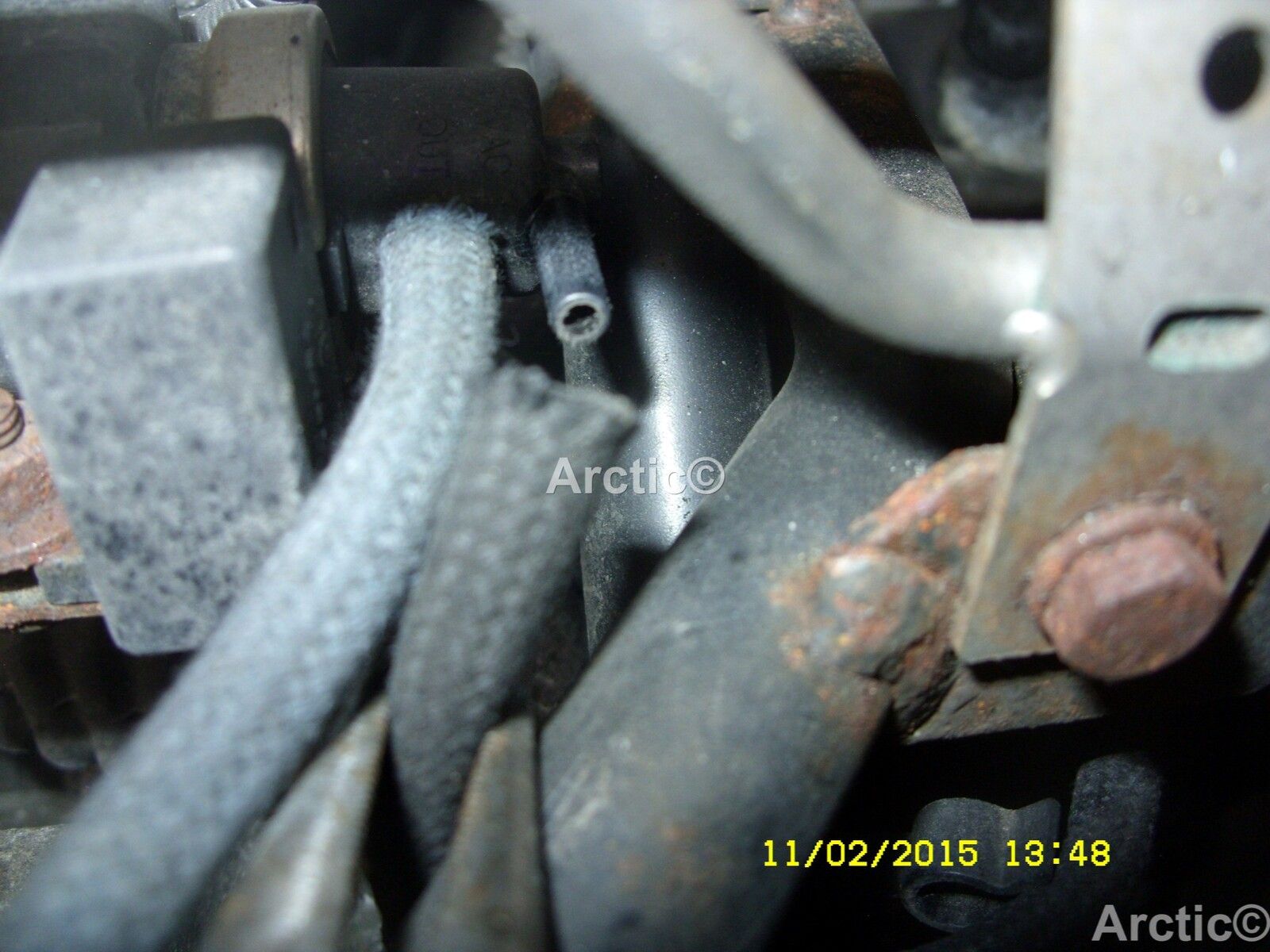

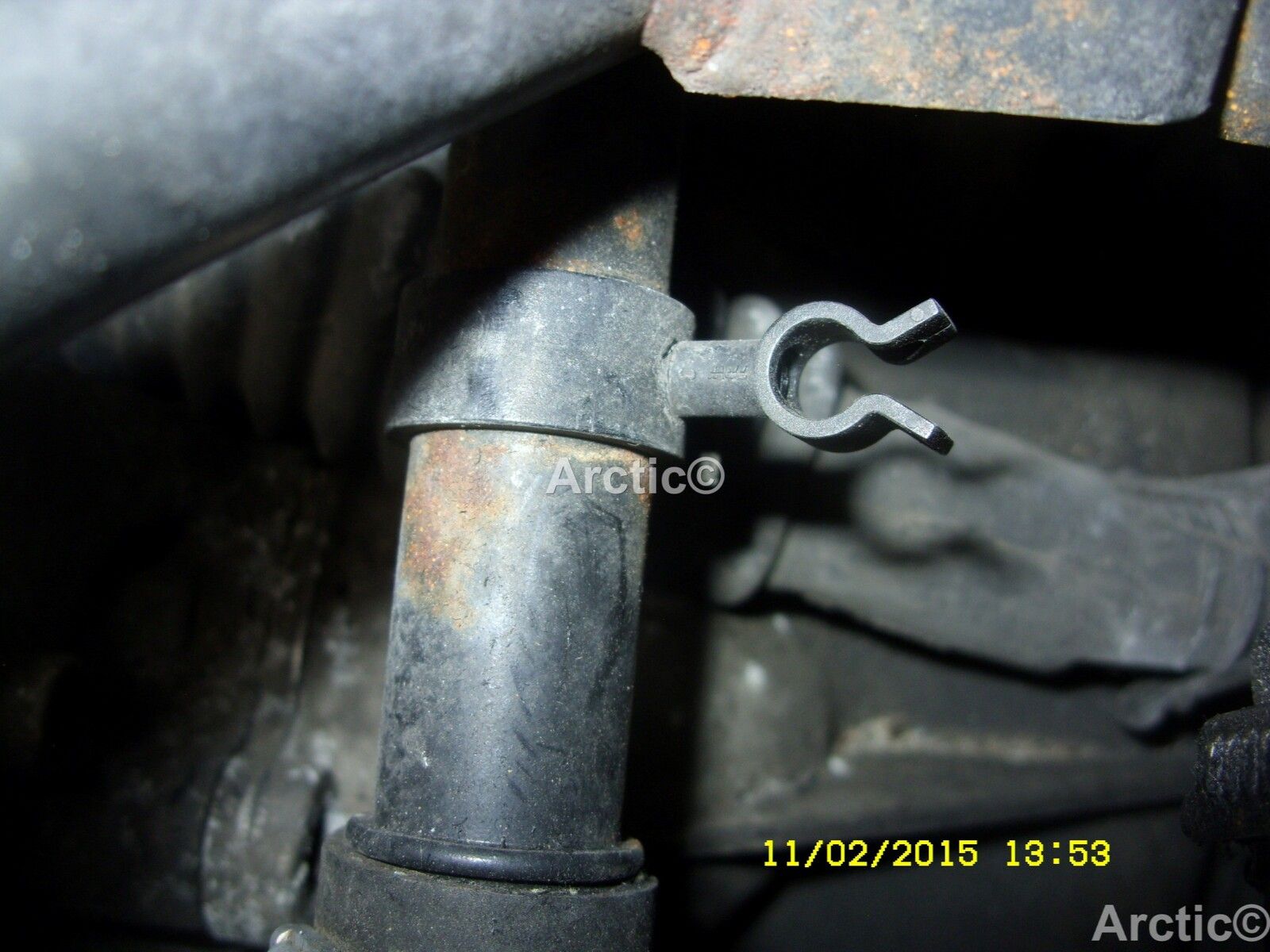

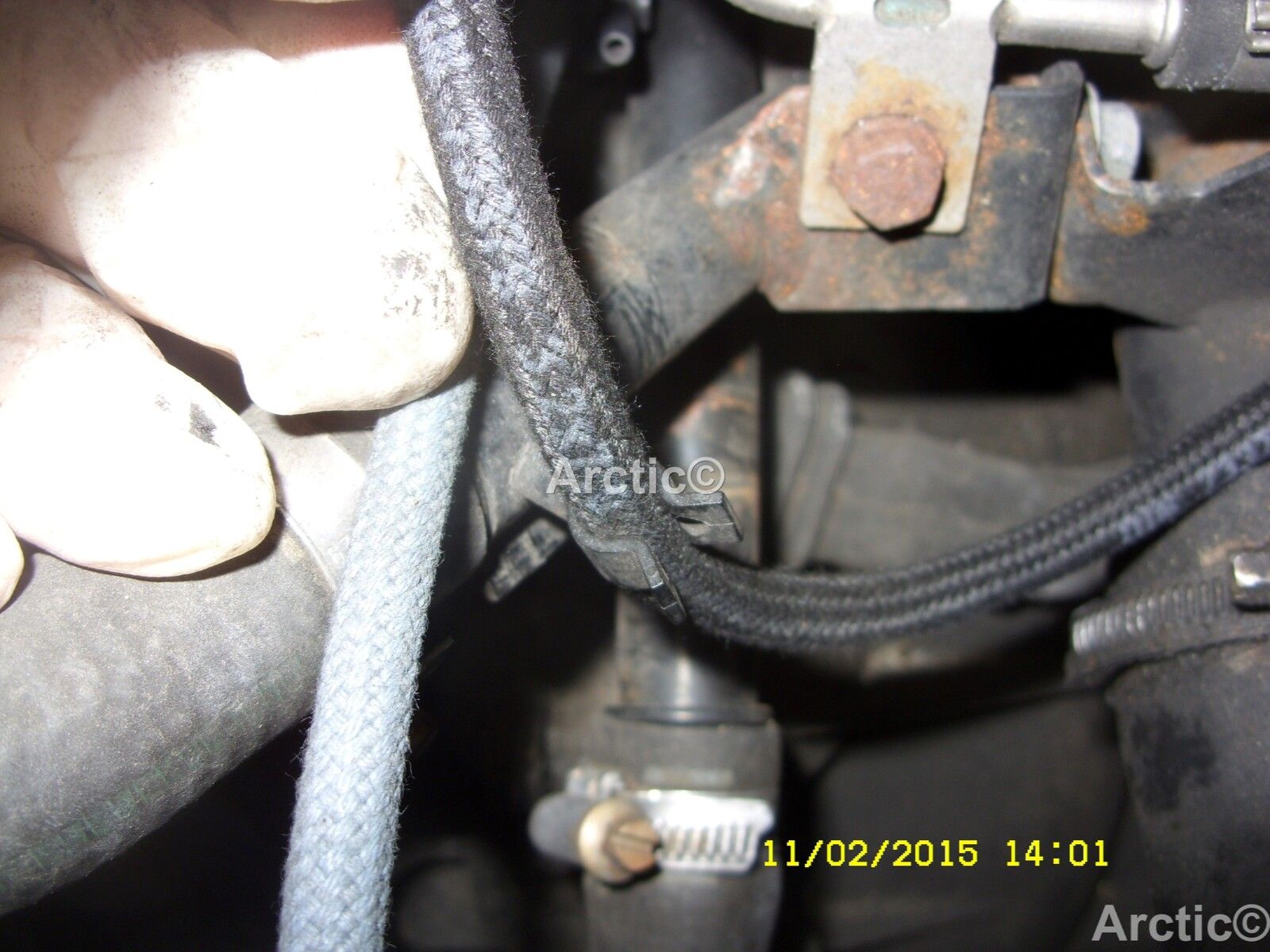

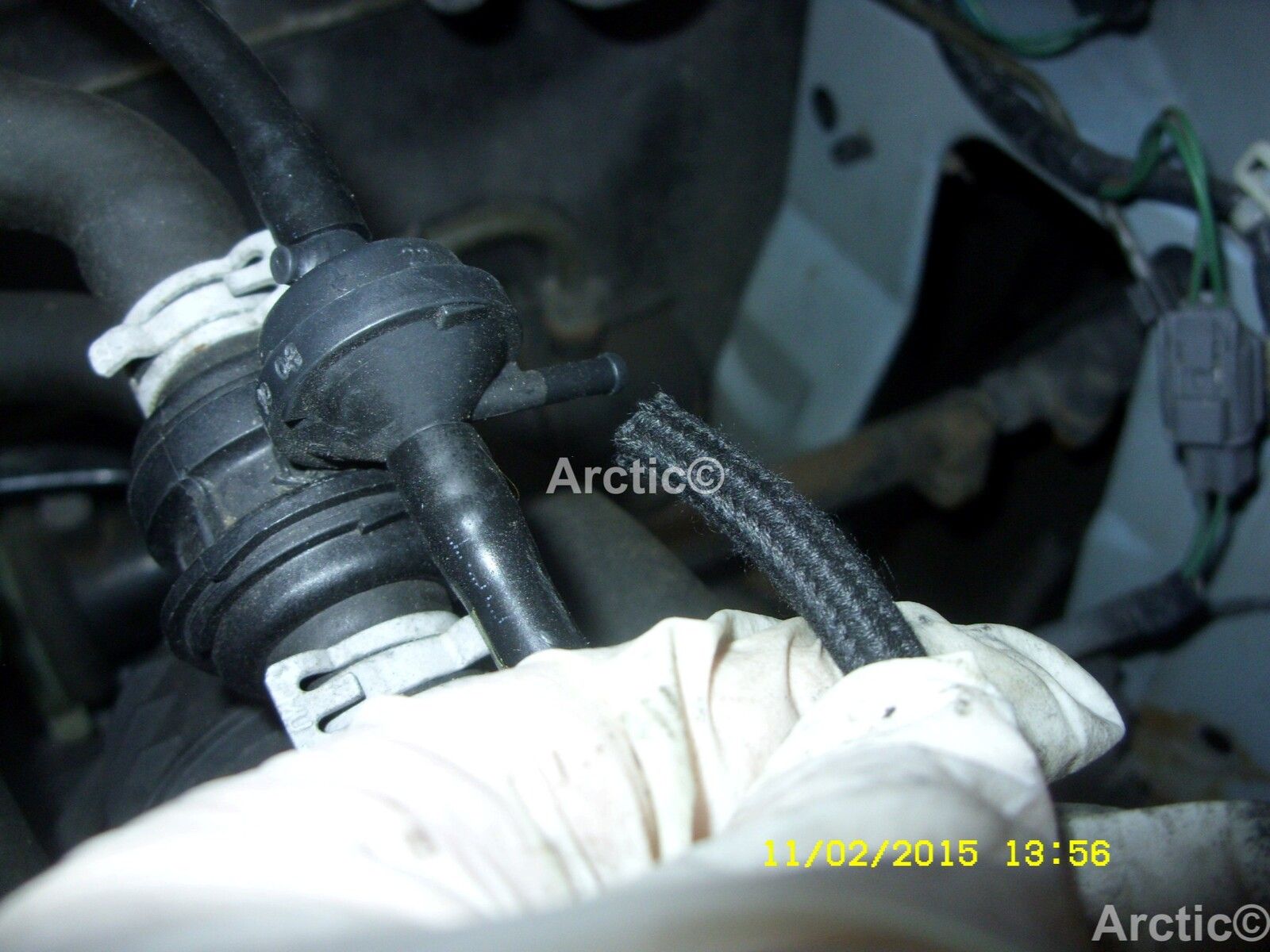

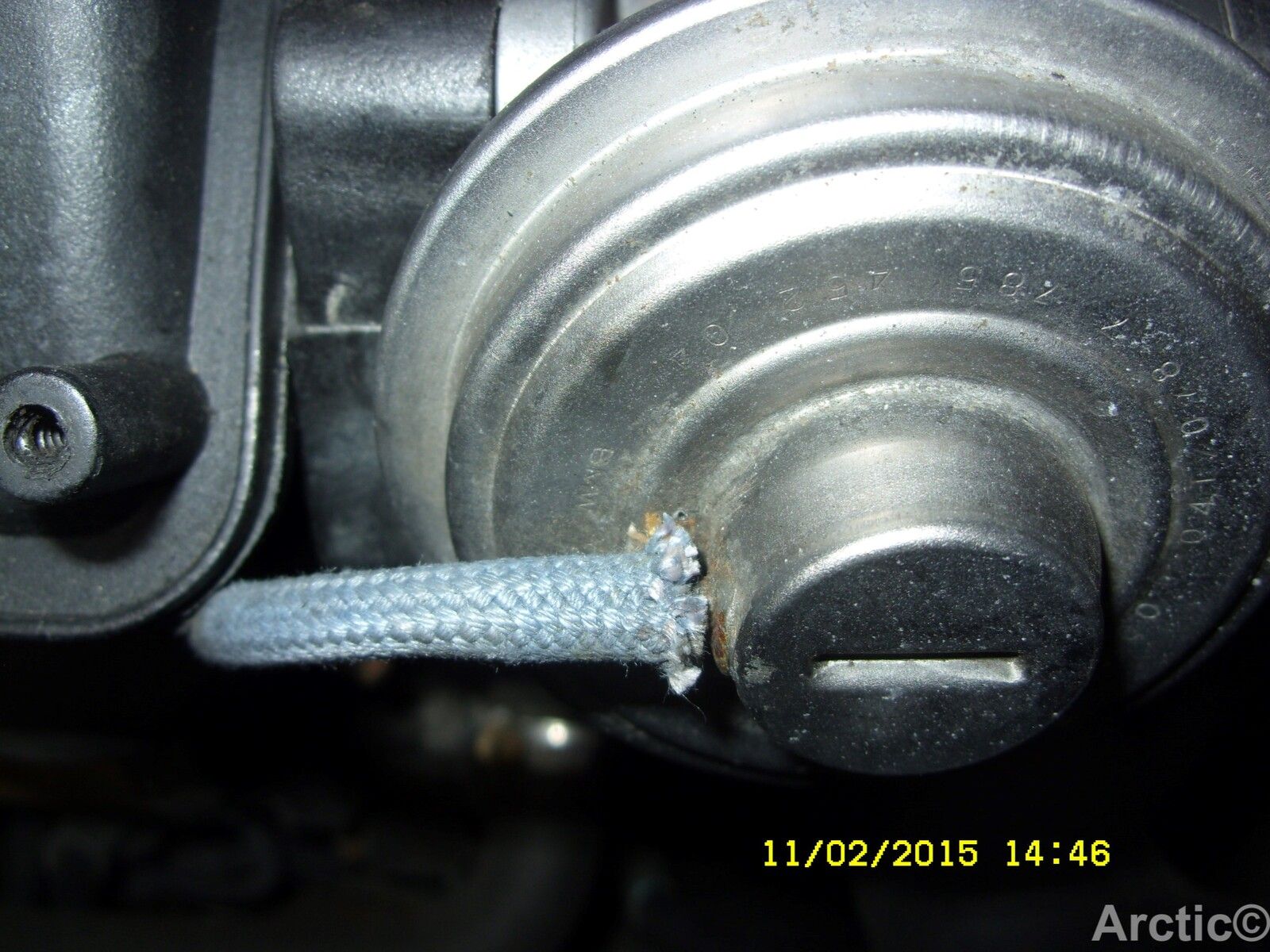

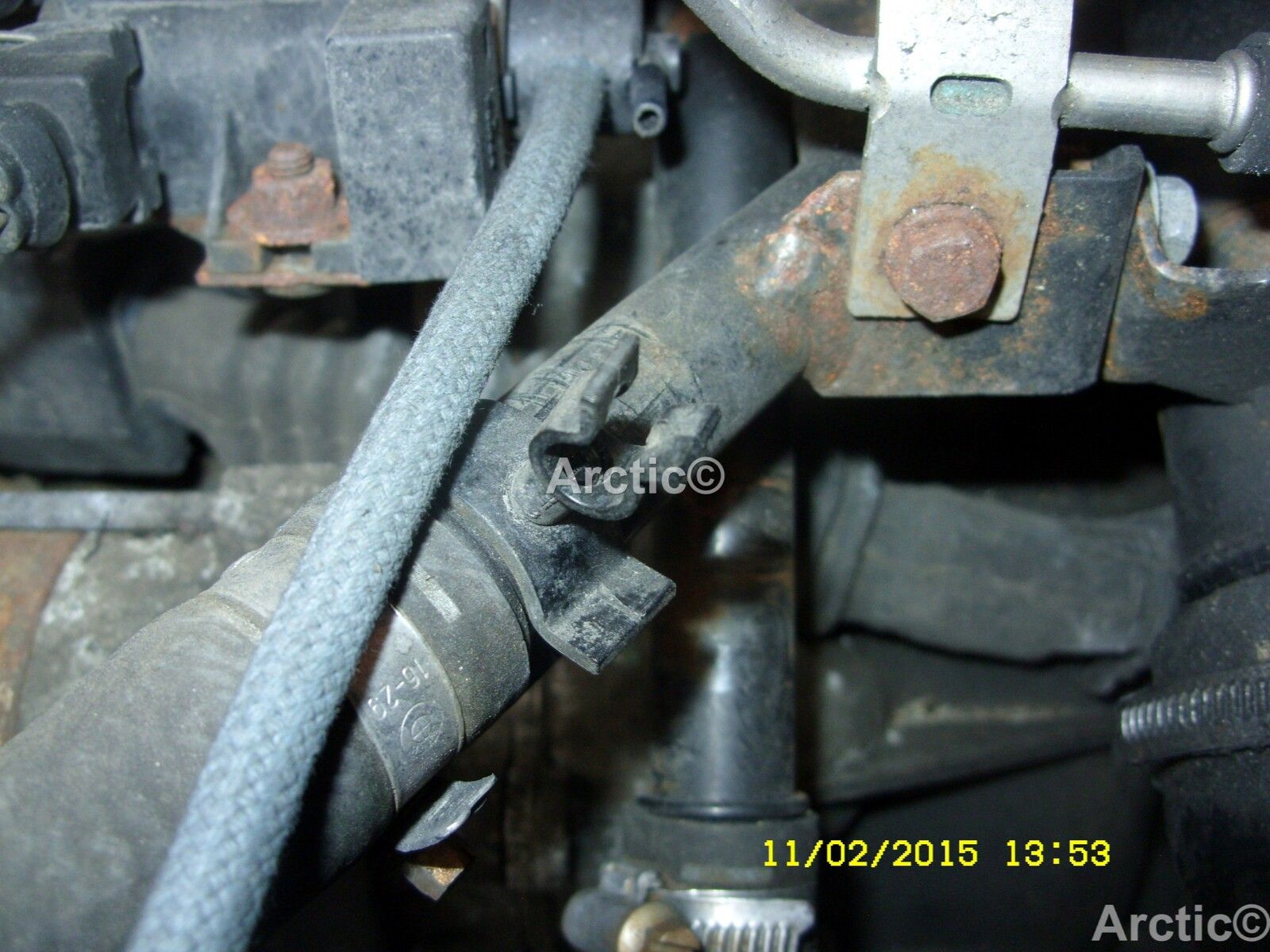

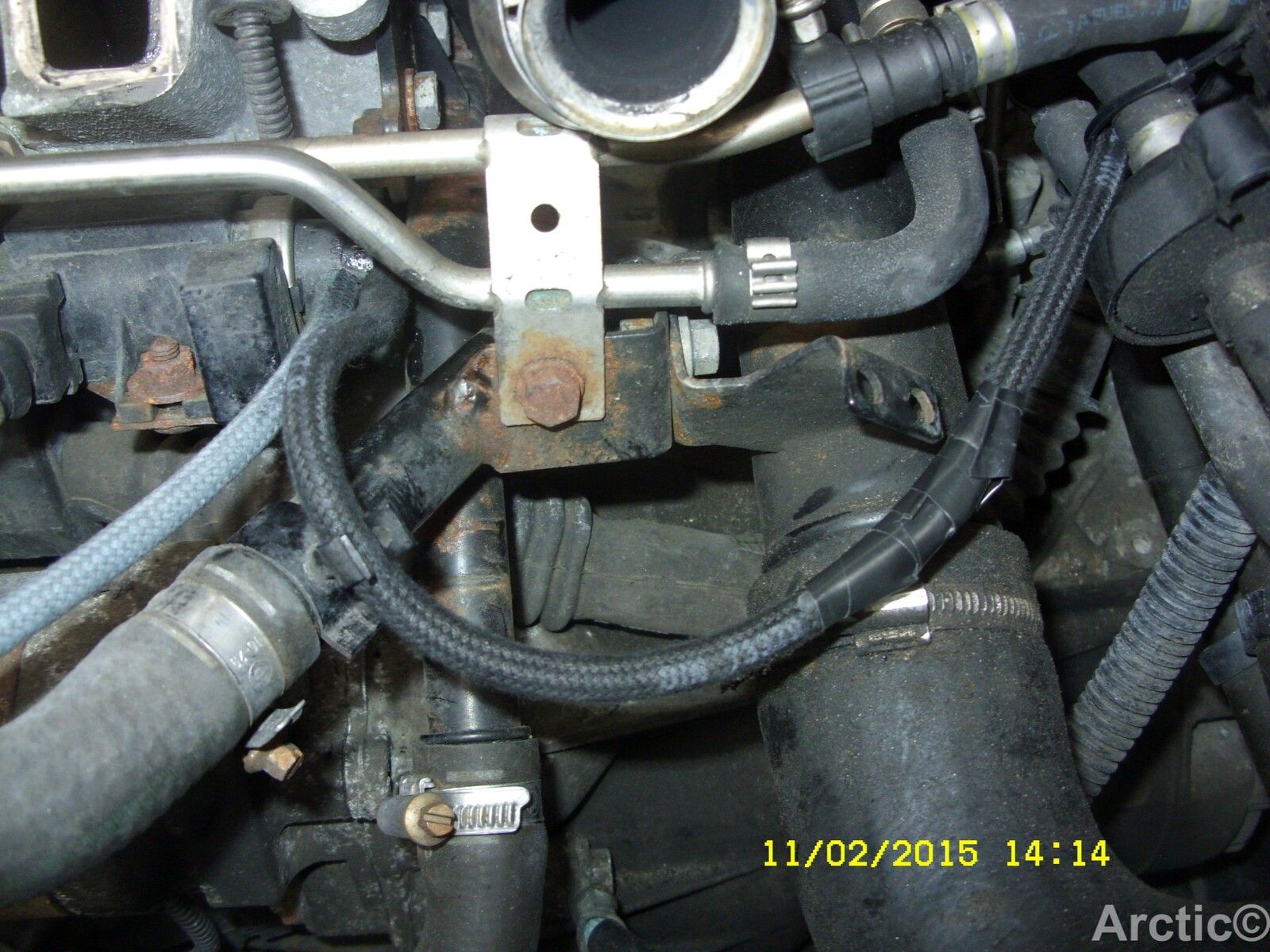

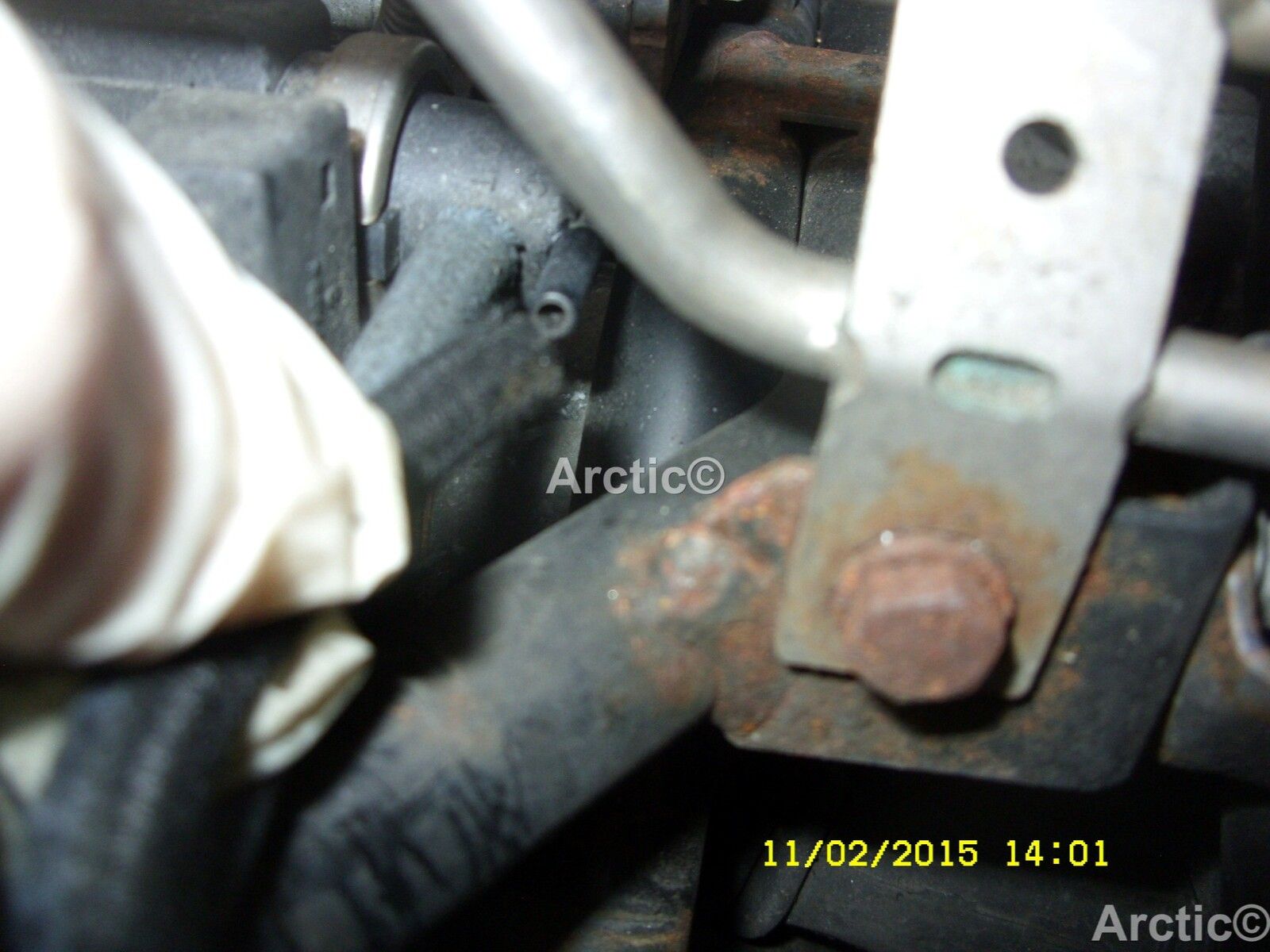

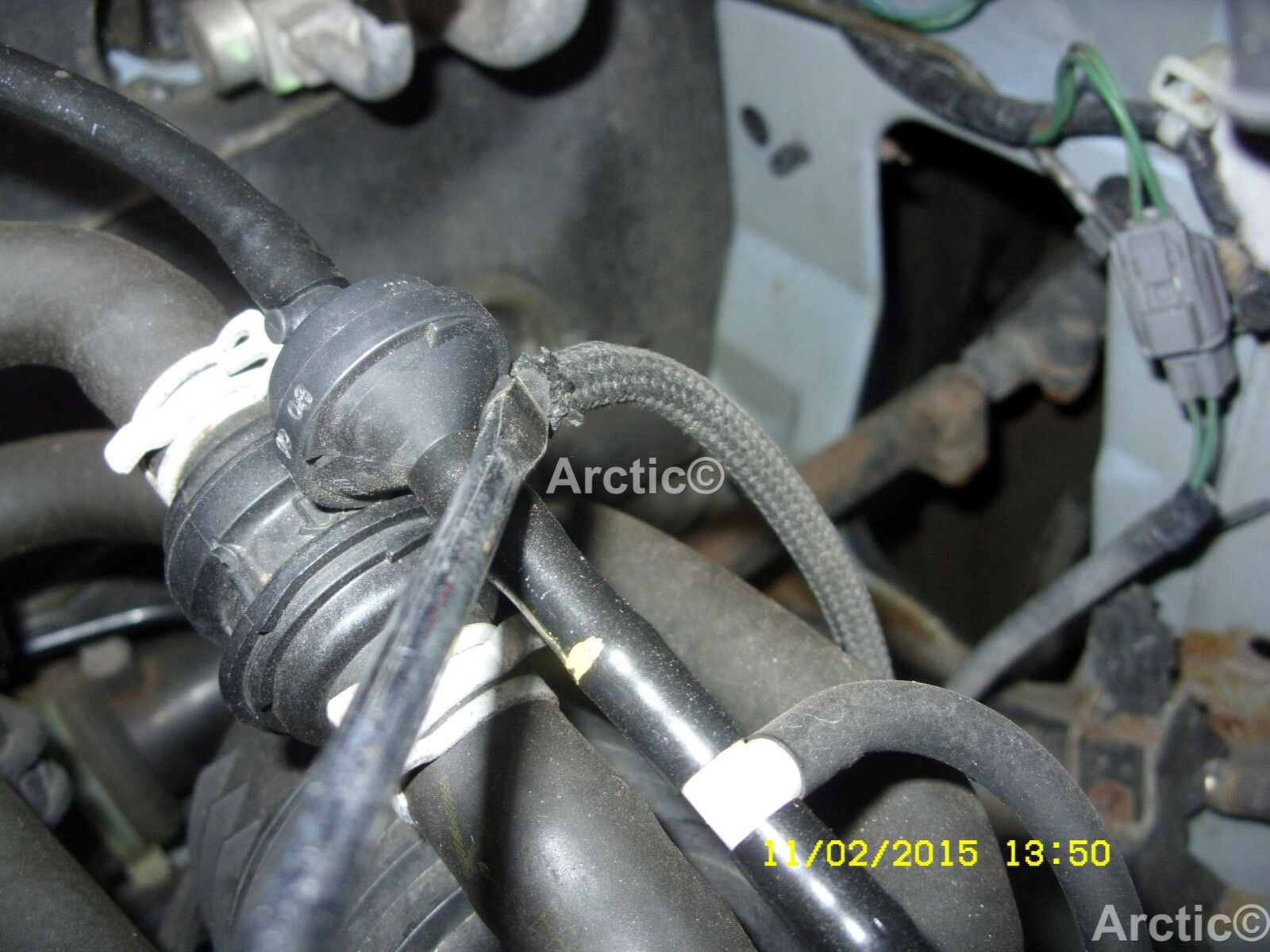

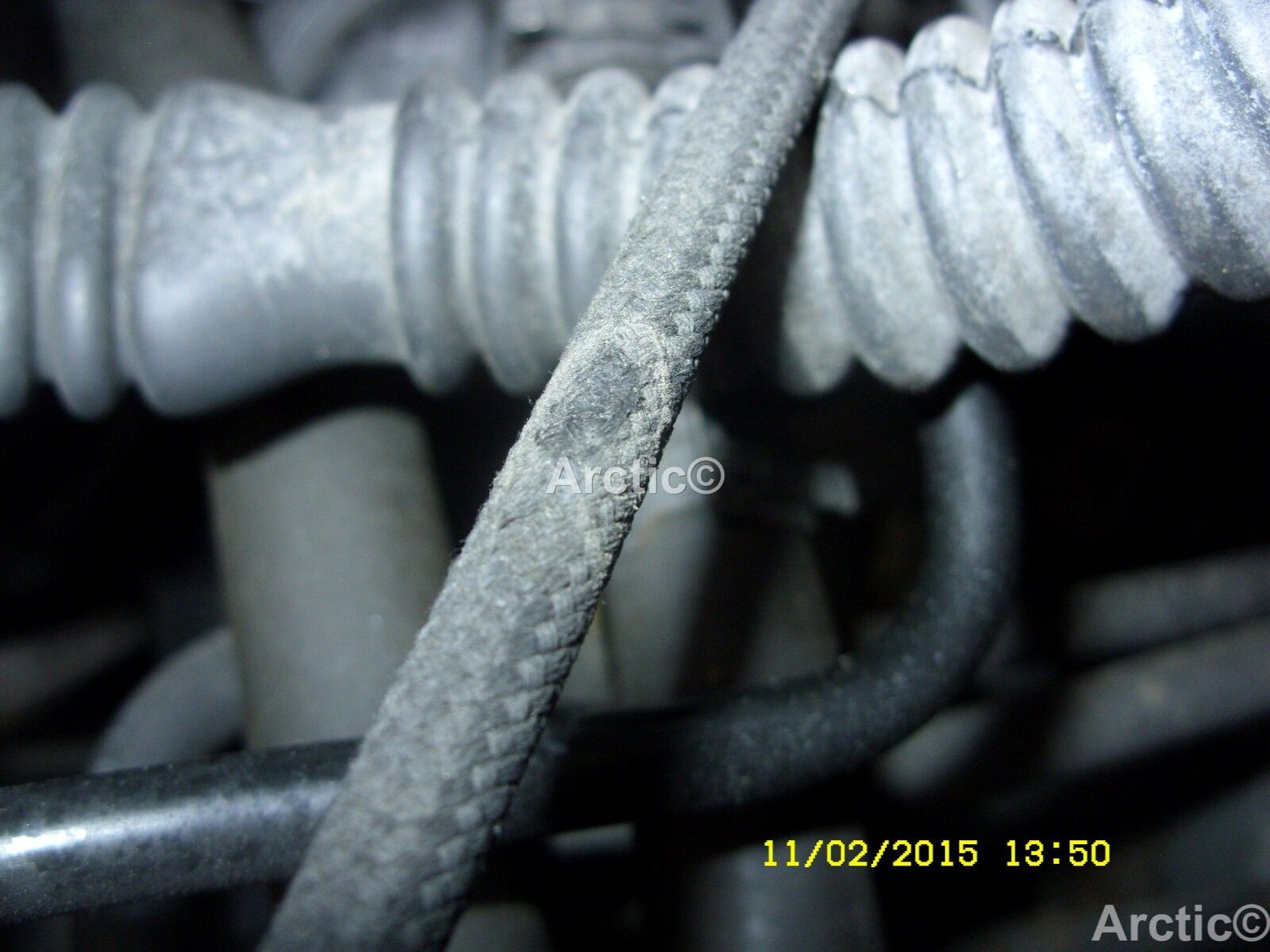

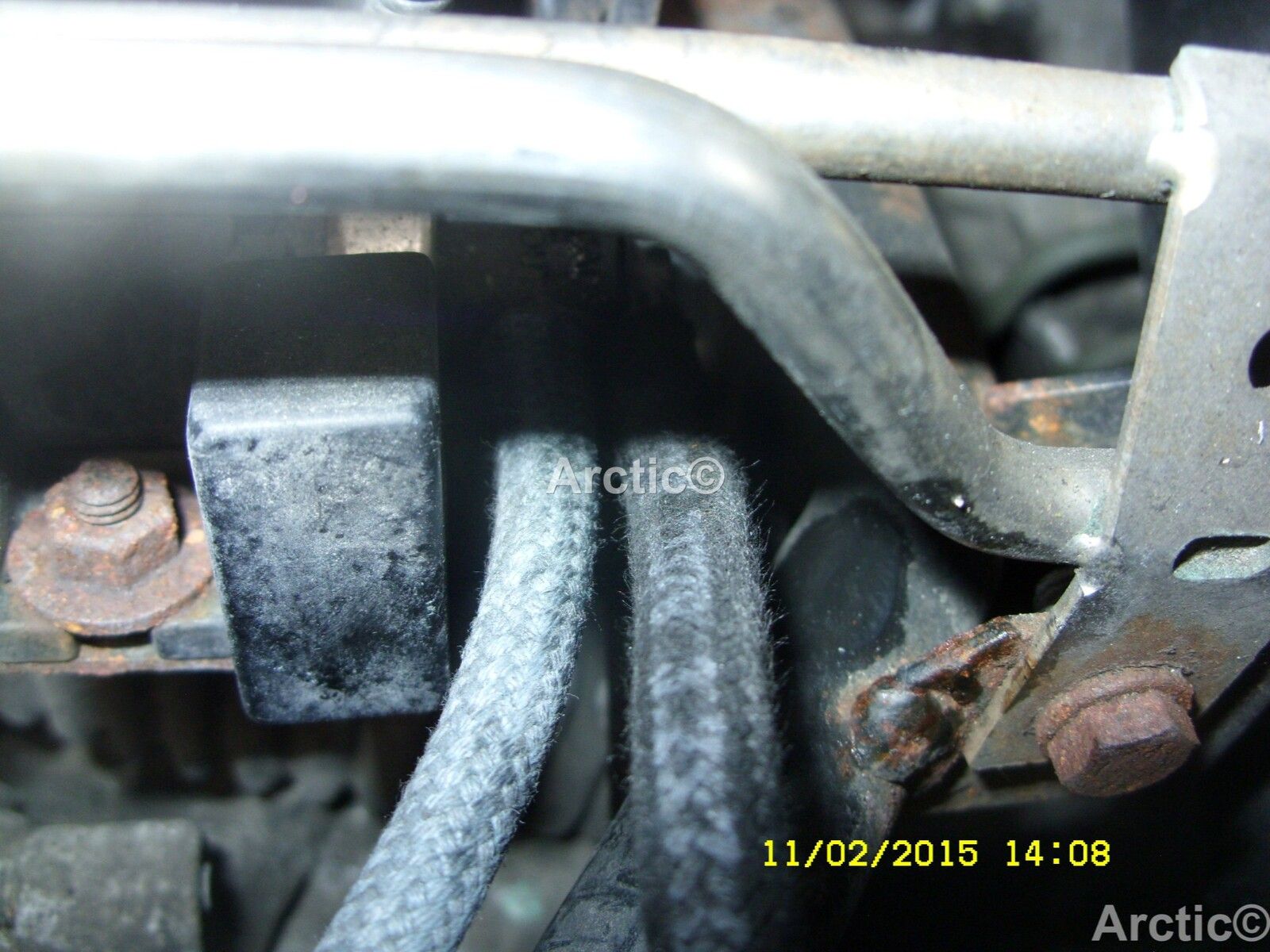

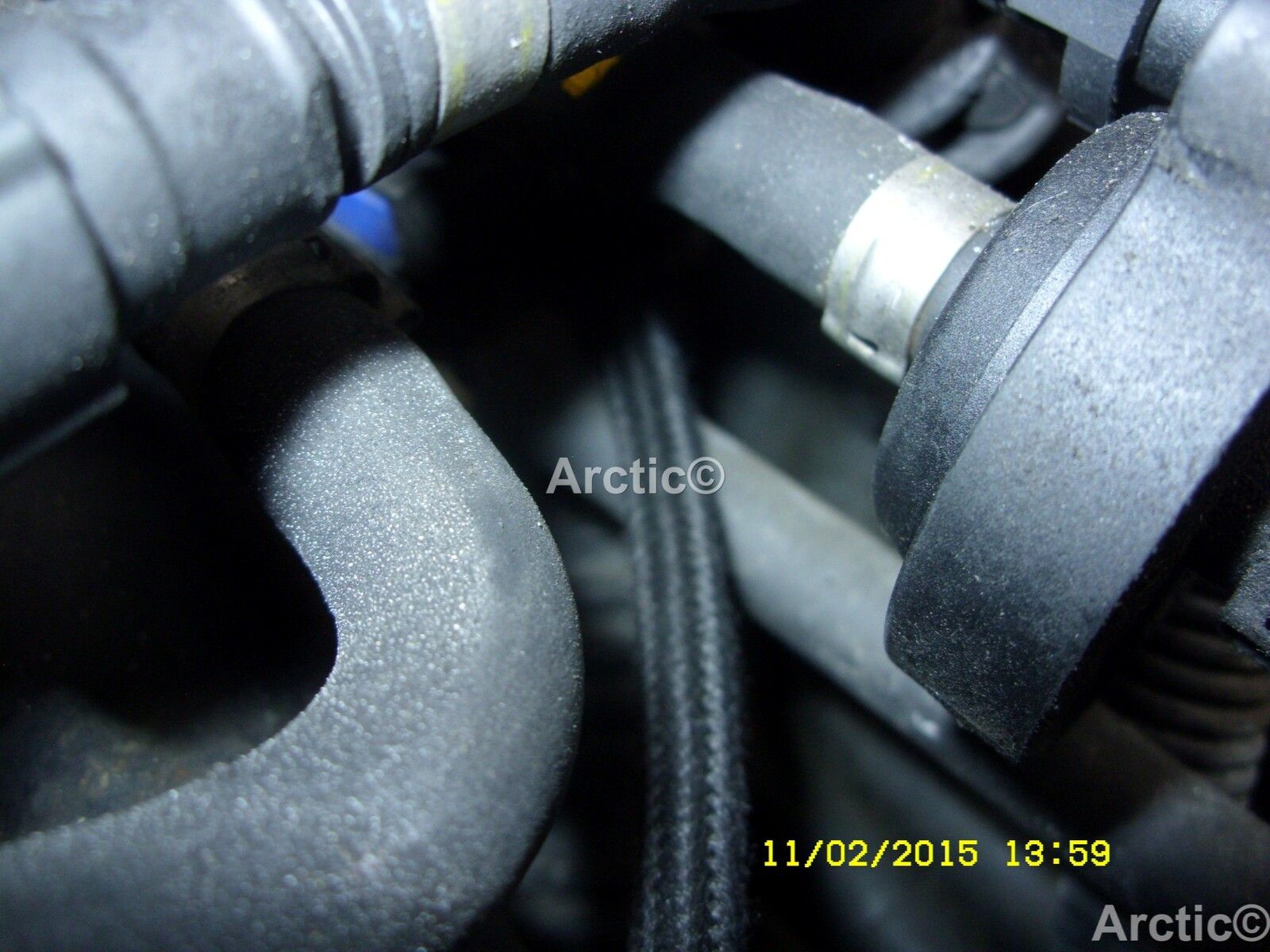

The vacuum hose come from the EGR to the EGR solenoid then from there to a one way valve, sometime the hose can get chaffed and this results in an hole in the hose, therefore needs to be replaced below are photo of the hose from the EGR solenoid tracking back to the valve.

Jasonskn · Aug 16, 2018

Hi thanks for reply’s it’s 2000 td4 will take pic

Nodge68 · Aug 16, 2018

Lack of servo vacuum would give less brake pedal travel, not more. The pedal will always go down further when the servo is boosting, as that's it working.
If your pedal is dropping a long way, then you're best bet is to check the rear brakes for serviceability and adjustment.

Jasonskn · Aug 16, 2018

Thank you I stripped the rear brakes as the mot tester said it’s aticking on near side . Stripped it and the adjuster was solid not letting the shoes go back in just stuck against the drum thanks for your help

Jasonskn · Aug 17, 2018

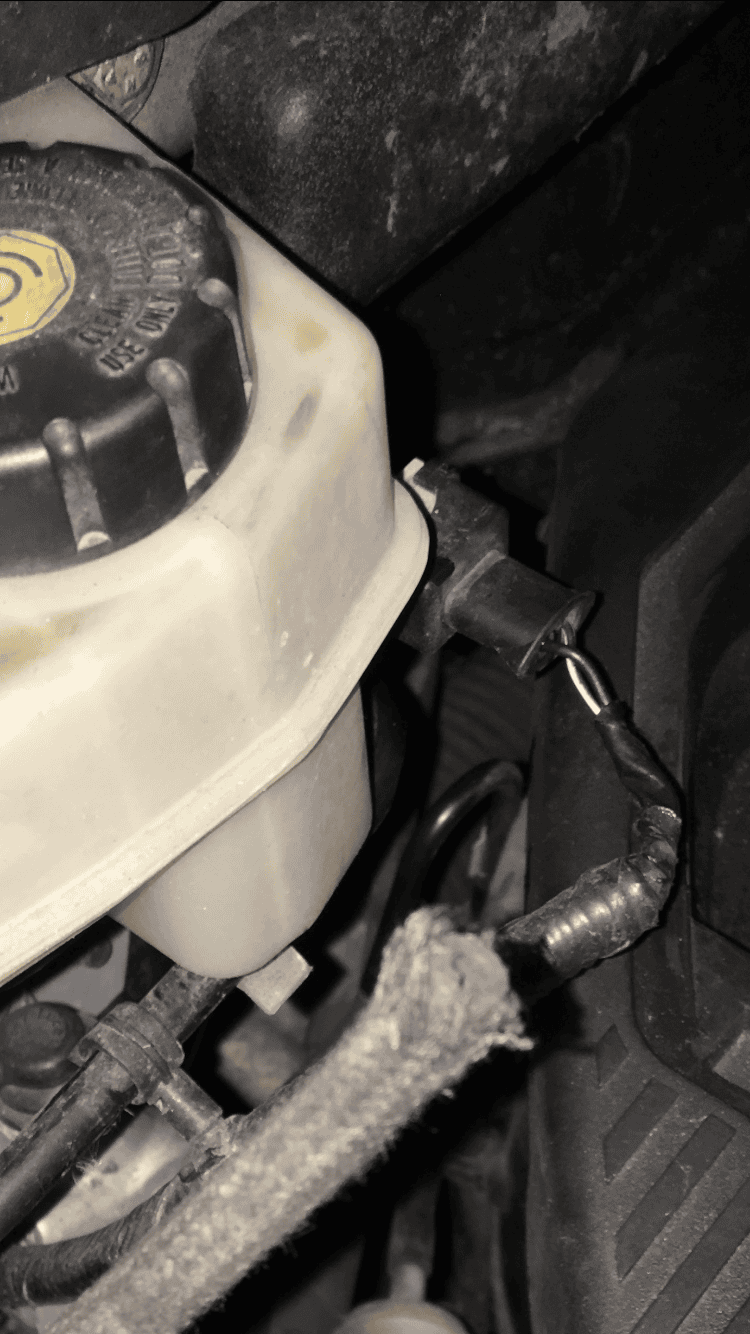

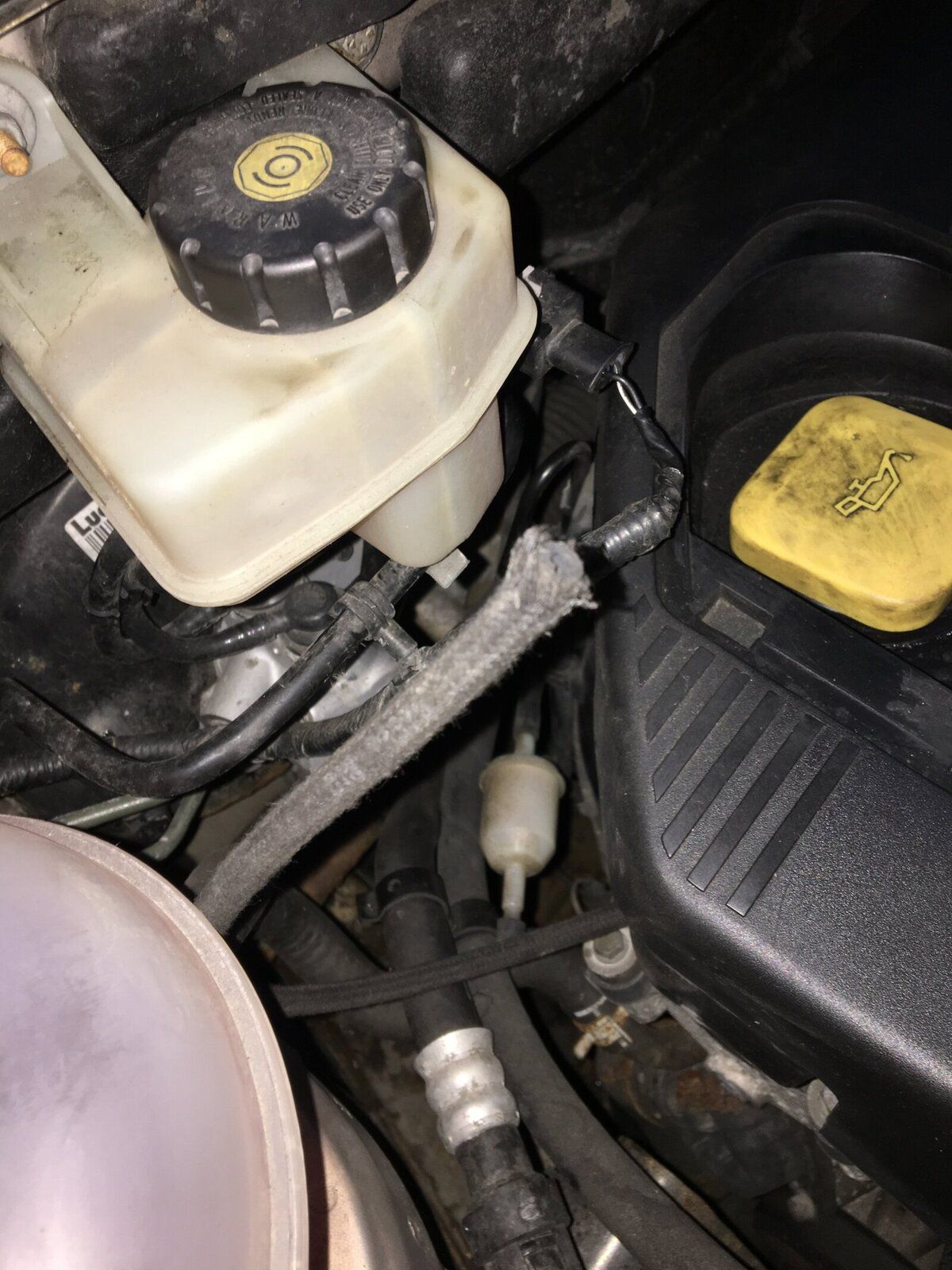

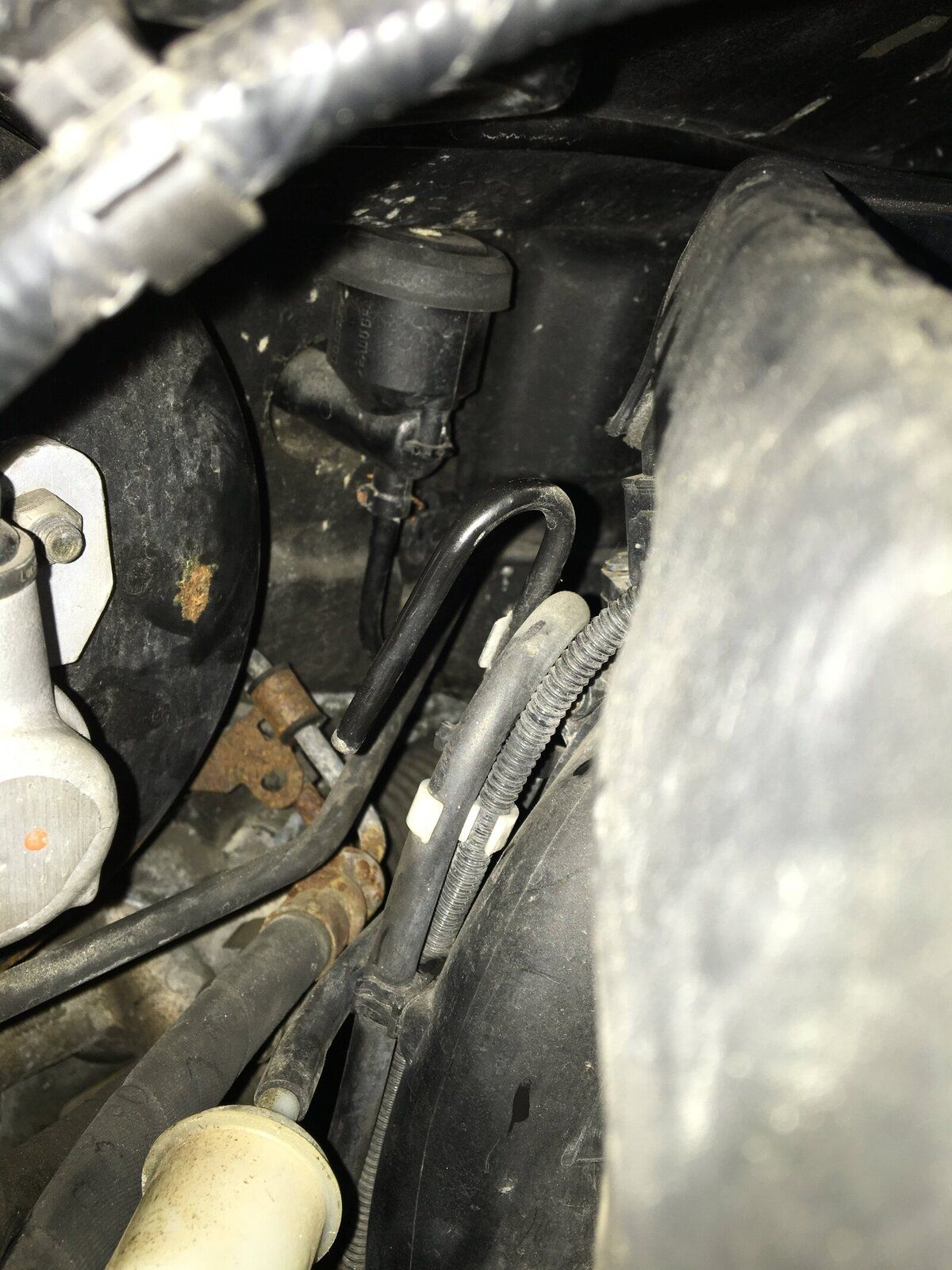

Can somebody please tell me what this metal pipe is and where this vacuum hose goes it come from the back of black turbo vacuum box

Madmustang · Aug 17, 2018

Jasonskn said:
View attachment 155925 Can somebody please tell me what this metal pipe is and where this vacuum hose goes it come from the back of black turbo vacuum box View attachment 155924 View attachment 155925

I believe the metal pipe is the IRD breather pipe and the other is the Turbo Breather pipe with filter attached

Jasonskn · Aug 17, 2018

Madmustang said:
I believe the metal pipe is the IRD breather pipe and the other is the Turbo Breather pipe with filter attached

Thank you I meant this rubber braided vacuum pipe thanks j

Nodge68 · Aug 18, 2018

Jasonskn said:
View attachment 155925 Can somebody please tell me what this metal pipe is and where this vacuum hose goes it come from the back of black turbo vacuum box View attachment 155924 View attachment 155925

The turbo filter looks to have a pipe on both ends, which isn't correct.

Jasonskn said:
Thank you I meant this rubber braided vacuum pipe thanks j

No idea where that braided pipe goes as I don't recognise it as from a TD4.
