Freelander 1 V6 cold idle

This site contains affiliate links for which LandyZone may be compensated if you make a purchase.
T

Tim Baldwin

New Member
Posts
9
Please can somebody tell me for certain where the angled vac pipe goes to and what it does? Thanks

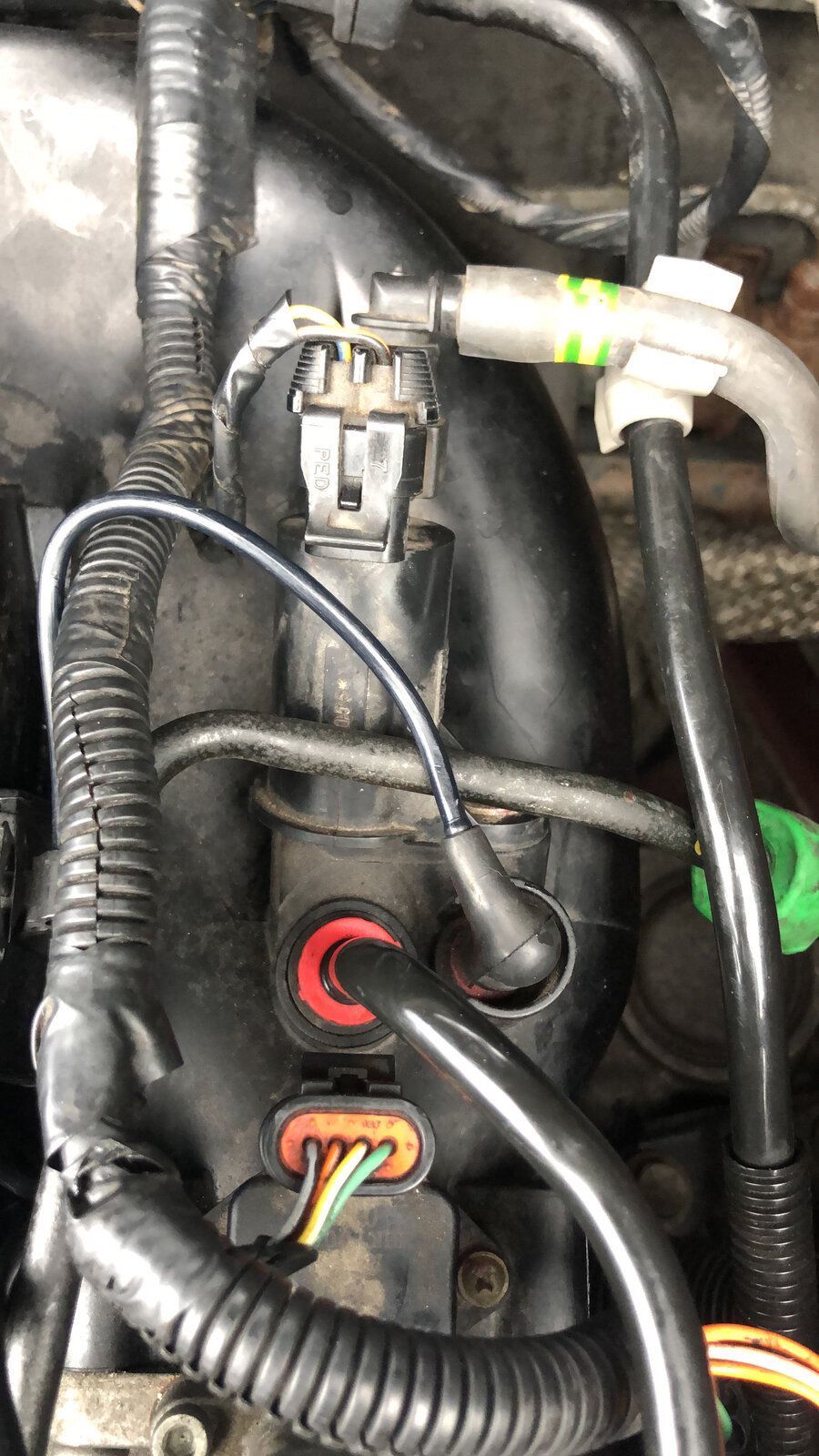

Which pipe are you referring to? There are two pipes that are at manifold depression in that picture.

Tim Baldwin said:
Hi thanks for your help it the thin pipe leading to 11 o’clock in the picture
Click to expand...

That's the clean air supply to the air assisted injectors. It was used on that engine until some time in 2002, when the later none air assisted injectors were fitted. This happened at the same time the Bremi coils were replaced with Bosch pencil coils instead.

What's the issue you're after solving?

Nodge68 said:
That's the clean air supply to the air assisted injectors. It was used on that engine until some time in 2002, when the later none air assisted injectors were fitted. This happened at the same time the Bremi coils were replaced with Bosch pencil coils instead.

What's the issue you're after solving?
Click to expand...
I replaced the thermostat and pipes and engine runs fine except no cold idle. When I remove that pipe cold idle is fine but you can hear vacuum taking air in. I may have kinked the pipe but if it’s not meant to pass air it can’t be that. I vacuum tested that pipe and it holds vacuum as though blocked or plugged into a switch.

Tim Baldwin said:
I replaced the thermostat and pipes and engine runs fine except no cold idle. When I remove that pipe cold idle is fine but you can hear vacuum taking air in. I may have kinked the pipe but if it’s not meant to pass air it can’t be that. I vacuum tested that pipe and it holds vacuum as though blocked or plugged into a switch.
Click to expand...
Don’t want to remove intakes again to find the pipe is not kinked after all.

Tim Baldwin said:
I replaced the thermostat and pipes and engine runs fine except no cold idle. When I remove that pipe cold idle is fine but you can hear vacuum taking air in. I may have kinked the pipe but if it’s not meant to pass air it can’t be that. I vacuum tested that pipe and it holds vacuum as though blocked or plugged into a switch.
Click to expand...
It will pass air as that's its job, however I suspect that the idle issue is caused by the IACV, which is the block on top of the throttle butterfly housing. These are known to seize (normally in the closed position), giving no idle, or unstable idle if it's working but sticky.

Tim Baldwin said:
The pipe is blocked so not passing air where does it plug into and how do I get to it? Thanks
Click to expand...

I lied about where that pipe goes (memory is foggy due to age, and it's been almost a decade since I last worked on a KV6):confused:. It looks like it goes to the pressure regulator on the rear fuel rail. So unplugging it could alter the fuel pressure. It'll also allow extra air into to the inlet manifold.
