urgent disco 2 v8 year 2000
- Thread starter guinness
- Start date
This site contains affiliate links for which LandyZone may be compensated if you make a purchase.
- Posts
- 83,310
- Location
- Embasinga stocæ
clutchdust
Well-Known Member
- Posts
- 1,335
- Location
- south wales

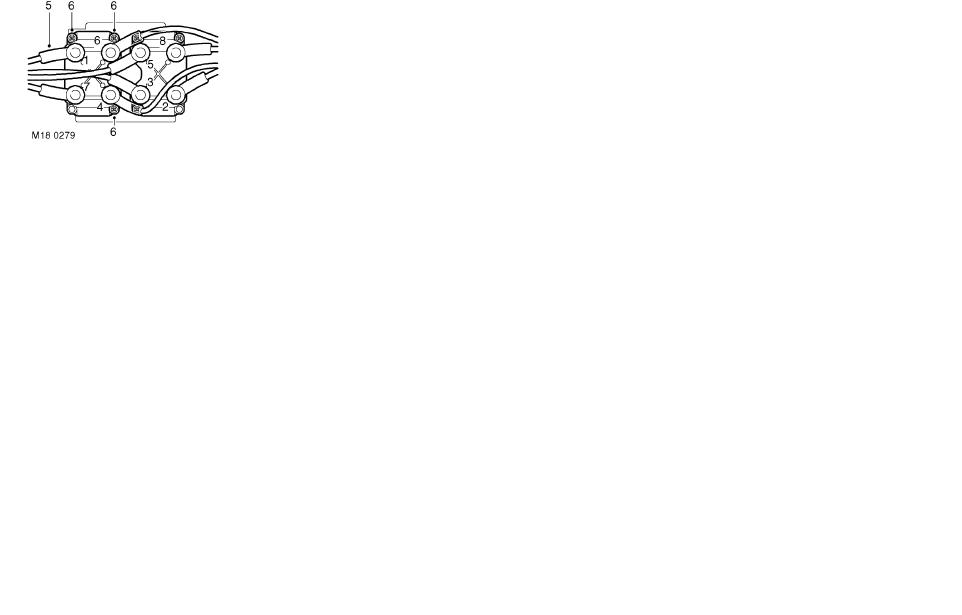

look at the coils, the towers are numbered, difficult to see though
clutchdust
Well-Known Member
- Posts
- 1,335
- Location
- south wales
ho hum floppy, he wants to know the HT lead order!!!!!!!!!!
- Posts
- 83,310
- Location
- Embasinga stocæ
thats wot i wundered - but he said off the coils!
clutchdust
Well-Known Member
- Posts
- 1,335
- Location
- south wales
clutchdust
Well-Known Member
- Posts
- 1,335
- Location
- south wales
I think they've taken the ht leads off the coils and don't know what order they go
- Posts
- 83,310
- Location
- Embasinga stocæ
so explain to me how yu get 8 leads off of 2 coils then - when yu only got two ht leads?
clutchdust
Well-Known Member
- Posts
- 1,335
- Location
- south wales
look at the pic in my other post further up the page, there's two coils and they have four towers on each, it's a wasted spark distrubutorless system
yella
New Member
- Posts
- 15,991
are we talking coils here or coil packs. coils only have 1 ht terminal to feed the distributer whereas coil packs are sort of coil and distributor all rolled into one, i think a clearer explaination is needed
clutchdust
Well-Known Member
- Posts
- 1,335
- Location
- south wales
clutchdust
Well-Known Member
- Posts
- 1,335
- Location
- south wales
are we talking coils here or coil packs. coils only have 1 ht terminal to feed the distributer whereas coil packs are sort of coil and distributor all rolled into one, i think a clearer explaination is needed
they're coil packs, same ****, different name, the ecu switches them via an earth, the same way a distrubutor would switch a normal coil
- Posts
- 83,310
- Location
- Embasinga stocæ
ah!

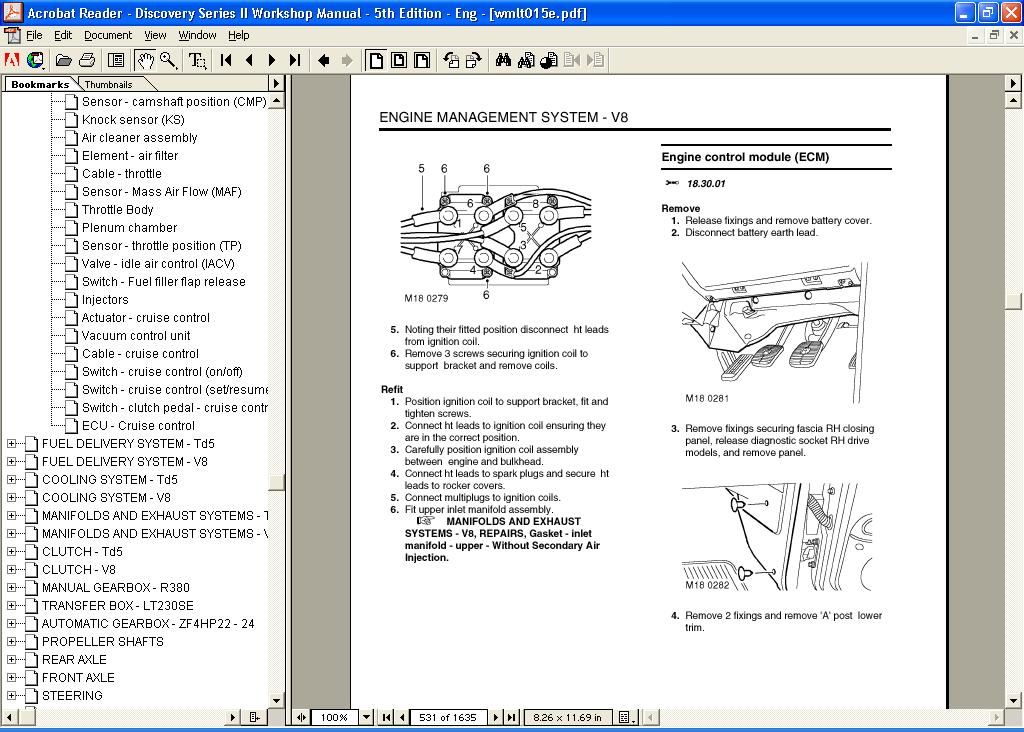

i understumbles here, i think - but the R*** disk only shows as per my fust post - not sprisin i didna understand. I only posted wot it sed!
i understumbles here, i think - but the R*** disk only shows as per my fust post - not sprisin i didna understand. I only posted wot it sed!
clutchdust
Well-Known Member
- Posts
- 1,335
- Location
- south wales
HT leads are not on wiring diagrams
yella
New Member
- Posts
- 15,991
oh clutchy you have seriously let me down, i had you down as an ecpert, a coil pack is nothing like a coil except for the fact that it eventually provides a spark. for one a coil is cylindrical and interchangeable with other cars, a coil pack is unique for the vehicle it is fitted to. c'mon clutchy i hold you in higher esteem than that
- Posts
- 83,310
- Location
- Embasinga stocæ
ok, ok! i sed sorry!
wots the point of avin a R*** disk that dont tell ya!?
or sumone too dim to find it
wots the point of avin a R*** disk that dont tell ya!?
or sumone too dim to find it
clutchdust
Well-Known Member
- Posts
- 1,335
- Location
- south wales
oh clutchy you have seriously let me down, i had you down as an ecpert, a coil pack is nothing like a coil except for the fact that it eventually provides a spark. for one a coil is cylindrical and interchangeable with other cars, a coil pack is unique for the vehicle it is fitted to. c'mon clutchy i hold you in higher esteem than that
there's no difference between a coil and a coil pack, yes they look different but they work in EXACTLY the same way as a regular coil, you could even make one work with a conventional distributor if you want, they have 2 or more towers as opposed to one and 2 towers fire at the same time (wasted spark system)
Look at the coils on a freelander 1.8, they're double ended but both fire at the same time, its just one coil with 2 or more outlets.
yella
New Member
- Posts
- 15,991
so if they have four towers on each then the ht leads come direct off there to the plugs thus eraddicating the need for a distributor
clutchdust
Well-Known Member
- Posts
- 1,335
- Location
- south wales
yes, the leads come off the coils, straight to the plugs, they are triggered by the ecu instead of a distributor, they are triggered the same way a distributor triggers a conventional coil, i.e remove the earth to collapse the magnetic field and generate HT voltage.
The ecu determines engine position via the crank and cam sensors and can therefore adjust ignition timing depending on load, speed etc
yella
New Member
- Posts
- 15,991
ah well if the post had been written properly and said coil packs, then we wouldnt be having this discussion
