Sorry if this has been asked before but I couldn't find anything suitable, does anyone have pics of gearbox and engine covers fitted I hot some but cannot find anywhere that looks like it can attach to, I also don't have rave, I've tried but not sure on the problem why it won't load and Aldo a lot of PC problems lately

You really need to give us more clues

The undertray on my Quad is bigger than the undertray on my XT

J

P38 2.5 diesel

Blobthebuilder said:

Sorry if this has been asked before but I couldn't find anything suitable, does anyone have pics of gearbox and engine covers fitted I hot some but cannot find anywhere that looks like it can attach to, I also don't have rave, I've tried but not sure on the problem why it won't load and Aldo a lot of PC problems lately

Click to expand...

Some diesels never had them so no mouting points. My '95 doesn't.

Bugger lol, o well were there's a will lol

If anyone that has them has or could take a PIC then I know were they go and can go from there

Blobthebuilder said:

If anyone that has them has or could take a PIC then I know were they go and can go from there

Click to expand...

Just seen this I'll take some photos tomorrow as long as the rain stays off.the right hand cover in the first picture fits as i remember with the "wings" bolted to the inner wings try offering it up and you may find the bolt holes,they are attached with 10 mm headed self trappers with large washers.once you have this fitted the rest may be self explanatory.

tomcat59alan said:

Just seen this I'll take some photos tomorrow as long as the rain stays off.the right hand cover in the first picture fits as i remember with the "wings" bolted to the inner wings try offering it up and you may find the bolt holes,they are attached with 10 mm headed self trappers with large washers.once you have this fitted the rest may be self explanatory.

Click to expand...

Ok bud I wasn't 100% sure were the engine 1 sits I slid it above steering parts but I've had son tell me it goes to underside of radiator so need another look

They are for the gearbox the one with wings is the bottom and there should be two sides, I take it you have a manual box and there is also two bits that go round the bell housing
I have mine sitting in the loft from when the roll pins went the first time and I sent it in , couldn't get the top one out and when I got the car back it was not there so in the loft they went.

i was told 1 was engine and other was gearbox and removed from a diesl automatic like mine

Blobthebuilder said:

i was told 1 was engine and other was gearbox and removed from a diesl automatic like mine

Click to expand...

The one with the wings is for the engine don't know about the other,mines a manual sorry.

tomcat59alan said:

The one with the wings is for the engine don't know about the other,mines a manual sorry.

Click to expand...

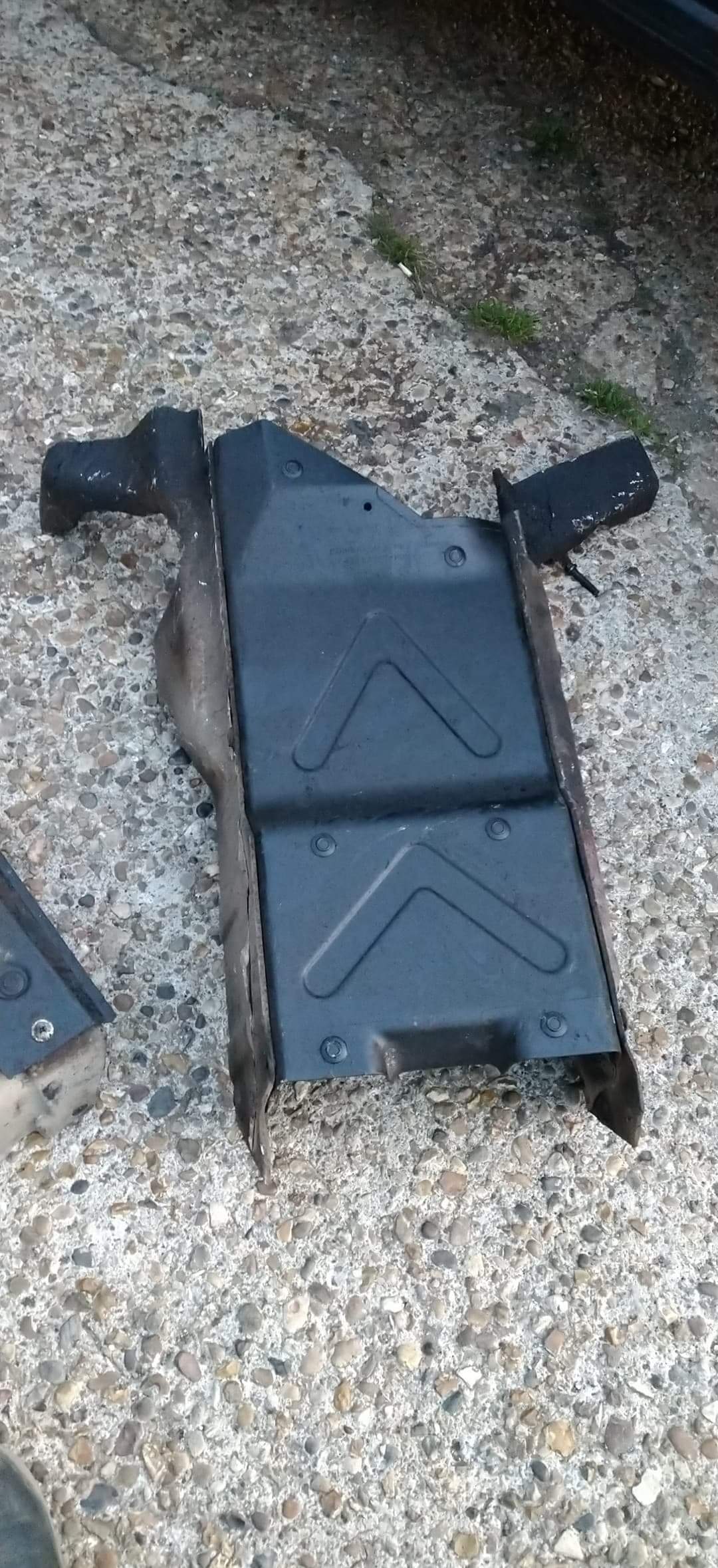

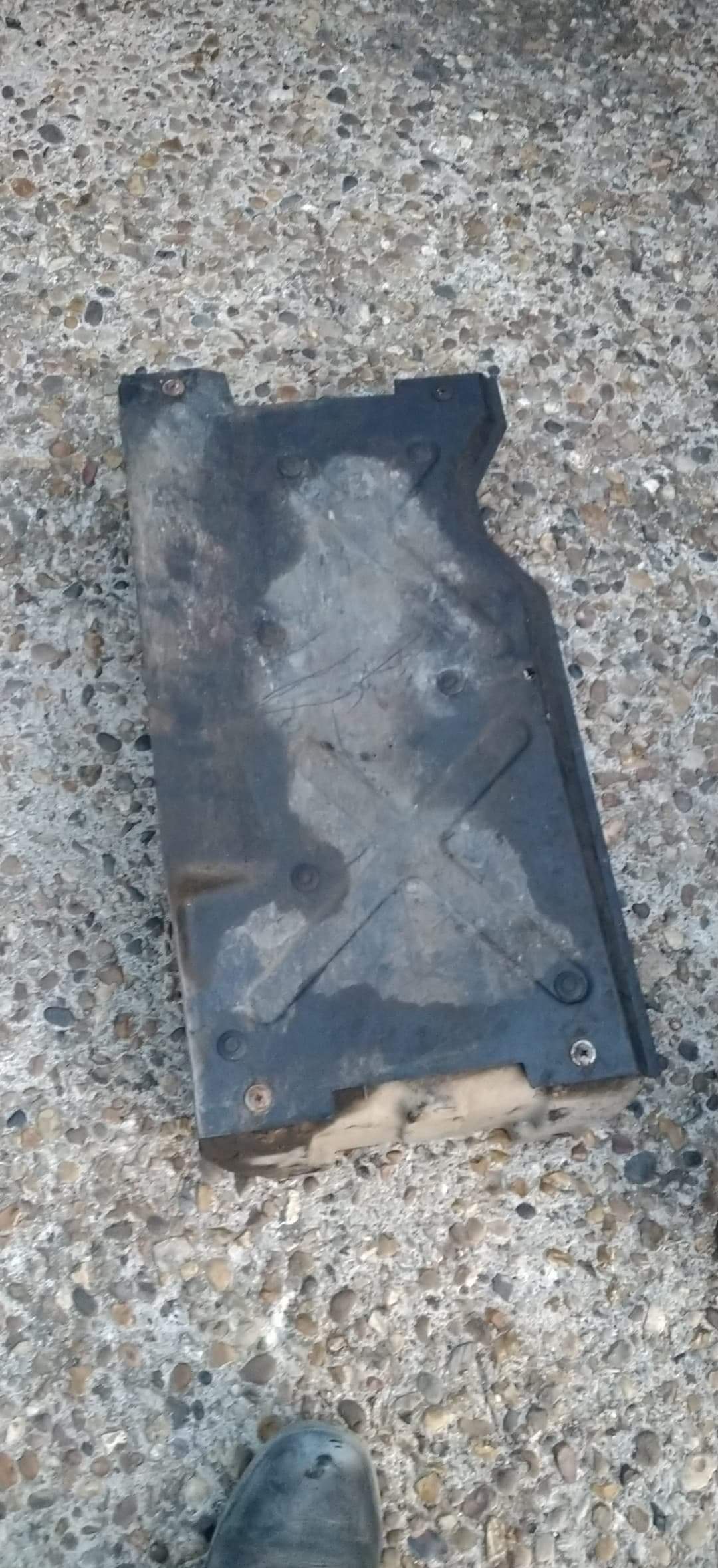

in the first pic the one on right is gearbox bod and 1 on left is engine

[GALLERY=][/GALLERY]

Blobthebuilder said:

in the first pic the one on right is gearbox bod and 1 on left is engine

Click to expand...

Looks very much like my engine tray the one on right.
