Trying to Rebuild 1987 110 C S W

Discussion in 'Members Vehicles/Projects' started by border, Sep 25, 2018.

< Previous Thread | Next Thread >
  1. border

    border Well-Known Member

    Joined:
    Aug 17, 2008
    Posts:
    1,412
    Likes Received:
    190
    Location:
    North East. UK
    OK I've started loads of threads on this so will put them all together.in one.
    As above Trying as I have never done anything like this before but I can HONESTLEY Say that if it was not for this Forum and the people on here giving me help and advice I could not have got this far. so Thanks Very Much.
    Still a very long way to go but I'm enjoying every second of it.
    Anyway here's the start.

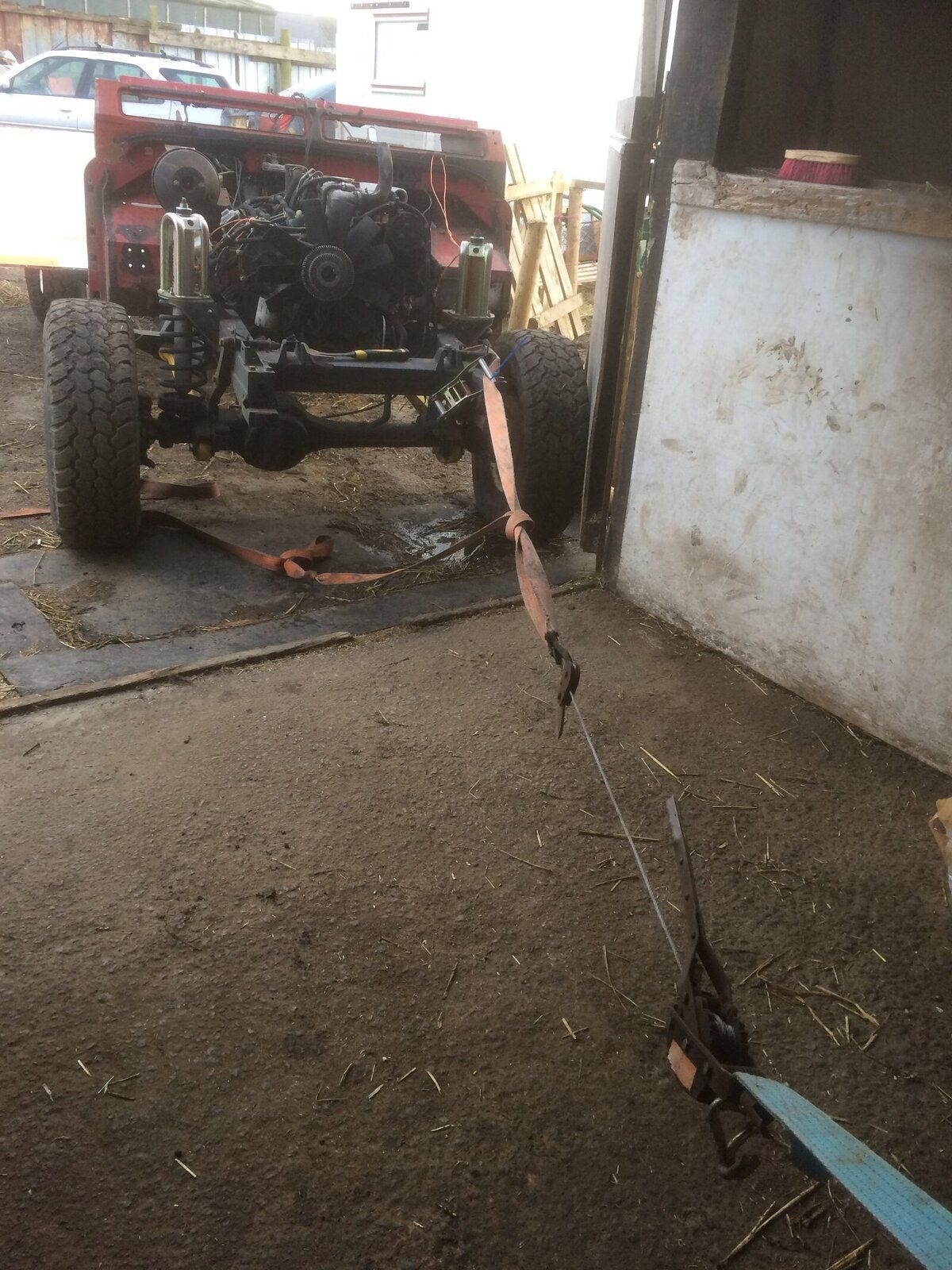

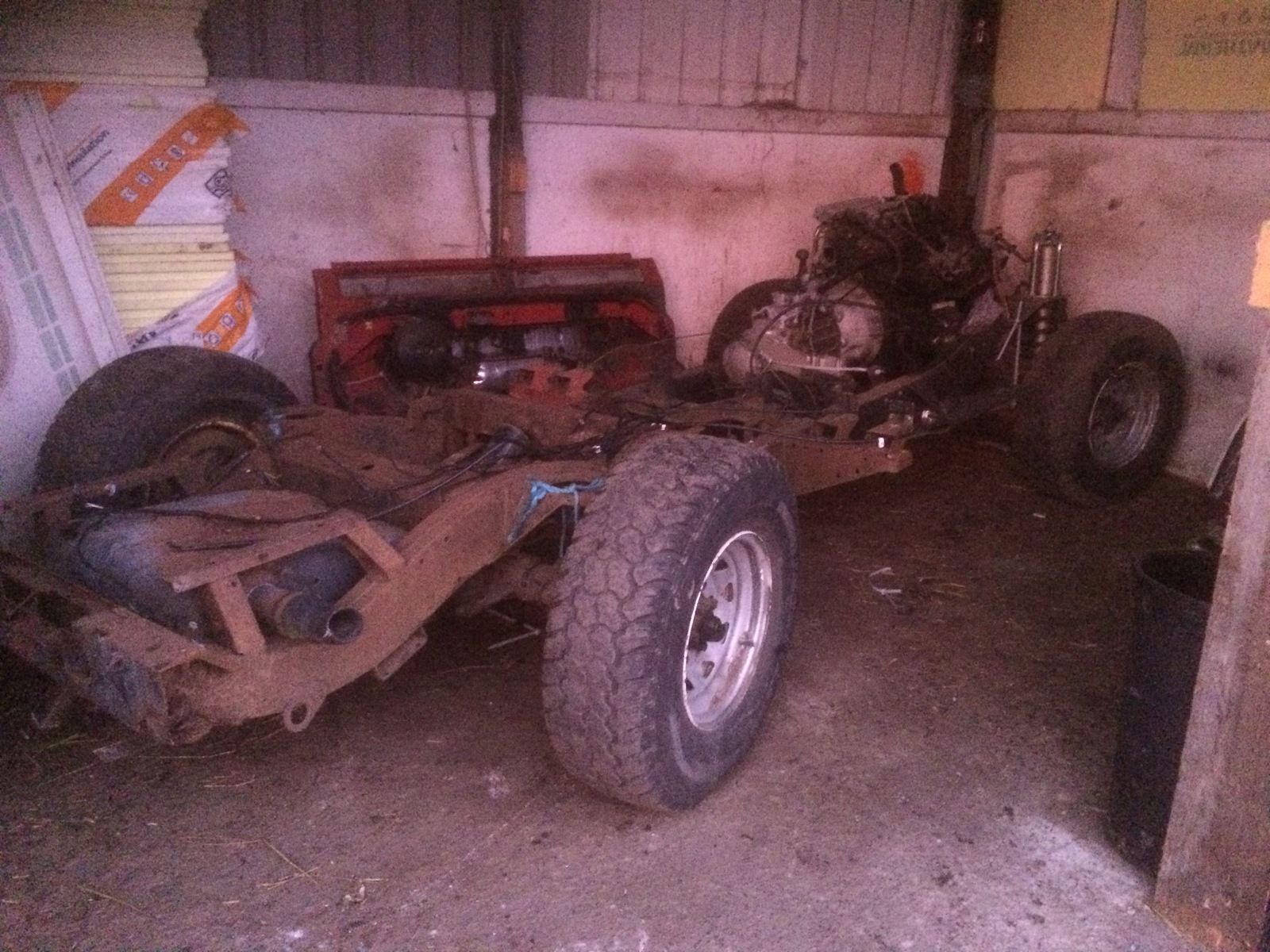

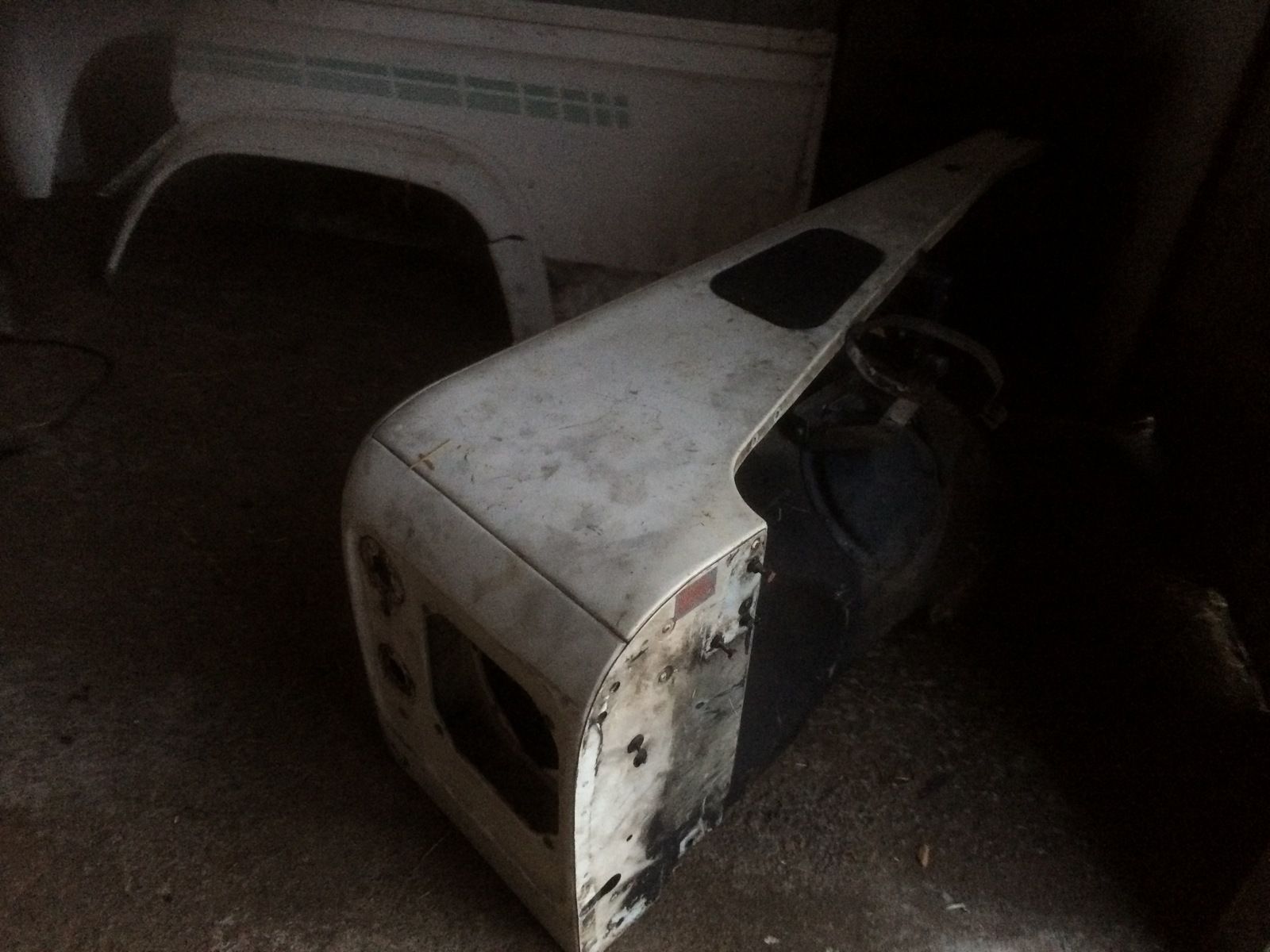

    One of my biggest mistakes was I bought it like this, I really wanted a full one so that I could dismantle it myself so I would have a good idea how things went back together.
    Think I've got maybe 90% of parts to rebuild.
    I'm a bit farther on with it now so will add pics every now and again,


    Attached Files:

    dieseldog69 and kevstar like this.
  2. dieseldog69

    dieseldog69 Well-Known Member LZIR Despatch Agent

    Joined:
    May 21, 2010
    Posts:
    7,216
    Likes Received:
    5,225
    Location:
    Back in the UK, Sunny Hampshire.
    Oooh!

    Challenge and project all in one LOL

    What engine are you putting in it, can't see from your pics and don't want to seem like a stalker ;)

  3. border

    border Well-Known Member

    Joined:
    Aug 17, 2008
    Posts:
    1,412
    Likes Received:
    190
    Location:
    North East. UK
    It came with 300Tdi from Discovery so will keep that.


    Attached Files:

    • r3.JPG
      File size:
      1.6 MB
      Views:
      250
  4. dieseldog69

    dieseldog69 Well-Known Member LZIR Despatch Agent

    Joined:
    May 21, 2010
    Posts:
    7,216
    Likes Received:
    5,225
    Location:
    Back in the UK, Sunny Hampshire.
    Shame :(

    Was hoping for a big throbbing V8 :D

    Added you to my watch list as I like a good nut and bolt rebuild.

  5. border

    border Well-Known Member

    Joined:
    Aug 17, 2008
    Posts:
    1,412
    Likes Received:
    190
    Location:
    North East. UK

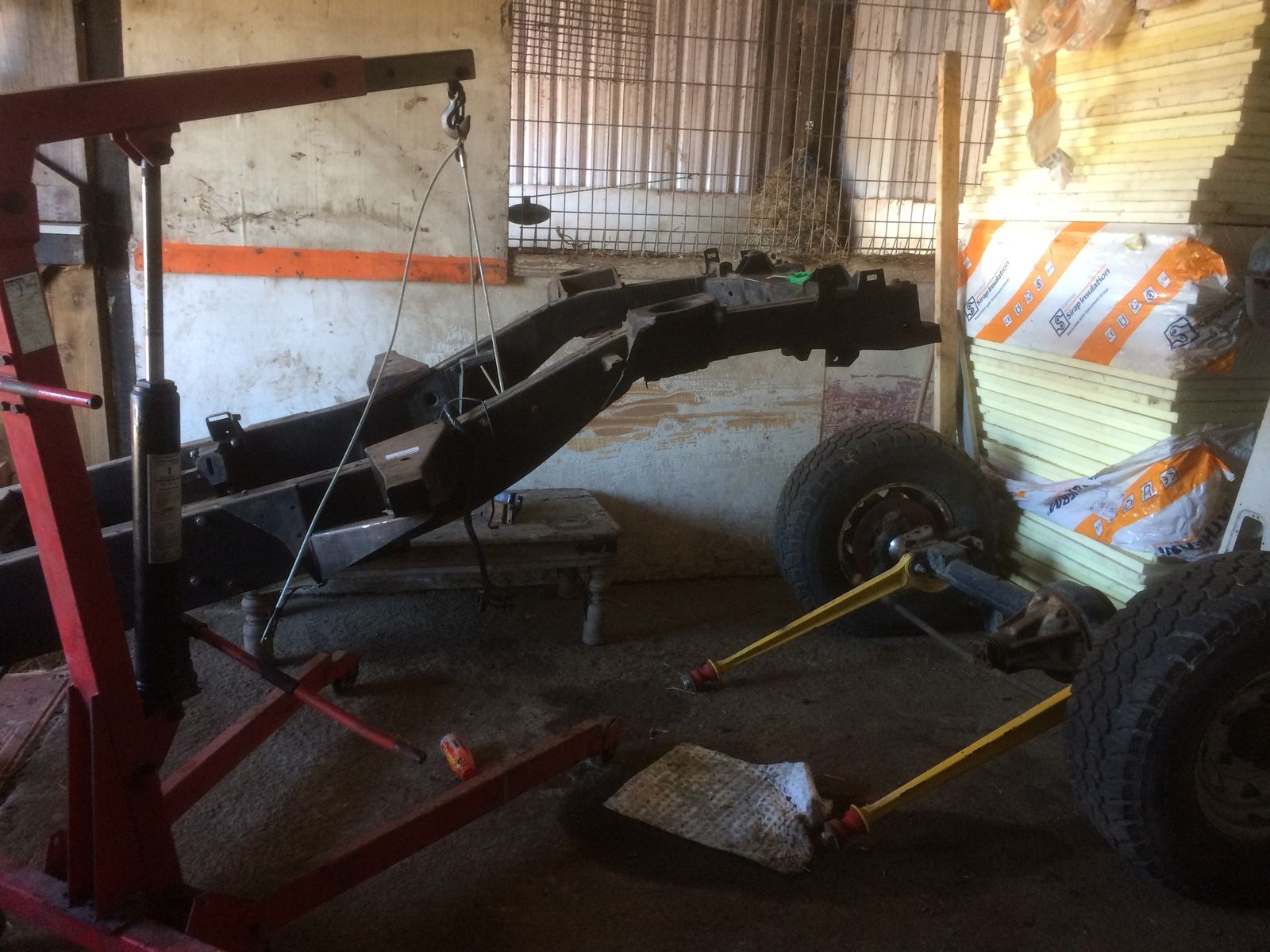

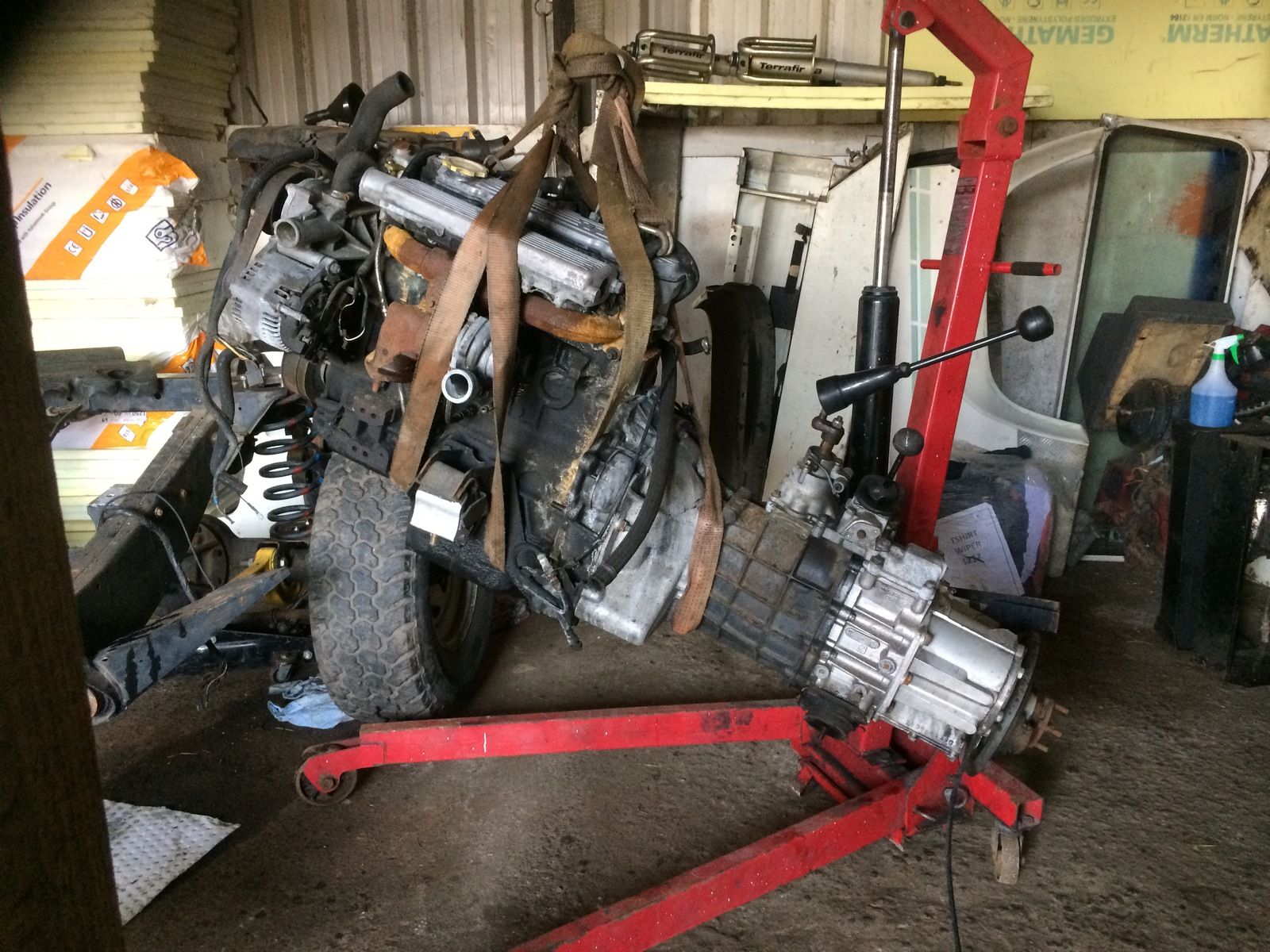

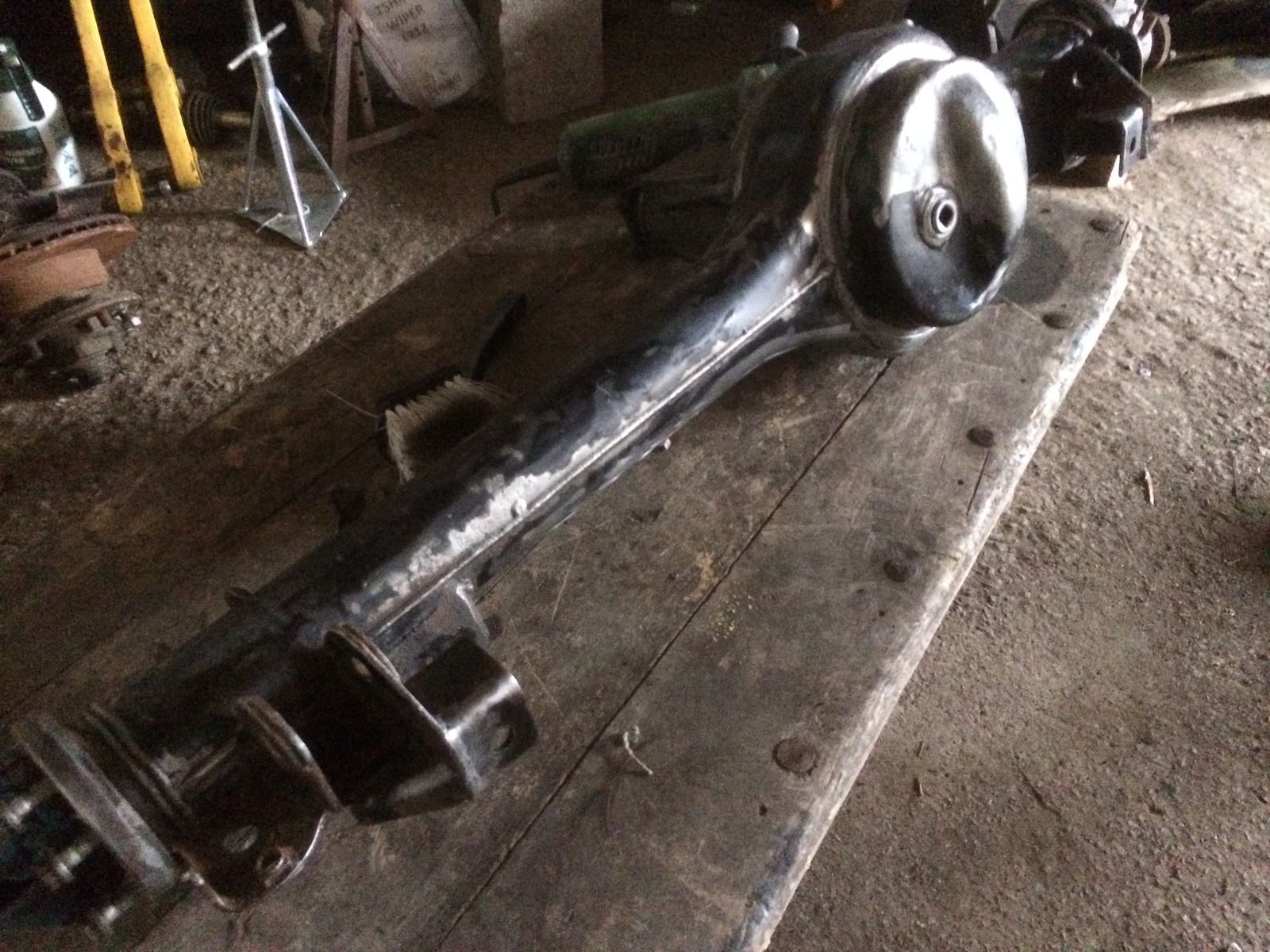

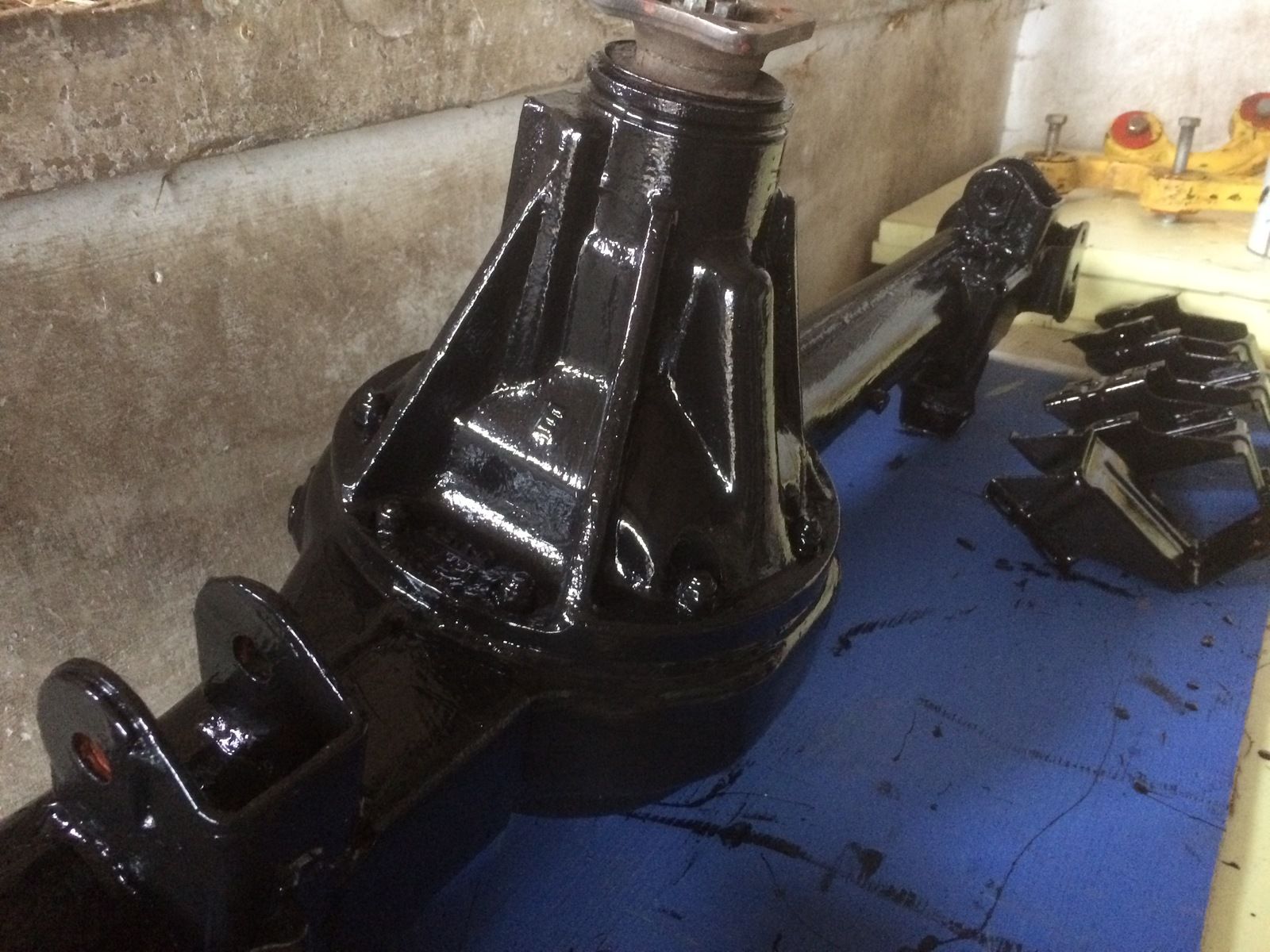

    Engine and box off, front axle off ready for clean, prime and paint,


    Attached Files:

    • r3.JPG
      File size:
      1.6 MB
      Views:
      288
    • r5.JPG
      File size:
      1.8 MB
      Views:
      289
    • r7.JPG
      File size:
      1.6 MB
      Views:
      288
    • r9.JPG
      File size:
      1.7 MB
      Views:
      282
    • r16.JPG
      File size:
      1.3 MB
      Views:
      286
  6. resto_d1

    resto_d1 Well-Known Member

    Joined:
    Apr 30, 2018
    Posts:
    1,582
    Likes Received:
    871
    Location:
    Wiltshire
    Nice. What paints are you using?

  7. border

    border Well-Known Member

    Joined:
    Aug 17, 2008
    Posts:
    1,412
    Likes Received:
    190
    Location:
    North East. UK

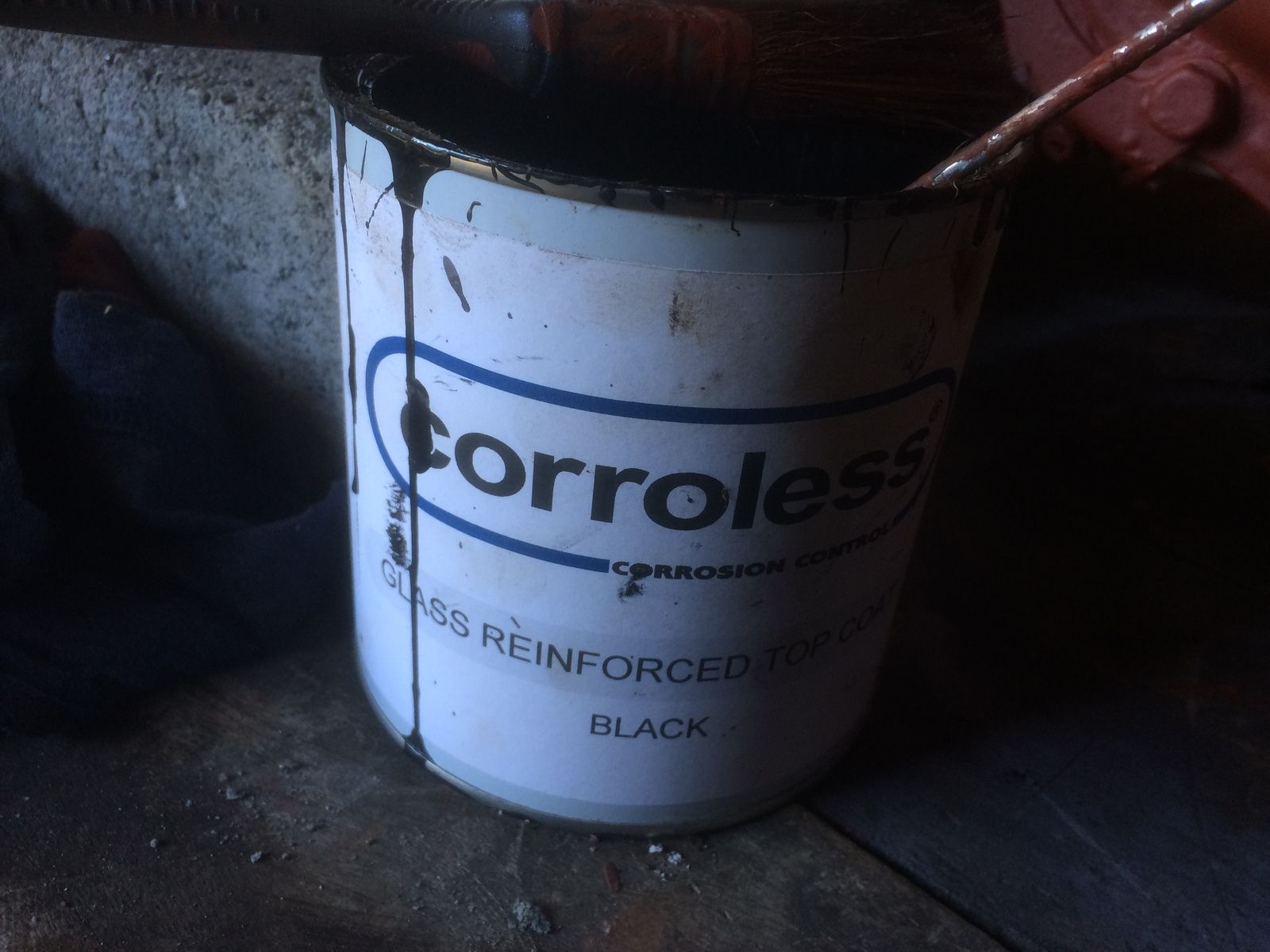

    Red Oxide Primer and Corroless Chassis paint from here https://www.arc-rite.co.uk/

  8. resto_d1

    resto_d1 Well-Known Member

    Joined:
    Apr 30, 2018
    Posts:
    1,582
    Likes Received:
    871
    Location:
    Wiltshire
    Cheers. Thought it was corroloss. Think I'll go over my axles with it. All is looking good. Keep it up

  9. border

    border Well-Known Member

    Joined:
    Aug 17, 2008
    Posts:
    1,412
    Likes Received:
    190
    Location:
    North East. UK

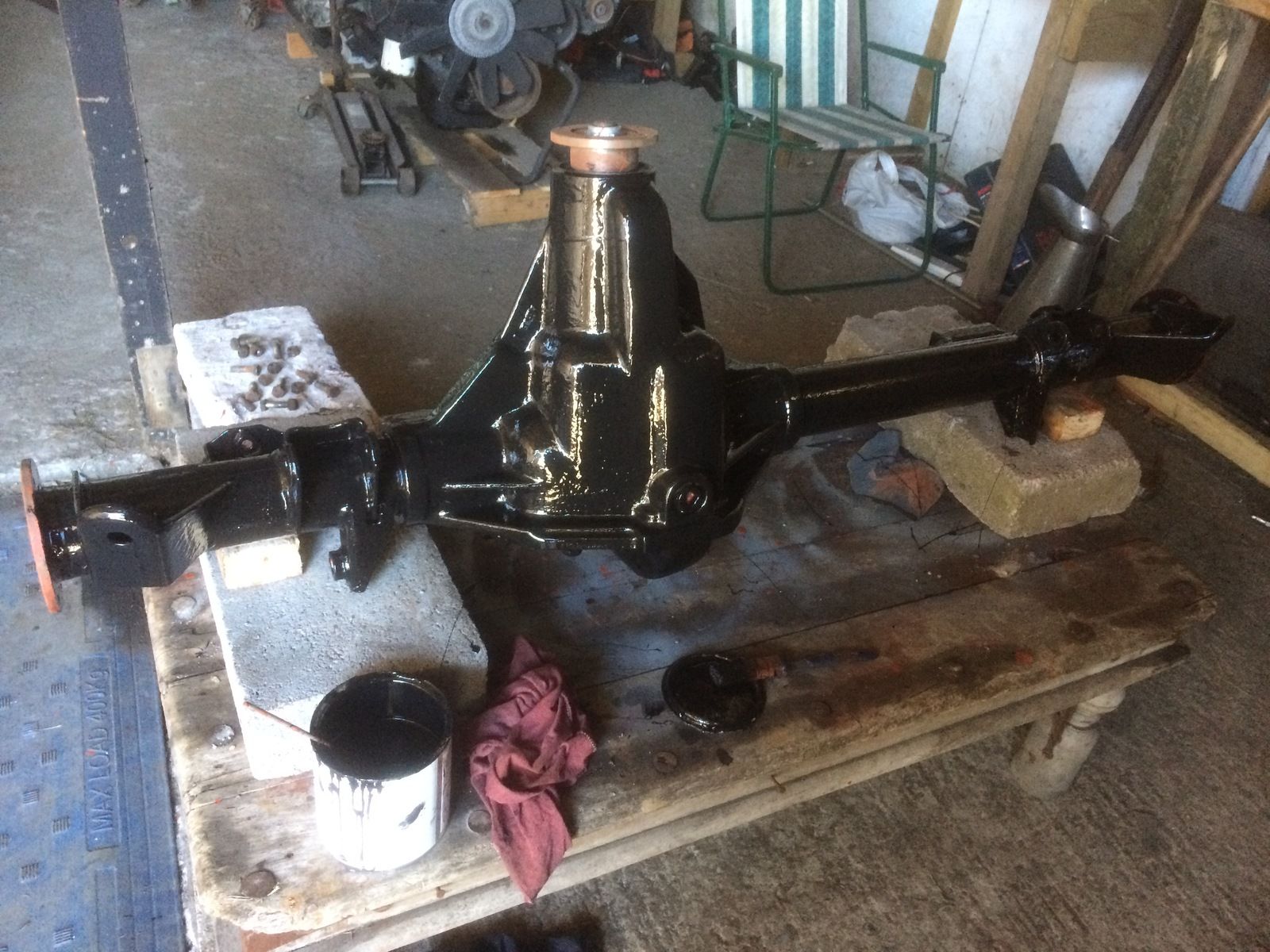

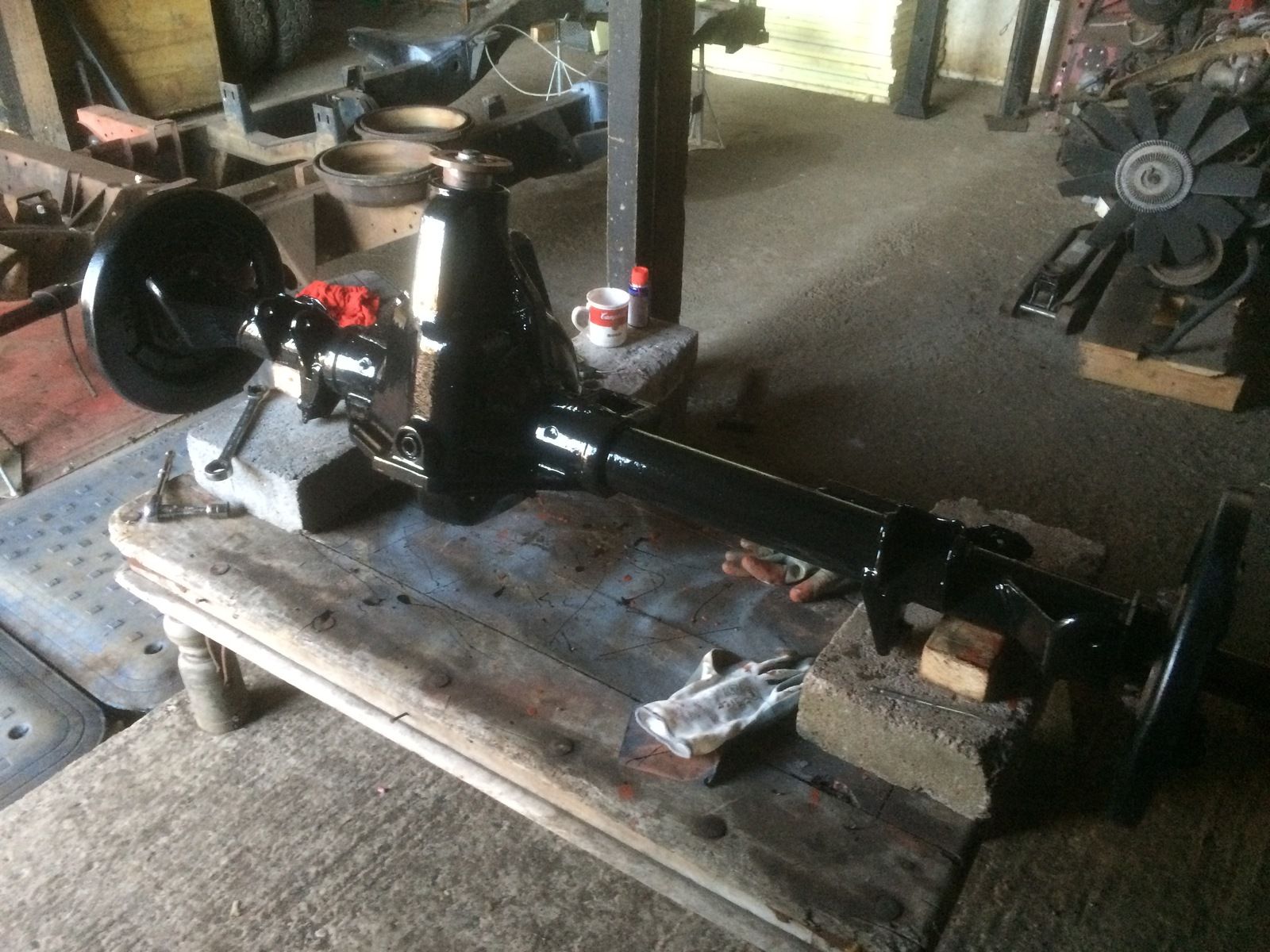

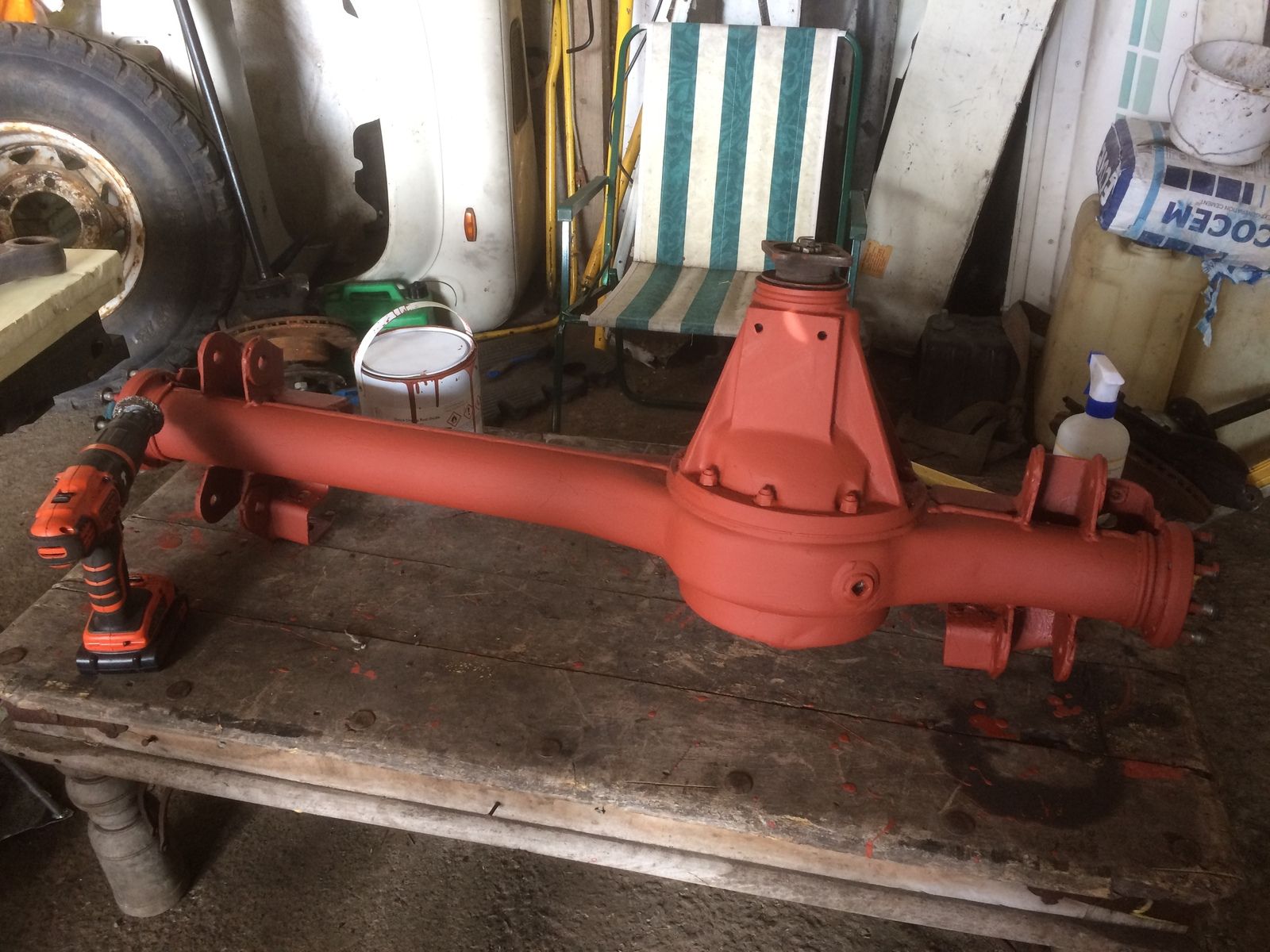

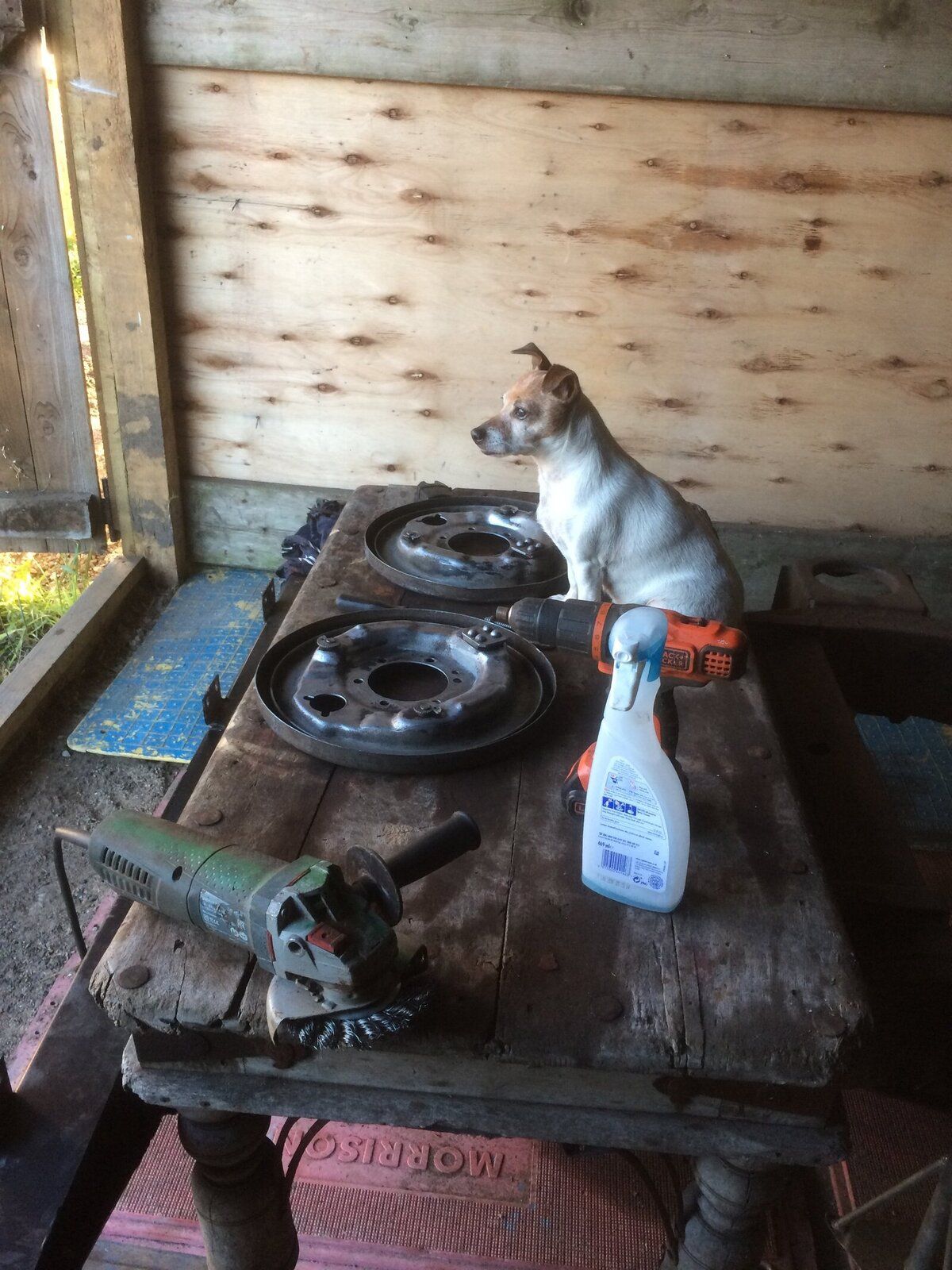

    Got 2 coats of the top coat on, its still wet in pic but looks better when dry, Started on the backing plates, shouldn't be long till its all built back together.


    Attached Files:

  10. resto_d1

    resto_d1 Well-Known Member

    Joined:
    Apr 30, 2018
    Posts:
    1,582
    Likes Received:
    871
    Location:
    Wiltshire
    Sweet little jrt. I've been looking at getting coloured paint for chassis from arc rite but that does look really Good!

  11. border

    border Well-Known Member

    Joined:
    Aug 17, 2008
    Posts:
    1,412
    Likes Received:
    190
    Location:
    North East. UK
    They do sell different colours

  12. resto_d1

    resto_d1 Well-Known Member

    Joined:
    Apr 30, 2018
    Posts:
    1,582
    Likes Received:
    871
    Location:
    Wiltshire
    I know - was just going through the colour chart. Was thinking a deep green or completely different and bright red. I want it to be either sandstone on green once finished... or roadworthy

  13. border

    border Well-Known Member

    Joined:
    Aug 17, 2008
    Posts:
    1,412
    Likes Received:
    190
    Location:
    North East. UK

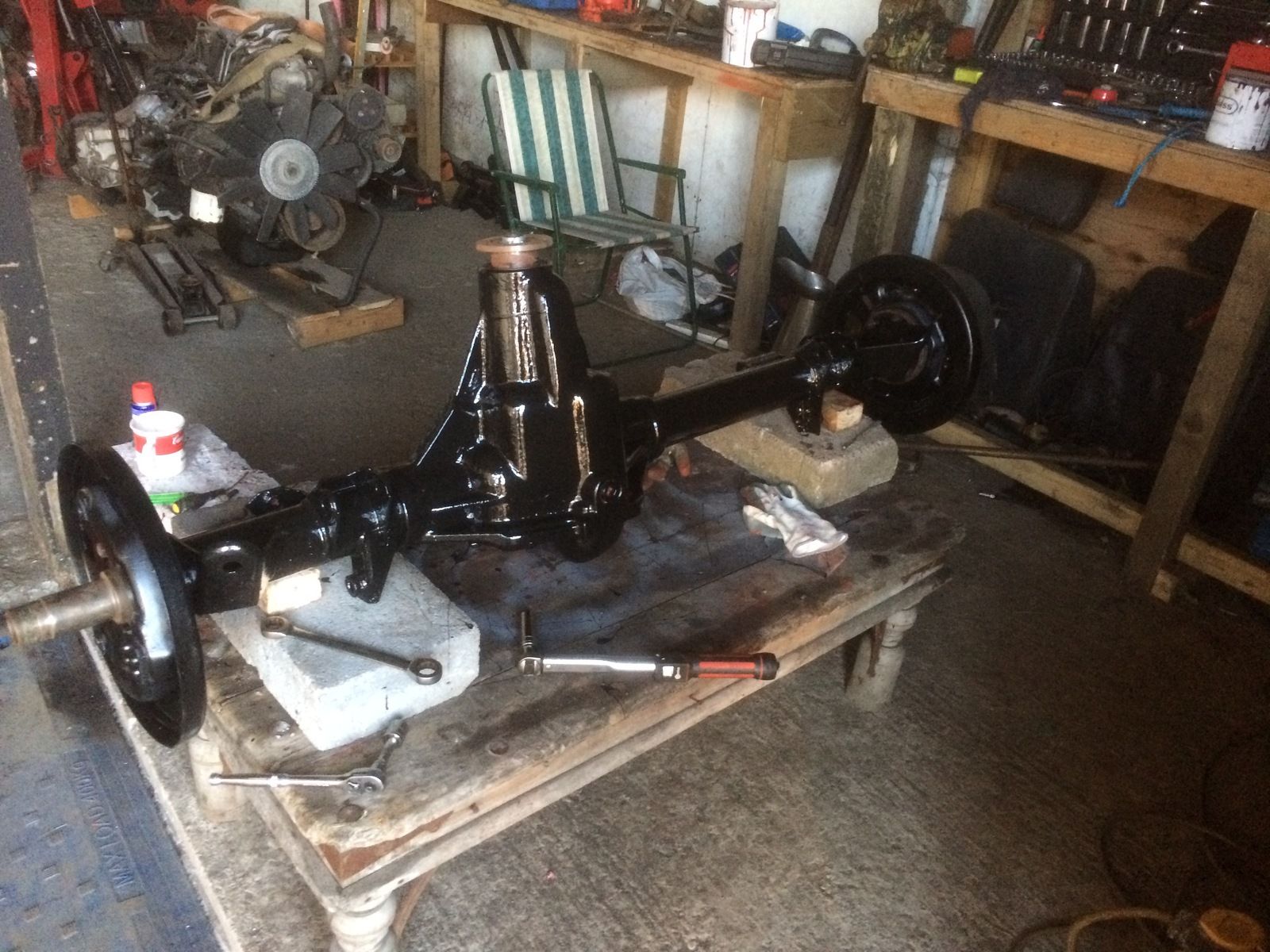

    Little bit further on today, Had 3 Top coats on but probably 2 would have done. Looks really well

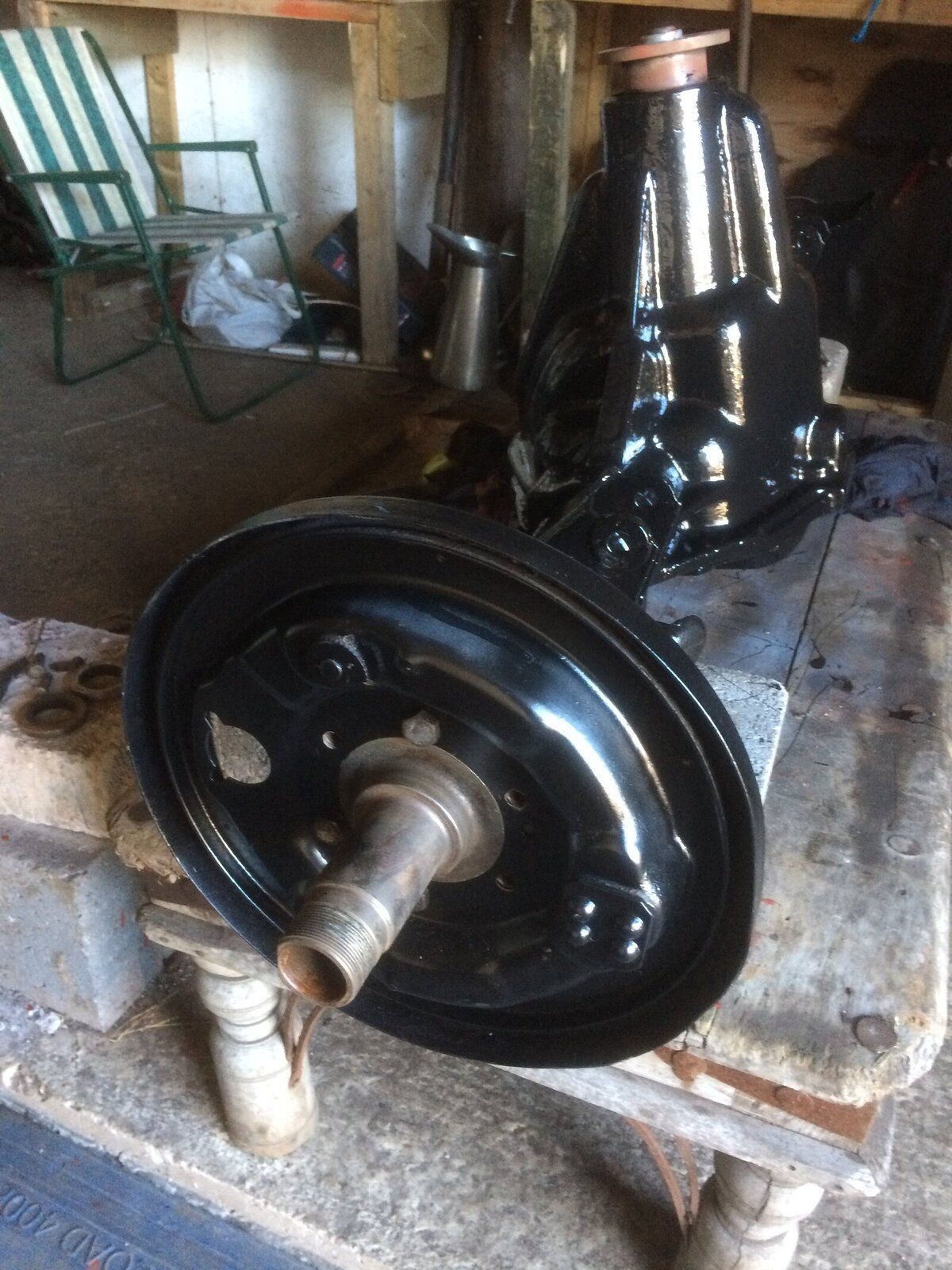

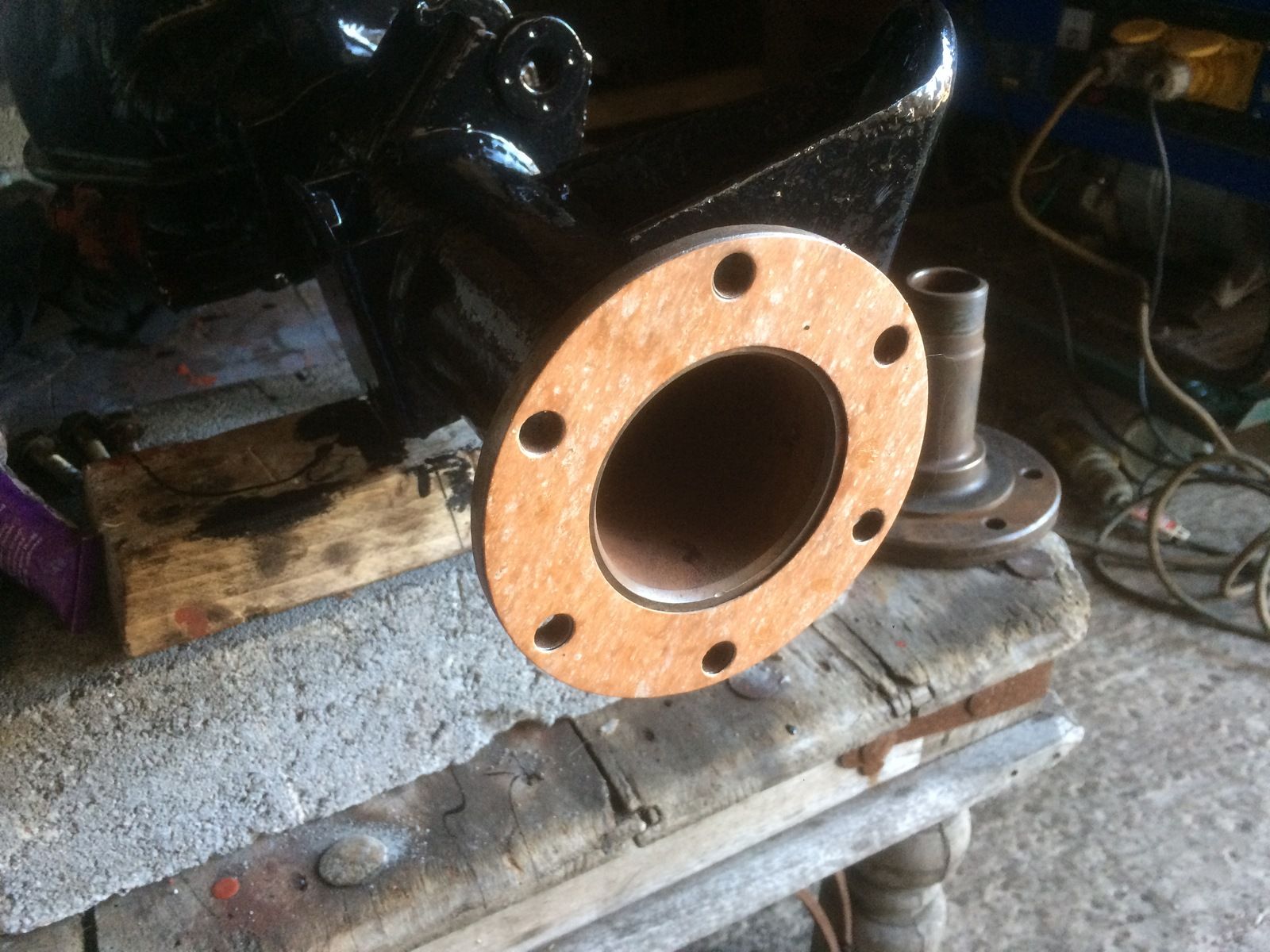

    Stub axles and backing plates fitted with new gaskets and torqued up. Ready for new brakes

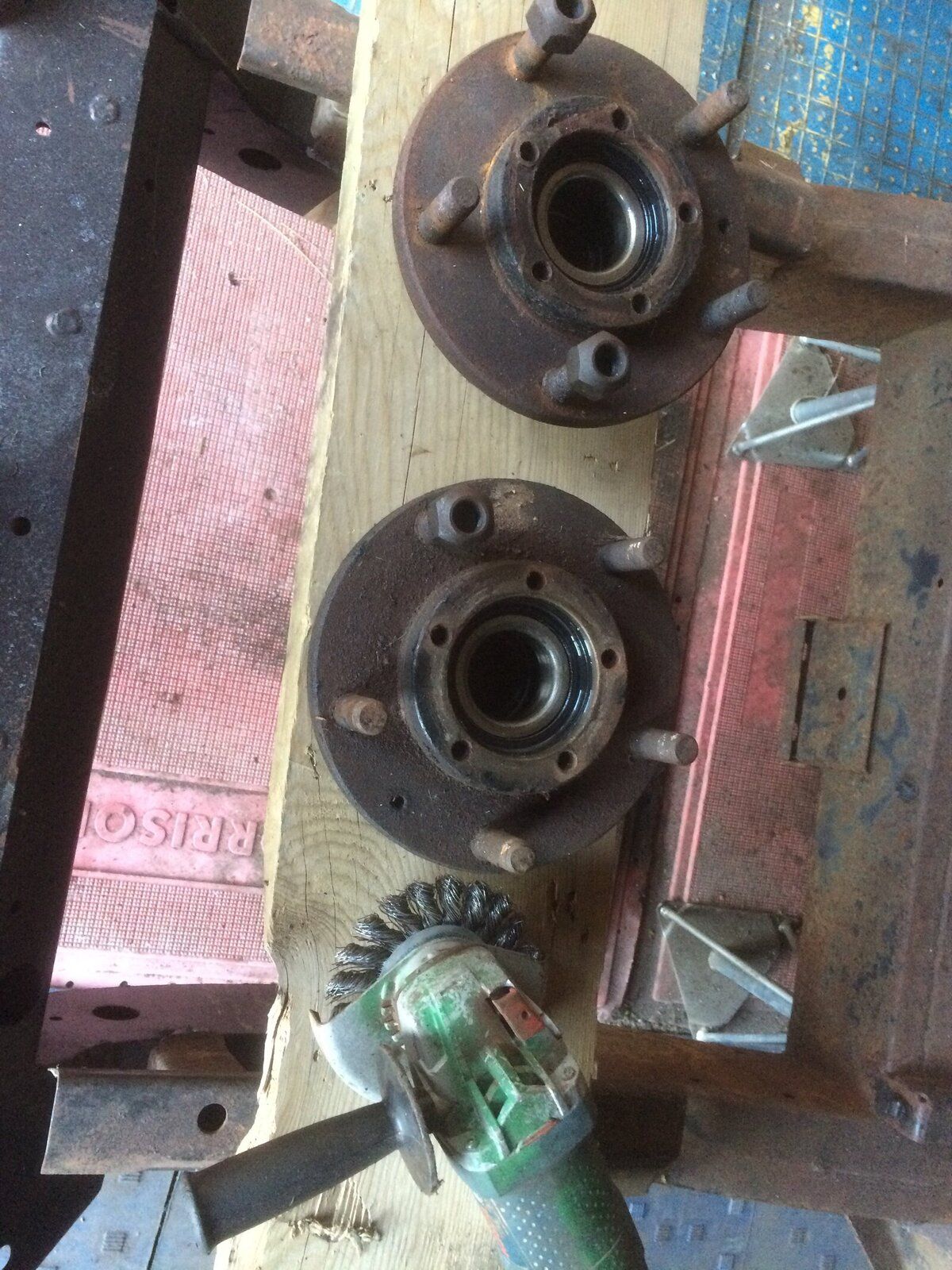

    Next Job Hubs, clean prime and paint then new seals and bearings fitted.


    Attached Files:

    TorsionBhudda and resto_d1 like this.
  14. border

    border Well-Known Member

    Joined:
    Aug 17, 2008
    Posts:
    1,412
    Likes Received:
    190
    Location:
    North East. UK

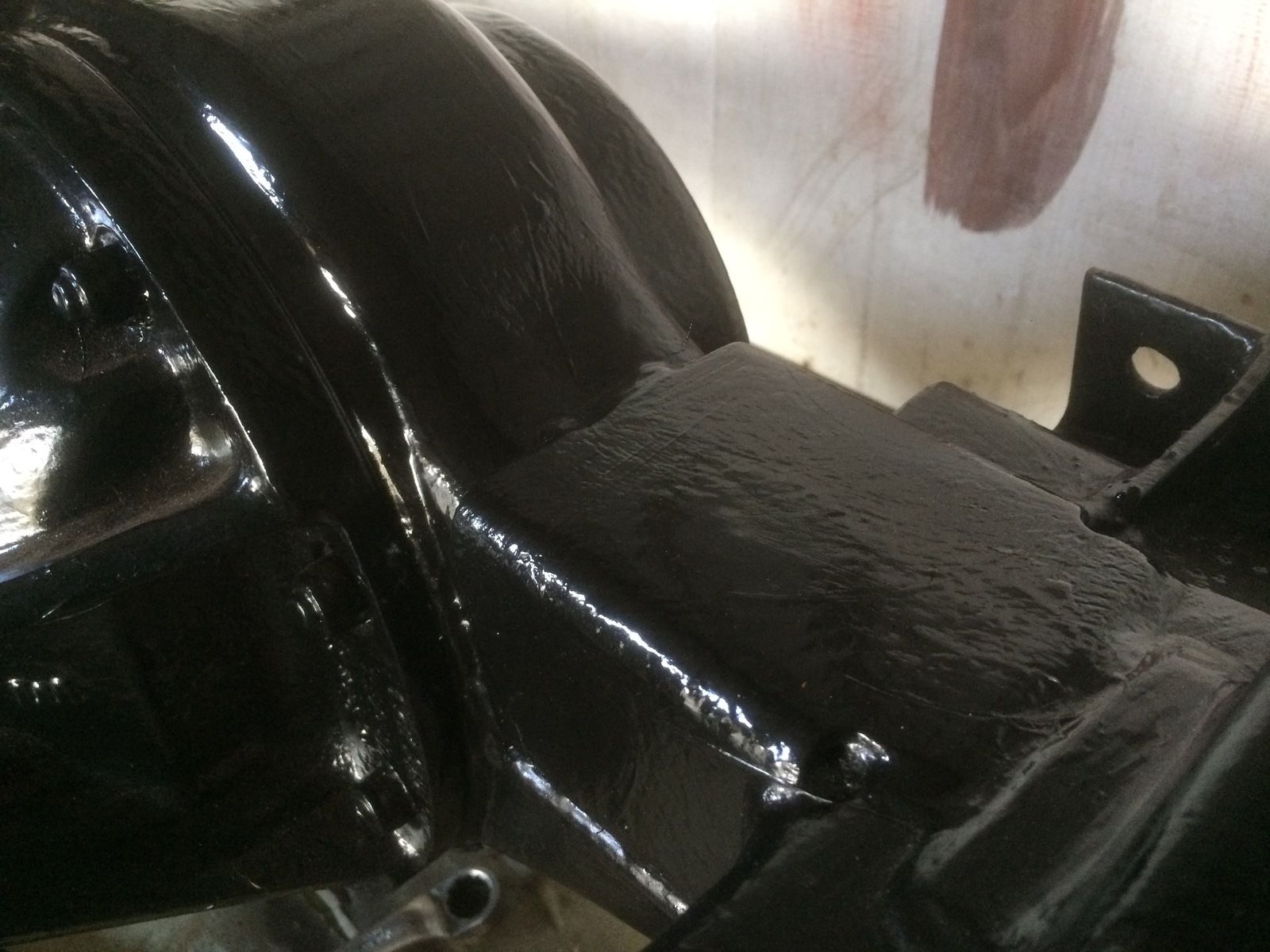

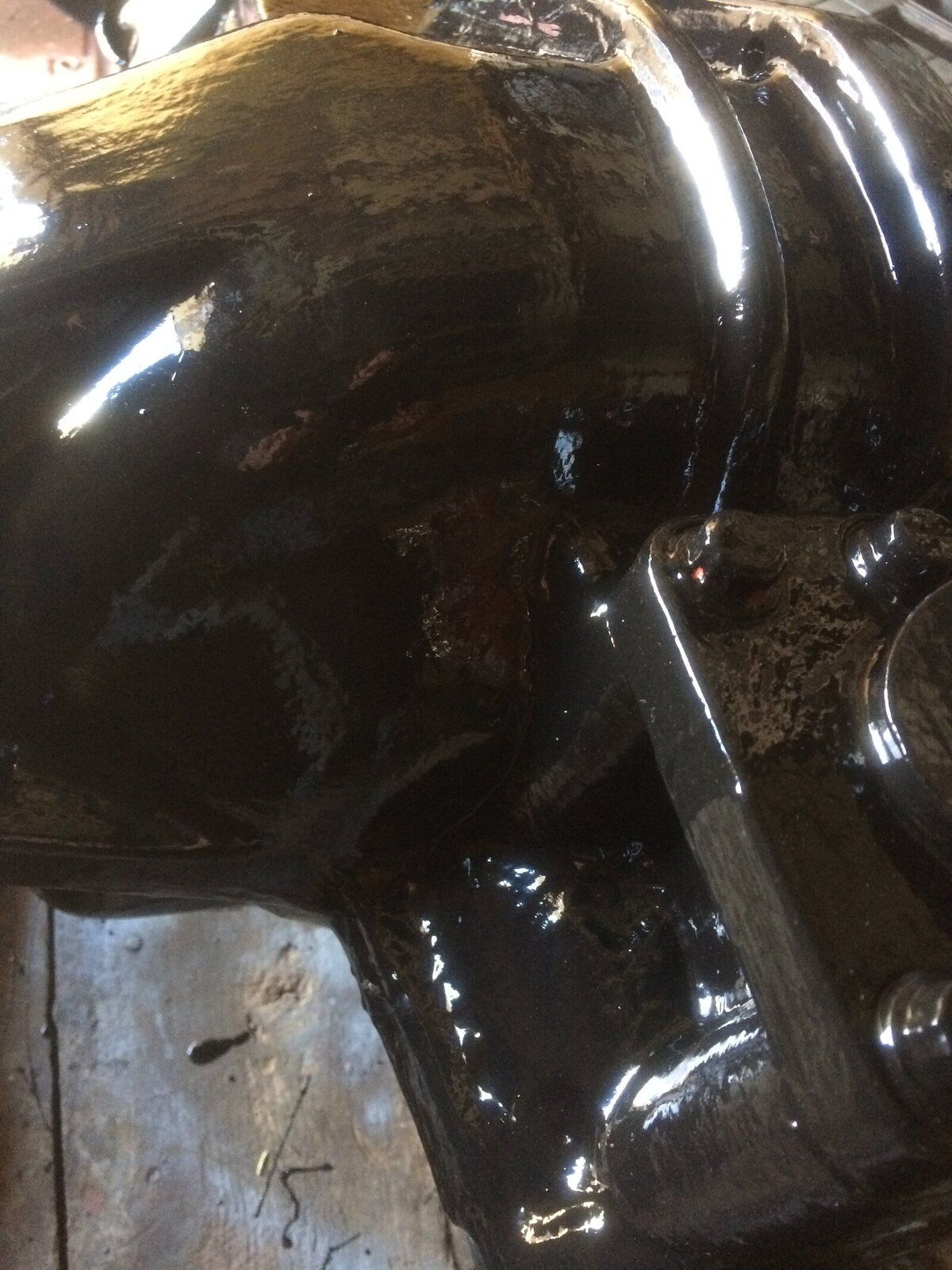

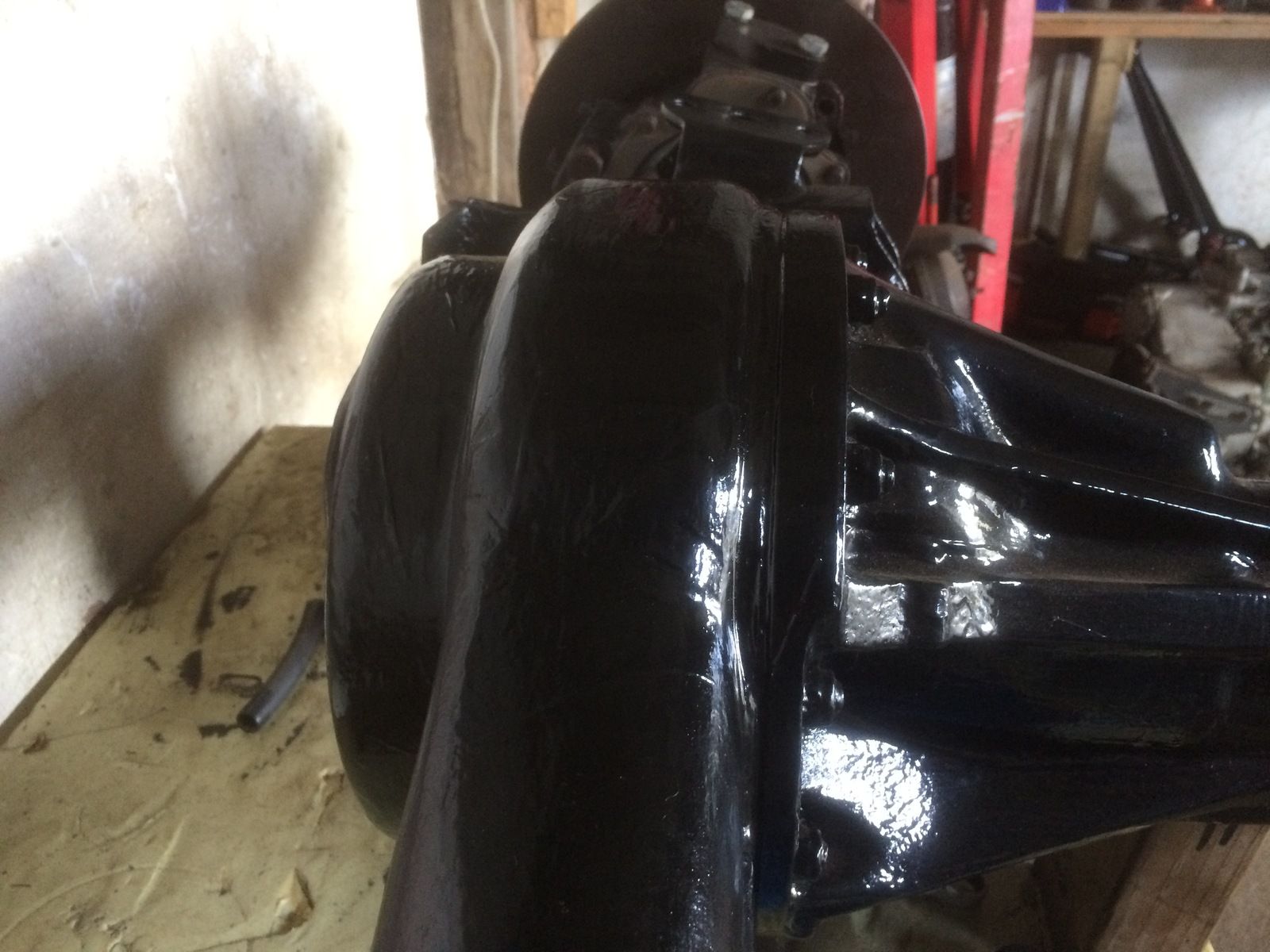

    Something I've learned along the way is to use a Good Brush when hand painting. I don't have any facilities for spray painting as Im in my allotment Garden using a Generator. I did the front axle first and thinking its just an axle I would just use a cheap paint brush, anyway as you can see from photos it was not a good idea, The rear was done with a decent quality brush is much better, from now on will be using the same brush for anymore painting.

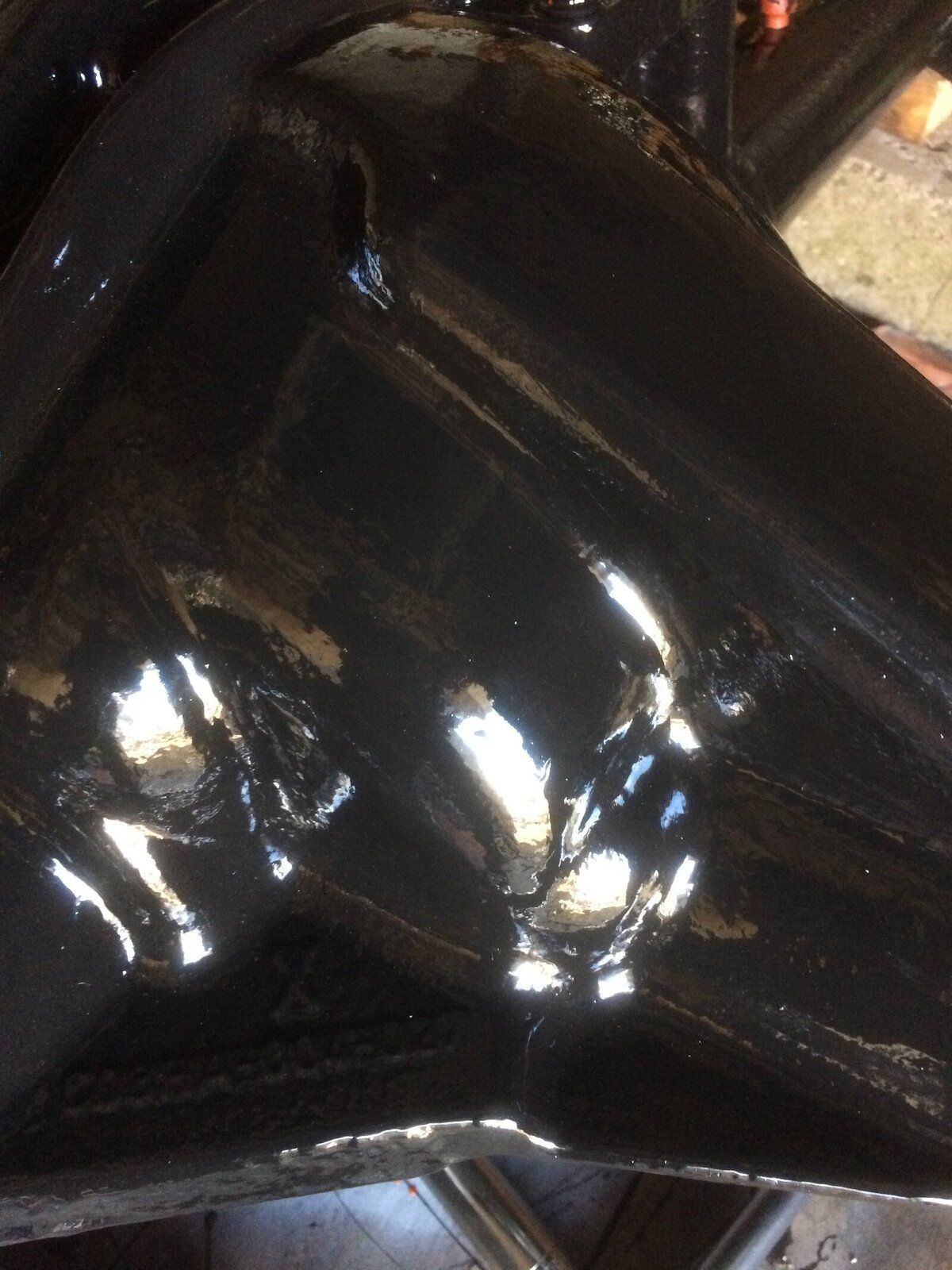

    First two photos front, feel like rubbing it down again and repainting, and second two rear, I know its not a perfect finish but it seems good enough.


    Attached Files:

    resto_d1 likes this.
  15. My Old Landy

    My Old Landy Well-Known Member

    Joined:
    Aug 24, 2018
    Posts:
    860
    Likes Received:
    1,010
    Location:
    South
    That's a great job! I agree that cheap brushes are not a good choice.

  16. resto_d1

    resto_d1 Well-Known Member

    Joined:
    Apr 30, 2018
    Posts:
    1,582
    Likes Received:
    871
    Location:
    Wiltshire
    Lovely. I know what you mean about brushes. I bought some purdy ones when doing my Windows at home (still wooden frames) and the finish is so much better. I plan to do my disco in a military/enamel by hand at some stage. There are some talented hand painters out there on the likes of narrow boats. They lay off the paint perfectly. I don't need a perfect finish and don't expect one. That corroless looks spot on. Looking forward to getting some on mine

  17. border

    border Well-Known Member

    Joined:
    Aug 17, 2008
    Posts:
    1,412
    Likes Received:
    190
    Location:
    North East. UK

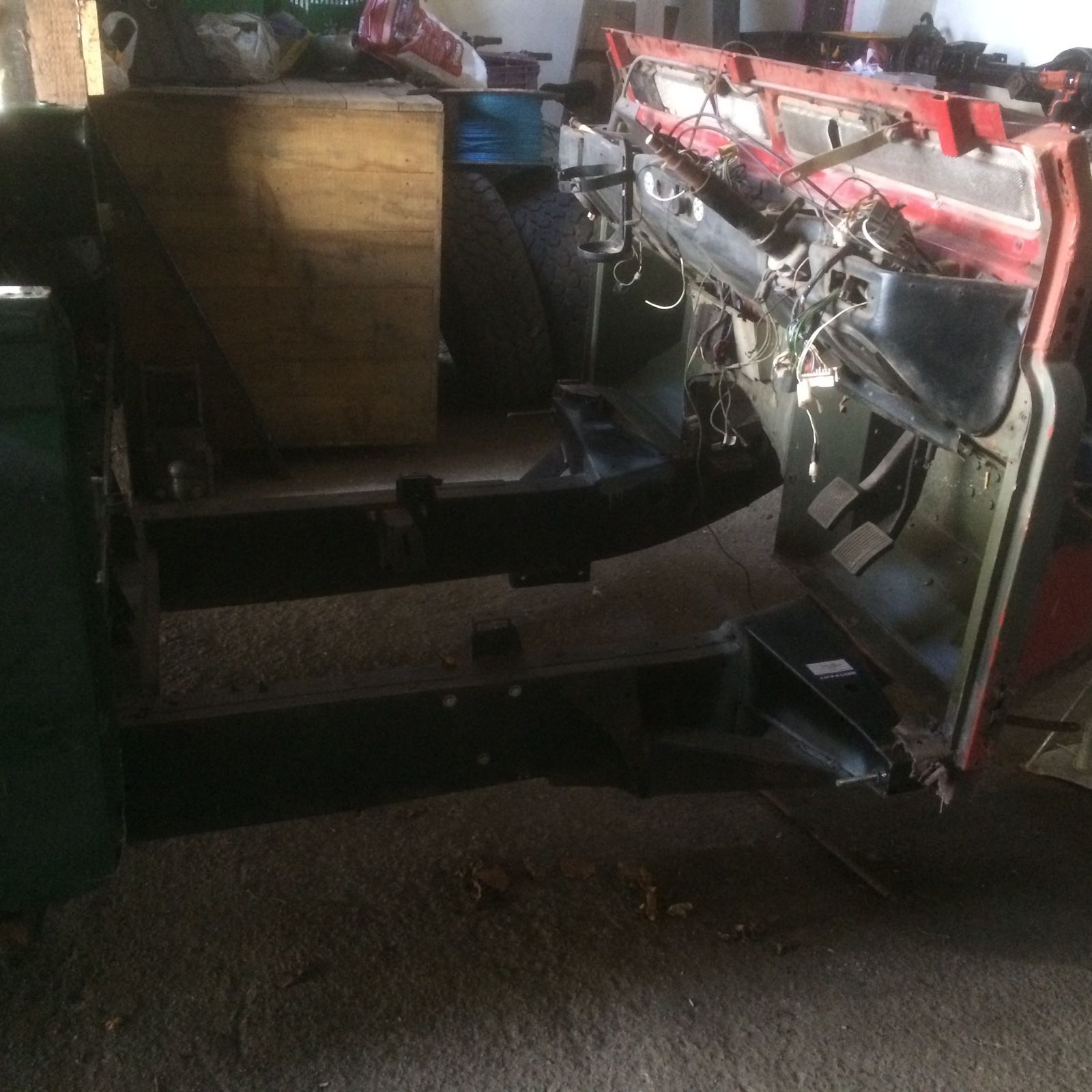

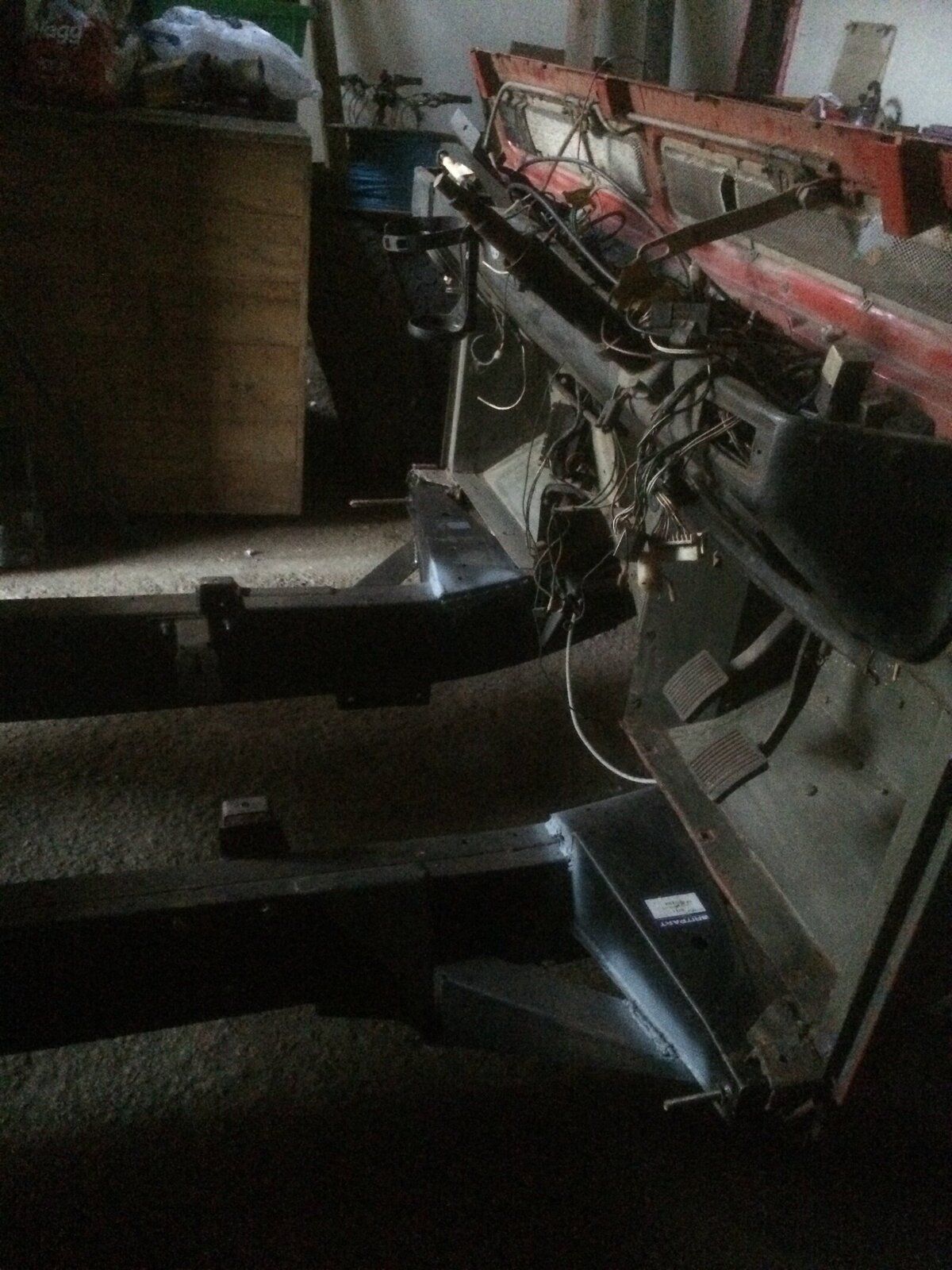

    Waiting on funds so I can get chassis galvanised eventually. Thought Id try the bulkhead for size as its just had 2 new front outriggers welded on. seems OK as bolts went straight in, hope this means all the doors ect will eventually line up too, when the time comes. Or am I Wishful Thinking??


    Attached Files:

    Last edited: Oct 9, 2018
    resto_d1 likes this.
  18. border

    border Well-Known Member

    Joined:
    Aug 17, 2008
    Posts:
    1,412
    Likes Received:
    190
    Location:
    North East. UK

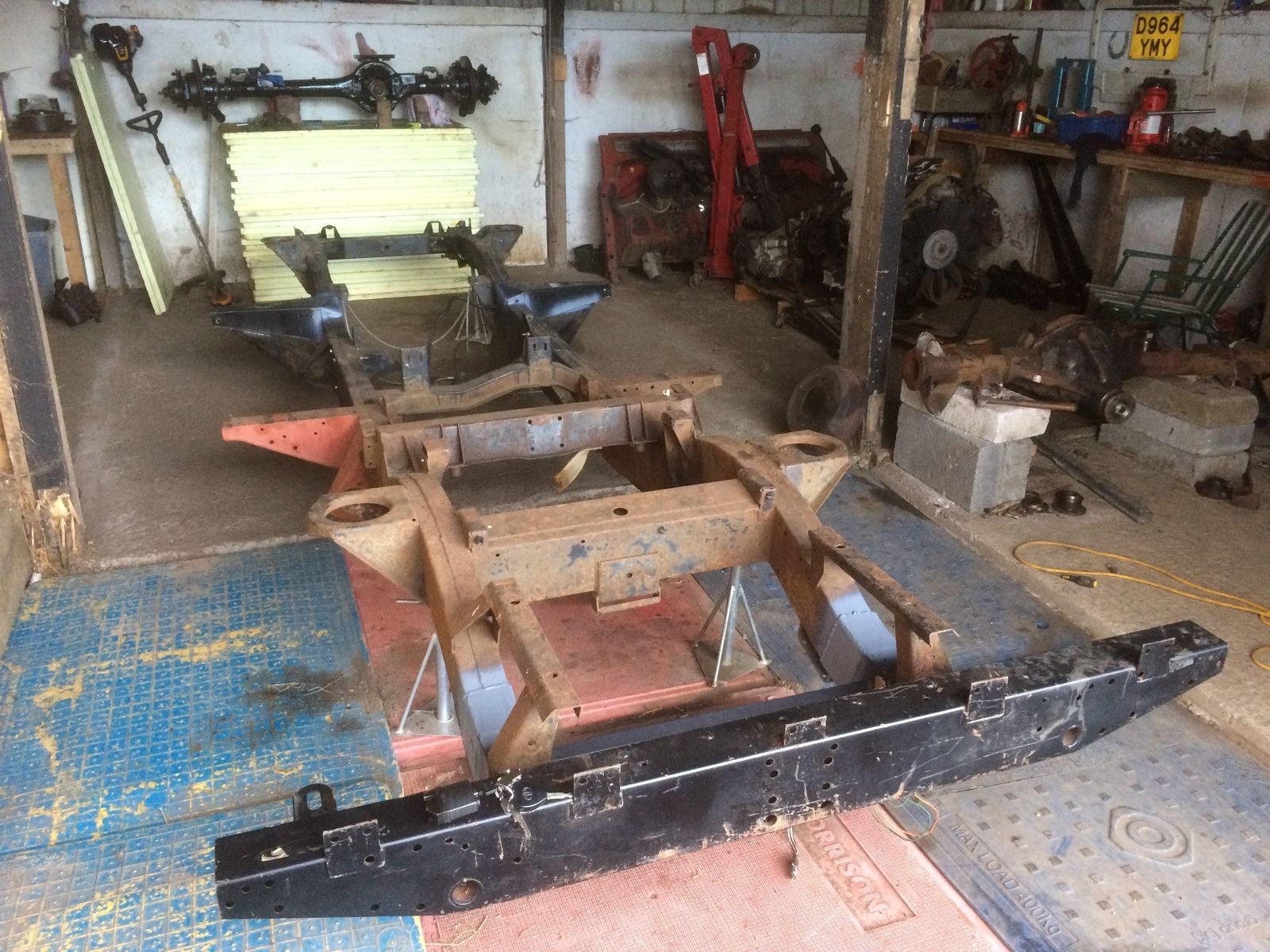

    This is how my chassis is at the moment 110 C S W, it will be eventually shot blasted then Galvanised.
    Now if I decide to change it to a Pickup or Van Body, will they just bolt on or would there have to be other brackets ect added ??

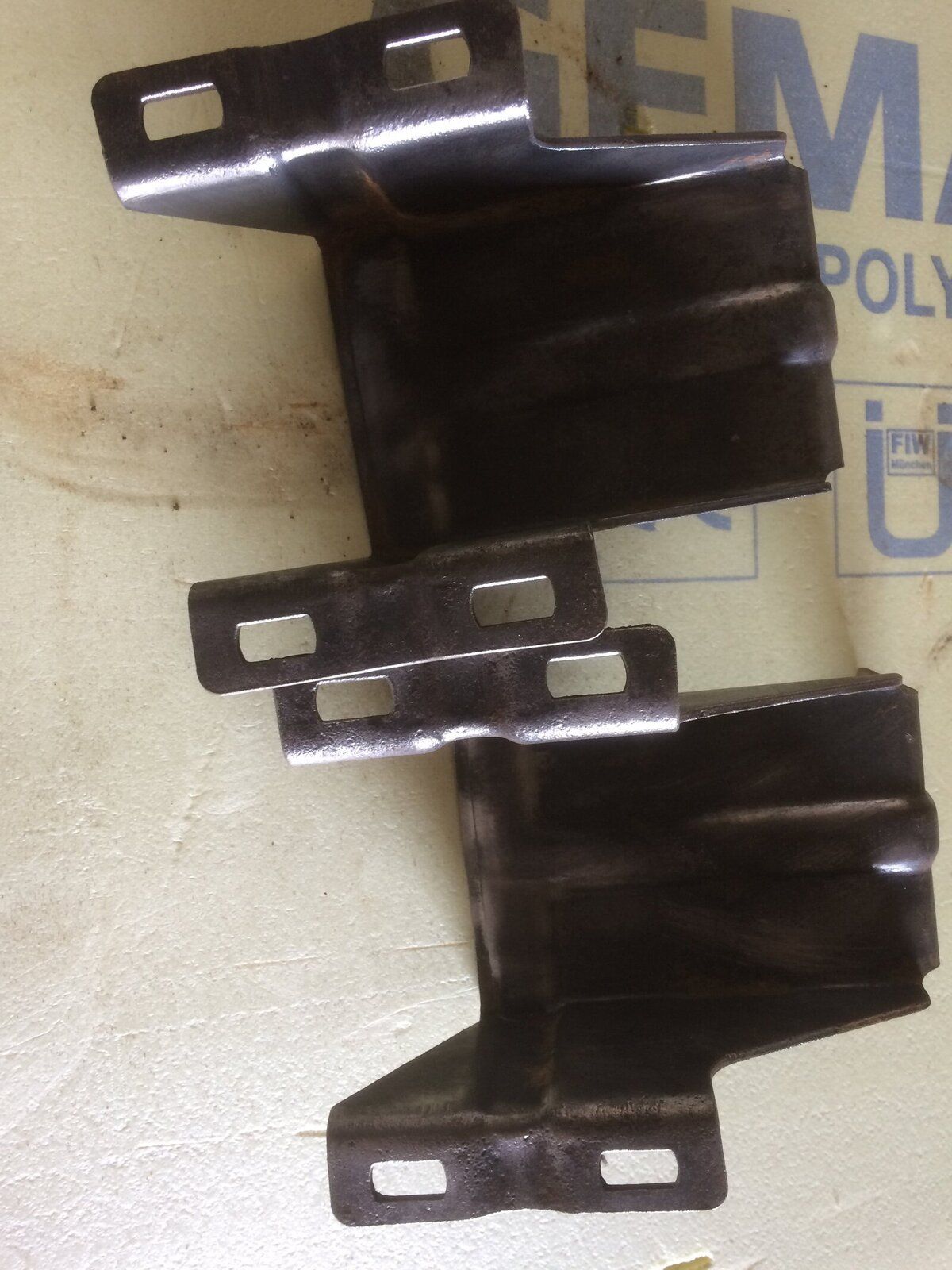

    I have the brackets that go on the middle outriggers.


    Attached Files:

    dieseldog69 likes this.
  19. border

    border Well-Known Member

    Joined:
    Aug 17, 2008
    Posts:
    1,412
    Likes Received:
    190
    Location:
    North East. UK

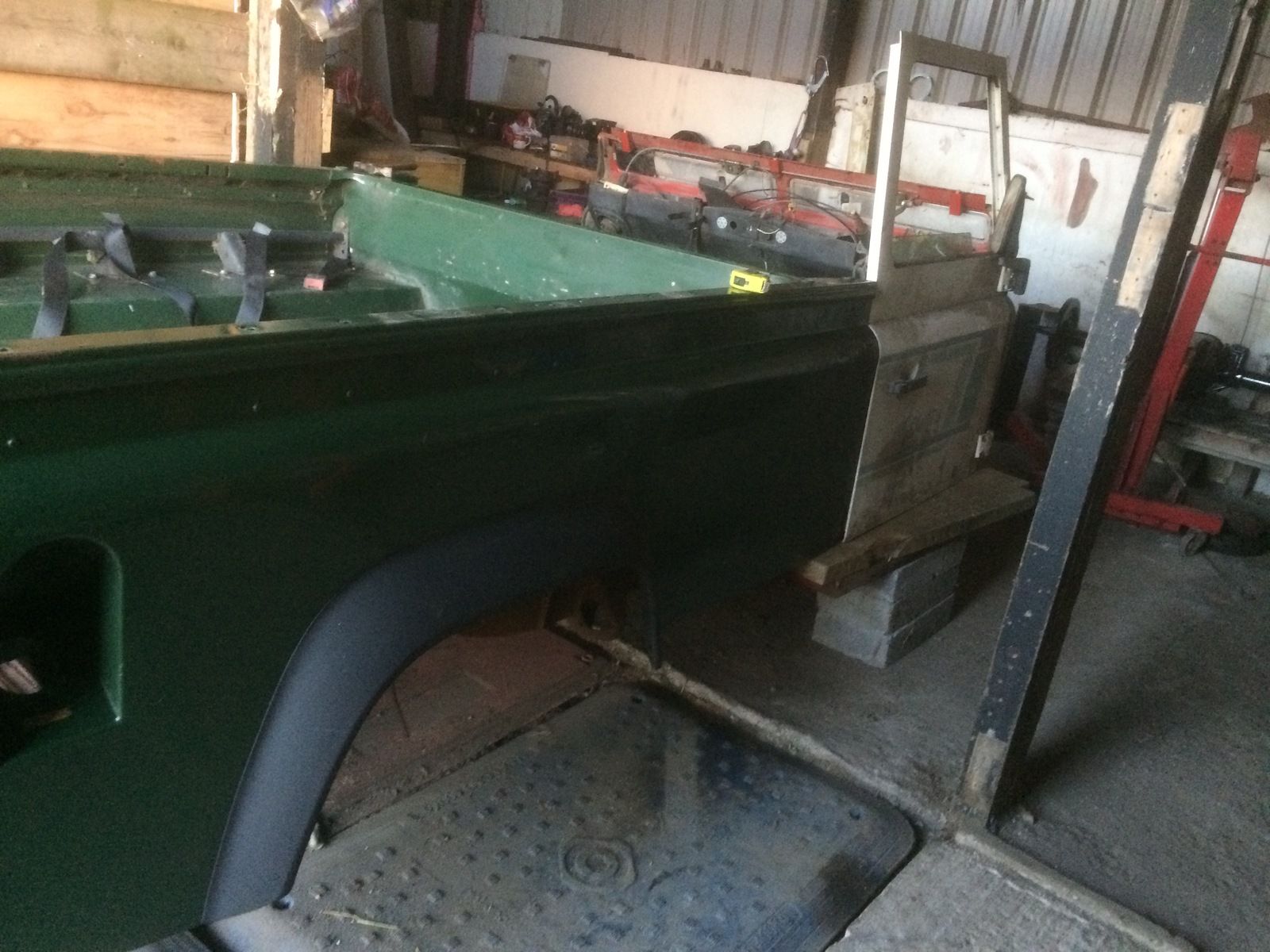

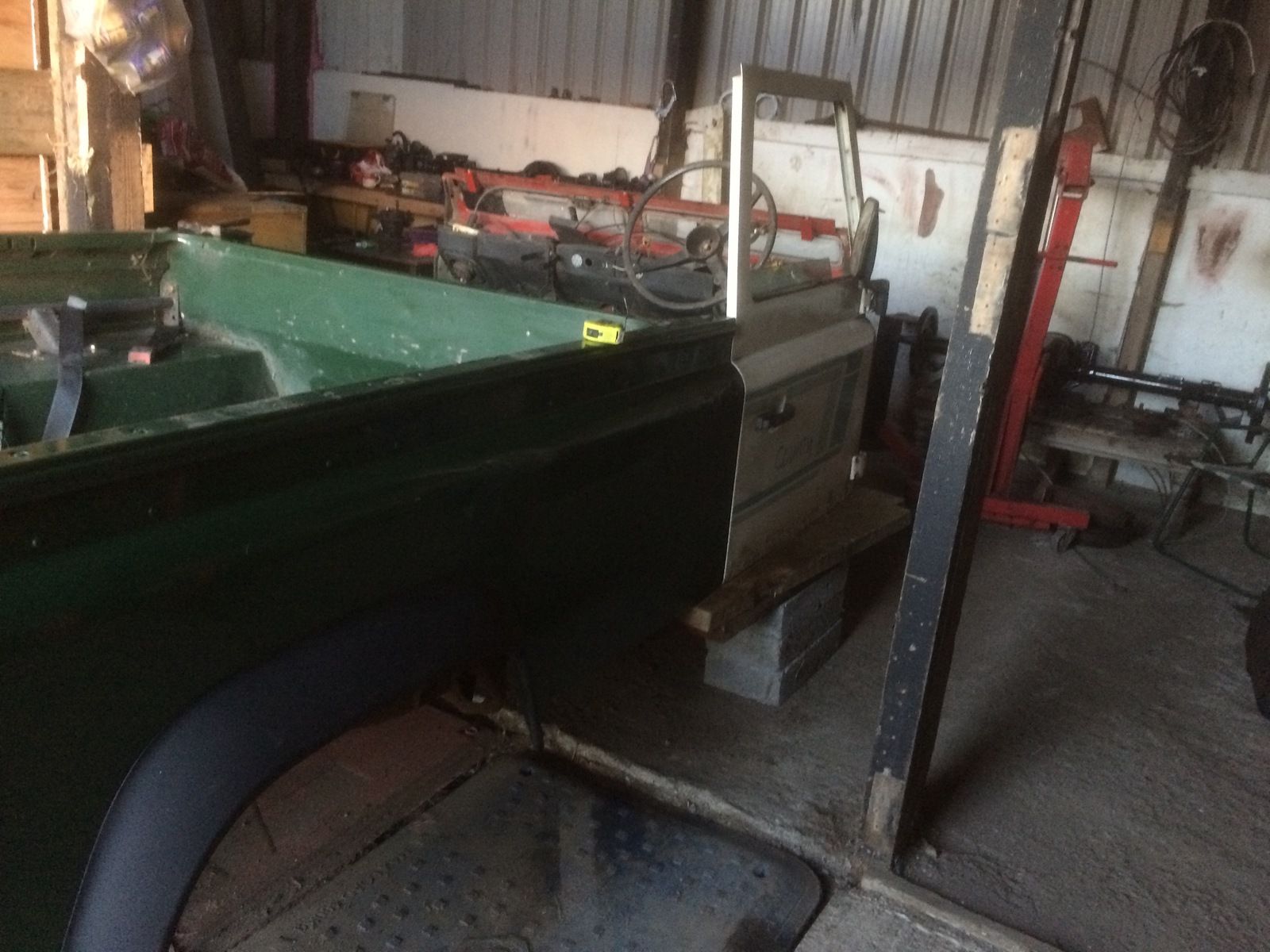

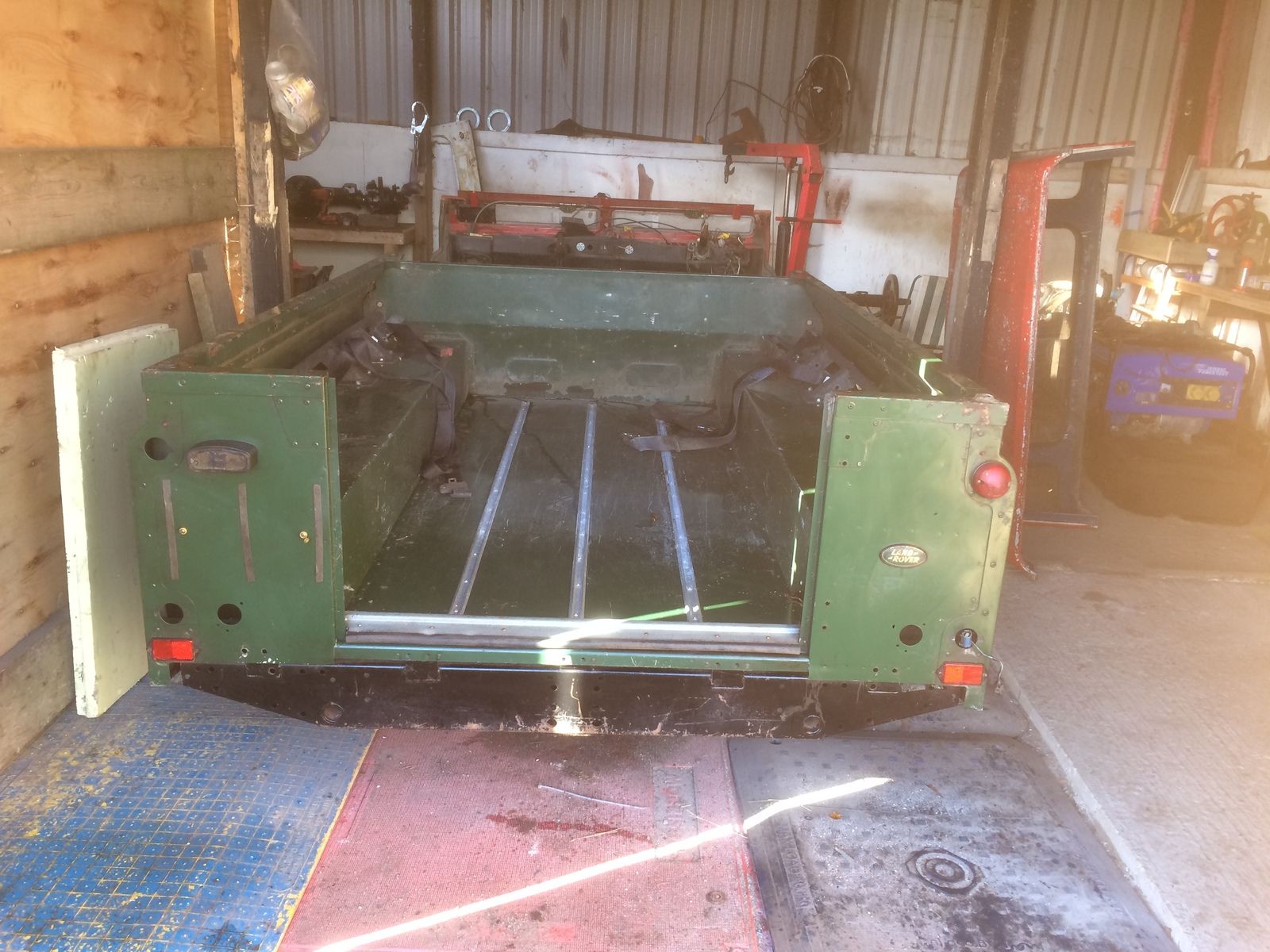

    Trial fitting a few more bits, everything seems to be lining up perfect, so no more welding on chassis, just a little tweaking here and there.
    Cant wait to get it Galvanised so I can start building.


    Attached Files:

    My Old Landy likes this.
  20. My Old Landy

    My Old Landy Well-Known Member

    Joined:
    Aug 24, 2018
    Posts:
    860
    Likes Received:
    1,010
    Location:
    South
    You are making progress!! Looking forward to seeing the galvanised finish :)
