hey, i had a leak a few day ago from the rear diff so i decided to redo the gasket seal on it, i took the propshaft out and then unscrewd the bolts on the diff. all bolts are off but i cant seem to pull the diff off, theres a little play but its as if its stuck on some thing. i tried rocking it back and forth but no luck. do i just need a bit more force on it? :S
trouble getting rear diff off
- Thread starter jinxo
- Start date
This site contains affiliate links for which LandyZone may be compensated if you make a purchase.
jai_landrover
Well-Known Member
- Posts
- 13,392
- Location
- Luton
you have taken out the shafts havent you? Jai
G-man
BBQ king
- Posts
- 12,065
- Location
- essex.... in the middle somewhere
hahahaa
G-man
BBQ king
- Posts
- 12,065
- Location
- essex.... in the middle somewhere
*snigger*
what about the axle shafts held in with a ring of 6 bolts on the ends od the axle (centre of the axle)
jai_landrover
Well-Known Member
- Posts
- 13,392
- Location
- Luton
Is this a**** take???
The drive shafts from axle one short one and one longen, the 5 bolts with 17mm or 13mm heads. Both drivemembers and their shafts. only need to pull them out about 6 inches to clear the diff. Jai
The drive shafts from axle one short one and one longen, the 5 bolts with 17mm or 13mm heads. Both drivemembers and their shafts. only need to pull them out about 6 inches to clear the diff. Jai
jai_landrover
Well-Known Member
- Posts
- 13,392
- Location
- Luton
Do you think he is outside scratching his head as we type Gman? Jai
G-man
BBQ king
- Posts
- 12,065
- Location
- essex.... in the middle somewhere

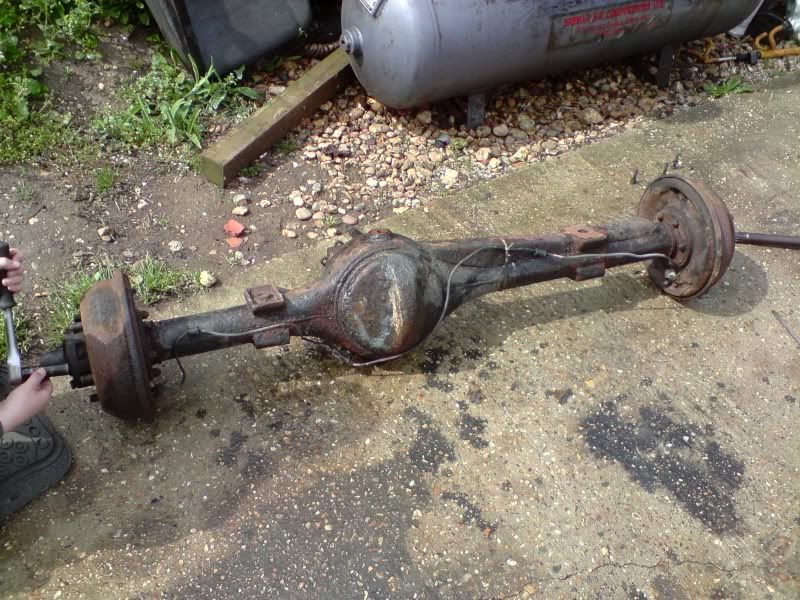

the bits me little bro is undoing here
jai_landrover
Well-Known Member
- Posts
- 13,392
- Location
- Luton
Thats the funniest god damn thing thats happened today! Lol,
Guess I better get offt and get changed forDerbyshire
Guess I better get offt and get changed forDerbyshire
jai_landrover
Well-Known Member
- Posts
- 13,392
- Location
- Luton
No need to jack anything up just undo the drive member retaining bolts as in G-mans pic and break the seal, and pull the drive member and shaft out about 6 inches. do this both sides then remove the diff
jai_landrover
Well-Known Member
- Posts
- 13,392
- Location
- Luton
Make sure the vehicle is chocked and cannot move anywhere
G-man
BBQ king
- Posts
- 12,065
- Location
- essex.... in the middle somewhere
no need to jack up a landy to remove the diff, that was a spare axle i was teaching me little bro with, if you want jacked up.........
