trailer beeper

This site contains affiliate links for which LandyZone may be compensated if you make a purchase.
S

silly boy

Member
Posts
51
Location
york
hi I need to fit a trailer beeper unit to my 2003 TD4 bmw engine were and how do I go about it you know that so when towing my trailer I will know if the indicators are working on the trailer thanks to any replies

All wiring is in place on the Freelander 1 so that if you fit the 4 pin flasher unit, the trailer light will flash on the dashboard when trailer is connected and indicating ! No wiring needed. You could put a bleeper across the lamp if you so wished. You'll need the 4 pin flasher unit for a trailer and that fits the Freelander. Flasher is in box by drivers knee.

andyfreelandy said:
All wiring is in place on the Freelander 1 so that if you fit the 4 pin flasher unit, the trailer light will flash on the dashboard when trailer is connected and indicating ! No wiring needed. You could put a bleeper across the lamp if you so wished. You'll need the 4 pin flasher unit for a trailer and that fits the Freelander.
Click to expand...

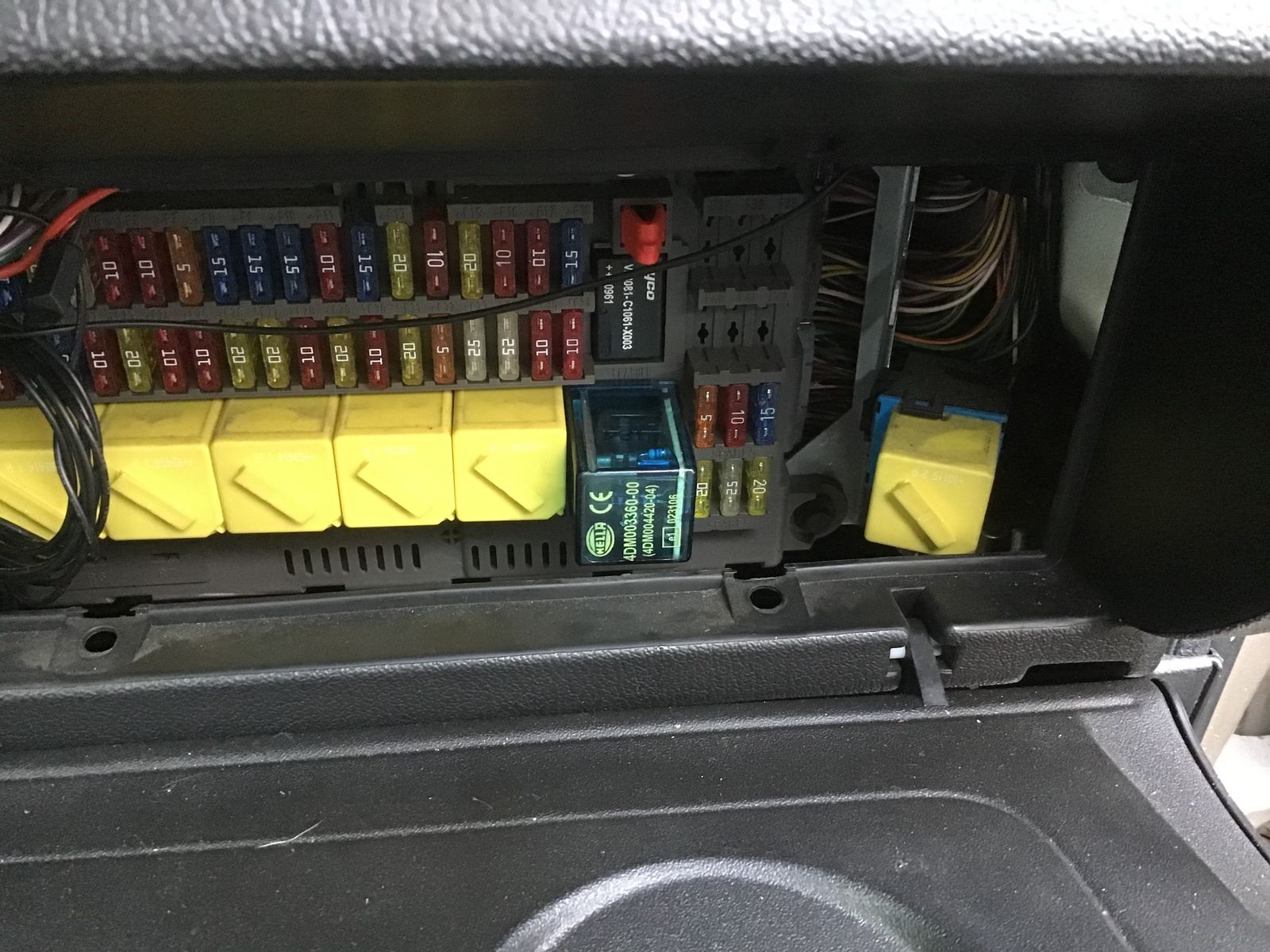

I believe that it is a standard 4 pin flasher for a trailer. I pinched mine out of another Freelander, but I think most accessory shops should do one. The one in there has 3 pins. To make it easier for you - drop the drivers side glove box. Remove the fuse box lid and the flasher relay is the right hand square box on the bottom row. !!!

BTW - you are not 'thick' - questions are only hard when you don't know the answers - when you know the answers they are easy !!!

andyfreelandy said:
I believe that it is a standard 4 pin flasher for a trailer. I pinched mine out of another Freelander, but I think most accessory shops should do one. The one in there has 3 pins. To make it easier for you - drop the drivers side glove box. Remove the fuse box lid and the flasher relay is the right hand square box on the bottom row. !!!
Click to expand...
thanks andy will have a look when wife gets back from shopping think I can work that one out

update on trailer beeper/flasher rang Land rover £42 for oem part but as I know the parts man he gave me the part number so got one off ebay £ 12
just fitted it BUT the trailer light on dash flashes with indicators with out trailer attached is this normal ?

Last edited:
First flash without trailer is normal but just the one. When trailer connected it should flash all the time when indicating.

silly boy said:
its flashes all time when indicating without trailer is there any checks I can do
Click to expand...

The flasher unit doesn't sound accurately calibrated, or the indicators are taking more power than they should, which is unlikely.

The flasher unit should monitor the power consumption, and flash the dash light when it sees the extra power draw of the trailer bulbs. If it's flashing all the time, it suggests that it's not accurately calibrated.

up date on flasher got the land rover electrics with the multi plug and fitted "but" warning light still flashes all the time even without trailer on does it have be calibrated or something NOTE trailer has L E D lights does that make a difference

The warning lamp is supposed to flash once when indicating without a trailer connected, mine does not do this and it never has, but functions correctly when coupled up. As for led lights on the trailer, not certain but a reduced current draw could well cause an issue. Someone with more knowledge of the Hippo electrics may disagree. Have you tried the Hella flasher unit? It worked for me.

silly boy said:
up date on flasher got the land rover electrics with the multi plug and fitted "but" warning light still flashes all the time even without trailer on does it have be calibrated or something NOTE trailer has L E D lights does that make a difference
Click to expand...

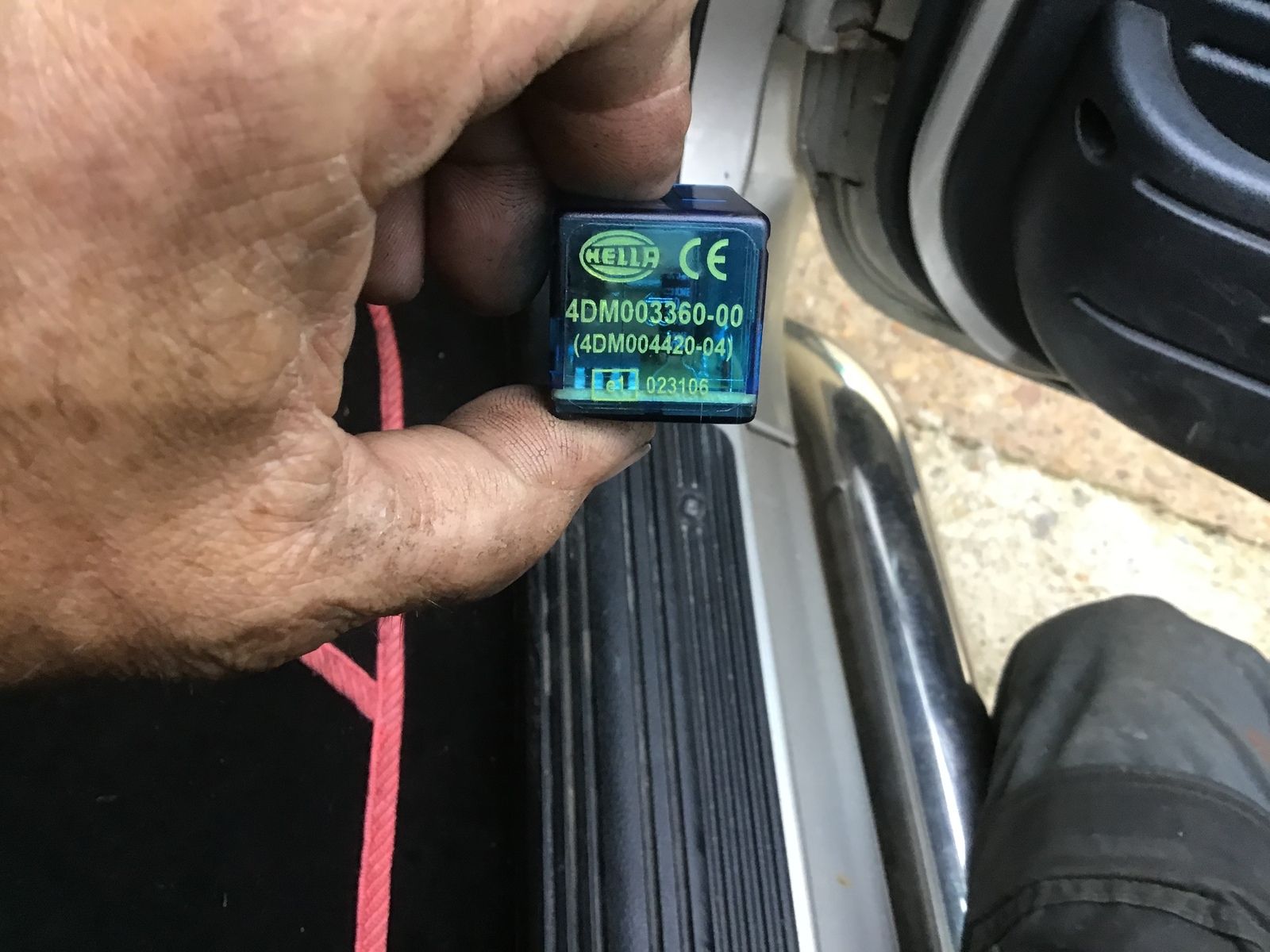

Is the flasher unit a Hella or Lucas unit, if not it sounds like it's not working correctly
