Tow wiring (NATO)

Discussion in '101's and Military' started by 14platoon, Jun 16, 2020.

< Previous Thread | Next Thread >
  1. 14platoon

    14platoon Active Member

    Joined:
    Nov 13, 2016
    Posts:
    241
    Likes Received:
    55
    Location:
    Kent
    Hello
    Recently had the rear cross member replaced on my 1992 Defender.
    I need to re wire the wires back into the tow electrics terminal but they’re all yellow and have been disconnected from the terminal completely. How do I differentiate them?
    Thanks

  2. Huddy84

    Huddy84 Well-Known Member

    Joined:
    Jul 10, 2013
    Posts:
    706
    Likes Received:
    195
    Location:
    East Anglia
    If they are all the same colour you may need to use a volt meter to identify what they are.

    14platoon likes this.
  3. 14platoon

    14platoon Active Member

    Joined:
    Nov 13, 2016
    Posts:
    241
    Likes Received:
    55
    Location:
    Kent
    Yeah was thinking that

  4. flat

    flat Well-Known Member

    Joined:
    Mar 11, 2013
    Posts:
    7,548
    Likes Received:
    2,424
    Location:
    Far away from you!!
    mine have little sleeve things on each wire that might mean something, will look tomorrow for you

    14platoon likes this.
  5. 14platoon

    14platoon Active Member

    Joined:
    Nov 13, 2016
    Posts:
    241
    Likes Received:
    55
    Location:
    Kent
    Thanks Flat

  6. Mally T

    Mally T Member

    Joined:
    Oct 30, 2015
    Posts:
    32
    Likes Received:
    11
    Location:
    North Wales
    Are you wiring it back to a NATO plug or a Civi.
    The little sleeve's on the yellow wires should have letters on, A to N.
    A, F,H are spare. B left hand stop light. C convoy. D and L earth. E tail and number plate light.
    J right hand stop light. K aux positive. M left hand turn light. N right hand turn light.
    Hope this helps, if you won't the civi plug system let me know.
    Mal

    terr, Zed. and 14platoon like this.
  7. 14platoon

    14platoon Active Member

    Joined:
    Nov 13, 2016
    Posts:
    241
    Likes Received:
    55
    Location:
    Kent
    I tried to find sleeves on mine but couldn’t, are they near the plug itself? I was going to return it to NATO but also but an adapter to civi.

  8. Mally T

    Mally T Member

    Joined:
    Oct 30, 2015
    Posts:
    32
    Likes Received:
    11
    Location:
    North Wales
    On mine the sleeves are at the end of the wire.
    I have come across some wiring where the sleeves are missing due to have being cut
    and re-wired!.

  9. 14platoon

    14platoon Active Member

    Joined:
    Nov 13, 2016
    Posts:
    241
    Likes Received:
    55
    Location:
    Kent
    Thanks mate, nato plug end or at the source (labels)?

  10. Mally T

    Mally T Member

    Joined:
    Oct 30, 2015
    Posts:
    32
    Likes Received:
    11
    Location:
    North Wales
    Both ends of the loom, don't any of the wires have markings.
    If i could get to mine i would take some photos for you to see, but i cannot get to her
    due to our Wales COVID-19 lock down(5-mile radius from where we live) landy 20 miles
    from where i live.
    Sorry i can't help you more.
    Mal

  11. 14platoon

    14platoon Active Member

    Joined:
    Nov 13, 2016
    Posts:
    241
    Likes Received:
    55
    Location:
    Kent
    Thanks anyway mate. I’ll try to rub the dirt and mud off and see what I can see.

  12. mystery

    mystery Well-Known Member

    Joined:
    Jan 11, 2010
    Posts:
    766
    Likes Received:
    135
    Location:
    torquay Devon

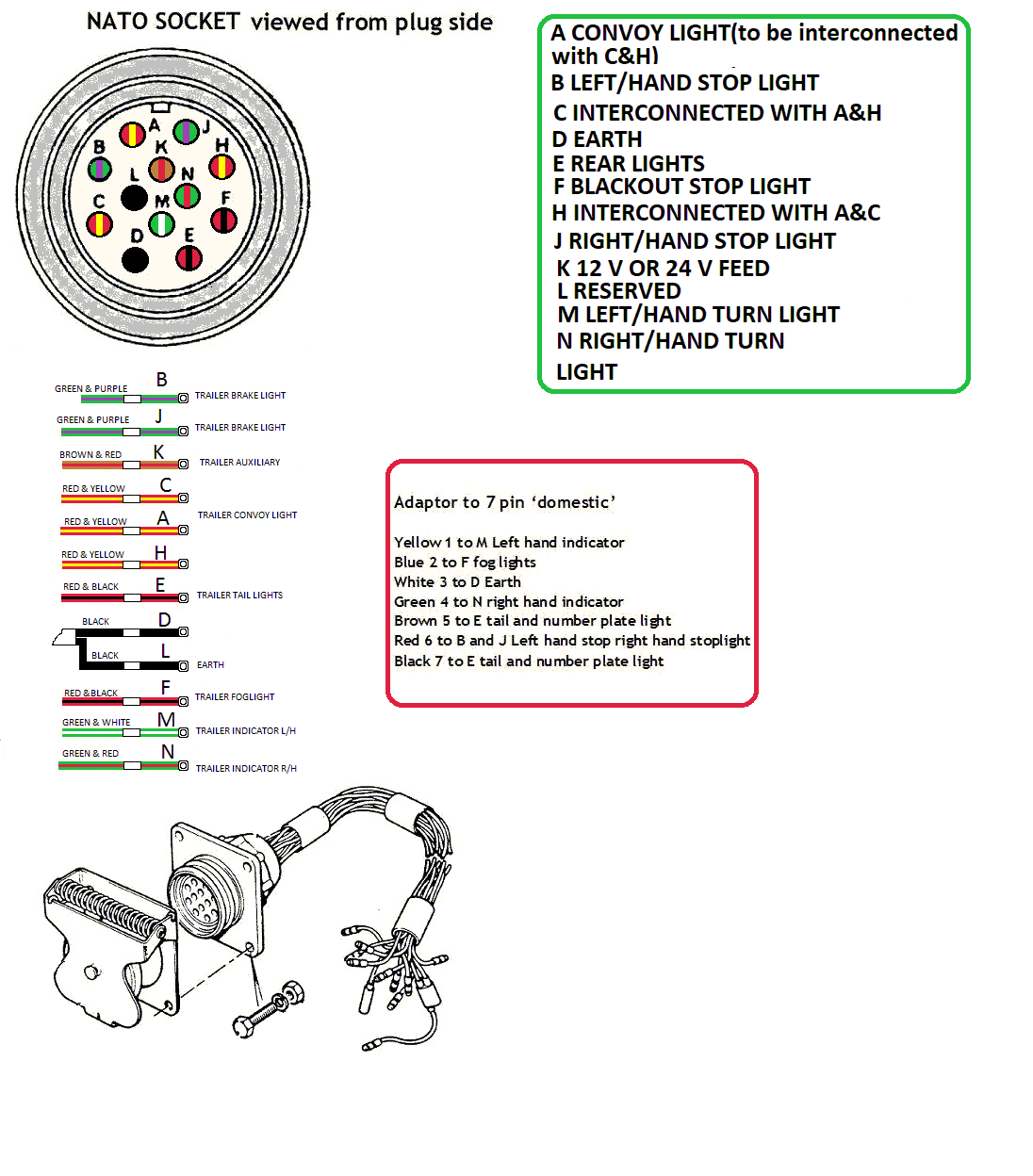

    connections NATO Plug Wiring.png

    14platoon and Mally T like this.
  13. 14platoon

    14platoon Active Member

    Joined:
    Nov 13, 2016
    Posts:
    241
    Likes Received:
    55
    Location:
    Kent
  14. 14platoon

    14platoon Active Member

    Joined:
    Nov 13, 2016
    Posts:
    241
    Likes Received:
    55
    Location:
    Kent
    Well might have hit a snag. Someone’s chopped the wiring halfway up so pointless me trying to rewire the nato plug! now I’ll have to wire in a fresh 7 pin job.


    Attached Files:

  15. Mally T

    Mally T Member

    Joined:
    Oct 30, 2015
    Posts:
    32
    Likes Received:
    11
    Location:
    North Wales
    Bugger, i hate when that happens :mad:
    I am sure you will sort it out, the joy of owning a Landy ;).

    14platoon likes this.
