Top shock mount - does this look right?

Discussion in 'Range Rover' started by DaveRRC, May 8, 2017.

< Previous Thread | Next Thread >
  1. DaveRRC

    DaveRRC Member

    Joined:
    Mar 24, 2017
    Posts:
    15
    Likes Received:
    0
    Location:
    Devon

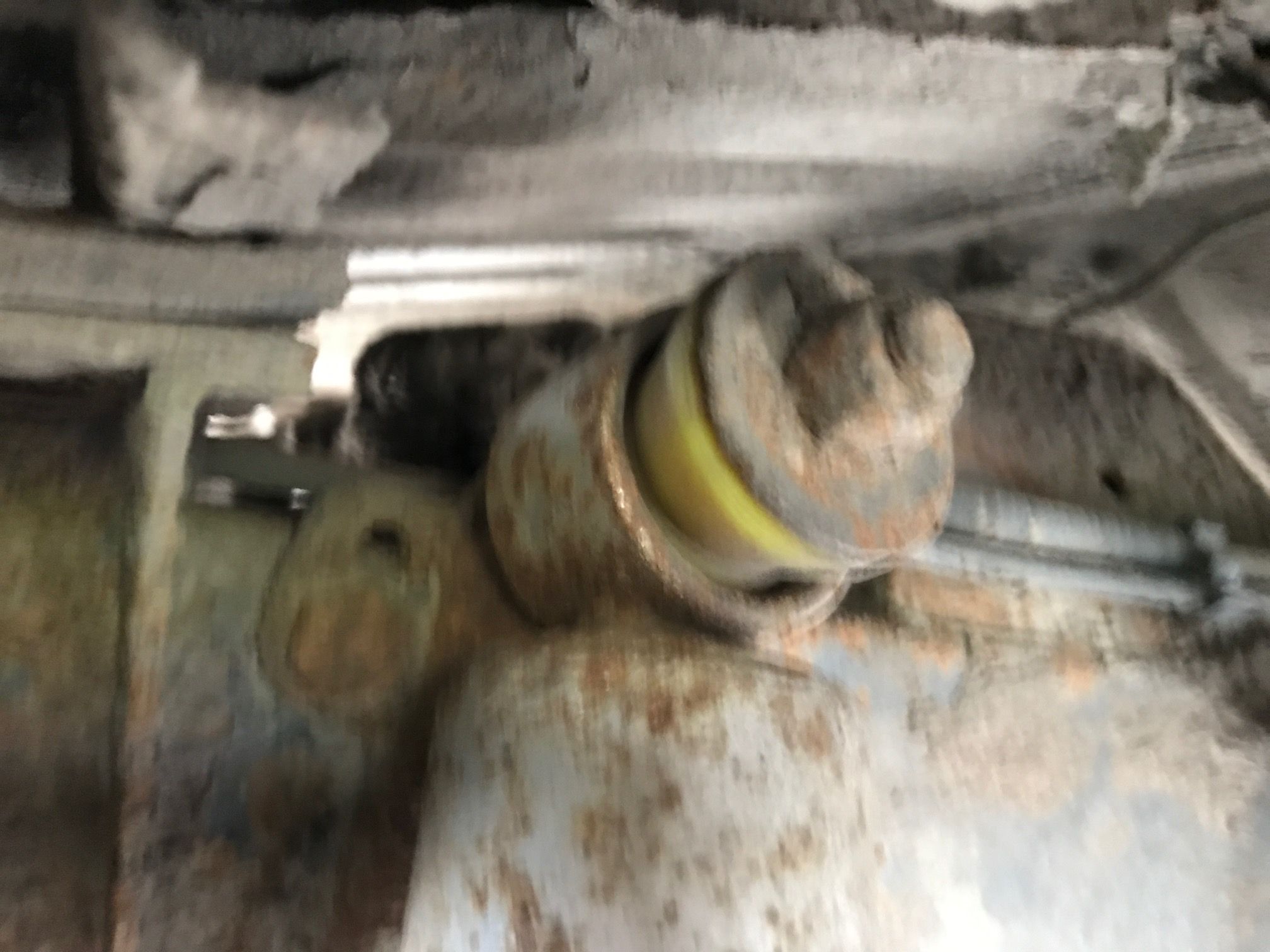

    The shock looks like this both sides. Am I missing a shim or insert? I'm not sure what the shock is, but the truck does have a 2" lift. I'm readying the truck for a trip to Spain in the mountains, so need it in good shape.
    [​IMG] https://1drv.ms/i/s!ArB9hJ6ifRiJhz070v-BnAQgb7MD

    Last edited: May 8, 2017
  2. neilly

    neilly Well-Known Member

    Joined:
    Jan 10, 2011
    Posts:
    17,593
    Likes Received:
    8,087
    Location:
    Oxfordshireness
    @DaveRRC

    Where is the piccie?

    Cheers

  3. DaveRRC

    DaveRRC Member

    Joined:
    Mar 24, 2017
    Posts:
    15
    Likes Received:
    0
    Location:
    Devon
  4. neilly

    neilly Well-Known Member

    Joined:
    Jan 10, 2011
    Posts:
    17,593
    Likes Received:
    8,087
    Location:
    Oxfordshireness
    If they are split bushes,

    Is the inner one knackered?

    Have to say, your photographic skills need a bit of tuning....LOL

    Cheers

    cooltide likes this.
  5. DaveRRC

    DaveRRC Member

    Joined:
    Mar 24, 2017
    Posts:
    15
    Likes Received:
    0
    Location:
    Devon
    I'm not sure about split bushes. I don't think so.
    I thought maybe it had a 2" lift and they kept the standard shocks, and therefore the alignment & fitment was wrong. It certainly doesn't seem to line up, or looks like something is missing form the shock mount. Dunno

    Last edited: May 8, 2017
  6. Expletive

    Expletive Active Member

    Joined:
    May 22, 2013
    Posts:
    111
    Likes Received:
    13
    Location:
    South Wales

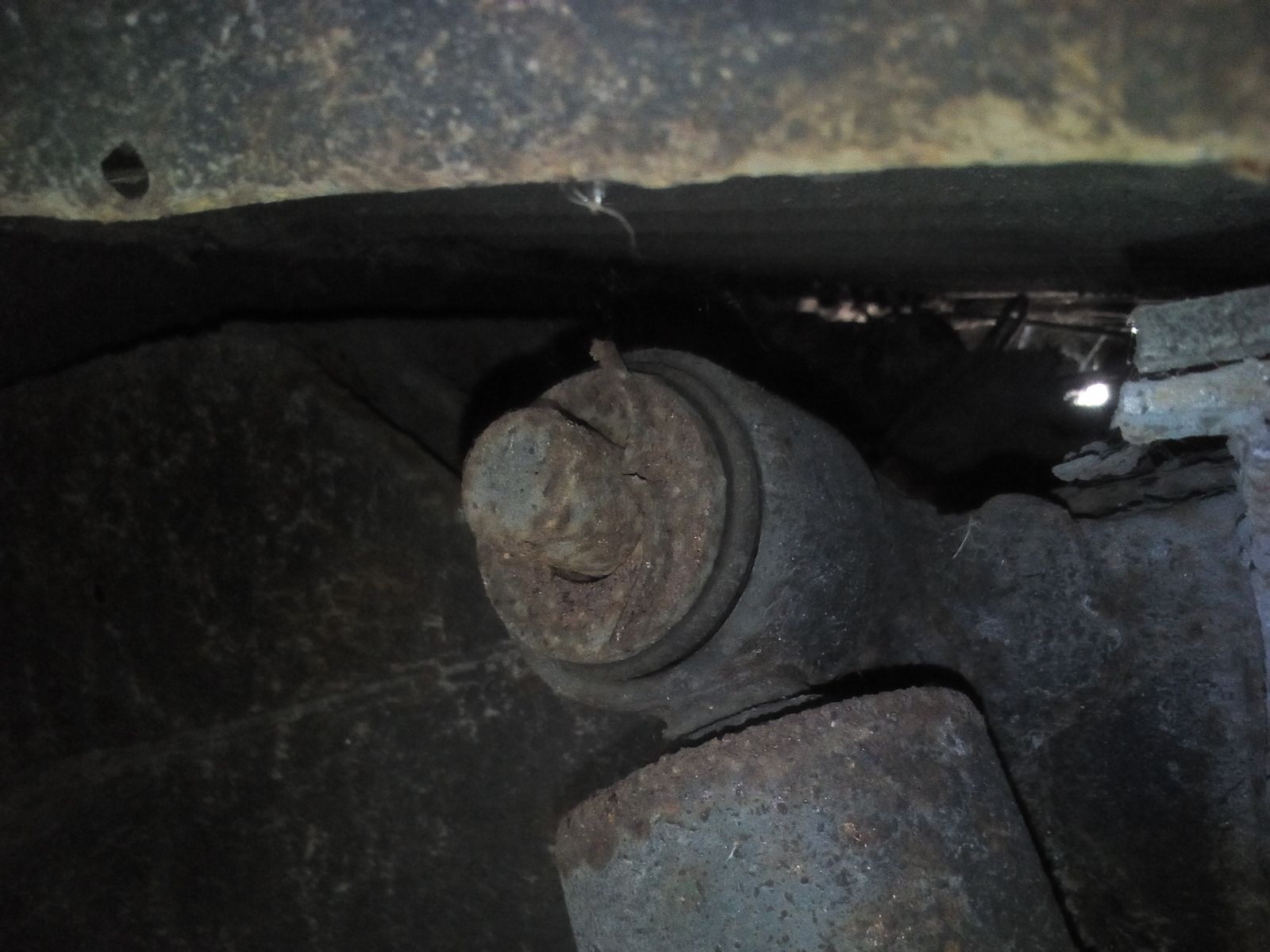

    If you think it may be alignment due to the lift then disconnect the bottom of the shock and see if you can get it to line up. Here's a pic of my shock mount for comparison if it helps (no lift, standard shocks). Otherwise just take the whole shock off and check the bush.


    Attached Files:

  7. DaveRRC

    DaveRRC Member

    Joined:
    Mar 24, 2017
    Posts:
    15
    Likes Received:
    0
    Location:
    Devon
  8. Mark Piercy

    Mark Piercy Well-Known Member

    Joined:
    Jul 11, 2016
    Posts:
    4,232
    Likes Received:
    1,369
    Location:
    sud ouest France
    buggered shock rubber/poly bush..thats for sure.
    time for some new ones me thinks!! :confused::p
    was picture taken with your nans camera?

  9. Gmacz

    Gmacz Well-Known Member

    Joined:
    Feb 12, 2016
    Posts:
    803
    Likes Received:
    272
    Location:
    Forfar/Dundee
    Shock mount looks ok and standard. I am sure mine was angled up as well. New ones are under £20. You need to remove nut and see what has gone wrong with bushes. Is it rattling over bumps, that is how i knew mine was gone.

  10. DaveRRC

    DaveRRC Member

    Joined:
    Mar 24, 2017
    Posts:
    15
    Likes Received:
    0
    Location:
    Devon

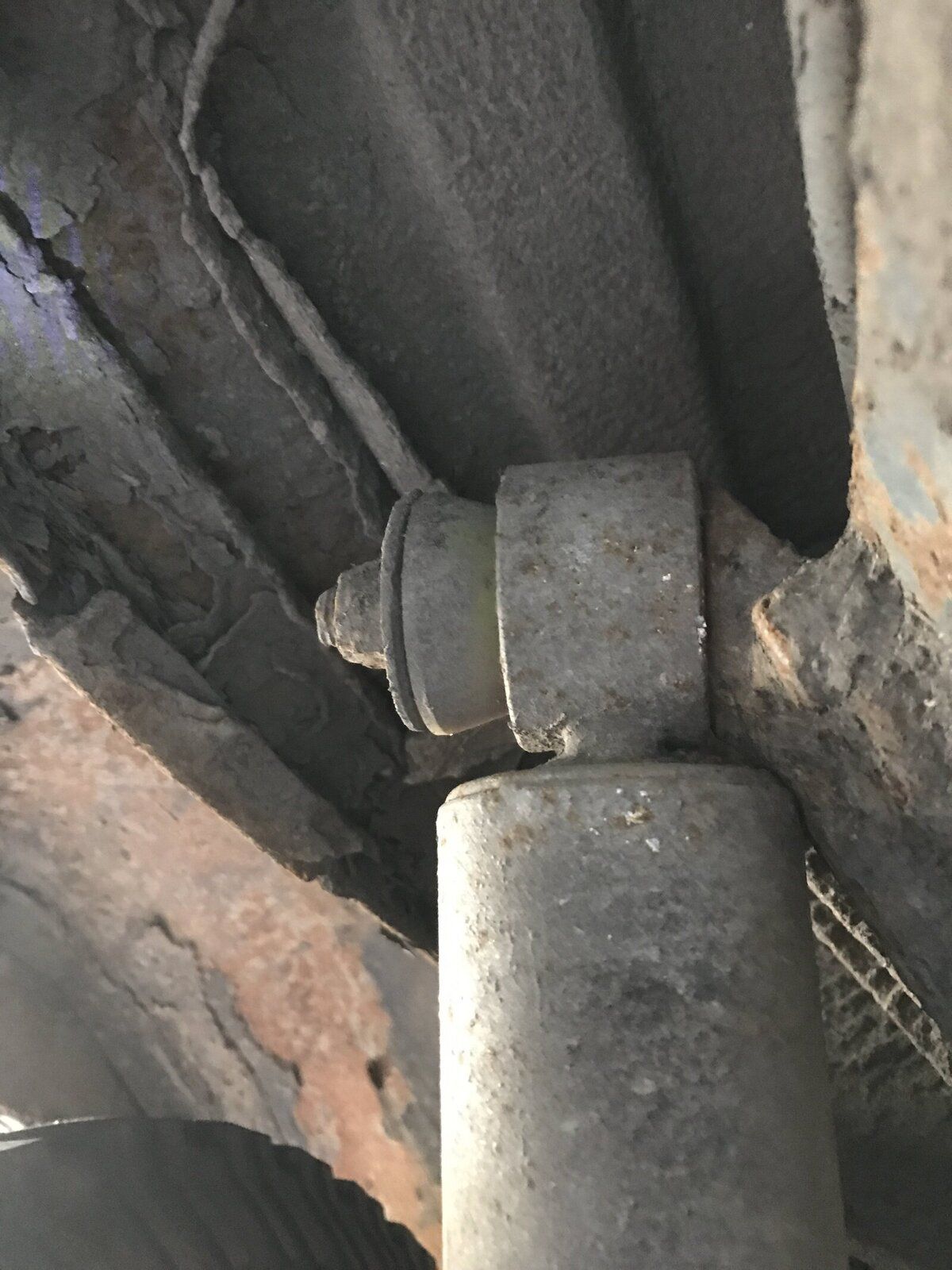

    Yeah, it's banging a bit. I can physically move the shock and hear it hit the metal. I've attached another pic. Should something be stopping the shock moving over that far? Am I missing something?
    I'm starting to think the truck is on 2" lifted springs and standard shocks. So where the shocks are too short it's knackered the bush under articulation.
    Is the answer new extended shocks? I read one discription of the Tereferma all terrain shocks FT117 and they are designed for a 2" lift. They're a pretty cheap solution, if so.
    Any advise?


    Attached Files:

  11. neilly

    neilly Well-Known Member

    Joined:
    Jan 10, 2011
    Posts:
    17,593
    Likes Received:
    8,087
    Location:
    Oxfordshireness
    That looks to me like a two piece bush that is missing the internal piece.

    Unbolt it and see what you have got in there.

    Cheers

  12. ovalandrover

    ovalandrover Well-Known Member

    Joined:
    Oct 21, 2010
    Posts:
    1,532
    Likes Received:
    208
    I have a set of terrafirma with 2 in lift used but still good if you can arrange to pick them up you can have them

  13. DaveRRC

    DaveRRC Member

    Joined:
    Mar 24, 2017
    Posts:
    15
    Likes Received:
    0
    Location:
    Devon
    That sounds great. I'll message you privately and get your details.
    Many thanks!

  14. myfirstl322

    myfirstl322 Well-Known Member

    Joined:
    Dec 29, 2012
    Posts:
    16,065
    Likes Received:
    5,677
    Location:
    Geroutavit.....
    Nasty yellow poly bushes, obviously inner half has deformed.

    The only good bushes are OEM. (and Blondes) Nirvana emoji:D

    wammers likes this.
