Timing marks?!

This site contains affiliate links for which LandyZone may be compensated if you make a purchase.

EvangelicAtheist

Active Member
Posts
80
Location
Norfolk
I am rebuilding a Disco 200TDi to go in my 90 and am now ready to put all the timing gears in, but I've hit a snag / am going mad.

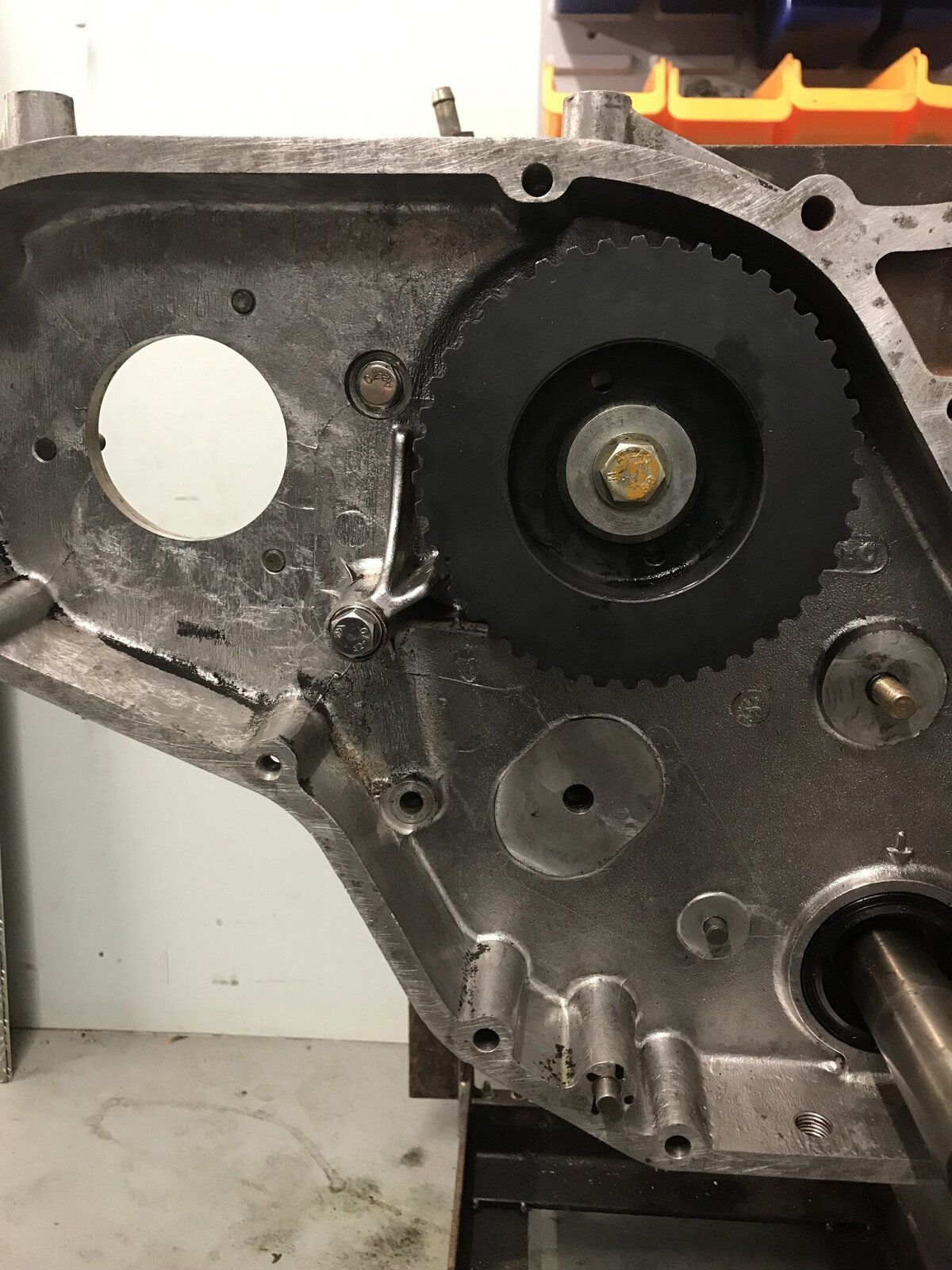

The only timing mark on the front plate is the crank, neither the fuel pump nor the camshaft appear to have any marks. I've seen pictures of a Defender plate and they are clear as day.... what am I missing?

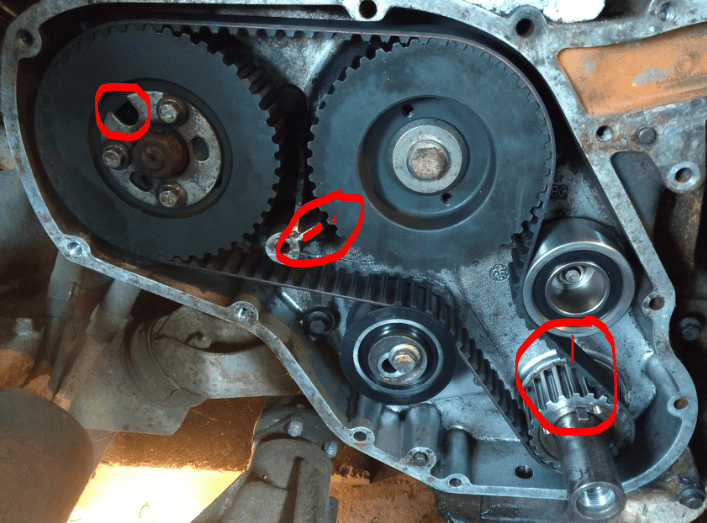

The flywheel has a marked notch in the teeth. The pump has a hole that lines up with the hole on the plate and gear. The crank is the arrow and woodruff key. The cam is the dot and casting. This is my Disco 200tdi :)
