Disco 2 This is where the Oil Filter is?!

This is a little thing that I expect everyone to already be familiar with, but I'm still a Disco newbie...

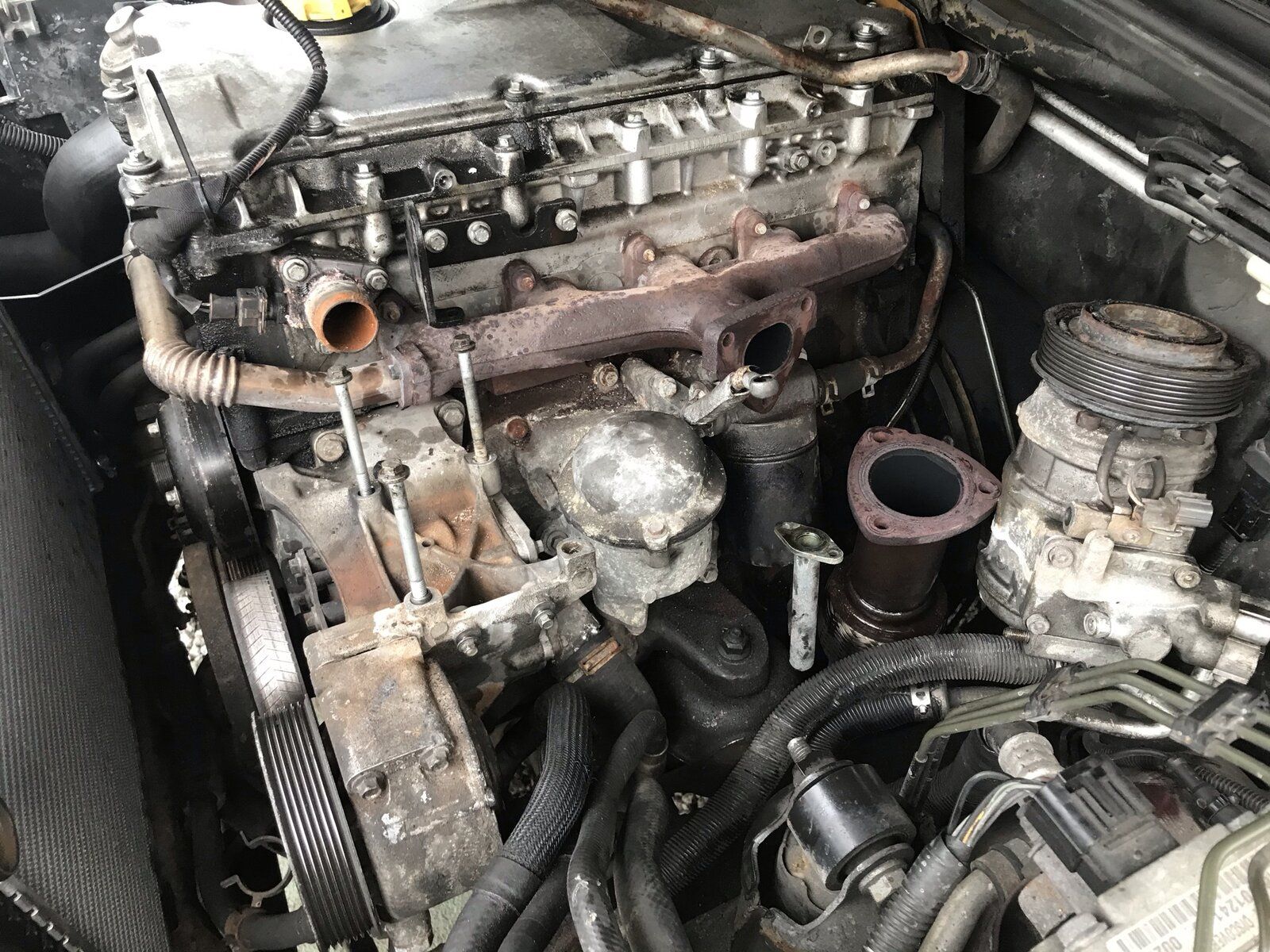

While getting to water pump (turns out not water pump but Power Steering rot on shaft) I had to take off the turbo. Underneath the exhaust manifold I found the oil filter. I get that you could get to the Centrifugal filter without the Turbo off but the normal filter looks pretty difficult to get at.

Is this really the only way to get to the Oil Filter?! Do you really have to take off the turbo every time?

I'm getting a Service Pack from Bearmach a little later tonight but is there anything else I should get to work on while it's in bits?

Deano

The easy way to change the oil filter is from below

Deanod said:

This is a little thing that I expect everyone to already be familiar with, but I'm still a Disco newbie...

While getting to water pump (turns out not water pump but Power Steering rot on shaft) I had to take off the turbo. Underneath the exhaust manifold I found the oil filter. I get that you could get to the Centrifugal filter without the Turbo off but the normal filter looks pretty difficult to get at.

Is this really the only way to get to the Oil Filter?! Do you really have to take off the turbo every time?
View attachment 227326
I'm getting a Service Pack from Bearmach a little later tonight but is there anything else I should get to work on while it's in bits?

Deano

Click to expand...

No.. there is a oil filter spanner for the td5 filter check paddocks site for one.

When you put the new one on only do it up hand tight, and NEXT time you come to take it off, put a pair of rubber gloves on and loosen it when the engine is still COLD, then warm up the engine. The filter will come off with your hands in gloves. Put a small plastic bag like a dog pooh bag around the filter to catch as much spilled oil as poss. It ain't impossible, just takes a bit of practice!

Stanleysteamer said:

When you put the new one on only do it up hand tight, and NEXT time you come to take it off, put a pair of rubber gloves on and loosen it when the engine is still COLD, then warm up the engine. The filter will come off with your hands in gloves. Put a small plastic bag like a dog pooh bag around the filter to catch as much spilled oil as poss. It ain't impossible, just takes a bit of practice!

Click to expand...

+1 it's not difficult unless you've got huge hands

Pawl said:

+1 it's not difficult unless you've got huge hands

Click to expand...

U mean its easy if you've got wimins mits.

Mine are more like an Orang Utan's - but they fit

I managed to get my hands in there, also my oil filter spanner with some perseverance

Henry_b said:

I managed to get my hands in there, also my oil filter spanner with some perseverance

Click to expand...

Do you use a strap wrench, or what?

Stanleysteamer said:

Do you use a strap wrench, or what?

Click to expand...

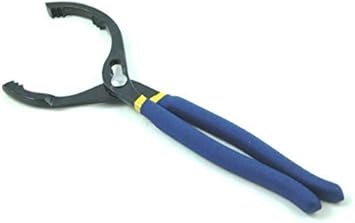

Nah one of these.



A 'tard must of chosen the placement for the filter on the TD5.

Engineers don't ask mechanics!!!!

Surely one of these fits or 2 maybe



J

Henry_b said:

Nah one of these.

A 'tard must of chosen the placement for the filter on the TD5.

Engineers don't ask mechanics!!!!

Click to expand...

Have used all sorts in the past including a weird thing that attaches to a 1/2" breaker bar, prefer a strap wrench with a rubber type strap. but i only ever need one once as I do the job properly and can use rubber gloves from then on!

marjon said:

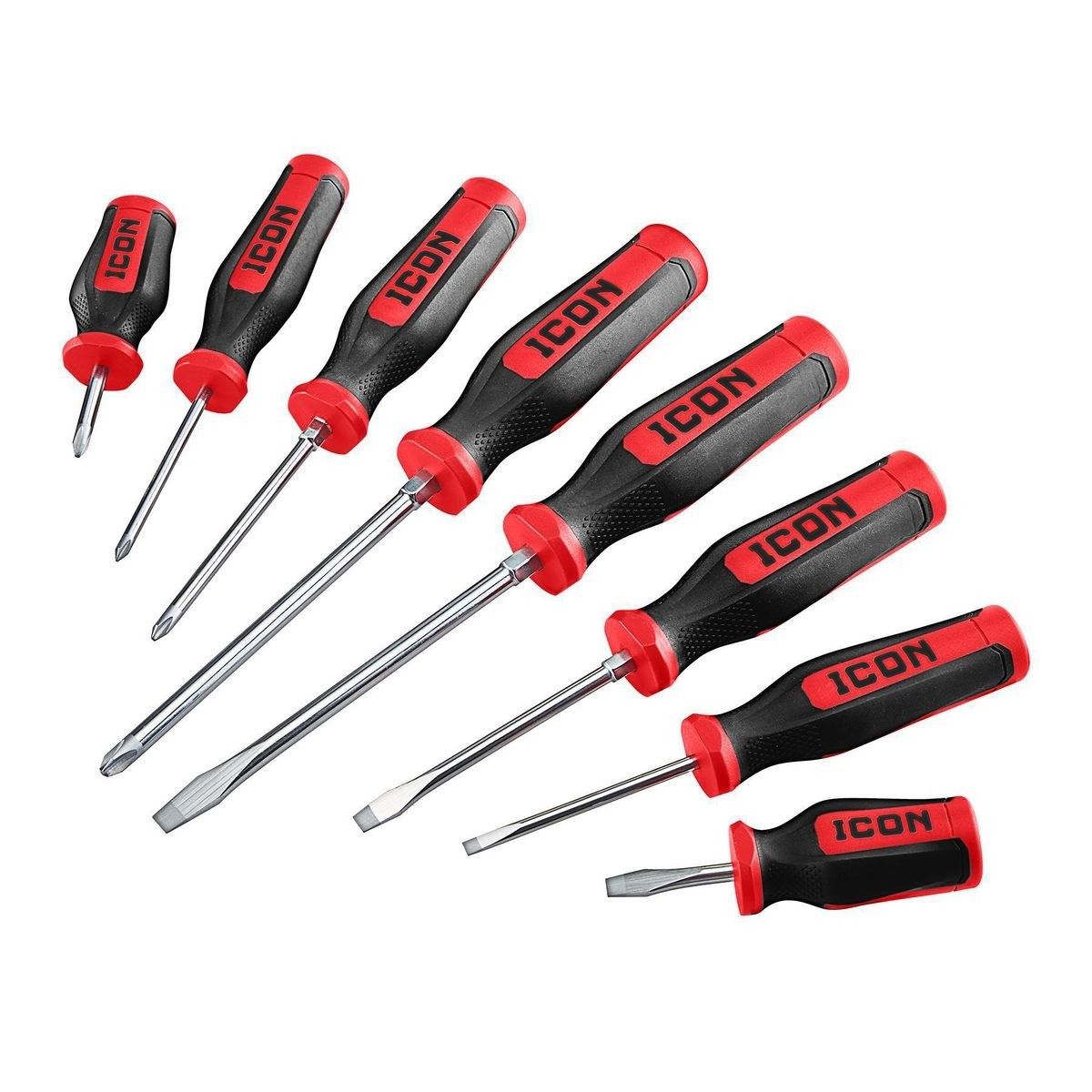

Surely one of these fits or 2 maybe

View attachment 227366

J

Click to expand...

Ooh you mucky boy!
Old skool rools!

marjon said:

Surely one of these fits or 2 maybe

View attachment 227366

J

Click to expand...

You mean smash a flat bladed screwdriver through it ? O why not, if ya stuck or ask the REME 'cos they wouldn't dream of doing that

Andy Warren said:

You mean smash a flat bladed screwdriver through it ? O why not, if ya stuck or ask the REME 'cos they wouldn't dream of doing that

Click to expand...

Or tap the edge round with an ammer an a cold chisel!
If you're gonna play, play!

I remove the oil cartridge filter by hand, not exactly a cinch, but you can get your hand in there relatively easily from above (unless your hands are like monster mitts!) to remove it and also put the new one on - never use a spanner or strap and never had leaks at the filters. Takes less than 5 minutes to remove and replace, making sure seal isn't left behind and new seal is lubricated.

I use an oil spanner - it's simple, cheap and although it's a Britpart (DA1117), it does work and is still in one piece !

Also, go easy with the bolts for the centrifugal filter cover as they are know to strip the threads on the housing.

NPG said:

I use an oil spanner - it's simple, cheap and although it's a Britpart (DA1117), it does work and is still in one piece !

Also, go easy with the bolts for the centrifugal filter cover as they are know to strip the threads on the housing.

Click to expand...

Noted! I have been really going to town with WD40 before touching anything recently.

Actually I've got a method for stuck stuff but i've never run it past anyone. Loads of oil about an hour before, if it doesn't come easy, paint stripper gun to warm everything up and then a big old breaker bar, used slowly.

I've found that massive overkill, used gently, breaks less bolts than using a small spanner with violence. Or am I just way off the mark?

Deanod said:

Noted! I have been really going to town with WD40 before touching anything recently.

Click to expand...

You need to use a 50/50 mix atf/acetone for releasing nuts and bolts.....WD40 is a water dispersal agent...

NPG said:

I use an oil spanner - it's simple, cheap and although it's a Britpart (DA1117), it does work and is still in one piece !

Click to expand...

I have this as well but never used as it fits only for one type of filter (maybe for genuine or Britpart?).
I use this type, works well for me.
